Canon MF3110 - ImageCLASS Laser Multifunction Guida rapida

Set-Up Instructions

Thank you for purchasing Canon imageCLASS MF3110.

To get your machine ready for use, please follow the instructions in this document before referring to any other documentation.

Unpack the machine and its components.

Check that you have the following:

●Machine ●Cartridge

●Power cord

●USB cable

●User Software CD (MF Setup, NewSoft Presto! PageManager, ScanSoft Omnipage SE,

Software Guide)

●Documentation (Set-Up Instructions, Basic Guide, Registration Card, Limited Warranty

Note, Limited Warranty Note for Cartridge X25)

Before setting up the machine:

1Place the machine on a flat, stable surface.

2Remove all shipping tapes from the exterior of the machine.

●Cassette extension ●Extension cover ●Output tray

CF-LDL US1 SI.qxd 6/29/04 10:25 AM Page 1

Install the cartridge.

4Pull open the front cover.

1Remove the cartridge from the bag. Keep the

bag in a safe place for future use.

2Gently rock the cartridge several times to

evenly distribute the toner inside.

3Hold the cartridge on a flat stable surface with

one hand, and break the tab ➊and pull out

the seal ➋completely with the other hand.

5Hold the cartridge so that the instructions (A)

and the arrow (B) are facing up, and insert it in

the machine horizontally as far as it will go.

6Close the front cover of the machine.

CF-LDL US1 SI.qxd 6/29/04 10:25 AM Page 2

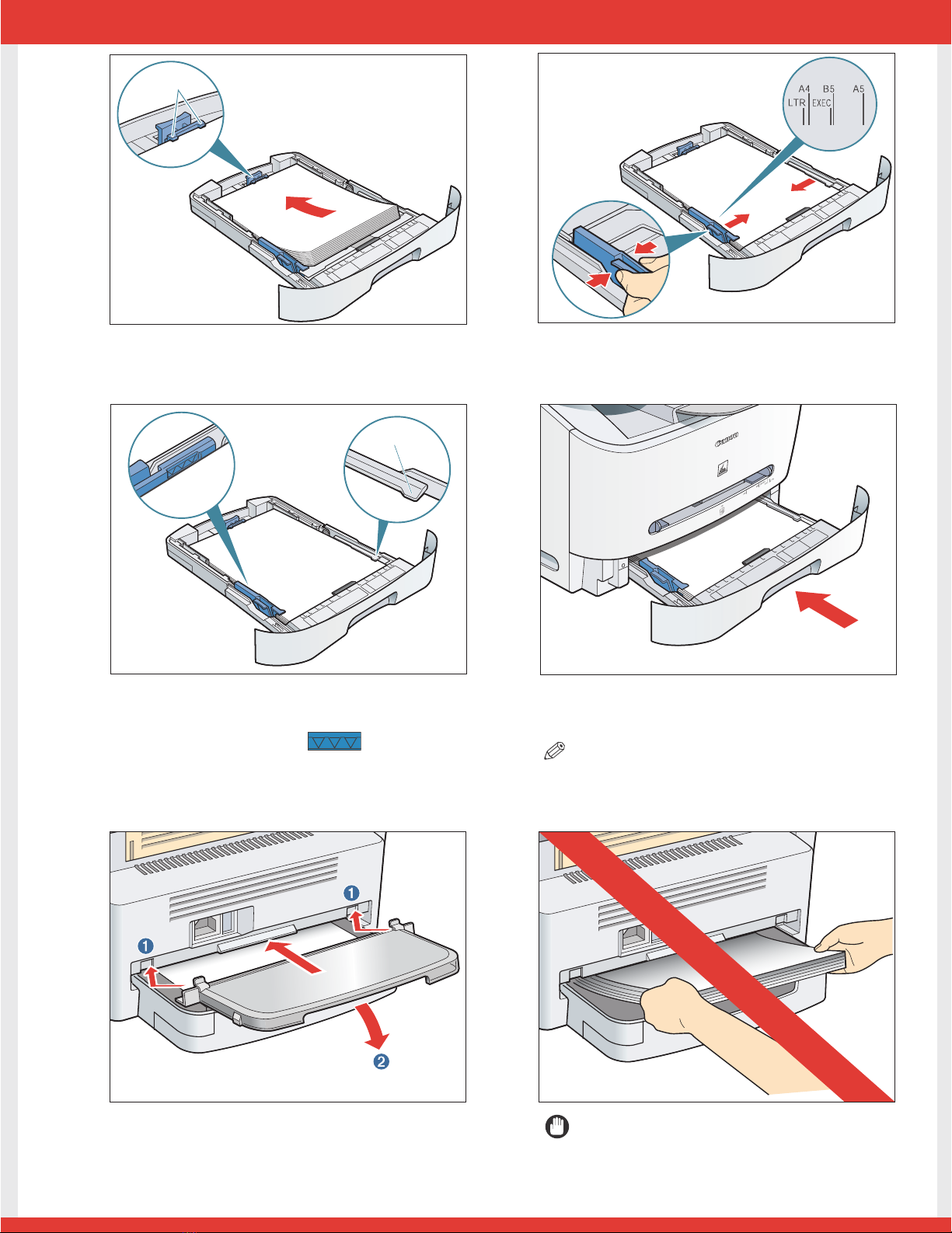

Assemble the cassette and load paper.

3Attach the extension to the cassette. The slots

➊are keyed and must be inserted at a 90°

angle. Once inserted, fold the extension as

shown ➋.

To load Legal-size paper:

Pull the blue tab ➊and extend the cassette ➋as far as it will go. Keep the rear paper end guide to LTR

size mark. If you are not using Legal-size paper, skip to the next step without extending the cassette.

Insert the output tray into the front slot on

the machine.

Pull out the paper cassette.

4Pinch and slide the rear paper end guide to

match the size of paper.

CF-LDL US1 SI.qxd 6/29/04 10:25 AM Page 3

7Even out the edges of the paper stack.

Make sure the height of the stack does not

exceed the limit marks and that the

side edges of the stack are below the hooks

(B).

9Insert the tabs on the extension cover into

the slots ➊on the back of the machine, and

carefully lower the cover ➋until it sits on

the cassette extension beneath it.

5Load the paper into the cassette. Make sure

the paper stack sits below the hooks (A)

6Pinch and slide the side paper end guides to

match the size of paper.

8Insert the paper cassette back into the

machine as far as it will go.

NOTE

●If you do not completely insert the cassette into the

machine, paper jams may occur.

IMPORTANT

●Do not load paper from the back of the machine. Doing

so may damage the paper feeding assembly inside the

machine.

CF-LDL US1 SI.qxd 6/29/04 10:25 AM Page 4

2The machine takes up to 3 minutes to warm up.

Once it is warmed up, the standby display appears in

the LCD.

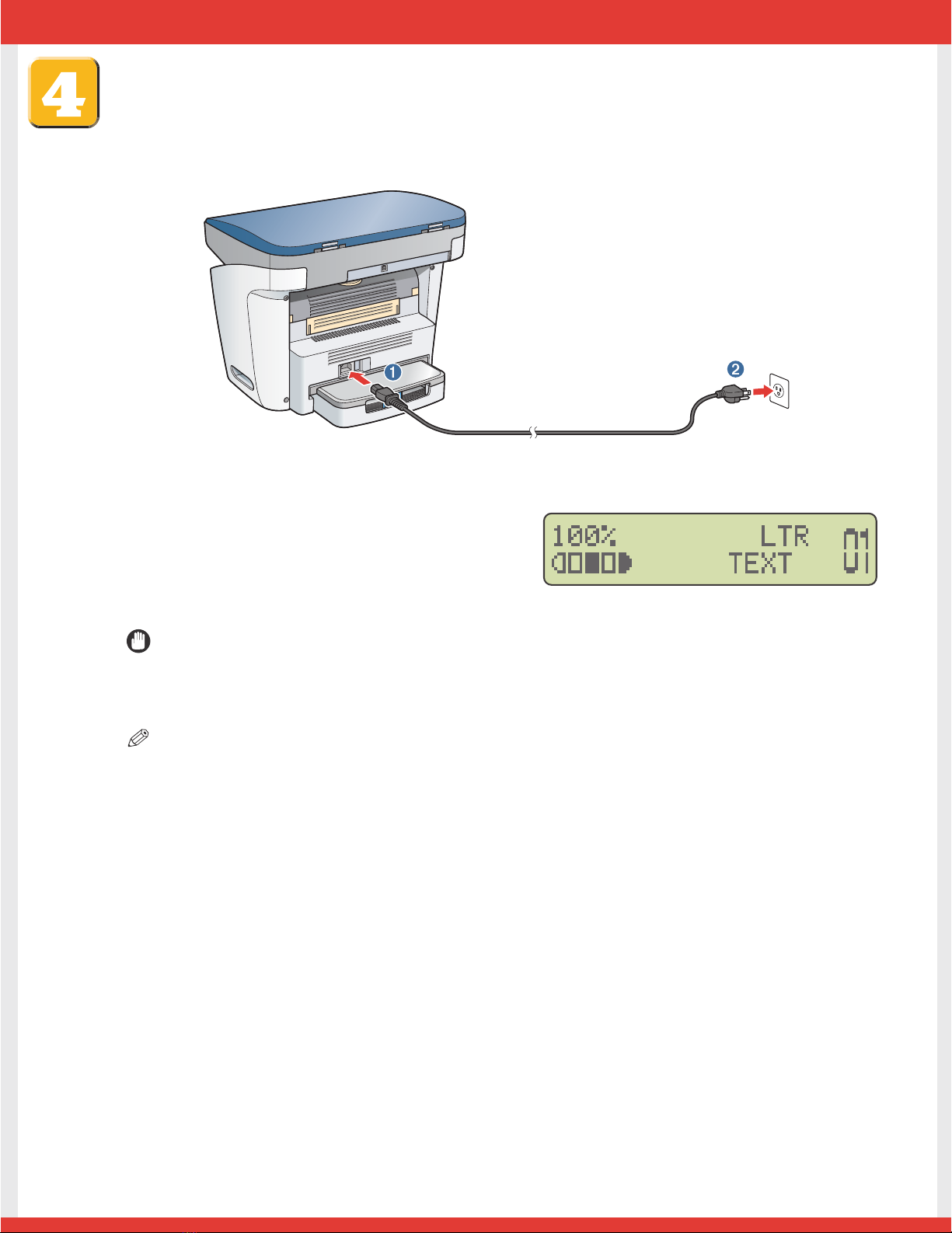

Connect the power cord.

1Plug the power cord into the rear socket ➊.Then connect the other end to the wall outlet ➋.

IMPORTANT

●For important safety instructions on installation and handling of the machine, see “Important Safety Instructions” in

the Basic Guide.

NOTE

●Make sure the correct paper size is specified in the machine. For details, see Chapter 2,“Paper Handling,” in the Basic

Guide.

CF-LDL US1 SI.qxd 6/29/04 10:25 AM Page 5

Install the software.

IMPORTANT

●Do not connect the USB cable before installing the software. If you connect the USB cable before installing the software

and the Found New Hardware Wizard screen appears, click [Cancel] and disconnect the USB cable.

NOTE

●The instructions below are for Windows XP. For Windows 98/Me/2000, see the Software Guide (included in the User

Software CD).

●For Windows 2000/XP, log on as Administrator to install the software.

1Turn on your computer.

2Quit any open applications, including virus checking software.

3Insert the User Software CD into the CD-ROM

drive.

4When the MF Setup screen appears, click

[Install MF Drivers].

●If the MF Setup screen is not displayed, on the

Windows desktop, click [start] ➝[My Computer].

Open the CD-ROM icon, then double-click [Setup

(Setup.exe)].

5When the MF Drivers Setup screen appears,

click [Yes] and follow the instructions on the

screen.

6When the installation is complete, click

[Finish] to close the MF Drivers Setup screen.

CF-LDL US1 SI.qxd 6/29/04 10:25 AM Page 6

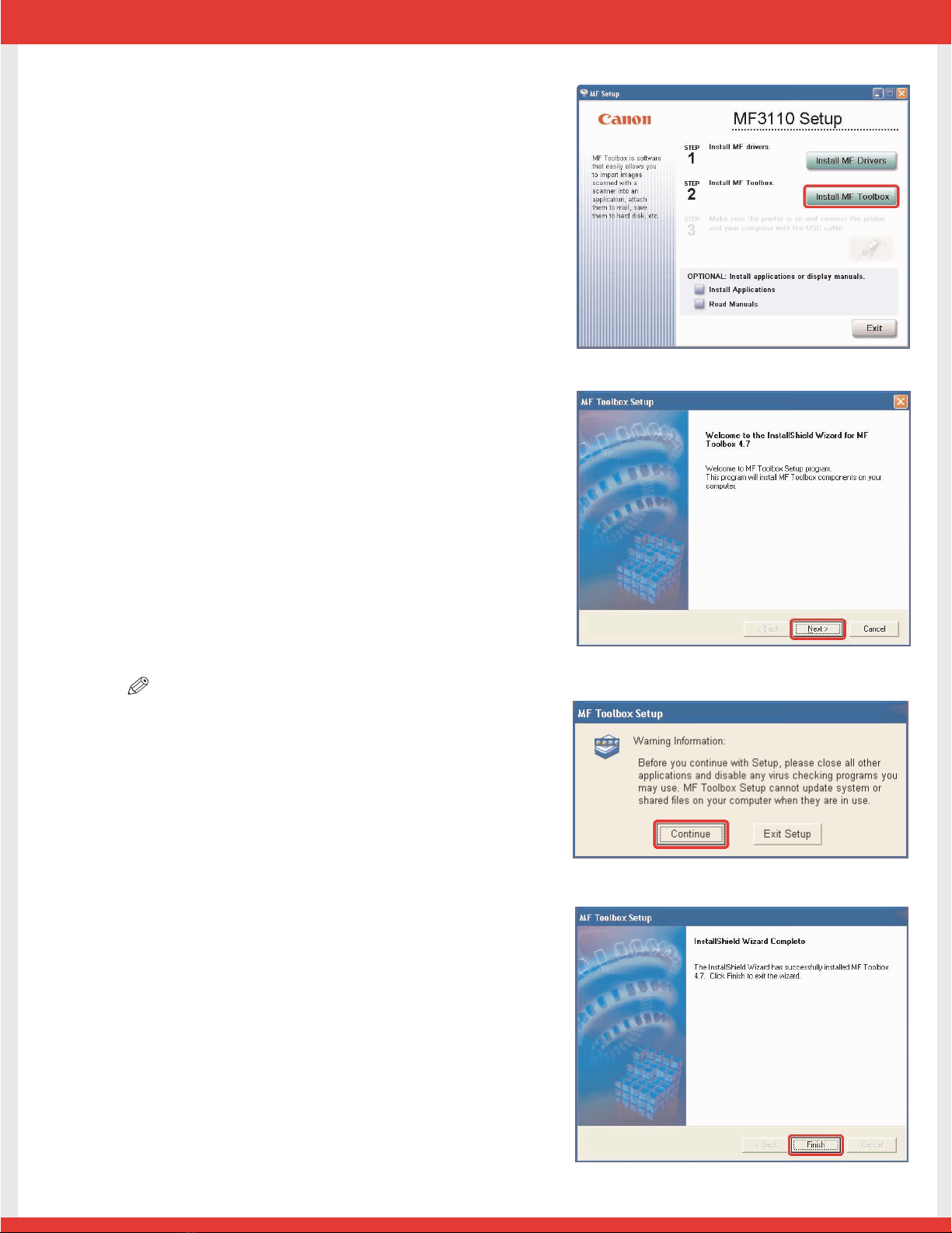

7On the MF Setup screen, click [Install MF

Toolbox].

8When the MF Toolbox Setup screen appears,

click [Next] and follow the instructions on the

screen.

NOTE

●Before installing MF Toolbox, make sure that all other

applications are closed and that any anti-virus software on

your computer is disabled.

9When the installation is complete, click [Finish]

to close the MF Toolbox Setup screen.

CF-LDL US1 SI.qxd 6/29/04 10:25 AM Page 7

Part no. FA7-6215 (000)

Canon and imageCLASS are trademarks of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

PRINTED IN CHINA

Congratulations! You have now completed the machine setup.

Where to go from here...

Once you have completed all steps in this document, see the Basic Guide for basic

operations of all functions of your machine.

For information on the driver software, see the Software Guide (included in the User

Software CD).

NOTE

●Remember to register your machine to ensure product support. The serial number is located on the back of the

machine.

Connect the machine to your computer.

1Make sure the machine’s power is turned on.

Connect the cable to the USB port on the

back of the machine.Then connect the other

end of the cable to the USB port on your

computer.

2After the installation is complete, click [Exit]

to close the MF Setup screen. Remove the

User Software CD from the CD-ROM drive

and store it in a safe place.

NOTE

●If you would like to install the optional Presto! PageManager file management software and/or OmniPage OCR software,

click [Install Applications] and follow the instructions on the screen.

●You can also click [Read Manuals] to read PDF manuals in the User Software CD. To view the manuals in PDF format,

Adobe Reader/Acrobat Reader/Acrobat is required. If Adobe Reader/Acrobat Reader/Acrobat is not installed on your

system, please download it from the Adobe Systems Incorporated website (http://www.adobe.com).

For installation help and operational instructions, call us at:

1-800-828-4040 1-800 OK CANON

U.S.A. CUSTOMERS CANADA CUSTOMERS

CF-LDL US1 SI.qxd 6/29/04 10:25 AM Page 8
