ENG

Starter Guide

Please read this guide before operating this equipment.

After you finish reading this guide, store it in a safe place for future reference.

Set Up the Machine

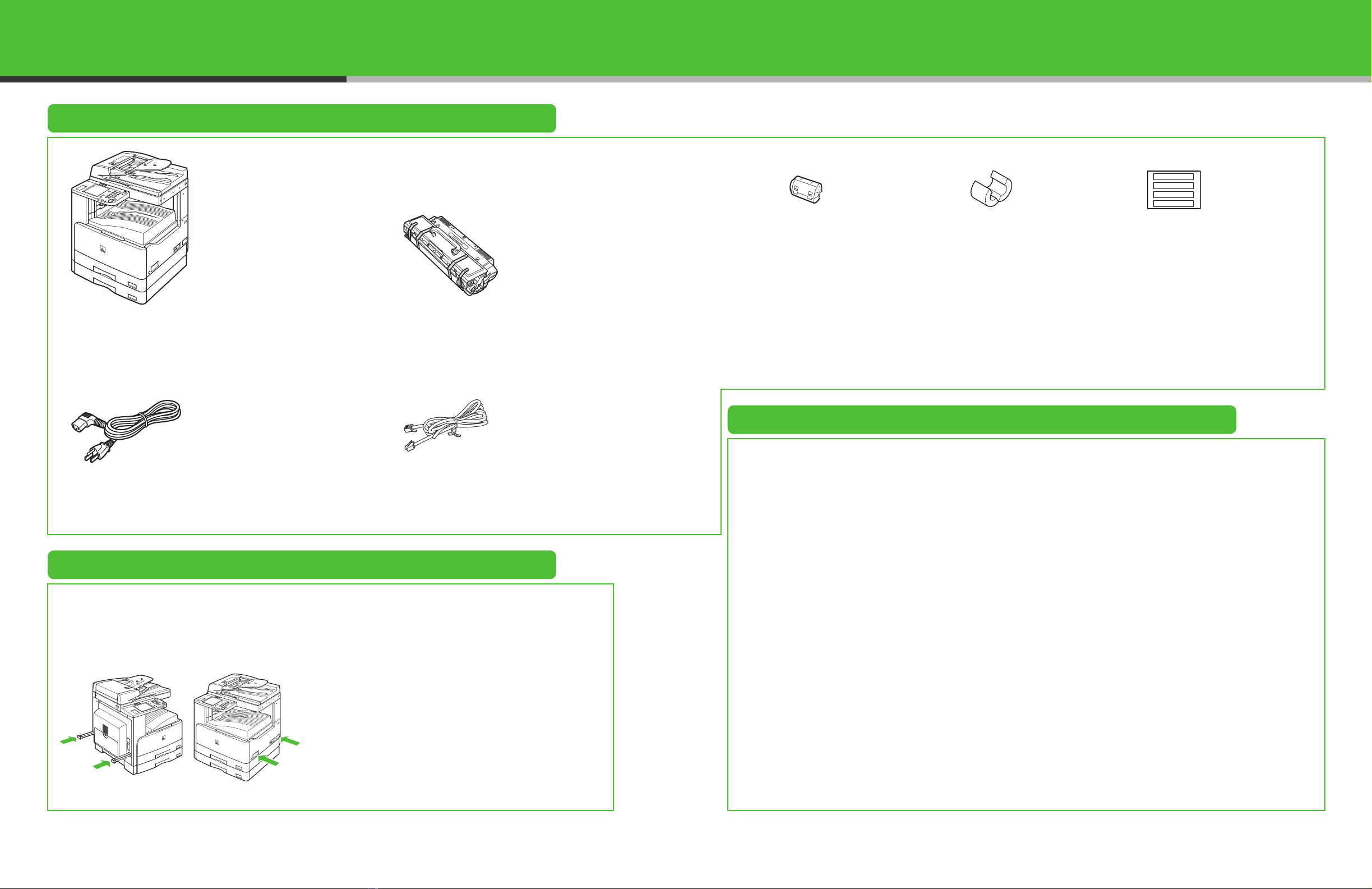

Do You Have Everything?

Manuals for the Machine

●Starter Guide (This Document): Machine set-up and software installation

●Easy Operation Guide: Quick reference for basic operations

●Reference Guide: Basic operations and troubleshooting

●Copying Guide: Copying instructions

●Sending Guide: Sending instructions

●Facsimile Guide: Fax instructions

●Network Quick Start Guide: Setting up the network connection and installing the CD-ROM software

●Remote UI Guide: Remote user interface instructions

●Network Guide: Network connectivity and setup instructions

●PCL/UFR II Printer Guide: PCL/UFR II printer instructions

●PCL Driver Guide: PCL printer driver installation and instructions

●UFR II Driver Guide: UFR II printer driver installation and instructions

●Fax Driver Guide: Fax driver installation and instructions

Assistance:

If you have a problem with your machine and you cannot solve it by referring to the manuals listed above,

please contact our Canon Authorized Service Facilities or the Canon Customer Care Center at 1-800-

828-4040 between the hours of 8:00 A.M. to 8:00 P.M. EST Monday through Friday and 10:00 A.M. to

8:00 P.M. on Saturday.

Before Setting Up the Machine

●Remove all shipping tape on the machine.

●When carrying the machine, be sure that it

is carried by two or more people holding

the parts indicated below.

●The machine illustration may differ slightly

from your machine.

●Machine ●Cartridge

●Starter Guide

●Easy Operation Guide

●Reference Guide

●Copying Guide

●Sending Guide

●Facsimile Guide

●Network Quick Start Guide

●User Software CD (2 CDs)

●User Manual CD

●Limited Warranty Notice

●Cartridge Warranty Notice

●Registration Card

●Ferrite Core for USB Cable ●Ferrite Core for LAN Cable ●Document Size Label

●Paper Size Label

●Stamp Cartridge

●Tweezers

●Power Cord ●Telephone Cable

1 2

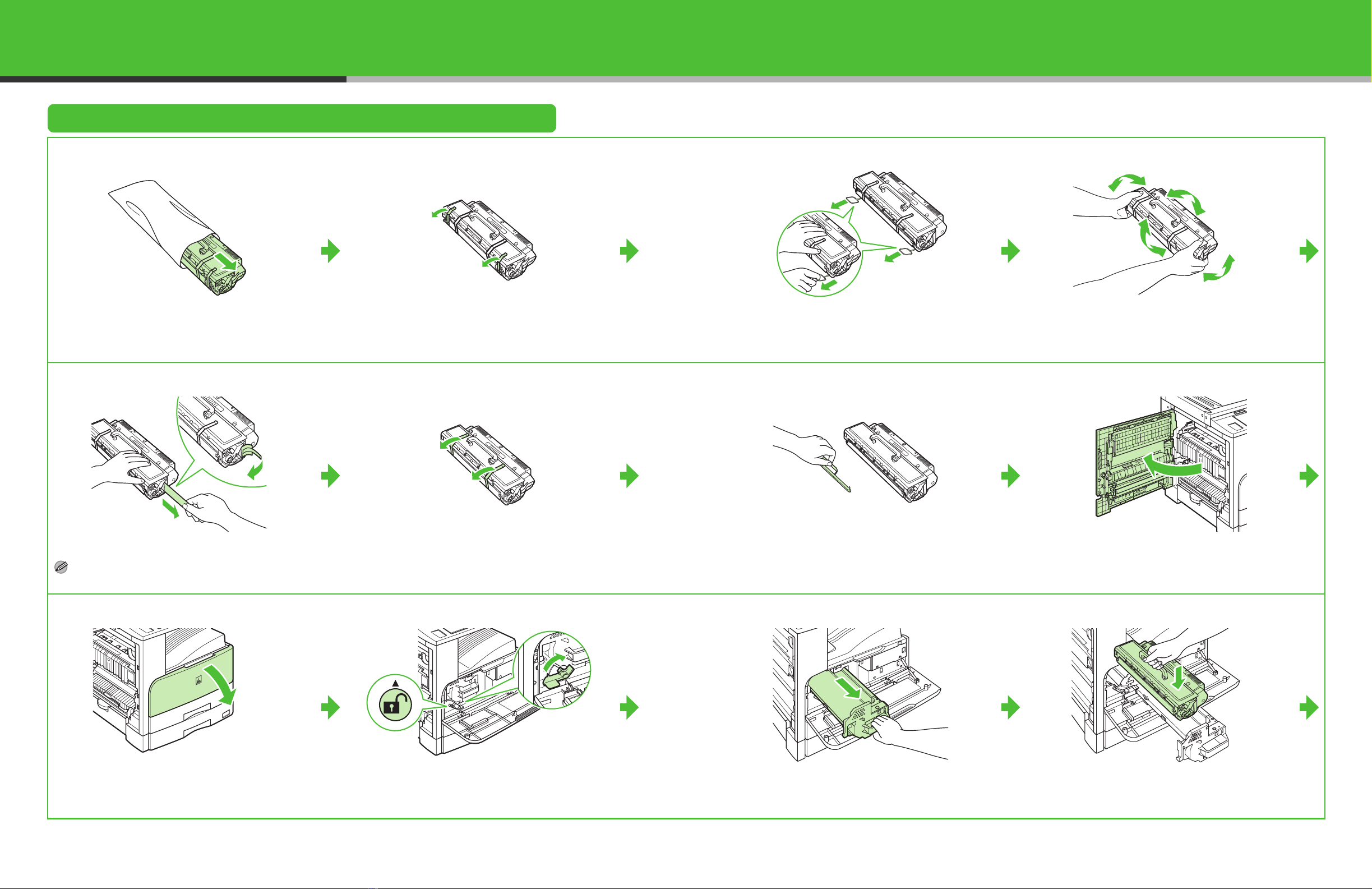

Install Cartridge

Remove the cartridge from the bag.

Keep the bag for future use.

Remove the short shipping tape.

Remove the packing materials.

Gently rock the cartridge several times to distribute

toner inside.

Pull out the seal completely.

NOTE

Do not pull out the seal at an angle.

Remove the long shipping tape.

Remove the protective cover.

Push the release button on the left cover of the

main unit to open the left cover.

Open the front cover.

Rotate the unlock lever until it clicks.

While grasping the handle of the cartridge holder,

pull the cartridge holder out of the machine until it

stops.

Hold the cartridge by its handle, then insert it into

the cartridge holder.

Push the cartridge holder into the machine as far

as it will go.

Rotate the lever to the locked position.

Close the front cover.

NOTE

Be careful not to get your fingers caught.

Gently close the left cover until it clicks.

NOTE

Be careful not to get your fingers caught.

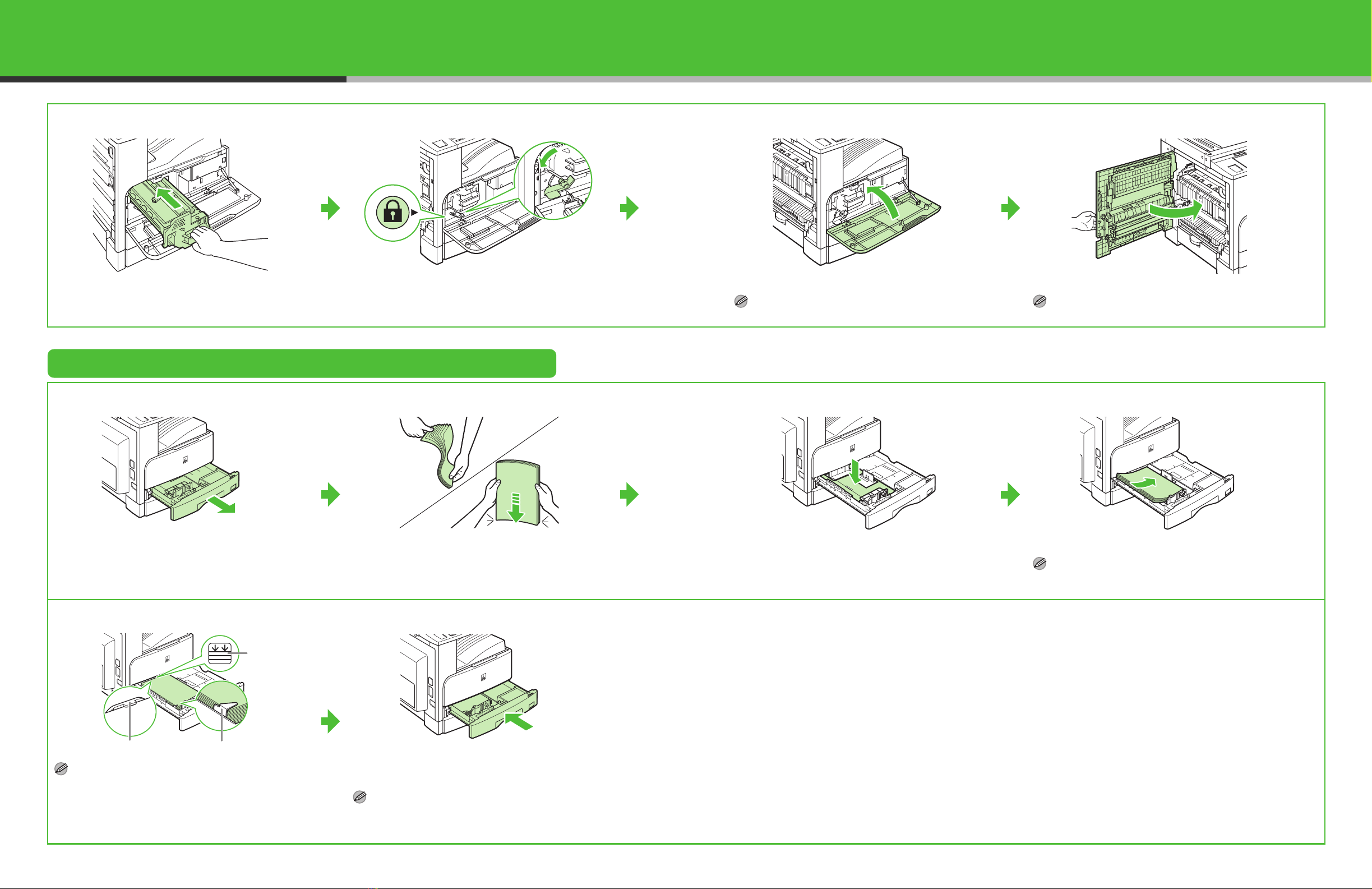

Load Paper

Pull out the paper drawer until it stops.

Fan the paper stack and even the edges.

Push down the metal plate to lock.

Insert the paper stack print side up.

NOTE

If loading paper other than Letter, see Chapter 6,

“Routine Maintenance,” in the Reference Guide.

NOTE

Make sure the paper stack does not exceed the load limit

mark (A) and it is loaded under the hooks (B) on the

paper guides.

Push the paper drawer into the machine as far as it

will go.

NOTE

– Be careful not to get your fingers caught.

– For loading paper in the stack bypass, see Chapter 2,

“Basic Operations,” in the Reference Guide.

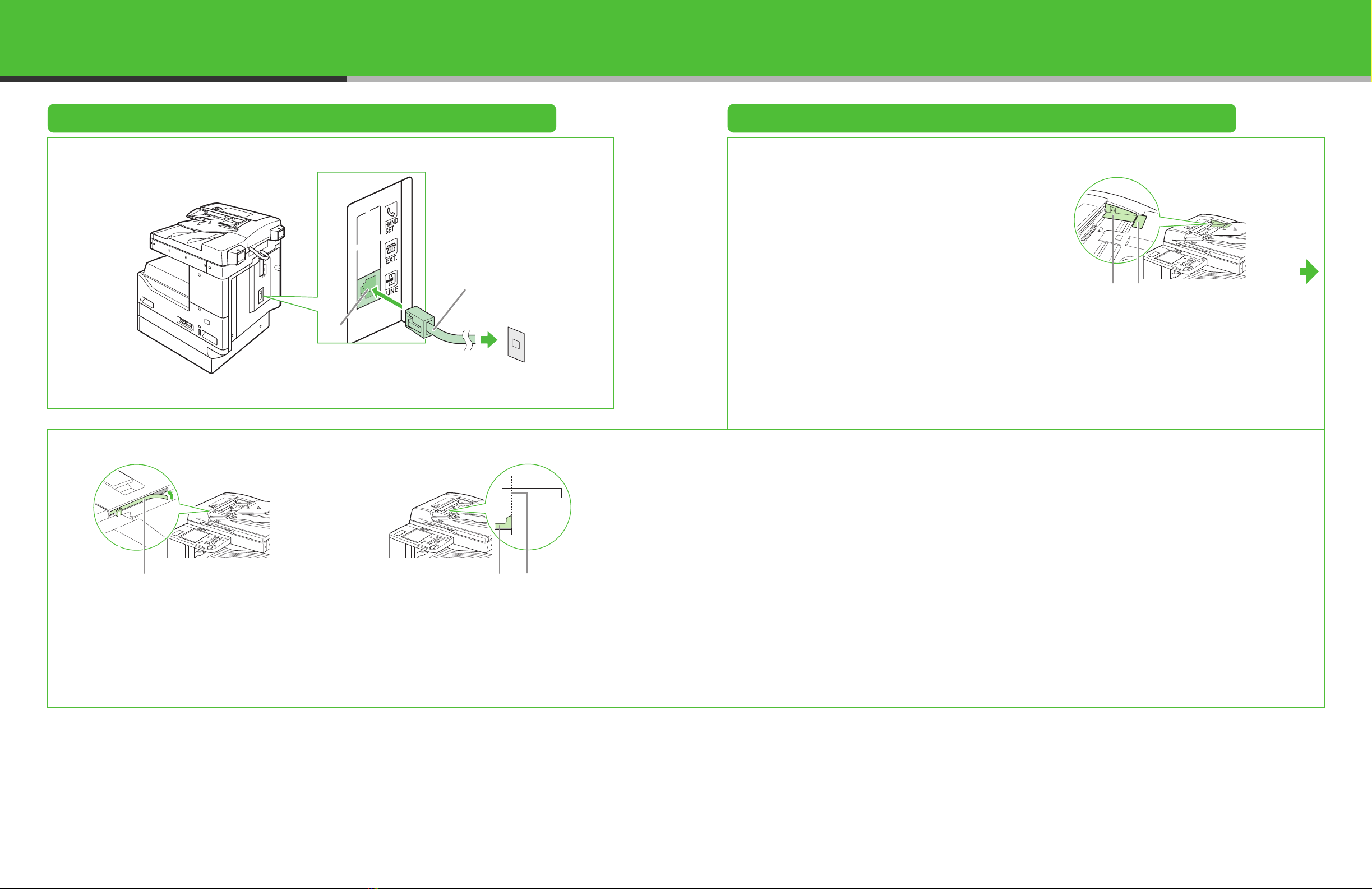

Connect Telephone Cables Affix Labels

Connect the supplied telephone cable (A) to the line jack (B) and the wall jack.

Affix the supplied document size label to the

specified location.

Align the slide guide (A) to the document size mark

“A4/A3” (B).

Affix the document size label (A) to the feeder cover so

that both indicators (B and C) on the side guide and the

document size label are aligned properly, as shown on

the right.

AAB

Connect Power Cord

Connect the supplied power cord (A) into the

socket and the wall outlet.

Press the main power switch to ON (“I” side).

The Start Up screen is displayed until the machine

comes to the ready mode.

The Basic Features screen is displayed when the

machine is ready to scan.

What if...

●<Close the left or front cover.> is displayed:

Make sure that the left or front cover is closed properly.

(See “Install Cartridge,” on p. 3.)

●<Load paper.> is displayed:

Make sure that paper is loaded in the machine.

(See “Load Paper,” on p. 5.)

●<Insert the toner.> is displayed:

Make sure that the cartridge is installed properly.

(See “Install Cartridge,” on p. 3.)

Set the Machine for Sending Faxes

Things You Must Do Before Sending Faxes

Before sending a fax, you MUST register your fax number, user name, and the current date and time in the

machine.

The sender information you register in the machine appears in the header of each page received by your

recipient.

Use the keys both on the touch panel display and the control panel to register sender information.

●Press [Additional Functions] to specify additional functions.

●Use the numeric keys to enter characters.

●Press [Clear] to delete the entire entry.

●The settings screen for each function is shown on the touch panel display. Press the appropriate keys in

accordance with the messages displayed on this display.

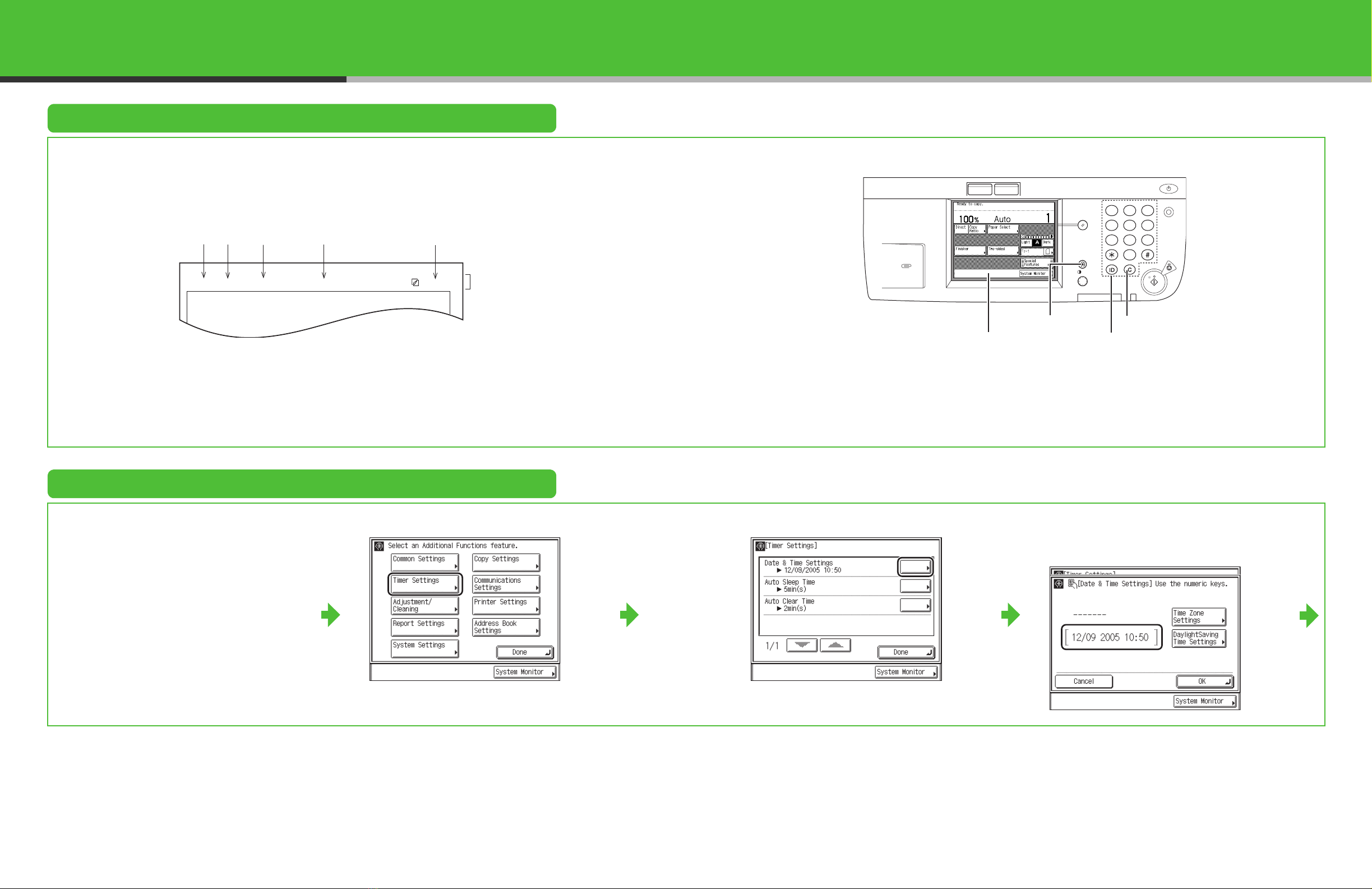

1Press [Additional Functions]. 2Press [Timer Settings]. 3Press [Date & Time Settings]. 4Use the numeric keys to enter the date

(month/day/year) and time (in 24- hour

format), then press [OK].

Date

12/09 2005 FAX (404)XXX-XXXX

CANON SALES

0001/0001

Time Fax Number

Sender's

Name (TTI) Page Number

Sender Informatio

15:00

123

789

456

JKL MNO

COPY SEND

Error Power

GHI

PQRS

ABC

TUV

DEF

WXYZ

ON/OFF

Additional

Functions

Reset

Display

Contrast

Processing/

Data

Start

Serial No.

Stop

JKL MNO

[Additional Functions] [Clear]

Touch Panel Dis

Numeric Ke

5Press [Done]. 6Press [Communications Settings]. 7Press [User Settings] under <Fax Settings>. 8Press [Unit Telephone #].

9Use the numeric keys to enter your fax

number (up to 20 digits), then press [OK].

[Space]: Inserts a space between the area code and the

local fax number (optional).

[+]: Inserts a country code. Press [+] after the country code,

and before the fax number.

[Backspace]: Deletes the last number entered.

10 Press [Done]. 11 Press [TX Settings] under <Common

Settings>.

12 Press [Unit Name].

13 Use the numeric keys to enter the user

name (up to 24 characters), then press

[OK].

14 Press [Done] repeatedly to return to the

Basic Features screen.

13 14

Set the Telephone Line Type

1Press [Additional Functions]. 2Press [Communications Settings]. 3Press [User Settings] under <Fax Settings>. 4Press [Tel Line Type].

5Select the telephone line type, then press

[OK].

<Tone>: Tone dialing

<Pulse>: Pulse dialing

NOTE

If you do not know the type of telephone line you use,

contact your local telephone company.

6Press [Done] repeatedly to return to the

Basic Features screen.

15 16

Set the Machine for Network Usage

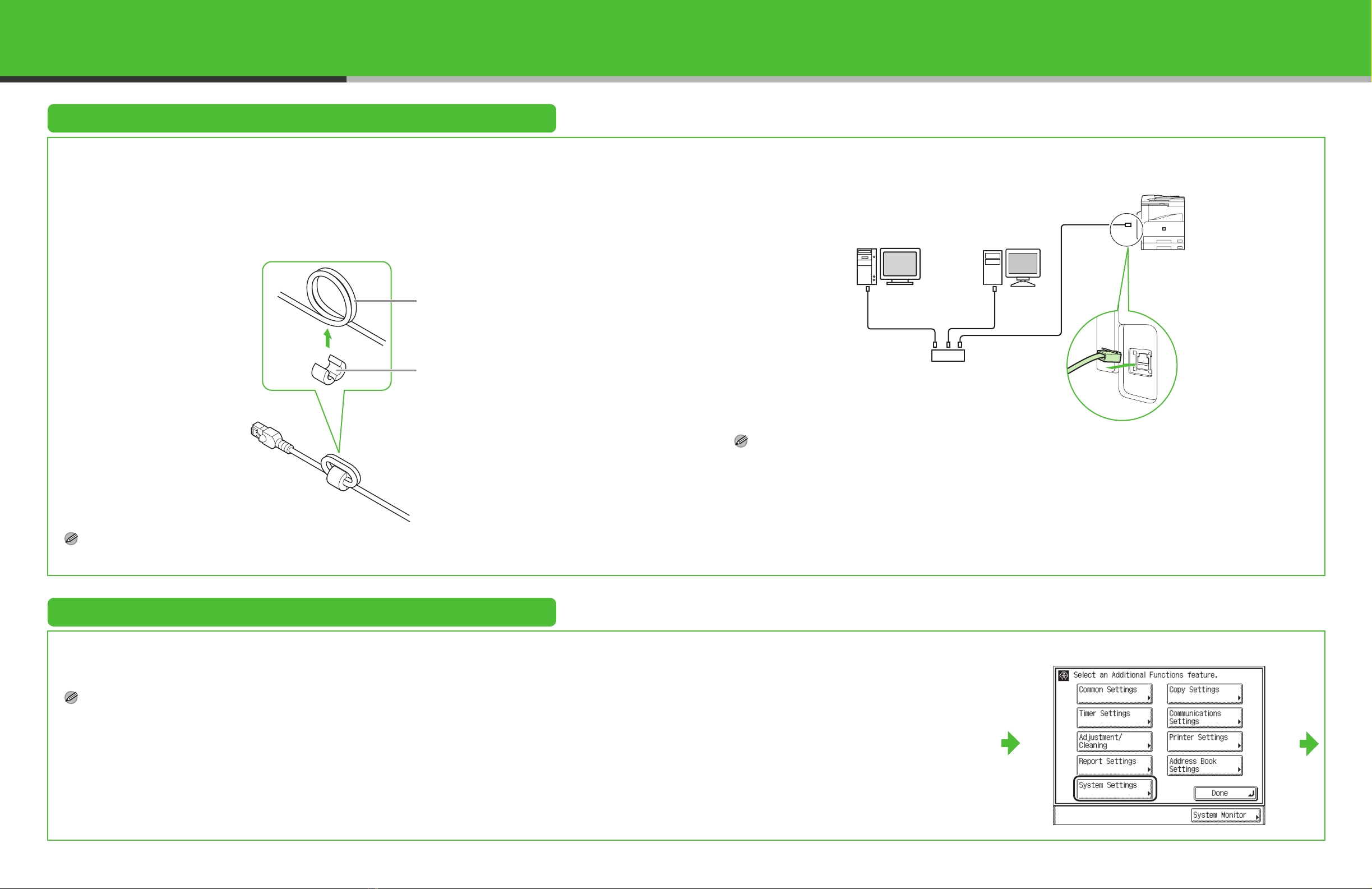

Connect the Machine to a Network

This machine has a USB connector and LAN connector. If the machine is connected to a network using a

LAN cable, you can use the machine as a network printer, or use functions such as the Internet fax function

which lets you send and receive faxes over the Internet.

1Attach the ferrite core (A) to the machine connection side of a LAN cable (B). Be sure to wind the cable

around the core once to prevent the core from sliding.

NOTE

The machine does not come with a LAN cable.

2Connect a Category 5 twisted pair LAN cable to the 10Base-T/100Base-TX port on the back of the

machine. Connect the other end of the cable to a network router or a hub.

NOTE

If you use the machine as a local printer, connect the machine directly to a computer using a USB cable.

(See “Install Driver Software,” on p. 21.)

Specify the IP Address Settings

An IP address must be specified in order to enable communication between the machine and

computer.

NOTE

Before performing the following procedure, make sure that the machine is turned on and connected to a network.

1Press [Additional Functions]. 2Press [System Settings].

Hub

Ethernet Cable

PC with

100Base-TX Connector

PC with

10Base-T Connector

1817
