Canon MP980 series Manuale utente
Make sure to read this manual before using the machine. Please keep it in hand for future reference.
MP980
Getting Started
=Read Me First=
series
Photo All-In-One
Symbols■
The following symbols are used to mark important instructions. Observe these instructions.
Instructions that, if ignored, could result in personal injury or material damage.
Instructions that must be observed for safe operation.
Additional explanations.
Descriptions for operations that take some time to complete.
Model Number: K10327(MP980)
Microsoft is a registered trademark of Microsoft Corporation.
Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Windows Vista is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Macintosh, Mac, and AirPort are trademarks of Apple Inc., registered in the U.S. and other countries.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
The Wi-Fi CERTIFIED logo is a certication mark of the Wi-Fi Alliance.
•
•
•
•
•
1
Contents
Unlock the Scanning Unit (Cover)
Align the Print Head
After Installing the Machine
Loading Paper
Setup the Machine and the Computer
Conrming the Setup Flow
Install the Ink Tanks
Install the Print Head
Turn the Power On
2
(B)
(C)
(A)
1
1
1
3
2
Unlock the Scanning Unit (Cover)
First, check the included items
Manuals
Setup CD-ROM (containing the drivers, applications and on-screen manuals)
Warranty
MP-101 paper (for Automatic Print Head Alignment)
•
•
•
•
Close the Document Cover (B).
Open the Document Cover (B).
Move the Scanner Lock Switch (C) towards the
release mark to unlock the Scanning Unit (Cover).
Before turning on the machine, remove all the orange
tapes and the protective sheets.
•
Open the Paper Output
Tray with your hands, and
take out the Print Head.
The Print Head is placed
inside of the Paper Output
Tray (A).
A USB cable is necessary to connect the machine with your computer.•
ink tank
Print Head
power cord
3
(1)
(2)
(A)
(B)
(C)
(D)
2
23
1
Turn the Power On
Do NOT connect the USB cable at this
stage.
•
Plug in the power cord on the left
side at the back of the machine and
connect the other end to the wall
outlet.
Open the Operation Panel (A), then press the ON button (B)
to turn on the machine.
Make sure that the Document Cover (C) is closed.
If an unintended language is displayed on the LCD, press the Back button on the Operation Panel to return to the
Language selection screen.
•
•
Use the { or } button (D) on the
Operation Panel to select the language
for the LCD, then press the OK button.
The standby screen is displayed.
The machine may make some operating noises. This is normal operation.•
4
(E)
(A)
(B)
(C)
(D)
3
12
Install the Print Head
Raise the Print Head Lock Lever (E).Open the Paper Output Tray (A), then lift the
Scanning Unit (Cover) (B) until it locks into place.
The Scanning Unit (Cover) (B) is fixed automatically.
The Print Head Holder (C) comes out. (This is where
you install the Print Head.)
For your safety, always grip as illustrated.
Close the Document Cover (D) and lift it with the
Scanning Unit (Cover).
•
•Firmly raise the Print Head Lock Lever until it stops. (The
Print Head Lock Lever may feel heavy.)
•
If the Print Head Holder does not move, make sure that the
machine is turned on.
•
Do not handle the Print Head
roughly such as applying them
excessive pressure or dropping
them.
•
The Print Head Holder makes a noise as it moves.
This is normal operation.
•
5
(E)
5
4
3
Remove the Print Head from
the silver package.
Remove and discard the orange protective
cap.
Tilt the Print Head and set it in place. Lower the Print Head Lock
Lever (E) completely.
There may be some transparent or light blue ink on the inside of the bag the Print
Head comes in, or the inside of the protective cap - this has no effect on print quality.
Be careful not to get ink on yourself when handling these items. Be careful not to
stain your hands.
•
Do not knock the Print Head against the sides of the Holder.
Be sure to install it in a well-lit environment.
Pinch the Print Head Lock Lever rmly and lower it gently.
Once you have installed the Print Head, do not remove it unnecessarily.
•
•
•
•
6
(1)
(2)
(A)
4
12
Install the Ink Tanks
Do not hold the sides of the ink tank; ink may splash.•
Pull the orange tape (1) in the direction of the
arrow to peel off the protective film and remove
the film (2) completely.
If the Print Head Holder moves to the right,
close and reopen the Scanning Unit (Cover).
Be sure to use the supplied ink tanks.
•
•
Do not handle the ink tanks roughly such
as applying them excessive pressure or
dropping them.
•
While pressing down with your left thumb, twist
off the orange protective cap (A) located on the
bottom of the ink tank.
7
(B)
453
Install all the other ink tanks in the same
way.
Install all the ink tanks.
Close the Scanning Unit (Cover) (B).
Wait until the screen above appears (about 6
minutes) and go to the next step.
The machine may make some operating noises
when preparing to print. This is normal operation.
•
•
Once you have installed the ink tanks, do not
remove them unnecessarily.
•
Make sure all the Ink lamp lights red.•
For your safety, always grip as illustrated.•
If an error message is displayed on the LCD, make
sure that the Print Head and the ink tanks are correctly
installed.
•
Press the PUSH mark on the ink tank until
it clicks into place.
Make sure the Ink lamp lights red.
Install the Ink Tank
Be sure to install it in a well-lit environment.•
Match the labels when installing.•
8
(C)(C)
(A)
(B)
5
2
1

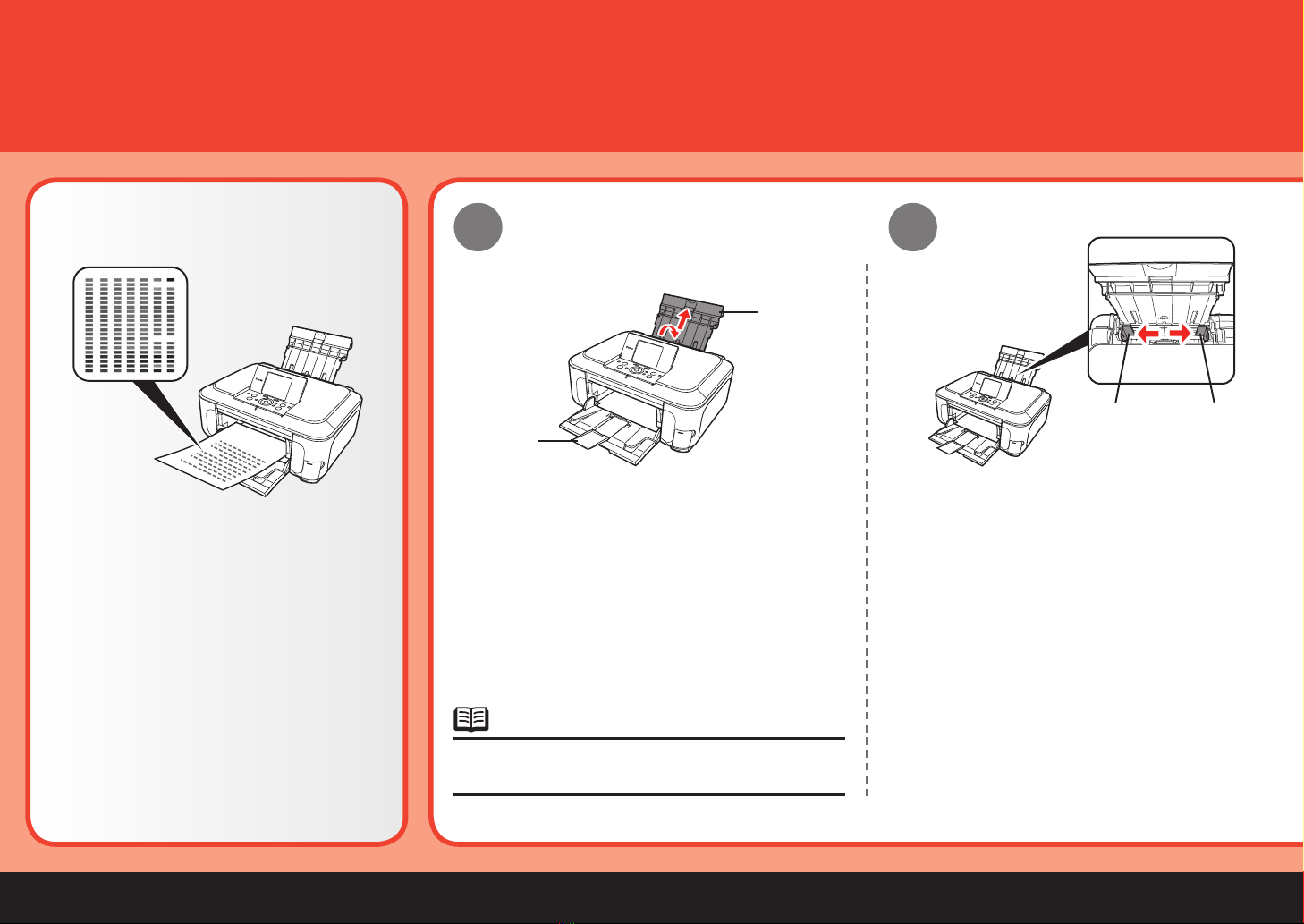

Align the Print Head
Align the Print Head for better print results.
This takes about 7 minutes.
Use a sheet of supplied speciality paper
(MP-101) for alignment.
Make sure that the Output Tray Extension (B) is
extended.
•
Open the Paper Support (A) and pull it out. Move the Paper Guides (C) to both edges.
