C

CA

AN

NO

ON

N

M

Mu

ul

lt

ti

iP

PA

AS

SS

S™

™

L

L6

60

0

S

SO

OF

FT

TW

WA

AR

RE

E

M

MA

AN

NU

UA

AL

L

1

CONTENTS

Page

SOFTWARE INSTALLATION

To Install MultiPASS L60 Printer Driver / Utilities 2 – 8

To Install MultiPASS L60 Scangear 9 – 11

CUSTOMISE SETTINGS

Send Fax Settings 12-13

Receive Fax Settings 14-15

TO SET UP ADDRESS BOOK

To Store Numbers In The Address Book 16-18

To Assign Entries Into The Speed Dial Keys

Of The L60 Machine 19-21

BASIC FUNCTIONS

Scan Function 21

PC Fax Function 22-23

ToDefaultPaperSize 24

Print Function 25

To Fax A Memo 26

2

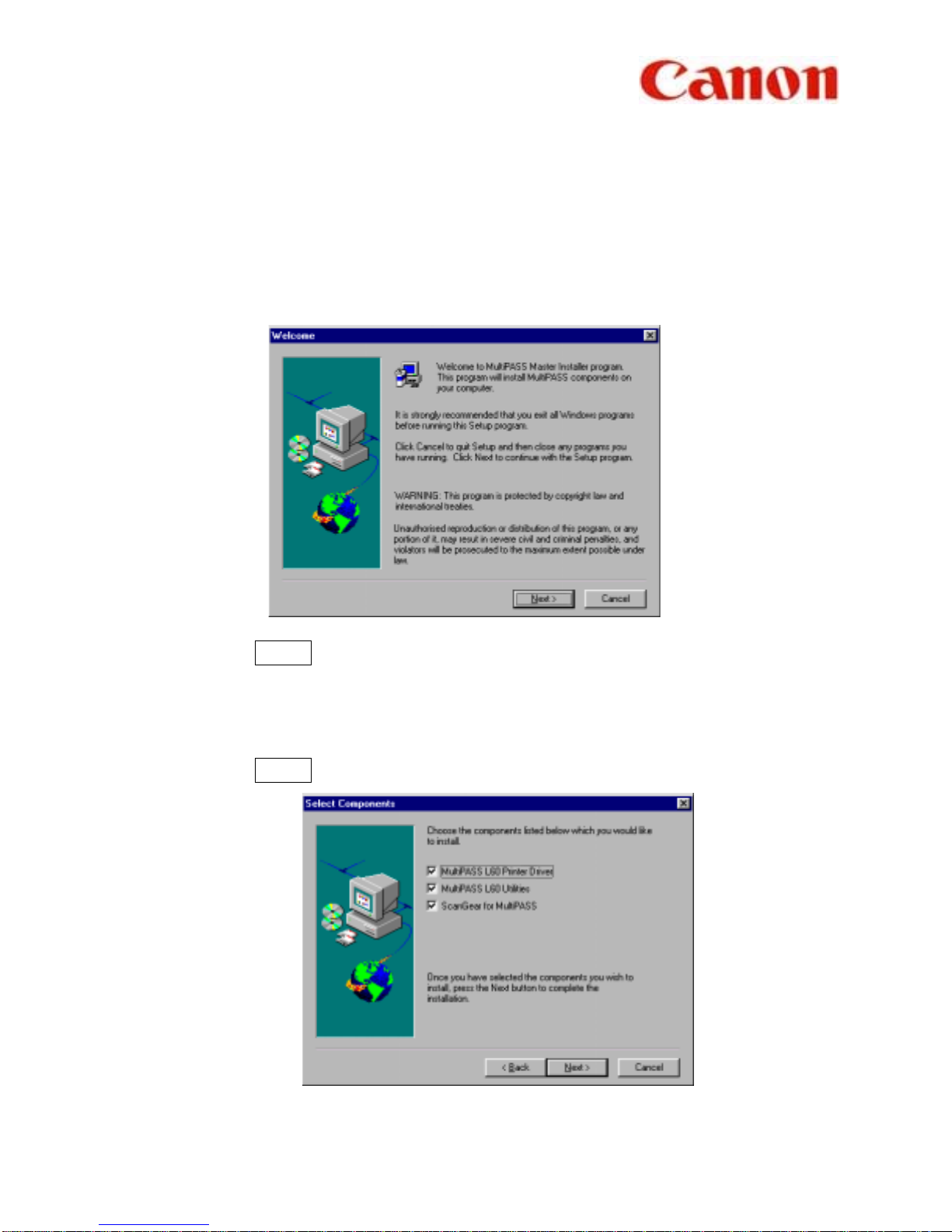

TO INSTALL MultiPASS L60 PRINTER, DESKTOP MANAGER AND SCANNER DRIVER

1. Once you have inserted the CD ROM into the drive, it will auto-detect and will

start to run the initial setup.

2. The MultiPASS Installer will install the printer driver.

3. Click Next >

4. Click on the boxes of the MultiPASS L60 Printer Driver, MultiPASS L60

Utilities and ScanGear for MultiPASS.

5. Click Next >

3

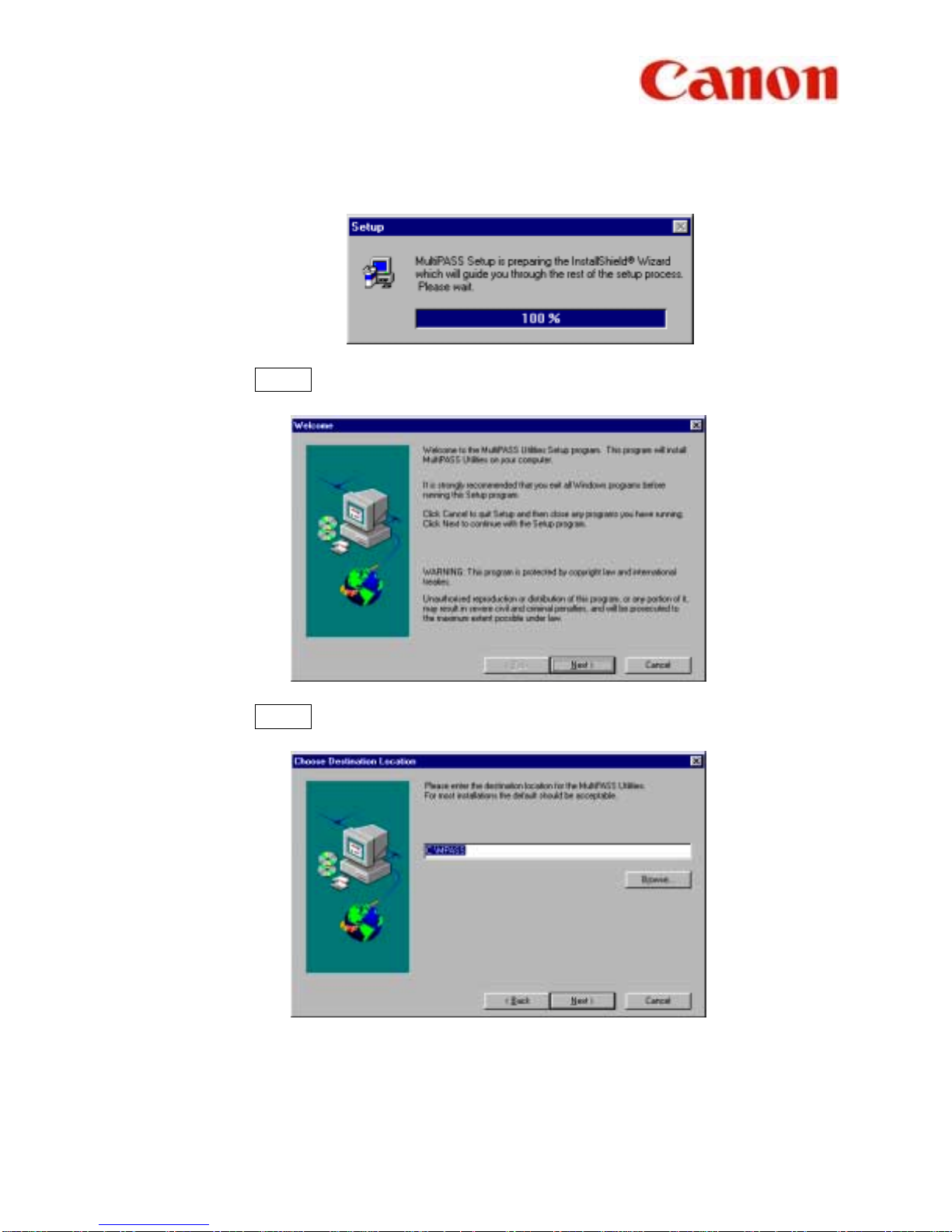

6. MultiPASS will finish installing the printer driver, after which it will

prepare for the UTILITIES SETUP.

7. Click Next >

8. Click Next >

4

9. If you have previously installed the MultiPASS program to your system, the

dialog box will be displayed as below.

EITHER: click on ‘Keep existing database’ to retain your previous data

OR: click on ‘Overwrite existing database’ to delete existing data.

10. Click Next >

11. Click OK

5

12. Click Next >

13. Click Next >

14. Click Next >

6

15. Click Accept

16. Click Next >

MultiPASS untilities software will now be downloaded.

17. Click Next >

7

Setup will now be updating your Windows operating systems.

18. Enter your company’s name, fax number and the fax heading that you would

like your fax to appear when the other party received the document.

You can choose NOT to enter.

19. Click YES if the information that you have entered are correct, otherwise

Click NO if you need to change the information.

ENTER THE

DETAILS

8

The setup is now creating the MultiPASS utilities and the program icons. Please wait.

20. Click Next >

Once the installation of the MultiPASS Utilities software is completed, the system

will now start to install the scanning (SCANGEAR) software.

9

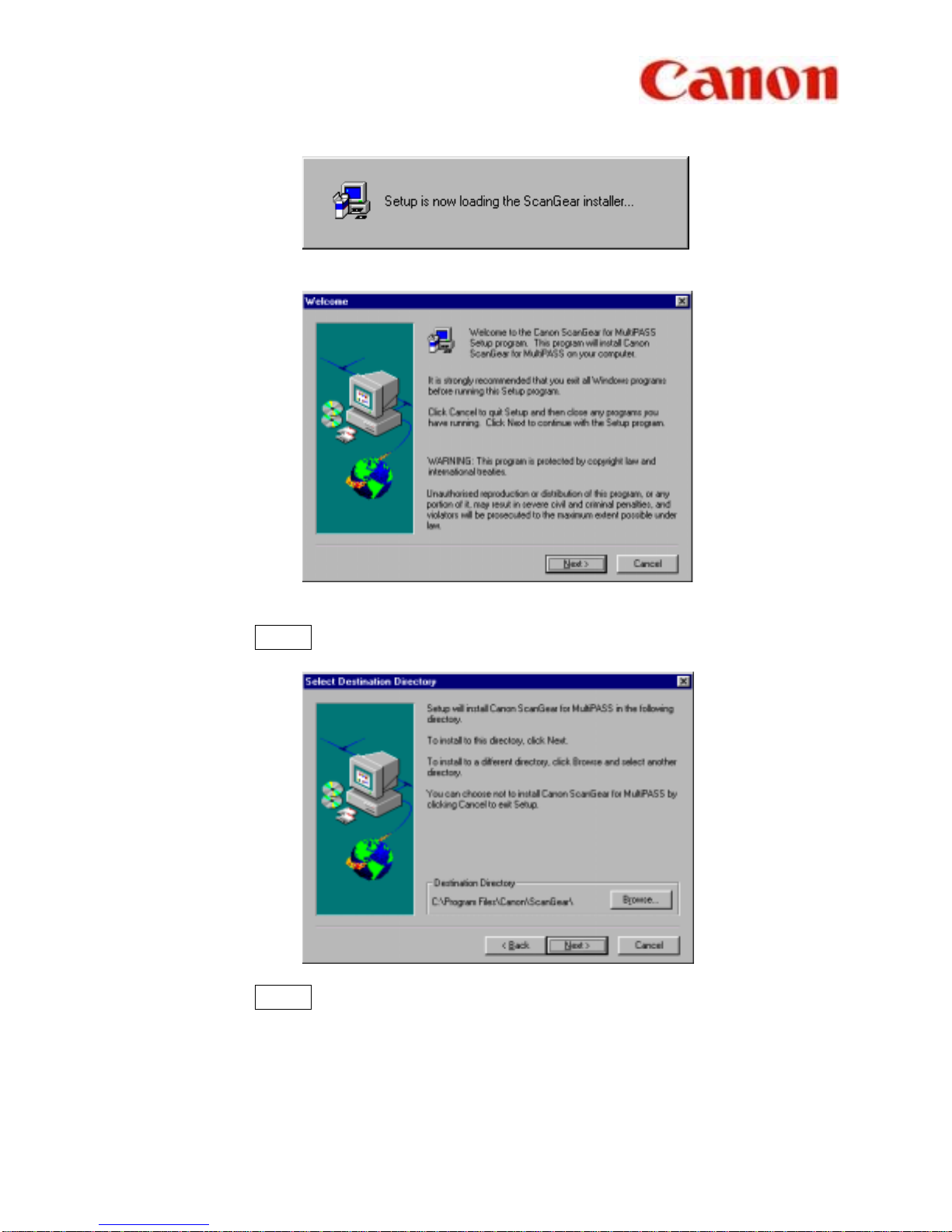

INSTALLATION OF SCANGEAR FOR MultiPASS L60

21. Click Next >

22. Click Next >
