Unpack the machine and its components.

Check that you have the following:

NOTE

•Aprinter cable is not included.You must purchase a USB cable (less than 16 #/8 ft./5 m) to

connect your machine to a computer.

Machine

Multi-purpose tray

Tray cover

Printhead

Ink tanks

(Black, cyan, magenta, yellow)

Paper output tray

Power cord

Documentation

(Set-Up Sheet, Quick Reference Guide)

MultiPASS MP730/700 Setup CD-ROM

Set-Up Sheet

Thank you for purchasing the Canon MultiPASS MP700.

To get your machine ready for use, please follow the instructions in this Set-Up Sheet

before referring to any other documentation.

READ THIS SHEET FIRSTREAD THIS SHEET FIRST

•DO NOT assemble the machine or connect the USB cable

before installing the software.You will be instructed when

to assemble and connect the cable.

IMPORTANT

NOTE

•When installing the software in Windows 2000/XP, you must log on as Administrator or

have Administrator privileges.

•If you have previously installed an earlier version of the MultiPASS Suite software (version

4.4 or earlier), you must uninstall it before installing this version. For details on uninstalling

the software, refer to the documentation of the previous version.

Install the software.

1Turn on your computer.

2On your computer, quit any open applications, including virus checkers.

3Insert the MultiPASS MP730/700 Setup CD-ROM into your disk drive.

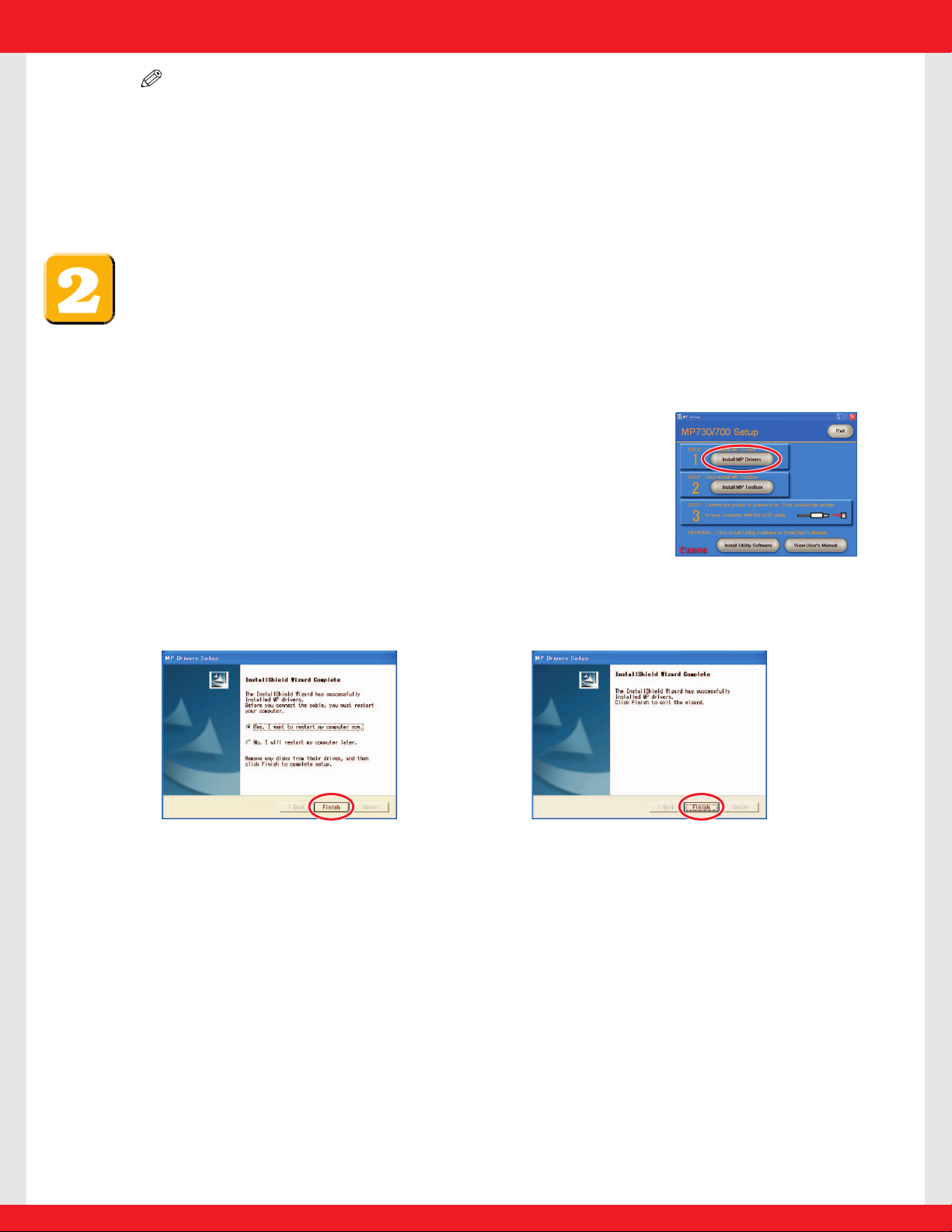

4In the [MP Setup] screen, click [Install MP Drivers].

• If Set-up screen is not displayed, on the Windows

desktop, double-click [My Computer] (Windows XP: Click

[Start], then click [My Computer]). Open the CD-ROM

icon, then double-click [setup (setup.exe)].

5Follow the on-screen instructions.

Make sure [Yes, I want to restart my computer

now.] is selected and then click [Finish] to

restart your computer. (Do not remove the

CD-ROM at this stage.)

6Click [Finish].

If you do not need to restart your computer,

the following screen is displayed.

If you need to restart your computer,

the following screen is displayed.

7In the [MP Setup] screen, click [Install MP Toolbox].

• If you had to restart your computer and Set-up screen is

not displayed or you have closed it, on the Windows

desktop, double-click [My Computer] (Windows XP: Click

[Start], then click [My Computer]). Open the CD-ROM

icon, then double-click [setup (setup.exe)].

8Follow the on-screen instructions.

9Click [Finish].

IMPORTANT

• Proceed to step below to assemble the machine.

Please keep your computer powered on.

Remove the shipping material from the machine.

1Place the machine on a flat surface.

2Remove all shipping tapes from the exterior of the machine.

Assemble the machine.

1Attach the multi-purpose tray.

2Attach the paper output tray

listen for audible click.

Connect the power cord.

IMPORTANT

• Before turning on the power, make sure the document cover Ais closed.

Load paper.

Place a stack of paper (print-side up) in the multi-purpose tray q.Pinch the paper

guide Aand adjust to the width of the stack w.Then place the tray cover Dover

the multi-purpose tray e.

NOTE

•Make sure the stack does not exceed the paper limit mark Bor tab C.Otherwise a paper

jam may occur.

PLEASE WAIT

PUT IN CARTRIDGE

Approx. 30 seconds

1Plug the power

cord into a socket.

2When you connect

the machine, the

Alarm light blinks,

and the messages

above should

appear in the LCD.

3If nothing appears in the

LCD, press [ON/OFF (1 sec.)]

to turn on the machine.

•If you need to turn off the

machine, press [ON/OFF (1 sec.)]

for one second.

ON/OFF(1sec.)

Turn over to

continue

Turn over to

continue

Install the printhead.

1Press [Open] qand lift up the scanning unit w.

IMPORTANT

•Do not touch the metal rod or any parts inside the

machine.

•The machine must be turned on when opening the

scanning unit.

2Remove the printhead from its packaging, then remove the orange protective

cap A.

IMPORTANT

•Do not touch the electrical contacts B.

3Raise the lock lever C,then gently slide the printhead into the

holder. Lower the lock lever.

IMPORTANT

• Do not lift the lock lever once the printhead has been installed.

Install the ink tanks.

1Start with the yellow ink tank. Pull the orange tape in the direction of the arrow

and remove the plastic wrapper so you can see the air hole A.Turn the ink tank

over so that the protective cap Bis facing up. Then hold the ink tank as shown

below and remove the protective cap B.

NOTE

•To avoid spilling ink, never

press on the long sides of

the ink tank C.

•Once you remove the

protective cap B,donot

touch the ink port D.

2Insert the ink tank (label-side up) into the correct slot (refer to the color guide on

the printhead). Press down gently on the ink tank until an audible click is heard.

3Repeat steps 1 and 2 to install the remaining magenta, cyan, and black ink tanks.

IMPORTANT

•Make sure the ink tanks are inserted all

the way into their slots.

4Close the scanning unit until it locks into place.

Align the printhead as explained in step 9.

Align the printhead.

NOTE

• You can also align the printhead from the software.

For details, refer to the Software Guide.

1When the LCD Adisplays the following, press [Set].

NOTE

•If a display other than <ALIGN

PRINT HEAD> appears, refer to

p. 9-5 of the Quick Reference

Guide to align the printhead.

ALIGN PRINT HEAD

PRESS SET KEY A

Black

Yellow

Magenta

Cian

Black

BCI-3eC

BCI-3eBK BCI-3eM BCI-3eY

Yellow

Magenta

Cian

PUSHPUSHPUSH

PUSH

Black

BCI-3eC

BCI-3eBKBCI-3eM

BCI-3eY

Yellow

Magenta

Cian

PUSHPUSH

PUSH

Black

PUSH

Yellow

Magenta

Cian

Black

Correct position Incorrect position

Black Yellow

Magenta

Cian

Black

BCI-3eY

Yellow

PUSH

Black Yellow

Magenta

Cian

Black

BCI-3eY

Yellow

PUSH

PUSU

Yellow

MadeinJapan

Ink Tank

BCI-3eY

PULL

BCI-3eY

Ink Tank

The machine will print a horizontal pattern, and the LCD will display:

2In column A on the printout, note the value of the box with the most solid image.

Then use [2] or [3] on the operation panel to select that value.

Then press [Set].

3Repeat step 2 for columns B to K.

4When values for all columns have been entered and the LCD displays the

following, press [#] to return to standby mode.

NOTE

•If streaks appear on the printed

surface when you use the machine,

perform the vertical printhead

alignment. For details, refer to p. 9-5

of the Quick Reference Guide.

Connect the USB cable to complete the computer settings.

1Make sure the machine is turned on.

2Connect the USB cable Ato the machine and computer USB ports.

Depending on your computer, a message may display asking you to restart your

computer. If this is the case, restart your computer.

PRINT VERT. PATTERN?

YES=(A) NO=(#)

Most solid

box

Least solid

box

BAD

SAMPLE

GOOD

SAMPLE

Value for column A

CHANGE H VALUE

A 0

Column A

●Install Utility Software

To install the Utility Software, in the [MP Setup] screen,

click [Install Utility Software].

You can choose not to install the Utility Software at this

stage and install it later. For details, refer to p. IV of the

Quick Reference Guide.

●View User’s Manual

To read the manual on the CD-ROM, click [View User’s

Manual] on the [MP Setup] screen.

CAUTION

• For Windows 2000, the machine may not be able to be set as the default printer.

If that happens, refer to “Setting the default printer” in the Software Guide.

Congratulations! You have now completed your machine

setup.

Where to go from here...

Once you have completed all steps in this Set-Up Sheet, refer to the Quick Reference

Guide for basic operation instructions of all functions of your machine.

If after reading the Quick Reference Guide you require more detailed information,

refer to the User’s Guide or Software Guide (included in the CD-ROM).

NOTE

•Remember to register your machine to ensure product support. The serial number is

located on the back of the machine. Refer to the Quick Reference Guide for information on

the software included on the CD-ROM.

Part no. HT3-2130-000-V.2.0

Canon, MultiPASS, and BCI are trademarks of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

PRINTED IN THAILAND
