Canon EOS C70 Manuale utente

Table of Contents

These materials explain the procedure for receiving Canon EOS C70 (with a 3rd party USB-C Ethernet adapter – sold

separately) IP streaming with the “VLC” application installed on a PC. (Please refer to www.videolan.org for system

requirements).

１． IP Streaming (“VLC” Application) Setup

1-1 Things to Prepare

1-2 Connection Diagram

２． Set the PC’s IP Address in Advance

３． Canon EOS C70 Network Settings

3-1 Set Network Connection

3-1-1 Select System Frequency

3-1-2 Enable Network

3-1-3 Select New Connection Setting

3-1-4 Create New Communication Setting

3-1-5 Setup with Network Connection

3-2 Prepare to Receive Streaming

3-2-1 Create New Function Setting

3-2-2 Select Protocol

3-2-3 Input the Destination Server and Destination Port Number

3-2-4 Select Bit Rate and Resolution

3-2-5 Select Audio Out Channels

3-2-6 Connection Setting Save Destination

４． Streaming Transmission

4-1 Activate IP Streaming in the EOS C70

4-2 Perform VLC Settings on the PC

１．IP Streaming (“VLC” Application) Setup

1-1 Things to Prepare

①Canon EOS C70 (with a 3

rd

party USB-C Ethernet adapter – sold separately).

②PC (with VLC application installed from www.videolan.org)

*Operation checks have been performed with VLC Version 3.0.12.

③Ethernet cable ×1

1-2 Connection Diagram

Assumed connection format: Canon EOS C70 + 3

rd

party USB-C Ethernet adapter (sold separately) ⇔ Ethernet cable

⇔ PC

Connect (1) Canon EOS C70 + 3

rd

party USB-C Ethernet Adapter (sold separately) (2) PC with an Ethernet cable.

2. Set the PC’s IP Address in Advance

PC settings:

①Start the PC connected to the network, and go to [Control Panel]

②Select [Network and Internet]

③Select [Network and Sharing Center]

On the network settings screen, open Properties from the [Local area connection] state.

④Select Internet protocol 4 (TCP/IPv4)

⑤Open Properties

Do not select [Obtain an IP address automatically]. Instead, select [Use the following IP address] and set the settings

shown below.

(1) Canon EOS C70 + 3rd party USB-C Ethernet adapter

③Ethernet cable

・We recommend using a category 5e (CAT5c) or higher Ethernet cable that supports gigabit.

*When using a category 5 (CAT5) cable, IP streaming may not be possible in some cases.

(2) PC

3．Canon EOS C70 Network Settings

3-1 Set Network Connection

3-1-1 Select System Frequency

①From MENU, go to [Recording/Media Setup] menu

②Select [System Frequency] ⇒ Press SET

③Select [59.94 Hz / 50.00 Hz / 24.00 Hz] ⇒ Press SET

・For the IP address, input [192.168.0.xxx]

For example: [192.168.000.002]

・For the subnet mask, input [255.255.255.0]

*Generally, the subnet mask values will be entered

automatically once you input the IP address.

3-1-2 Enable Network

④From MENU, go to [Network settings menu]

⑤Select [Network] ⇒ Press SET

⑥Select [Enable] ⇒ Press SET

3-1-3 Select New Connection Setting

①Select [New Conn. Setting (Wizard)] ⇒ Press SET

②Select [IP Streaming] ⇒ Press SET

③Confirm a new Connection Setting ⇒ Press OK

3-1-4 Create New Communication Setting

①Select [Create New Comm. Setting] ⇒ Press SET

②Select [Ethernet ] ⇒ Press SET

3-1-5 Setup with Network Connection

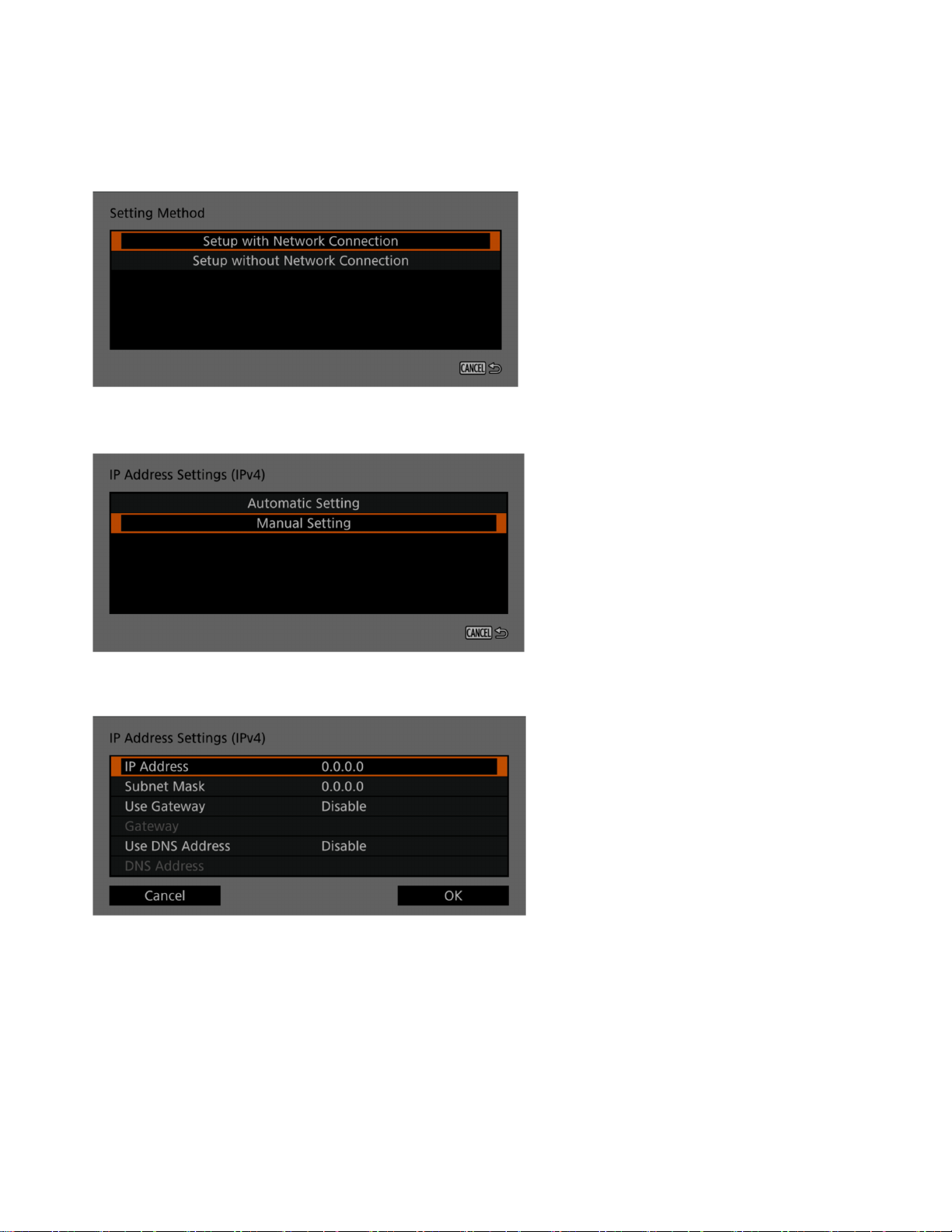

①Select [Setup with Network Connection]

②⇒ Press SET

③Under IP Address Settings (IPv4), select [Manual Setting] ⇒ Press SET

④Select [IP Address] ⇒ Press SET

⑤Input [192.168.0.xxx] as the IP address.

Example: [192.168.0.3] ⇒ Press SET

*These values are the address in the C70 itself has. Set the values at the end so that they are not the same as those

of the device you are connecting to (the values set on the PC).

⑥Select [Subnet Mask] ⇒ Press SET

⑦Input [255.255.255.0] for subnet mask ⇒ Press SET

⑧[Use Gateway] ⇒ Disable

⑨[DNS Address] ⇒ Disable

⑩Save IP Address Setting (IPv4) ⇒ Press OK

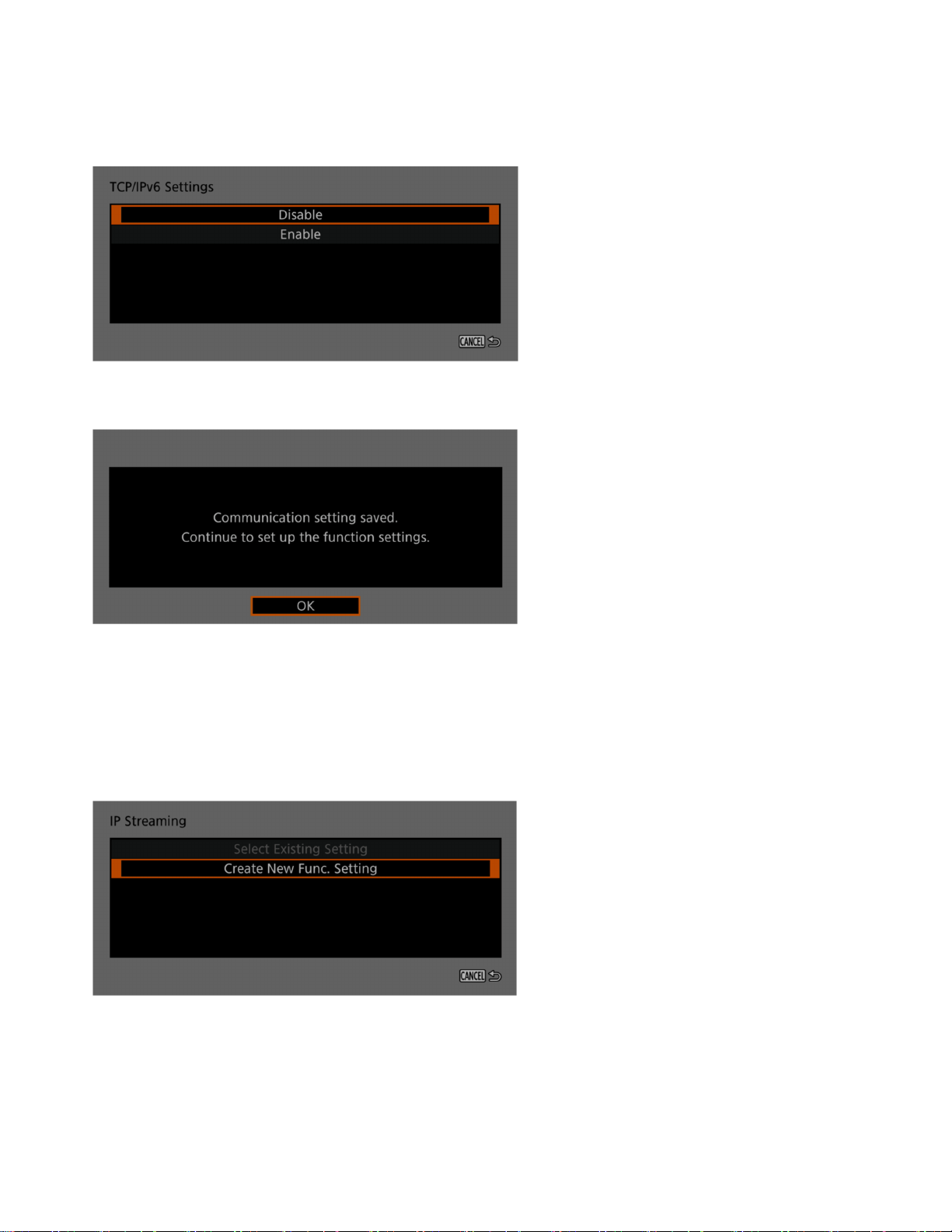

⑪[TCP/IPv6 Settings] is not necessary for the assumed connection format of these materials, so you can select

Disable ⇒ Press SET

⑫Confirm Communication settings ⇒ Press OK

3-2 Prepare for Streaming Transmission

3-2-1 Create New Function Setting

①Select [Create New Func. Setting]

②⇒ Press SET
