Canon EF200 mm Manuale utente

EF135mm f/2L USM

EF200mm f/2.8L II USM

EF300mm f/4L USM

EF400mm f/5.6L USM

Instructions

ENG

COPY

ENG-1

Thank you for purchasing a Canon product.

The Canon EF135mm f/2L USM, the EF200mm

f/2.8L II USM, the EF300mm f/4L USM, and the

EF400mm f/5.6L USM are high-performance

telephoto lenses designed for EOS cameras.

¡“USM” stands for Ultrasonic Motor.

Features

1. UD lens elements (in the EF135mm f/2L

USM, the EF200mm f/2.8L II USM, the

EF300mm f/4L USM, and the EF400mm

f/5.6L USM) and super UD lens elements (in

the EF400mm f/5.6L USM) for excellent

imaging performance.

2. Ultrasonic motor (USM) for quick and quiet

autofocusing.

3. Manual focusing is available after the subject

comes into focus in autofocus mode (ONE

SHOT AF).

4. The lens is compatible with Extender EF1.4X

ll and EF2X ll.

Conventions used in this instruction

Warning to prevent lens or camera

malfunction or damage.

Supplementary notes on using the lens

and taking pictures.

COPY

ENG-2

aSafety Precautions

•Do not look at the sun or a bright light source

through the lens or camera. Doing so could result

in loss of vision. Looking at the sun directly through

the lens is especially hazardous.

•Whether it is attached to the camera or not, do

not leave the lens under the sun without the

lens cap attached. This is to prevent the lens from

concentrating the sun’s rays, which could cause a

fire.

Handling Cautions

•If the lens is taken from a cold environment into

a warm one, condensation may develop on the

lens surface and internal parts. To prevent

condensation in this case, first put the lens into an

airtight plastic bag before taking it from a cold to

warm environment. Then take out the lens after it

has warmed gradually. Do the same when taking

the lens from a warm environment into a cold one.

•Do not leave the lens in excessive heat such as in

a car in direct sunlight. High temperatures can

cause the lens to malfunction.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Do not make any changes or modifications to the equipment

unless otherwise specified in the instructions. If such changes or

modifications should be made, you could be required to stop

operation of the equipment.

This equipment has been tested and found to comply with the

limits for a class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Consult the dealer or an experienced radio/TV technician for

help.

This Class B digital apparatus complies with Canadian ICES-003.

COPY

ENG-3

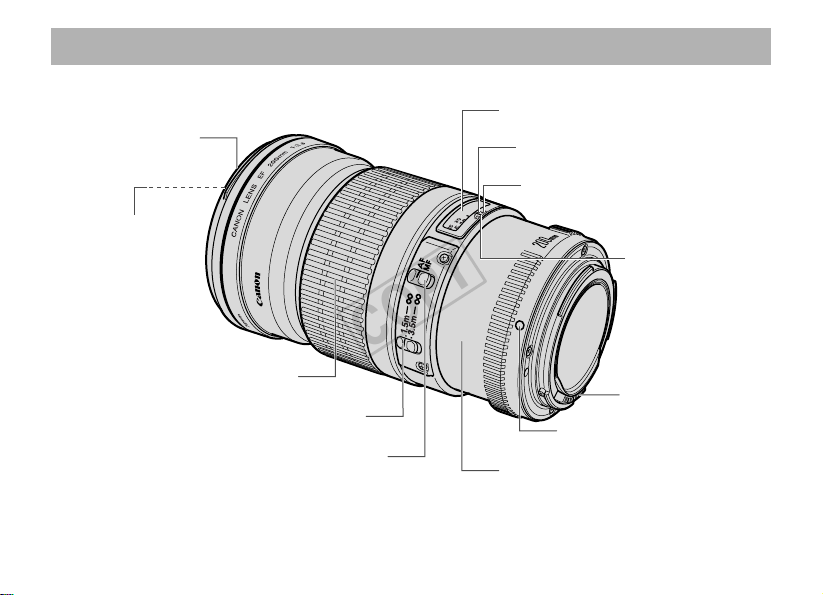

Distance scale (→ 5, 6)

Depth-of-Field scale (→6)

Contacts (→4)

Focus mode switch (→4)

Hood mount*1(→8)

Lens mount index (→4)

Filter mounting

thread (→9)

Infrared index*3(→6)

Focusing ring (→4)

Distance index (→5)

Focusing distance range selection switch (→5)

Tripod mounting location*2(→7)

Nomenclature

*1) EF135mm f/2L USM • EF200mm f/2.8L II USM

*2,3) EF200mm f/2.8L II USM • EF300mm f/4L USM • EF400mm f/5.6L USM

For detailed information, reference page numbers are provided in parentheses (→**).

COPY

ENG-4

See your camera’s instructions for details on

mounting and detaching the lens.

¡After detaching the lens, place the lens with the

rear end up to prevent the lens surface and

electrical contacts from getting scratched.

¡If the contacts get soiled, scratched, or have

fingerprints on them, corrosion or faulty

connections can result. The camera and lens

may not operate properly.

¡If the contacts get soiled or have fingerprints on

them, clean them with a soft cloth.

¡If you remove the lens, cover it with the dust

cap. To attach it properly, align the lens mount

index and the

index of the dust cap as shown

in the diagram, and turn clockwise. To remove it,

reverse the order.

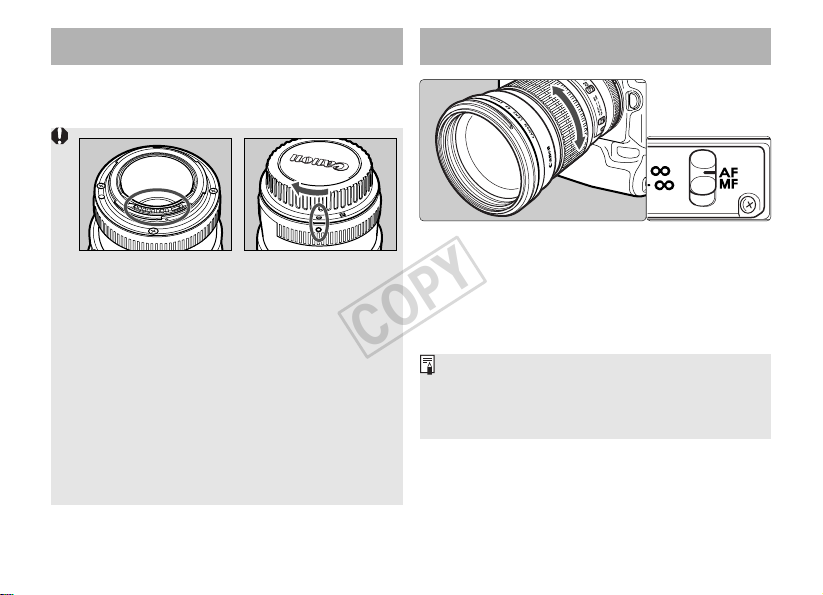

Mounting and Detaching the Lens

Setting the Focus Mode

After autofocusing in ONE SHOT AF mode, focus

manually by pressing the shutter button halfway

and turning the focusing ring. (Full-time manual

focus)

To shoot in autofocus (AF) mode, set the focus

mode switch to AF.

To use only manual focusing (MF), set the focus

mode switch to MF, and focus by turning the

focusing ring. The focusing ring always works,

regardless of the focus mode.

COPY

ENG-5

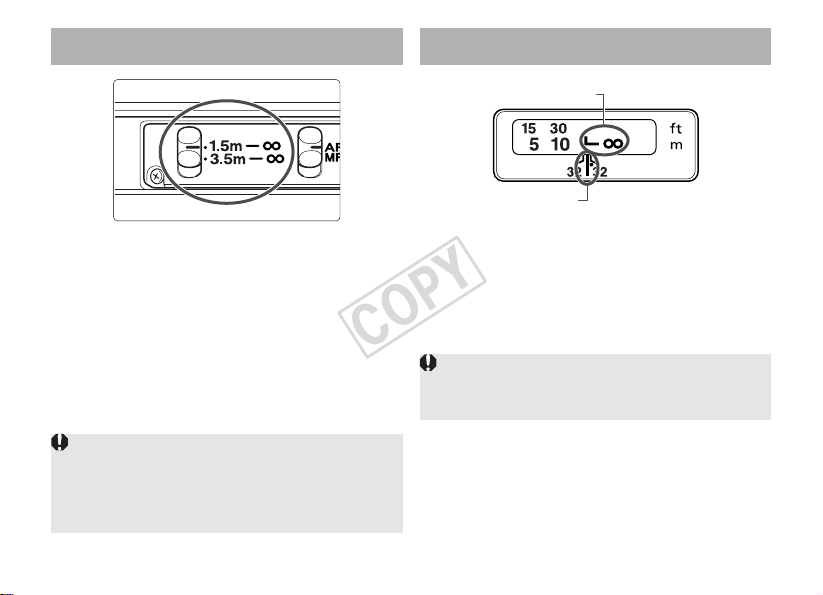

Infinity Compensation Mark

To compensate for shifting of the infinity focus

point that results from changes in temperature.

The infinity position at normal temperature is the

point at which the vertical line of the L mark is

aligned with the distance indicator on the

distance scale.

For accurate manual focusing on subjects at

infinity distance, look through the viewfinder while

rotating the focusing ring.

Infinity compensation mark

Distance index

Switching the Focusing Distance Range

You can choose the focusing distance range with

a switch. By setting a suitable focusing distance

range, actual autofocusing time can be shorter.

¡EF135mm f/2L USM :

q0.9 m / 3.0 ft. – ∞w1.6 m / 5.2 ft. – ∞

¡EF200mm f/2.8L II USM :

q1.5 m / 4.9 ft. – ∞w3.5 m / 11.5 ft. – ∞

¡EF300mm f/4L USM :

q2.5 m / 8.2 ft. – ∞w6 m / 19.7 ft. – ∞

¡EF400mm f/5.6L USM :

q3.5 m / 11.5 ft. – ∞w8.5 m / 27.9 ft. – ∞

If you autofocus outside the set focusing distance

range, the lens may stop focusing at the start of

the focusing range; however, this is not a

malfunction. Press the shutter release button

halfway again.

COPY

ENG-6

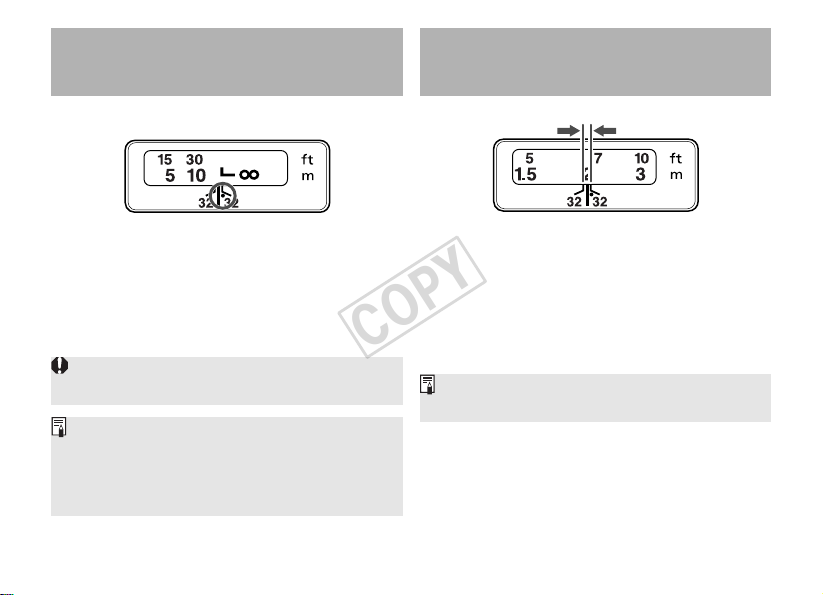

6. Depth-of-Field Scale

The depth of field is the distance in front of and

behind the plane of focus on the subject that

appears sharp. The depth of field is indicated by

the area between the depth-of-field scale lines

below the distance scale.

The number on the scale is the F value.

The depth-of-field scale is an approximate

indicator.

The infrared index corrects the focus setting

when using monochrome infrared film. Focus on

the subject manually, then adjust the distance

setting by moving the focusing ring to the

corresponding infrared index mark.

5. Infrared Index

(EF200mm f/2.8L II USM • EF300mm f/4L

USM • EF400mm f/5.6L USM)

Some EOS cameras cannot use infrared film. See

the instructions for your EOS camera.

¡The infrared index position is based on a

wavelength of 800 nm.

¡Be sure to observe the manufacturer’s

instructions when using infrared film.

¡Use a red filter also when you take the picture.

COPY

ENG-7

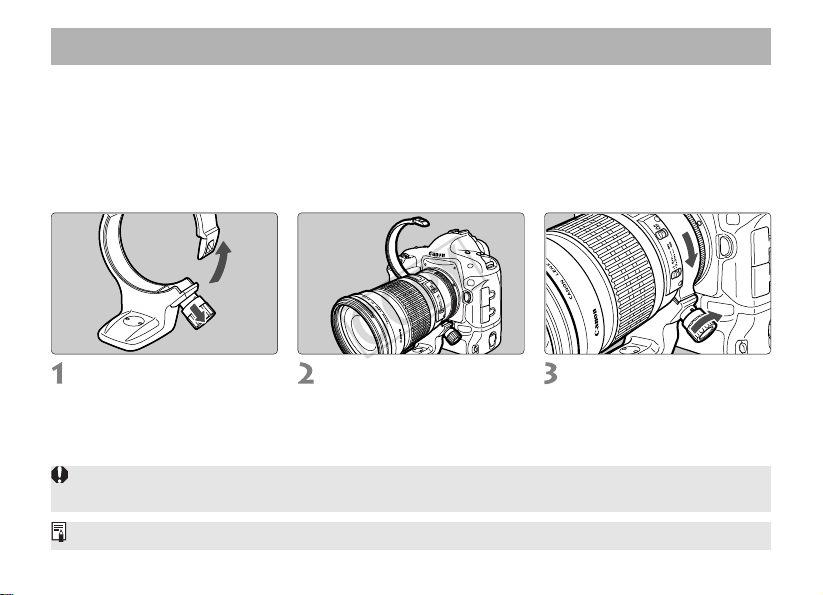

Adjusting the Revolving Mount

You can loosen the orientation lock-knob on the tripod mount to allow it to rotate as needed to fit a

particular camera model for switching between vertical and horizontal positions.

The EF200mm f/2.8L II USM lens can be used with the A II (B) tripod mount ring, sold separately.

Detaching

Use the following procedures to remove and attach the tripod mount.

Tu rn the locking knob

counterclockwise until it

becomes loose (about 3 turns),

and pull the knob in the direction

of the arrow to release the collar.

With the collar open,

remove the tripod mount.

To install, while pulling the

locking knob, bring the collar

to the original position, and

tighten the locking knob

securely.

If the foot of the tripod mount overlaps the switch, loosen the orientation locking knob on the tripod mount to

move the foot.

Using the Tripod Mount (EF200mm f/2.8L II USM • EF300mm f/4L USM • EF400mm f/5.6L USM)

The tripod mount can be attached to or detached from the lens while the lens is attached to the camera.

COPY

ENG-8

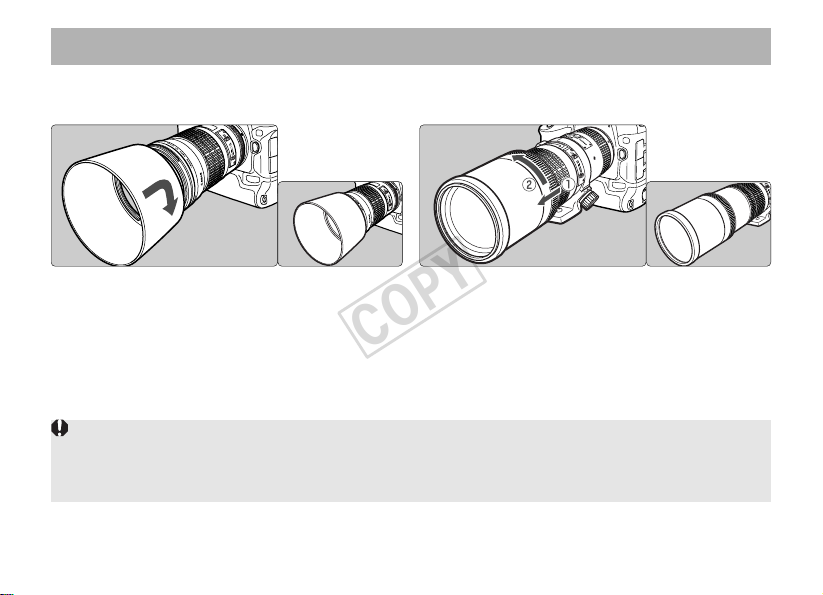

8. Hood

EF135mm f/2L USM • EF200mm f/2.8L II USM

Attach and align the hood to the hood mount on

the front of the lens, and turn the hood as shown

by the arrow to secure it.

The hood can be reverse-mounted on the lens

for storage.

EF300mm f/4L USM

Bring the hood out from the end of the lens until

it stops. For storage, reverse the procedure.

EF400mm f/5.6L USM

Bring the hood out from the end of the lens until

it stops and turn in the direction of the arrow. For

storage, reverse the procedure.

EF135mm f/2L USM • EF200mm f/2.8L II USM

¡Part of the picture may be blocked if the hood is not attached properly.

¡When attaching or detaching the hood, grasp the base of the hood to turn it. To prevent deformation, do not

grasp the rim of the hood to turn it.

The lens hood can reduce unwanted reflections and also protects the front of the lens from rain,

snow, dust, and other substances.

COPY

ENG-9

9. Filters (Sold separately)

You can attach filters to the filter mounting thread

on the front of the lens.

¡If you need a polarizing filter, use the Canon

Circular Polarizing Filter.

¡To adjust the polarizing filter, first remove or

store the lens hood.

10. Close-up Lenses

(Sold separately)

Attaching a 500D Close-up Lens enables close-

up photography.

The magnification will be as follows:

¡EF135mm f/2L USM (72mm)

0.48× – 0.27×

¡EF200mm f/2.8L II USM (72mm)

0.57× – 0.39×

¡EF300mm f/4L USM (77mm)

0.82× – 0.59×

¡EF400mm f/5.6L USM (77mm)

0.91× – 0.78×

¡Close-up Lens 250D cannot be attached

because there is no size that fits the lens.

¡Manual focusing is recommended for accurate

focusing.

COPY

Altri manuali per EF200 mm

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Canon Obiettivo della fotocamera

Canon

Canon EF-S18 Manuale utente

Canon

Canon EF 400mm f/2.8L IS II USM Manuale utente

Canon

Canon EF24-105MM F/4L IS USM Manuale utente

Canon

Canon RF 400mm f/2.8 L IS USM Manuale utente

Canon

Canon EF-S18-135mm f/3.5-5.6 IS STM Manuale utente

Canon

Canon XJ27x6.5B AF Manuale utente

Canon

Canon EF 70-200mm f/2.8L IS II USM Manuale utente

Canon

Canon EF 400 Manuale utente

Canon

Canon KH21ex5.7 IRSE Manuale utente

Canon

Canon EOS 5D Mark IV + 70-200mm Manuale utente

Canon

Canon ITS-ME Manuale utente

Canon

Canon EF300mm f/2.8L IS II USM Manuale di istruzioni

Canon

Canon EF-M 22mm f/2 STM Manuale utente

Canon

Canon EF-M 18-55mm f3.5-5.6 IS STM Manuale utente

Canon

Canon EF 35~350 mm f/3,5-5,6 L Manuale utente

Canon

Canon RF 24-50mm F4.5-6.3 IS STM Manuale utente

Canon

Canon EF 20-35mm 1:2.8L Manuale di istruzioni

Canon

Canon CN-E14.5-60mm T2.6 L S Manuale utente

Canon

Canon Tele Super 55 Manuale utente

Canon

Canon 4573C002 Manuale utente

Canon

Canon CN-E14mm T3.1 L F Manuale utente

Canon

Canon EF 8-15mm f/4L Fisheye USM Manuale utente

Canon

Canon EF 28-80mm 1:2.8-4.0L USM Manuale utente

Canon

Canon EF 180mm f/3.5L MACRO USM Manuale utente

Manuali Obiettivo della fotocamera popolari di altre marche

THORLABS

THORLABS ELL15 Manuale utente

FUJICA

FUJICA ZC1000 Manuale utente

Tamron

Tamron A09 Manuale

Sony

Sony SEL-55210 Manuale utente

Sony

Sony VCL-HG2037 Manuale utente

Honeywell

Honeywell HLM25V6F12 Manuale utente

Sony

Sony VCL-ST30 Manuale utente

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuale utente

ARRI

ARRI Lenses Manuale utente

Panasonic

Panasonic LUMIX G X Vario 45-175mm f/4.0-5.6 Manuale utente

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuale utente

Rokinon

Rokinon DS50M-C Manuale utente

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuale utente

Sony

Sony VCL-DE07T Manuale utente

Tamron

Tamron A036 Manuale utente

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuale utente

Tamron

Tamron 272E Manuale utente

Sinar

Sinar Rolleiflex 6008 AF Manuale utente
