Canon LEF7020028CA Manuale utente

EF70-200mm f/2.8L IS II USM

Instruction

ENG

COPY

ENG-1

Dedicated to EOS cameras, the Canon EF70-

200mm f/2.8L IS II USM lens is a high-

performance telephoto zoom lens equipped

with an Image Stabilizer.

•“IS” stands for Image Stabilizer.

•“USM” stands for Ultrasonic Motor.

Features

1. The Image Stabilizer gives the equivalent

effect of a shutter speed four stops faster*.

2. With fluorite and UD lens elements,

outstanding image delineation is obtained.

3. Ultrasonic motor (USM) for quick and quiet

autofocusing.

4. Manual focusing is available after the subject

comes into focus in autofocus mode (ONE

SHOT AF).

5. A truly round aperture hole results in a nicer

background blur.

6. The lens is compatible with Extender EF1.4X ll

and EF2X ll.

7. Tight seal structure ensures excellent dust-

proof and drip-proof performance.

*Based on [1/focal length] second. Generally, it requires

a shutter speed [1/focal length] second or faster to

prevent camera shake.

Thank you for purchasing a Canon product.

Conventions used in this instruction

Warning to prevent lens or camera malfunction

or damage.

Supplementary notes on using the lens and

taking pictures.

COPY

ENG-2

aSafety Precautions

•Do not look at the sun or a bright light source

through the lens or camera. Doing so could result

in loss of vision. Looking at the sun directly through

the lens is especially hazardous.

•Whether it is attached to the camera or not, do

not leave the lens under the sun without the

lens cap attached. This is to prevent the lens from

concentrating the sun’s rays, which could cause a

fire.

Handling Cautions

•If the lens is taken from a cold environment into

a warm one, condensation may develop on the

lens surface and internal parts. To prevent

condensation in this case, first put the lens into an

airtight plastic bag before taking it from a cold to

warm environment. Then take out the lens after it

has warmed gradually. Do the same when taking

the lens from a warm environment into a cold one.

•Do not leave the lens in excessive heat such as in

a car in direct sunlight. High temperatures can

cause the lens to malfunction.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Do not make any changes or modifications to the equipment

unless otherwise specified in the instructions. If such changes or

modifications should be made, you could be required to stop

operation of the equipment.

This equipment has been tested and found to comply with the

limits for a class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Consult the dealer or an experienced radio/TV technician for

help.

This Class B digital apparatus complies with Canadian ICES-003.

COPY

ENG-3

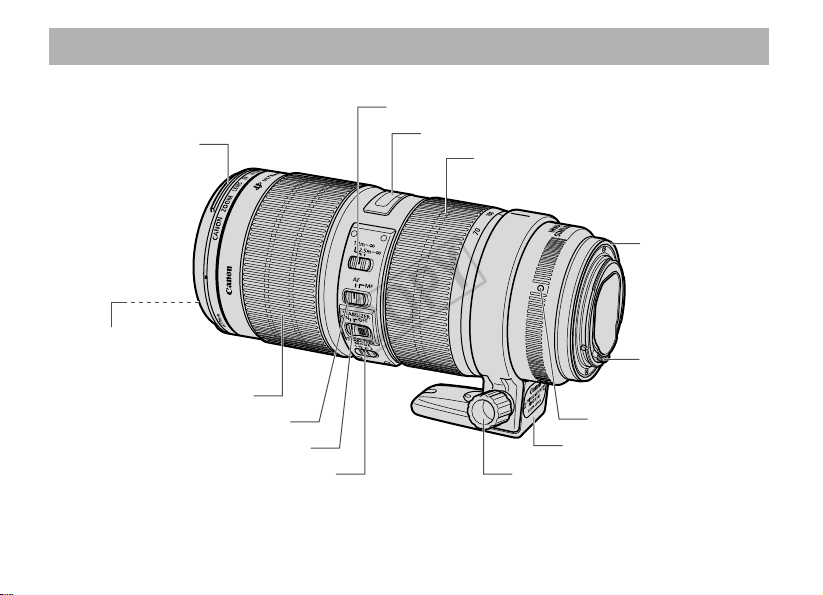

Nomenclature

Hood mount (→7)

Filter mounting

thread (→13)

Focusing ring (→5)

Focusing distance range selection switch (→5)

Image stabilizer switch (→8)

Image stabilizer mode selector switch (→8)

Focus mode switch (→5)

Distance scale (→11)

Zoom ring (→6)

Contacts (→4)

Tripod mount (→12)

Lens mount index (→4)

Orientation lock knob (→12)

Rubber ring (→4)

For detailed information, reference page numbers are provided in parentheses (→**).

COPY

ENG-4

See your camera’s instructions for details on

mounting and detaching the lens.

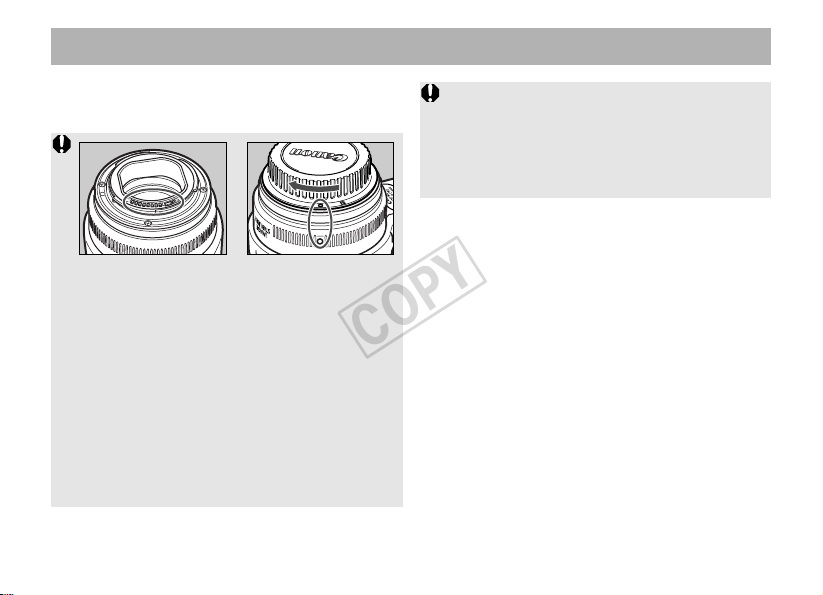

•After detaching the lens, place the lens with the

rear end up to prevent the lens surface and

electrical contacts from getting scratched.

•If the contacts get soiled, scratched, or have

fingerprints on them, corrosion or faulty

connections can result. The camera and lens

may not operate properly.

•If the contacts get soiled or have fingerprints on

them, clean them with a soft cloth.

•If you remove the lens, cover it with the dust

cap. To attach it properly, align the lens mount

index and the

index of the dust cap as shown

in the diagram, and turn clockwise. To remove it,

reverse the order.

1. Mounting and Detaching the Lens

The lens mount has a rubber ring for enhanced

water- and dust-resistance. The rubber ring may

cause slight abrasions around the camera's lens

mount, but this will not cause any problems. If the

rubber ring becomes worn, it is replaceable by a

Canon Service Center at cost.

COPY

ENG-5

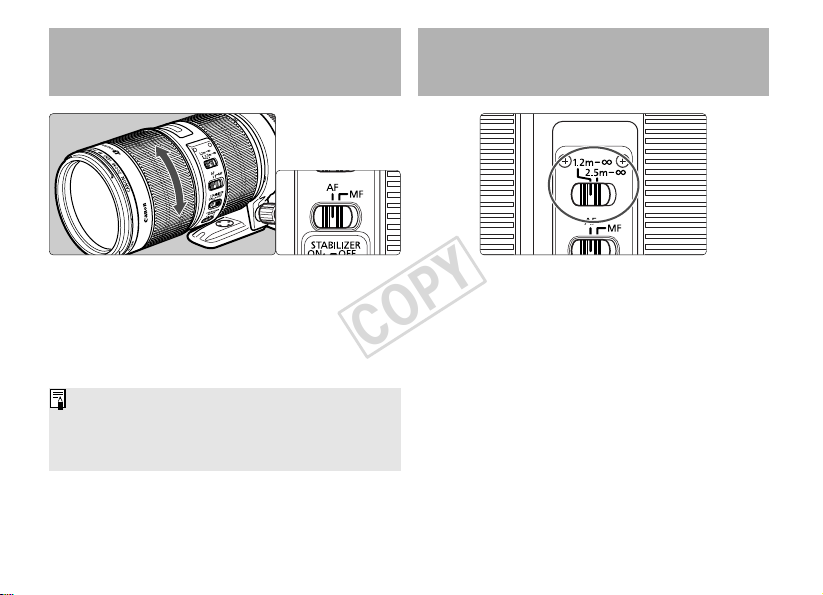

You can set the focusing distance range to

1.2 m/3.9 ft. to infinity or 2.5 m/8.2 ft. to infinity.

By setting the suitable focusing distance range,

the actual autofocusing time can be shorter.

Switching the Focusing

Distance Range

2. Setting the Focus

Mode

To shoot in autofocus (AF) mode, set the focus

mode switch to AF.

To use only manual focusing (MF), set the focus

mode switch to MF, and focus by turning the

focusing ring. The focusing ring always works,

regardless of the focus mode.

After autofocusing in ONE SHOT AF mode, focus

manually by pressing the shutter button halfway

and turning the focusing ring. (Full-time manual

focus)

COPY

ENG-6

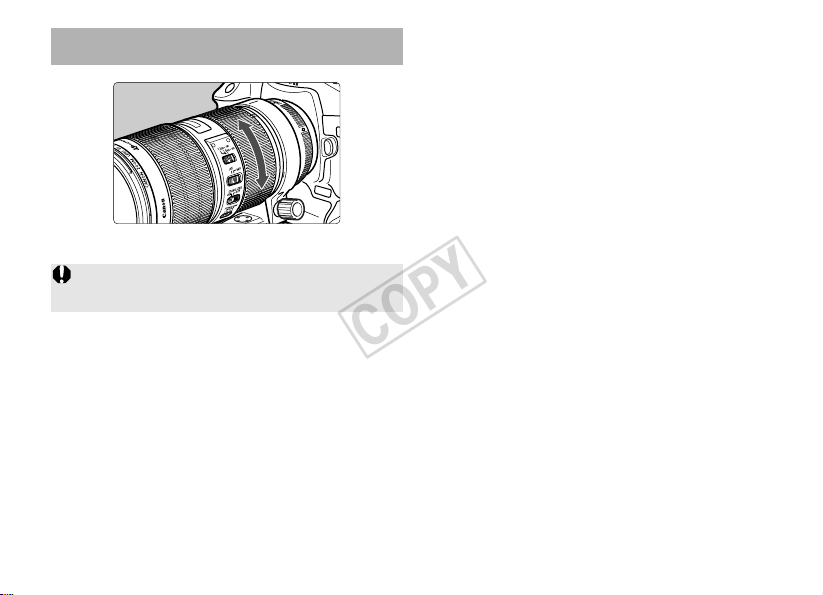

4. Zooming

To zoom, turn the zoom ring.

Be sure to finish zooming before focusing.

Zooming after focusing can affect the focus.

COPY

ENG-7

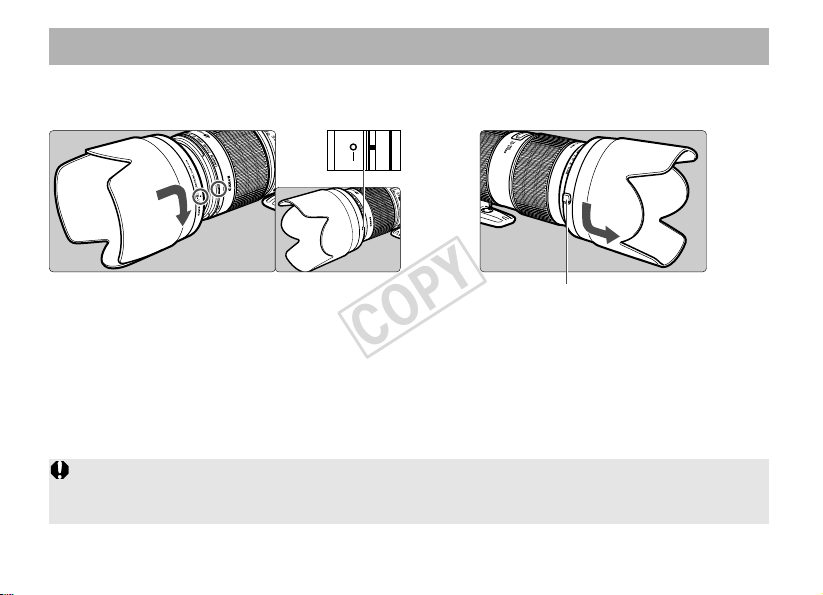

5. Hood

Attaching

To attach the hood, align the hood’s attachment

position mark with the red dot on the front of the

lens, then turn the hood as shown by the arrow

until the lens' red dot is aligned with the hood's

stop position mark.

The ET-87 hood can keep unwanted light out of the lens, and also protects the front of the lens from

rain, snow, and dust.

Removing

To remove the hood, hold down the button on the

side and turn the hood in the direction of the

arrow until the position mark on the hood aligns

with the red dot.

The hood can be reverse-mounted on the lens

for storage.

•Part of the picture may be blocked if the hood is not attached properly.

•When attaching or detaching the hood, grasp the base of the hood to turn it. To prevent deformation, do not

grasp the rim of the hood to turn it.

Button

COPY

ENG-8

You can use the image stabilizer in AF or MF mode.

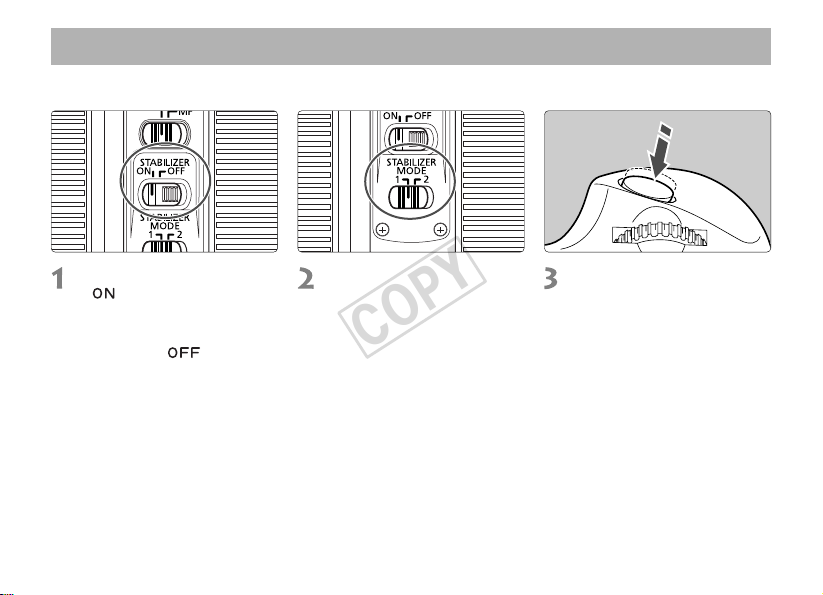

6. Image Stabilizer Settings

Select the stabilizer mode.

•MODE 1: Corrects vibrations

in all directions. It is mainly

effective for shooting still

subjects.

•MODE 2: It compensates for

vertical camera shake during

following shots in a horizontal

direction, and compensates for

horizontal camera shake

during following shots in a

vertical direction.

When you press the shutter

button halfway, the Image

Stabilizer will start

operating.

•Make sure the image in the

viewfinder is stable, then press

the shutter button the rest of

the way down to take the

picture.

Set the STABILIZER switch

to .

•If you are not going to use the

image stabilizer function, set

the switch to .

COPY

ENG-9

7. Tips on Using the Image Stabilizer

•In semi-darkened areas such as indoors or

outdoors at night.

•In locations where flash photography is

prohibited, such as art museums and theater

stages.

•In situations where your footing is uncertain.

•In situations where fast shutter settings cannot

be used.

•When panning subjects in motion.

●MODE 1 ●MODE 2

The image stabilizer in this lens is effective for hand-held shots under the following conditions.

COPY
