Canon MP-E 65 mm 1:2.8 1-5x Manuale di istruzioni

PARTS

CATALOG

MP-E 65 mm 1:2.8 1-5x

REF. NO. C26-1241

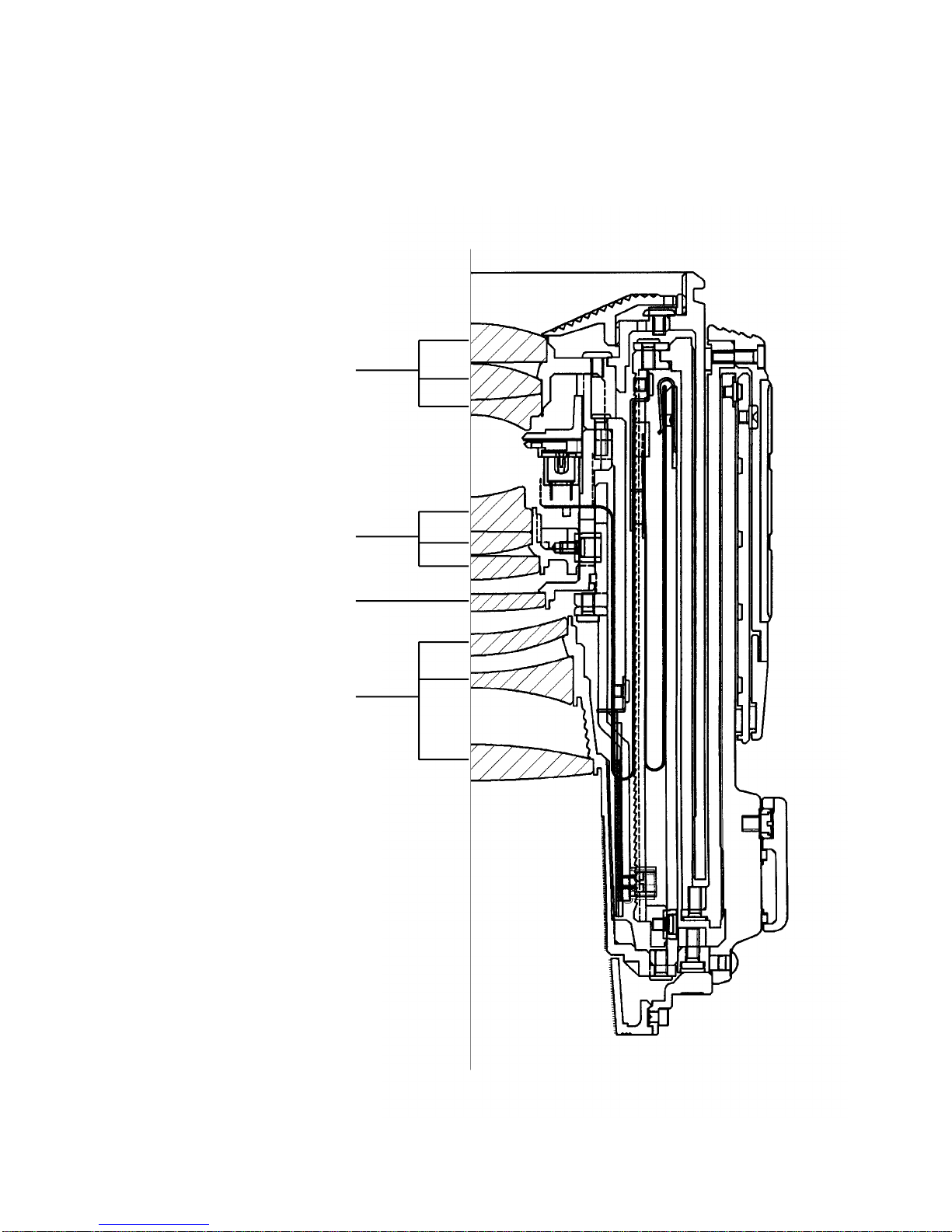

Pg 1 CANON LENS MP-E 65 mm 1:2.8 1-5×

REF. NO.C26-1241

Pg 2

CANON LENS MP-E 65 mm 1:2.8 1-5×

REF.NO. C26-1241

Pg 3 CANON LENS MP-E 65 mm 1:2.8 1-5×

REF. NO.C26-1241

Pg 4

CANON LENS MP-E 65 mm 1:2.8 1-5×

REF. NO.C26-1241

Page 5

PARTS LIST

REF.NO. C26-1241

NEW PARTS NO. CLASS QTY D E S C R I P T I O N PAGE

CA2-4583-000 C 1 CONTACT ASS'Y 3

CA2-4585-000 C 1 SCREW, MOUNT STOPPER 1

CA2-4586-000 2 SCREW 1

CA2-4620-000 C 1 MOUNT, LENS 1

CA2-4916-000 C 1 BRUSH, ZOOMING 3

CY1-2857-000 C 1 BAND UNIT 4

CY1-2881-000 C 1 RING ASS'Y, FOCUSING 1

CY1-2882-000 C 1 RING ASS'Y, FOCUSING GUIDE 2

CY1-2883-000 C 1 FIXED BARREL ASS'Y 2

CY1-2885-000 D 1 BARREL, GUIDE 3

CY1-2886-000 C 1 LENS ASS'Y, 1ST GROUP 3

CY1-2887-000 C 1 LENS ASS'Y, 2ND GROUP 3

CY1-2888-000 C 1 LENS ASS'Y, G7 3

CY1-2889-000 C 1 LENS ASS'Y, REAR 2

CY1-2890-000 D 1 BARREL, INNER FIXED 3

CY1-2891-000 D 1 HELICOID UNIT 2

CY1-2893-000 D 1 BARREL, CAM 3

CY1-2894-000 D 1 RING, COUPLING 1

CY1-2895-000 C 1 RING, BAFFLE 1

CY1-2896-000 C 1 RING, FOCUS RUBBER 1

CY1-2897-000 D 1 LEVER, CAM BARREL 3

CY1-2898-000 D 1 HOLDER, MAIN PCB. 3

CY1-2899-000 D 1 GUIDE, FLEX. 3

CY1-2900-000 D 1 HOLDER, CONNECTOR 3

CY1-2901-000 D 1 CLIP, FLEX. 3

CY1-2902-000 D 1 COLLAR, ASSEMBLY 1

CY1-2903-000 2 SCREW 1

CY1-2904-000 3 SCREW 1

CY1-2905-000 D 1 LIGHT SHIELD 3

CY1-2906-000 A 3 PIN, FOCUS GUIDE 2

X91-1731-310 9 SCREW, CROSS-RECESS, PH 1

XA1-1170-229 5 SCREW, CROSS-RECESS, PH 3

XA1-6170-309 2 SCREW, CROSS-RECESS, PH 3

XA1-7170-189 4 SCREW, CROSS-RECESS, PH 3

XA1-7170-207 1 SCREW, CROSS-RECESS, PH 3

XA1-7170-357 9 SCREW, CROSS-RECESS, PH 1,2

XA1-7170-507 3 SCREW, CROSS-RECESS, PH 2

XA1-7200-257 1 SCREW, CROSS-RECESS, PH 2

XA1-7200-606 4 SCREW, CROSS-RECESS, PH 1

XA4-6170-409 3 SCREW, CROSS-RECESS, PH 3

Page 6

PARTS LIST

REF.NO. C26-1241

NEW PARTS NO. CLASS QTY D E S C R I P T I O N PAGE

XA4-6170-507 3 SCREW, CROSS-RECESS, PH 3

YA2-0929-000 4 SCREW 2

YA2-2062-000(400) D 2 COLLAR 3

YA2-2063-000(400) D 6 COLLAR 3

YA2-2082-000 E 4 COLLAR 2

YA2-4111-000 C 1 COVER, BACK 1

YG2-0455-000 C 1 PCB ASS'Y, MAIN 3

YG2-0456-000 C 1 POWER DIAPHRAGM ASS'Y 3

YG2-0458-000 C 1 TRIPOD SOCKET UNIT 4

YH1-0638-000 D 1 FPC, MG 3
