Canon Im2020 Manuale

SETUP INSTRUCTIONS

im2020/2520/3520/2520f Copier

and Peripherals

BLANK PAGE

4032-7744-02



9216 9217 9218

9210

9219

9219000000

ZC35000709211

Mailbin Finisher* 9214

ZC3500060

Copier: Printer

9212

Memory

*Not offered

ZC3500130

ZC3500080

ZC3500110

ZC3500050

ZC3500080

Note: The System Stand must be unpacked and set in place prior to unpacking the copier. After completing the

copier setup, return to the System Stand Setup Instructions in order to make the proper adjustments for the stand.

PCN  Description

9210 RADF

9211 Multiposition Stapling Finisher

9212 Punch Unit

9214 Saddle Stitch Finisher

9216 Plain Stand

9217 Copy Desk (550 x 2)

9218 Large Capacity Cassette (2700 sheets)

9219 Duplex Unit

9219000000 Reversing Unit

ZC3500050 Hard Disk Drive

ZC3500060 Output Bin

ZC3500070 Job Separator

ZC3500080 Printer Controller (PCL6)

ZC3500090 Network Interface Card

ZC3500100 Parallel Port

ZC3500110 Network Scan Kit

ZC3500120 Internet Fax & Network Scan Kit

ZC3500130 Printer Controller (PCL6/PS3)



Note: For the details

of the setup procedure

for each option, follow

the instructions

given in the

Setup Instructions

of the corresponding

option to ensure the

option is set up

correctly.

Note: When setting

up a system consisting

of the copier and options,

set up each system

component in the order

shown at right.

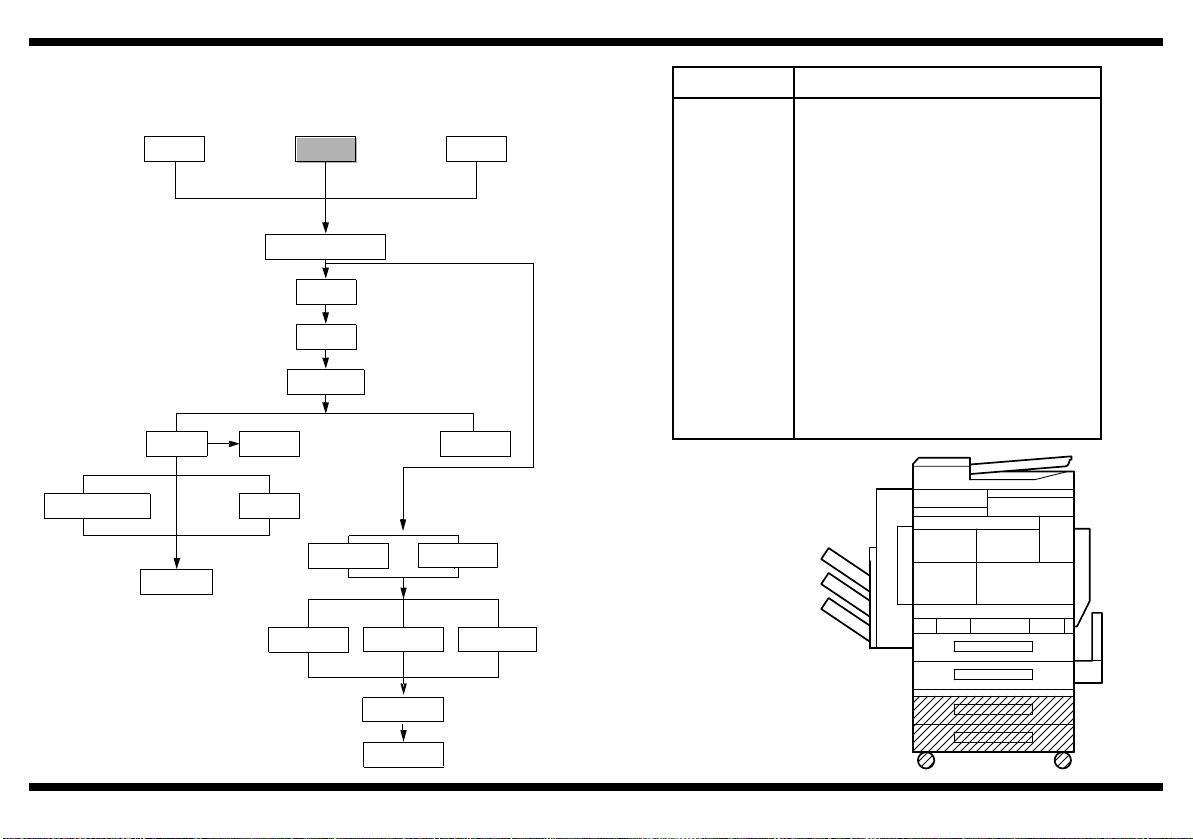

Setup Overview for

the im2020/2520/3520/2520f Copiers

ZC3500090

BLANK PAGE

GMT (Standard Time)

GMT Atlantic Eastern Central Mountain Pacific Alaska Hawaii

-4 -5 -6 -7 -8 -9 -10

Note: Subtract an hour for Daylight Savings Time

BLANK PAGE

4348-7747-02

SETUP INSTRUCTIONS

9217

2-Way Paper Feed Cabinet

NOTES

•Before setting up, be sure to unplug the power cord of the machine.

•Keep all packing materials out of the reach of children.

4348-7747-02.fm Page 0 Wednesday, July 30, 2003 12:09 PM

9217

– 1 –

4348-7747-02

■Setup Overview

4348-7747-02.fm Page 1 Wednesday, July 30, 2003 12:09 PM

9216 9217 9218

9210

9219

9219000000

ZC35000709211

Mailbin Finisher* 9214

ZC3500060

Copier: Printer

9212

Memory

*Not offered

ZC3500130

ZC3500080

ZC3500110

ZC3500050

ZC3500080

Note: When setting

up a system consisting

of the copier and options,

set up each system

component in the order

shown at right.

Note: For the de tails

of the setup procedure

for each option, follow

the instructions

given in the

Setup Instructions

of the corresponding

option to ensure the

option is set up

correctly.

PCN  Description

9210 RADF

9211 Multiposition Stapling Finisher

9212 Punch Unit

9214 Saddle Stitch Finisher

9216 Plain Stand

9217 Copy Desk (550 x 2)

9218 Large Capacity Cassette (2700 sheets)

9219 Duplex Unit

9219000000 Reversing Unit

ZC3500050 Hard Disk Drive

ZC3500060 Output Bin

ZC3500070 Job Separator

ZC3500080 Printer Controller (PCL6)

ZC3500090 Network Interface Card

ZC3500100 Parallel Port

ZC3500110 Network Scan Kit

ZC3500120 Internet Fax & Network Scan Kit

ZC3500130 Printer Controller (PCL6/PS3)



ZC3500090

9217

– 2 –

4348-7747-02

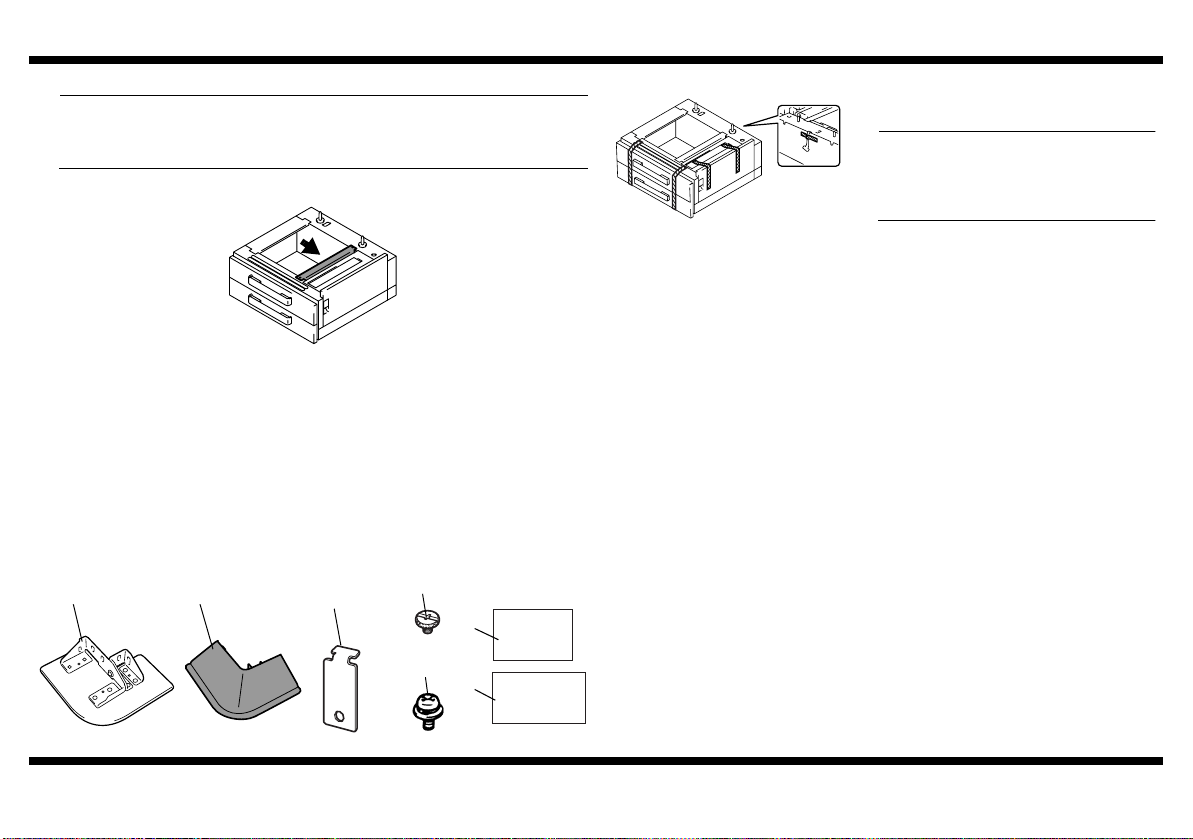

■Unpacking

NOTE

When removing the 2 Way Paper Feed Cabinet from its shipping carton, do not hold

onto the reinforcement bracket (indicated by the arrow in the illustration below) (as a

personal injury or a deformed frame could result).

1. Check that the following items are contained in the Box of Accessories.

2. Remove protective tape from different parts of the Paper Feed Cabinet.

1 Fixing Leg...............................................................................................4

2 Fixing Leg Cover ....................................................................................4

3 Fixing Bracket ........................................................................................4

4 Shoulder Screw......................................................................................4

5 Screw (9646-0408)...............................................................................12

6 Paper Size Label....................................................................................1

7 Setup Instructions (this manual).............................................................1

4348U004AA

4348U020AB

(3)

(4)

(5)

4658U021AA

4658U022AA

9646040813 4348U090CA

(7)

(6)

4348U099AB

(1) (2)

3. Remove the protective tape from the inside

of the drawer.

NOTE

Do not peel off the tape that fixes the Paper

Feed Cabinet hookup harness in position

until the copier is attached to the Paper

Feed Cabinet.

4348U057AB

4348-7747-02.fm Page 2 Wednesday, July 30, 2003 12:09 PM

9217

– 3 –

4348-7747-02

■Attaching the Copier to the Paper Feed Cabinet

■Installing the Fixing Leg and Fixing Leg covers

1. Remove the Lower Rear Cover of the copier

(four screws).

NOTE

Be sure to remove the Lower Rear Cover

before attempting to attach the copier to

the Paper Feed Cabinet. (This is done to

prevent the harness from getting wedged in

mechanisms.)

4348U018AC

2. Holding onto the transportation handles at

the front and rear of the copier, place the

copier onto the Paper Feed Cabinet. When

placing the copier, use the positioning pins in

the rear of the Paper Feed Cabinet to align

the copier correctly with the cabinet.

* Fit the rear side first.

NOTE

When attaching the copier, use care not to

apply load to the paper take-up section of

the copier.

4348U017AB

3. Peel off the tape that fixes the Paper Feed

Cabinet hookup harness in position.

4. Connect the two connectors of the Paper

Feed Cabinet hookup harness to the copier.

4348U005AA

4348U006AB

5. Using the Fixing Brackets and Shoulder

Screws furnished with the Paper Feed

Cabinet, secure the copier to the Paper Feed

Cabinet (at two places in the rear).

4348U019AA

6. Reinstall the Lower Rear Cover, which has

been removed in step 1 (four screws).

4348U018AC

7. Slide out the 3rd Drawer.

8. Using the Fixing Brackets and Shoulder

Screws furnished with the Paper Feed

Cabinet, secure the copier to the Paper Feed

Cabinet (at two places at the front).

4348U051AA

1. Move the copier and Paper Feed Cabinet to

the installation site. Then, adjust the two

adjusters at the front to let the Paper Feed

Cabinet sit on the floor.

4348U022AA

4348-7747-02.fm Page 3 Wednesday, July 30, 2003 12:09 PM
