Canon Digital ELPH Manuale utente

Canon

7_werShot -_D870 IS

_o DIG IT_.L (_LPH

IIIIIIIIIIIIIIIII

CDI-E366

DIG IT_,L

D(US B6015

Camera User Guide

Workflow and Reference Guides

The following guides are available. Refer to them as necessary according to the

flowchart below.

_._ Direct Print User

Guide

_GuideS°ftwareStarter

ZoomBrowser EX/

ImageBrowser

Software User Guide

•PDF manuals available

on the Canon website.

http:llweb.canonjpllmaginglinformation-e.html

Checking the Package Contents

The following items are included in the package. If something is missing,

please contact the retail outlet at which you purchased the product.

r "h

_) Camera OBattery Pack NB-5L OBattery Charger

(with Terminal Cover) CB-2LX/CB-2LXE

_) Memory Card (32MB) _Interface Cable IFC-4OOPCU

AV Cable AVC-DC300 _Wrist Strap WS-DC2 O Canon Digital Camera

Solution Disk

_) Warranty Card

You may not be able to achieve the full performance of this camera

with the included memory card.

You can use SD memory cards, SDHC (SD High

_'_ Capacity) memory cards, MultiMediaCards, MMCplus

cards and HC MMCptus cards in this camera. These

cards are collectively referred to as memory cards in

this guide.

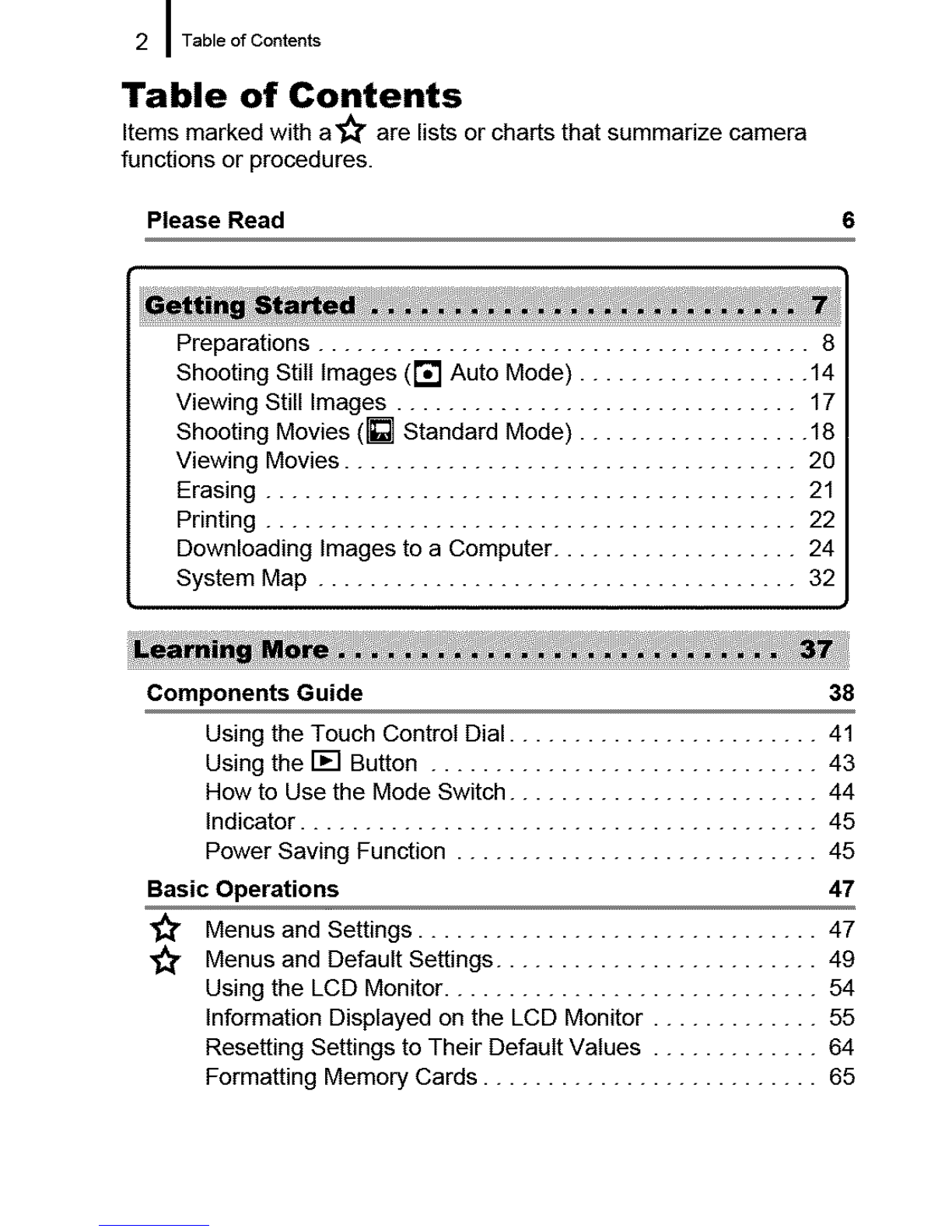

2 ITable of Contents

Table of Contents

Items marked with a_" are lists or charts that summarize camera

functions or procedures.

Please Read

Preparations ...................................... 8

Shooting Still Images (r';"JAuto Mode) .................. 14

Viewing Still Images ............................... 17

Shooting Movies ([] Standard Mode) .................. 18

Viewing Movies ................................... 20

Erasing ......................................... 21

Printing ......................................... 22

Downloading Images to a Computer ................... 24

System Map ..................................... 32

Components Guide 38

Using the Touch Control Dial ........................ 41

Using the _ Button .............................. 43

How to Use the Mode Switch ........................ 44

Indicator ........................................ 45

Power Saving Function ............................ 45

Basic Operations 47

_" Menus and Settings ............................... 47

_j_ Menus and Default Settings ......................... 49

Using the LCD Monitor ............................. 54

Information Displayed on the LCD Monitor ............. 55

Resetting Settings to Their Default Values ............. 64

Formatting Memory Cards .......................... 65

Table of Contents I 3

Commonly Used Shooting Functions 66

[] E_)3Shooting with the Optical Zoom ................ 66

Using the Digital Zoom/Digital Tete-Converter .......... 67

Magnified Close-Up Shooting (Digital Macro) ........... 70

_- Using the Flash ................................ 71

_1, Shooting Close-Ups/Infinity Shot ............... 72

Using the Self-Timer ........................... 73

Changing the Recording Pixels/Compression (Still Images) 75

Configuring the Postcard Mode ...................... 77

Embedding the Date in the Image Data ................ 78

Setting the Image Stabilizer Function ................. 79

Table of Contents I5

Symbol Conventions in this Guide

_Co_u_g the P_stc_d Mode i_m

- Mode switch position

,vailable shooting modes

These modes are available

0cTahimSemraarkdepenra°_eeSni'Ssuesthat mayaffe!t the

_] This mark denotes additional topics that complement

the basic operating procedures.

Explanations in this guide are based on the camera's default settings

at t me of purchase.

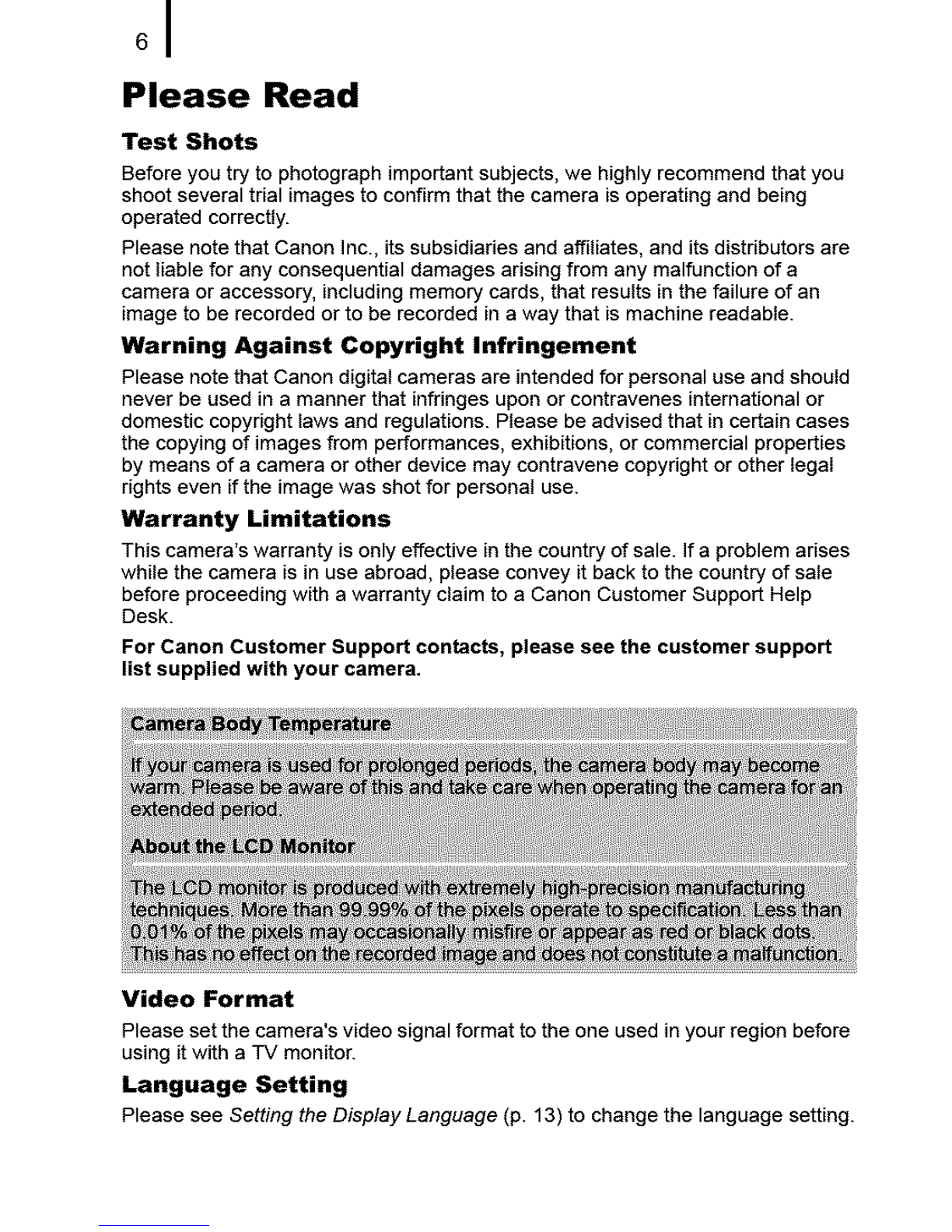

Please Read

Test Shots

Before you try to photograph important subjects, we highly recommend that you

shoot several trial images to confirm that the camera is operating and being

operated correctly.

Please note that Canon inc., its subsidiaries and affiliates, and its distributors are

not liable for any consequential damages arising from any malfunction of a

camera or accessory, including memory cards, that results in the failure of an

image to be recorded or to be recorded in a way that is machine readable.

Warning Against Copyright Infringement

Please note that Canon digital cameras are intended for personal use and should

never be used in a manner that infringes upon or contravenes international or

domestic copyright laws and regulations. Please be advised that in certain cases

the copying of images from performances, exhibitions, or commercial properties

by means of a camera or other device may contravene copyright or other legal

rights even if the image was shot for personal use.

Warranty Limitations

This camera's warranty is only effective in the country of sale. If a problem arises

while the camera is in use abroad, please convey it back to the country of sale

before proceeding with awarranty claim to a Canon Customer Supporf Help

Desk.

For Canon Customer Support contacts, please see the customer support

list supplied with your camera.

Video Format

Please set the camera's video signal format to the one used in your region before

using it with a TV monitor.

Language Setting

Please see Setting the Display Language (p. 13) to change the language setting.

Getting Started

ePreparations

oShooting Still Images

oViewing Still Images

eShooting Movies

oViewing Movies

oErasing

oPrinting

eDownloading Images to a

oSystem Map

8IPreparations

_Charging the Battery

t = Insert the battery into the battery charger.

.Alignthesesymbols

2= Plug the battery charger (CB-2LX) into a power outlet,

or attach the power cord to the battery charger (CB-

2LXE) and plug it into a power outlet.

Battery charger model names and types vary by region.

Charge Indicator

Charging: lights

orange

For CB-2LX For CB-2LXE

3. Remove the battery after charging is complete.

Charging takes approximately 2 hours 5 minutes.

_1 i:chh_(._r_dlcCa tm°_r,et_ _ _

_', To protect the battery and prolong its !ire. do not charge it for

_._ longer than 24 hours continuously.

Preparations I 9

iInstalling the and Card

Battery Memory

t = Slide the cover and open it out (_, _).

2= Insert the battery.

ItwiIIIock into place with aclick.

3= Insert the memory card until it clicks into place.

Front

Write Protect Tab

(Only SD memory cards)

r. Confirm that the Write J

Protect Tab is unlocked

(only SD memory cards).

•Check the card for the

correct orientation.

_ Ensure that the memory card is correctly oriented before

inserting it in the camera. Inserting it backward may cause the

camera to fail to recognize the memory card or to malfunction.
