Canon DIGITAL IXUS 400 Manuale di istruzioni
CHAPTER 4. PARTS CATALOG
CONTENTS
PowerShot S400/DIGITAL IXUS 400/IXY DIGITAL 400
Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1
Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2
Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3
OPTICAL UNIT ----------------------------------------------------------------------------------------------------------------- Pg4
Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg5
Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg6
Accessories-3 ------------------------------------------------------------------------------------------------------------------------- Pg7
Service Tools-1 ----------------------------------------------------------------------------------------------------------------------- Pg8
Service Tools-2 ----------------------------------------------------------------------------------------------------------------------- Pg9
Category of CLASS
A: Frequency of use: High
B: Frequency of use: Middle
C: Frequency of use: Low
D: Safety-related critical parts
E: Consumable parts
F: Standard screws and washers
S: Supply of the parts is limited
Y: Service Tools
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400

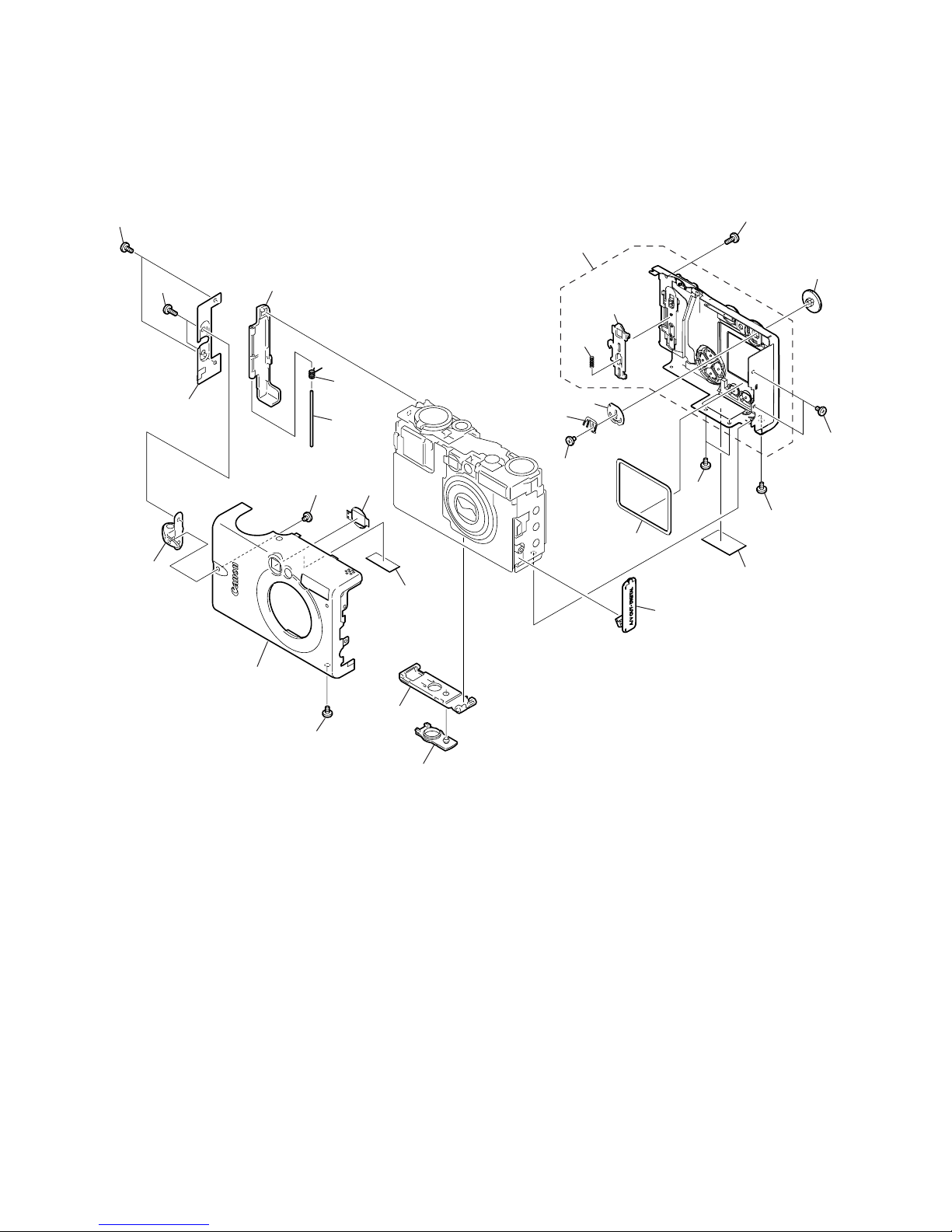

Pg1 Casing Parts
2
4
5
3
6
7
8
9
12
17
18
11
27
26
24
23
20
19
21
27
25
22
14
15
16
13
10
1
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg1
1 CD3-0675-000 B 1 COVER, DC COUPLER
2 CD3-0657-000 B 1 COVER, BATTERY
3 CM1-2113-000 B 1 FRONT COVER UNIT IXY DIGITAL 400
CM1-2114-000 B 1 FRONT COVER UNIT PowerShot S400
CM1-2115-000 B 1 FRONT COVER UNIT DIGITAL IXUS 400
4 CD3-0684-000 C 1 SHEET, INSULATION
5 CD3-0648-000 C 1 RUBBER, FINDER
6 CD3-0645-000 B 1 RING, STRAP
7 CL1-2022-000 B 1 SIDE COVER UNIT
8 CD3-0698-000 B 1 COVER, CF
9 CS8-6162-000 C 1 SPRING, CF COVE
10 CD3-0699-000 C 1 BAR, CF COVER
11 CD3-0711-000 C 1 SPRING, MODE DIAL CLICK
12 CD3-0712-000 C 1 PLATE, MODE DIAL CONTACT
13 CM1-2111-000 B 1 REAR COVER UNIT
14 CS8-5264-000 C 1 SPRING, CF LOCK
15 CD1-4200-000 C 1 LOCK, CF COVER
16 CD3-0710-000 B 1 DIAL, MODE
17 CD3-0706-000 C 1 SPACER, LCD
18 CD3-0704-000 B 1 COVER, JACK
19 CY1-6259-000 B 1 PLATE, BODY NUMBER #13011xxxxx
20 CD3-0730-000 C 1 SCREW
21 CD3-0728-000 C 1 SCREW
22 CD3-0687-000 C 1 SCREW
23 CD3-0679-000 C 2 SCREW
24 CD3-0678-000 C 2 SCREW
25 CD3-0734-000 C 1 SCREW
26 CD3-0731-000 C 1 SCREW
27 CD3-0677-000 C 4 SCREW
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg2
12
12
10
8
7
5
11
12
3
4
6
2
1
13
14
13
9
Internal Parts-1
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg2
1 CM1-2086-000 C 1 OPERATION KEY UNIT
2 CD3-0735-000 C 1 SHEET, DUSTPROOF
3 WK1-5140-000 C 1 BATTERY, LITHIUM(2ND)
4 CD3-0631-000 C 1 SPACER, FINDER GAP
5 CL1-2024-000 C 1 SHIELD SHEET UNIT
6 CM1-2085-000 C 1 PCB ASS’Y, MAIN
7 CM1-2072-000 B 1 SHUTTER BUTTON UNIT
8 CM1-2075-000 C 1 BACK LIGHT UNIT
9 WG2-5243-000 C 1 PANEL, LCD
WG2-5243-001 C 1 PANEL, LCD (SELECTION)
10 CD3-0715-000 C 1 PLATE, OPERATION
11 CD3-0716-000 C 1 TAPE, OPERATION PLATE
12 CD1-3108-000 C 4 SCREW
13 XA1-7170-357 F 3 SCREW
14 XA4-9170-359 F 1 SCREW
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg3
3
6
12
5
7
4
9
8
11
10
2
1
13
14
14
18
18
15
16
See Pg4
17
Internal Parts-2
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg3
1 CD3-0723-000 C 1 SOCKET, TRIPOD
2 CM1-2090-000 C 1 FINDER UNIT
3 CM1-2074-000 C 1 BATTERY BOX UNIT
4 CD3-0655-000 C 1 SPRING, BATTERY LOCK
5 CD3-0654-000 C 1 LOCK, BATTERY
6 CD3-0690-000 C 1 SHEET, GROUND
7 CK2-2027-000 C 1 FPC, MAIN-FLASH
8 CM1-2071-000 C 1 FLASH BASE UNIT
9 CM1-2112-000 C 1 SPEAKER SHEET UNIT
10 CM1-2084-000 C 1 CF UNIT
11 CD3-0707-000 C 1 FRAME, MAIN
12 CY4-6074-000 D 1 FUSE, MATSU. DENKI UNHS 206
13 XA4-9140-359 F 2 SCREW
14 XA1-7170-307 F 3 SCREW
15 CD3-0700-000 C 2 SCREW
16 XA4-9170-309 F 2 SCREW
17 XA4-5140-209 F 1 SCREW
18 XA4-5170-309 F 4 SCREW
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg4
1
2
3
4
5
6
7
8
9
10
11
12
OPTICAL UNIT
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg4
1 CD3-0597-000 B 1 CAP, BASE BARREL
2 CD3-0548-000 C 1 SHEET, LENS BARREL
3 CD3-0543-000 B 1 CAP, BARREL
4 CD3-0558-000 C 1 TAPE, BARREL CAP SIZE (015)
5 CD3-0552-000 B 1 CAP, FRONT
6 CD3-0550-000 B 2 PLATE, BARRIER
7 CD3-0551-000 C 1 BASE, BARRIER
8 CD3-0554-000 C 1 PLATE, BARRIER DRIVE
9 CD3-0557-000 C 1 SPRING, BARRIER OPEN
10 CD3-0556-000 C 1 SPRING, BARRIER CLOSE
11 CD3-0553-000 C 1 RING, BARRIER DRIVE
12 CM1-2062-000 C 1 OPTICAL UNIT
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg5
N.Sl : N.S Stand for No Stock (Product available)

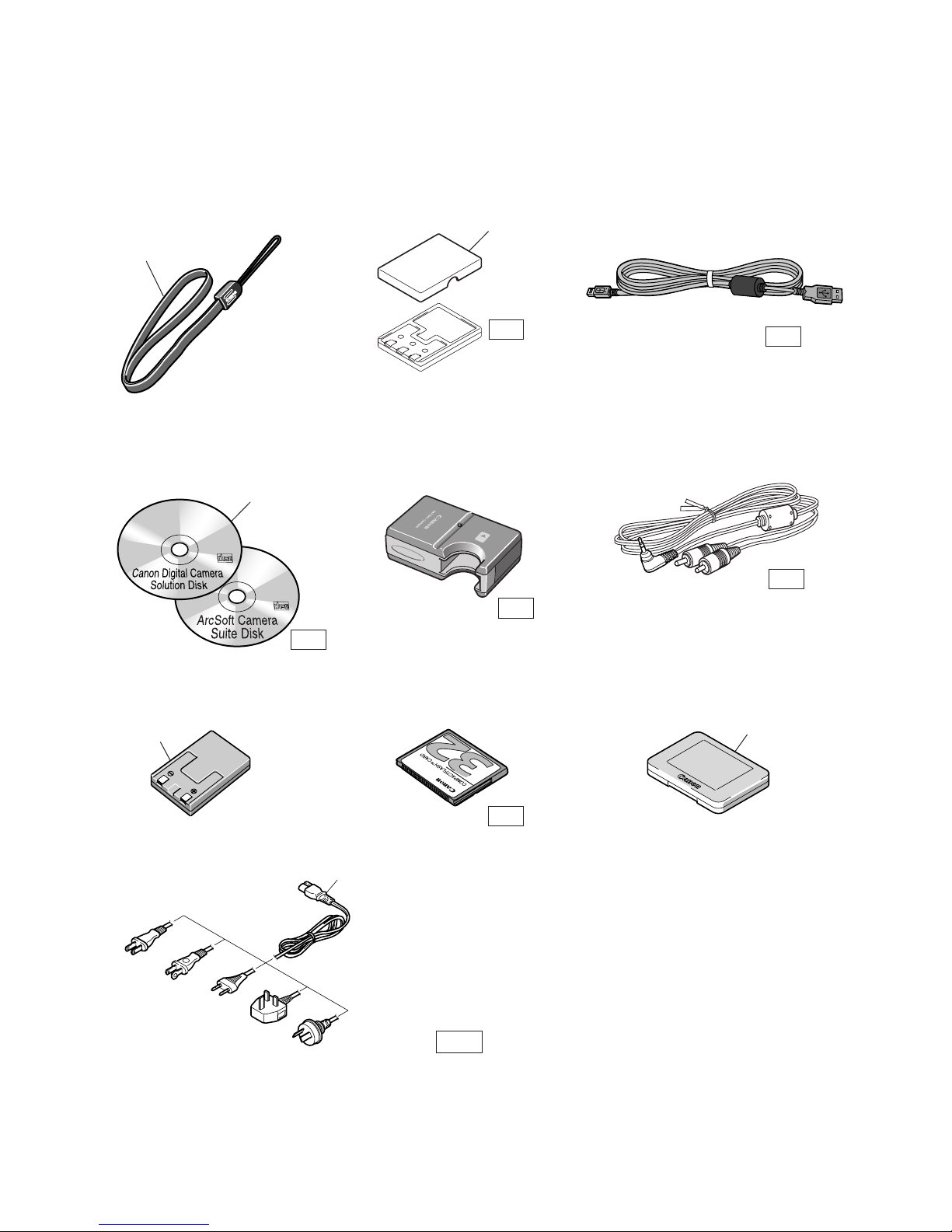

Accessories-1
Terminal Cover NB-1LH USB Interface Cable
IFC-300PCU
AV Cable AVC-DC100Battery Charger
CB-2LS/2LSE
Canon Digital Camera
Solution Disk,
ArcSoft Camera Suite Disk
DC Coupler DR-500
AC Cable
N.S N.S
N.S
1
3
2
5
N.S
CF Card FC-32M
4
PLUG TYPE
N
J
E
B
A
FC-32M
N.S
Wrist Strap WS-300
CF Case
6
N.S
