Canon EOS Rebel T4i Manuale utente

Canon

il _ii i i

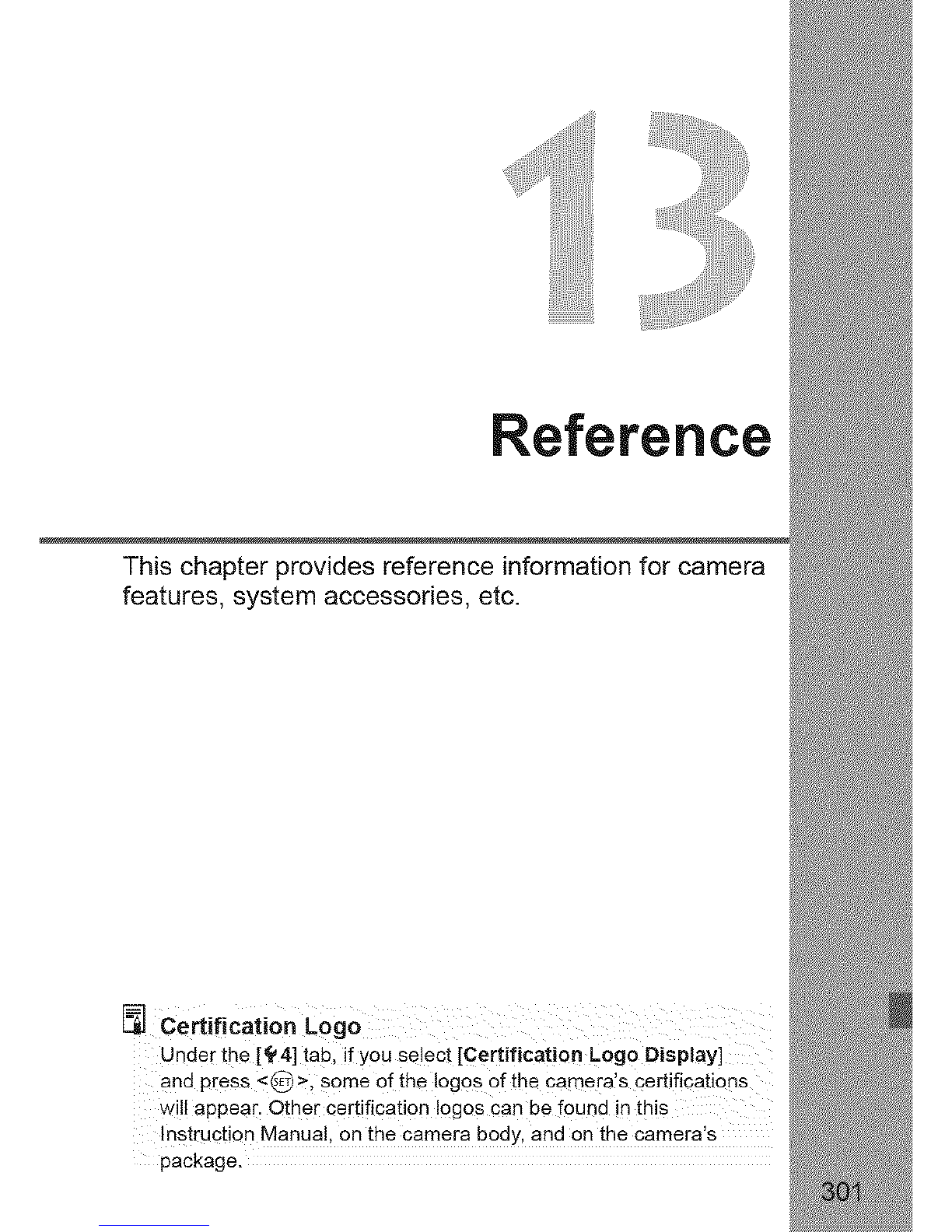

Reference

This chapter provides reference information for camera

features, system accessories, etc.

ce, ifjcat onLogo

Under the [_'4] tabl if YOUSeleci [Certificat!o n Logo Display]

and press <@ >, some of the Iogos of the Camerals Certifioations

will appear. Other certification loges Can be found in this

Instructio n Manual, on the camera body, and on the camera's

package.

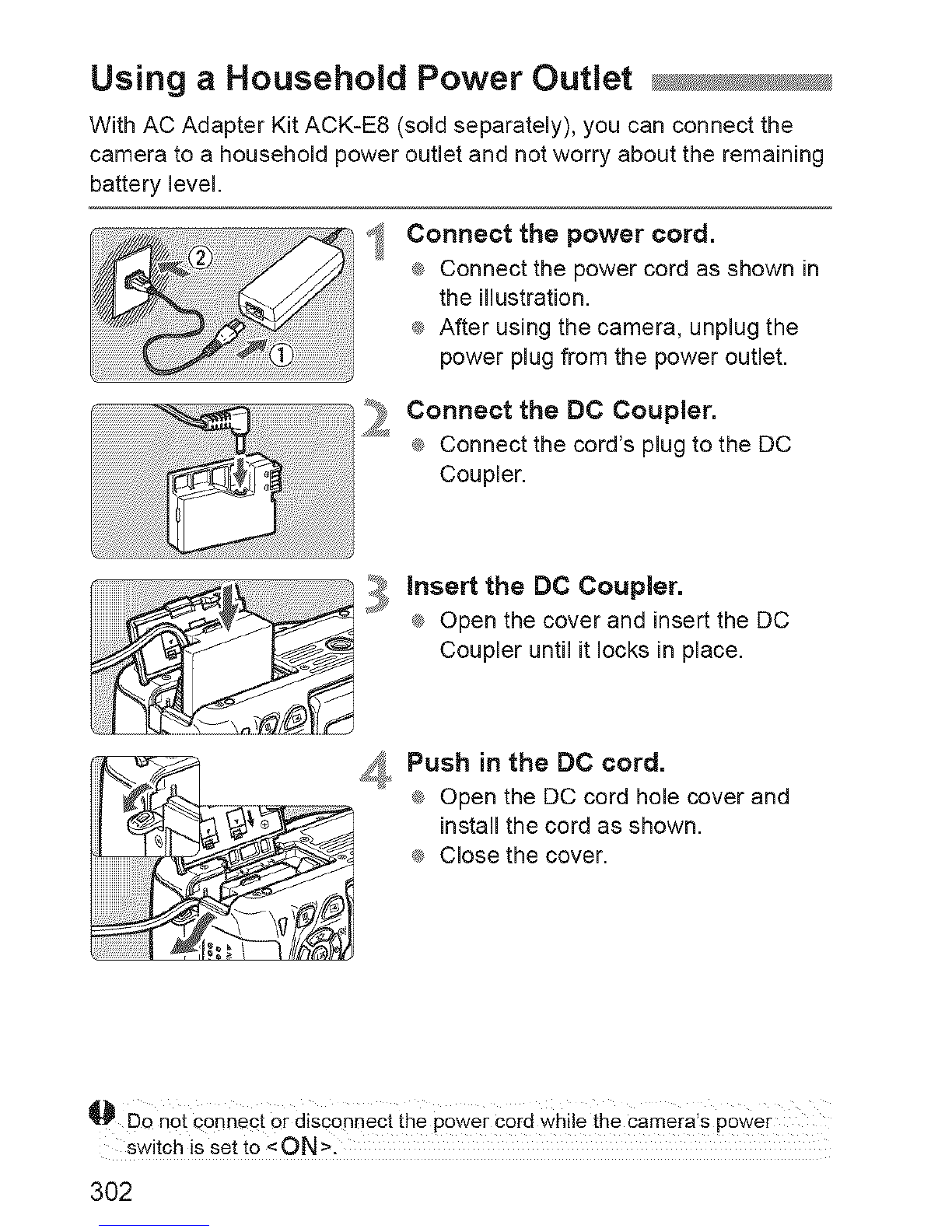

Using a Household Power Outlet

With AC Adapter Kit ACK-E8 (sold separately), you can connect the

camera to a household power outlet and not worry about the remaining

battery level.

Connect the power cord.

_ Connect the power cord as shown in

the illustration.

_ After using the camera, unplug the

power plug from the power outlet.

_Connect the DC Coupler.

_ Connect the cord's plug to the DC

Coupler.

_:_,_.Insert the DC Coupler.

_ Open the cover and insert the DC

Coupler until it locks in place.

l_, Push in the DC cord.

_ Open the DC cord hole cover and

install the cord as shown.

_ Close the cover.

Do net connect or disC0nneet the power C0rd While the camera;Spewer

switch is set to <ON>.

302

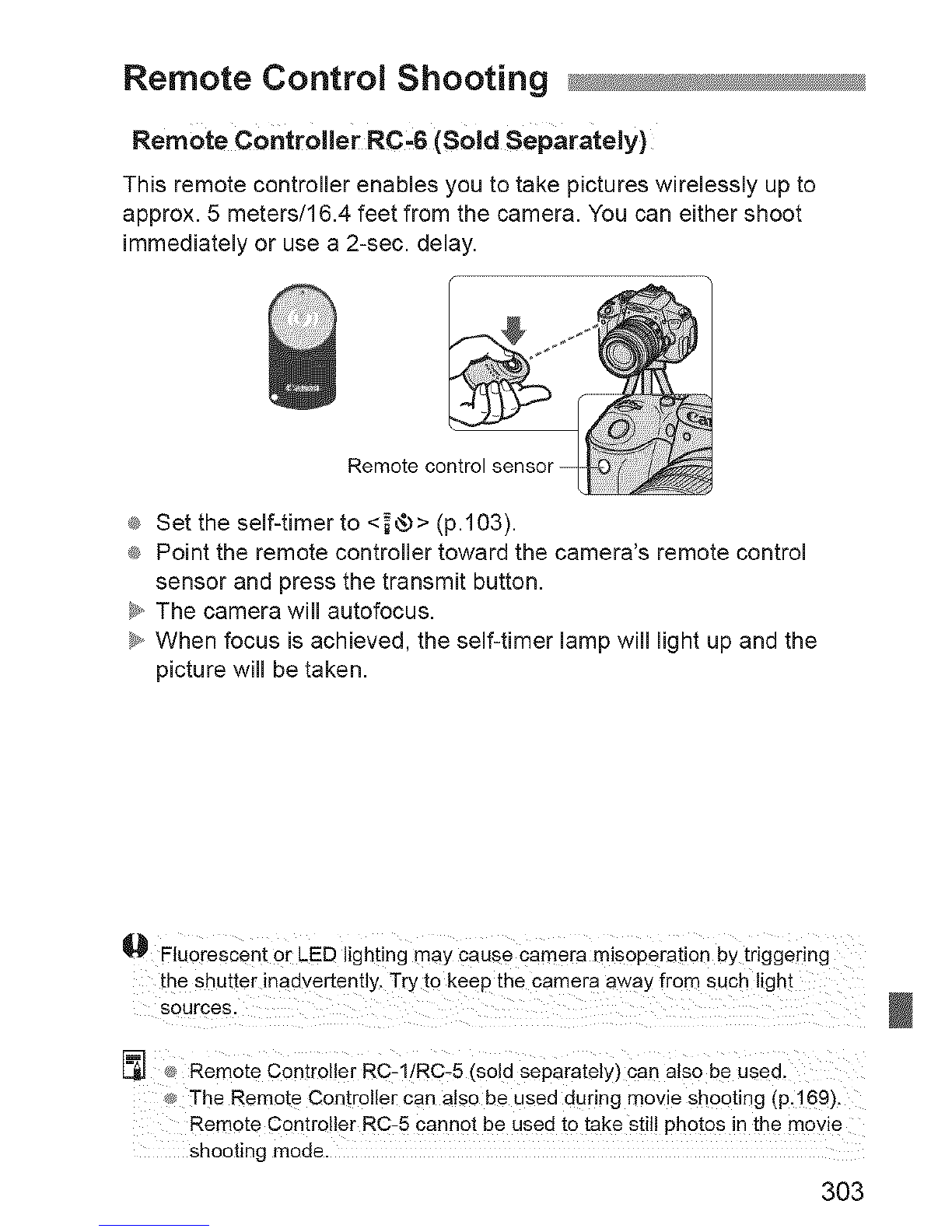

Remote Control Shooting

RemOte controller RC,6 (Sold Separately)

This remote controfler enables you to take pictures wirelessly up to

approx. 5 meters/16.4 feet from the camera. You can either shoot

immediately or use a 2-sec. delay.

Remote control

® Set the self-timer to < _® > (p.103).

® Point the remote controller toward the camera's remote control

sensor and press the transmit button.

_ The camera will autofocus.

_y,,When focus is achieved, the self-timer lamp will light up and the

picture will be taken.

I_ :luorescent or LED lighting may cause camera misoperation by triggering

the shutter inadvertently. Try to keep the camera away from such light

sources.

_] ÷, Remote Controller RC-1/RC-5 (sold separately)can also beusec

The Remote Controller can also be used during movieshooting (p,169).

Remote Controller RC-5 cannot beused to take still photosin the movie

shooting mode.

303

Remote Control Shooting

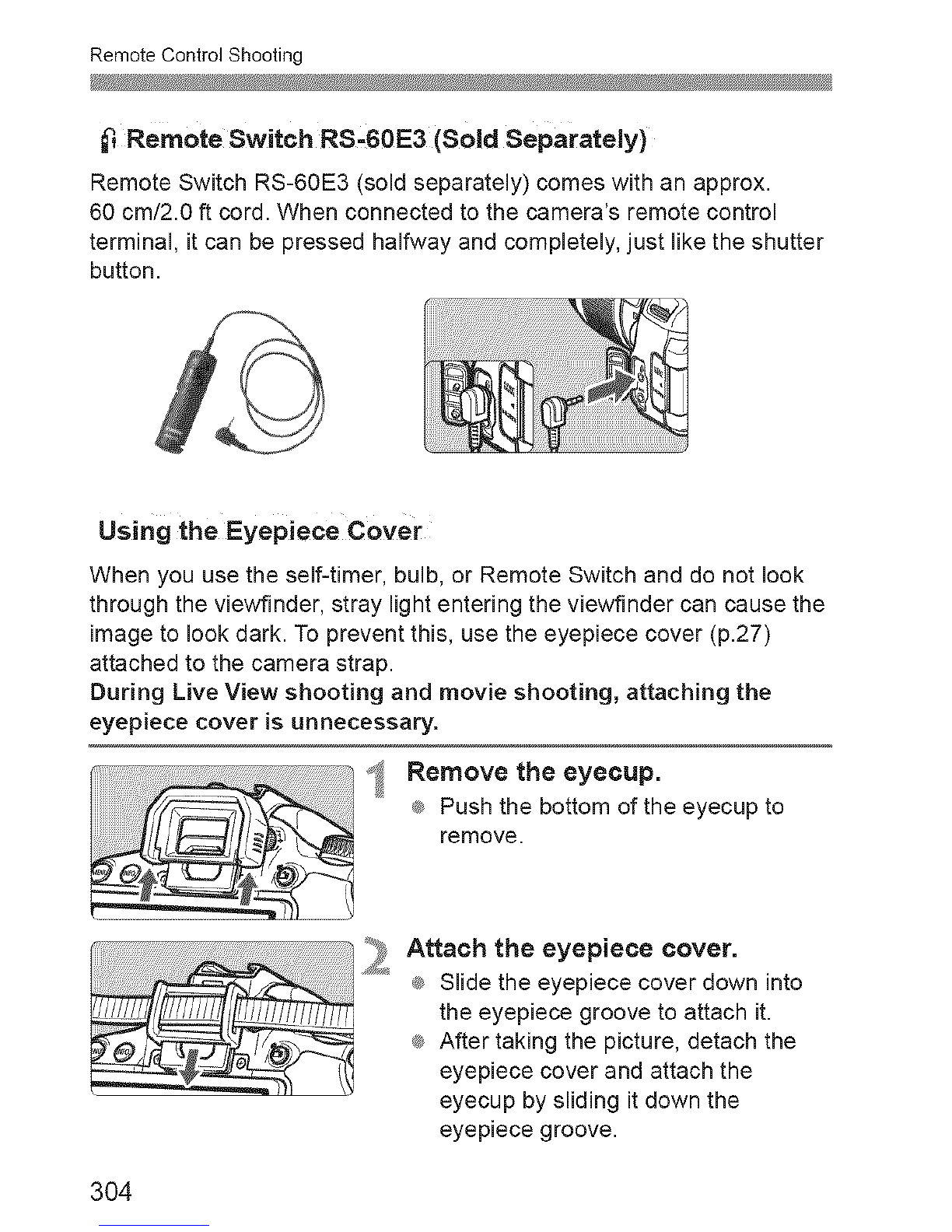

Remote Switch RS,60E3 (Sold Separately)

Remote Switch RS-60E3 (sold separately) comes with an approx.

60 cmi2.0 ft cord. When connected to the camera's remote control

terminal, it can be pressed halfway and completely, just like the shutter

button.

Using the Eyepiece cover

When you use the self-timer, bulb, or Remote Switch and do not look

through the viewfinder, stray light entering the viewfinder can cause the

image to look dark. To prevent this, use the eyepiece cover (p.27)

attached to the camera strap.

During Live View shooting and movie shooting, attaching the

eyepiece cover is unnecessary.

_ Remove the eyecup.

_ Push the bottom of the eyecup to

remove.

Attach the eyepiece cover.

_ Slide the eyepiece cover down into

the eyepiece groove to attach it.

_ After taking the picture, detach the

eyepiece cover and attach the

eyecup by sliding it down the

eyepiece groove.

304

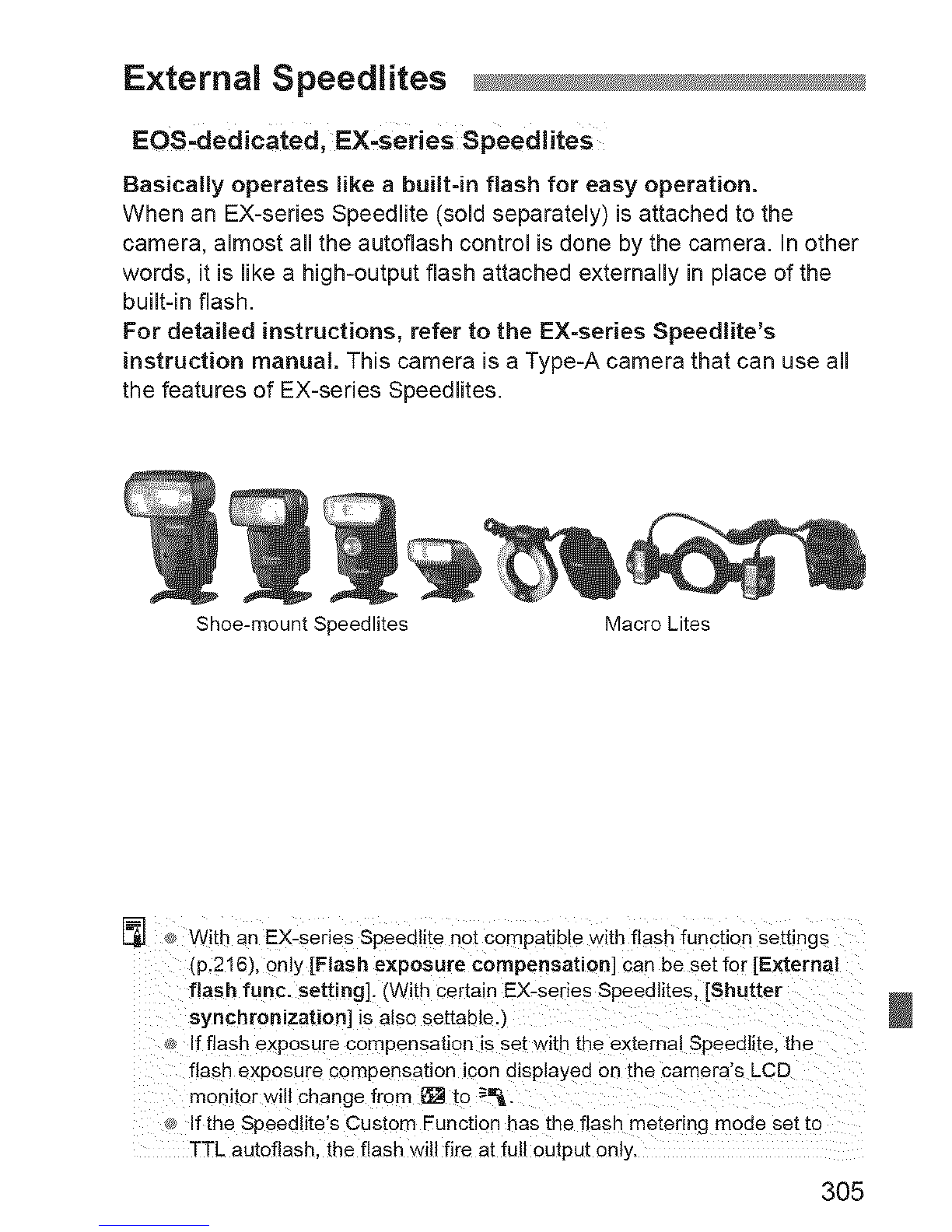

External Speedlites

EOS'dedicated, EX,sedes Speedlites

Basically operates like abuilt-in flash for easy operation,

When an EX-series Speedlite (sold separately) is attached to the

camera, almost all the autoflash control is done by the camera. In other

words, it is like a high-output flash attached externally in place of the

built-in flash.

For detailed instructions, refer to the EX-series Speedlite's

instruction manual. This camera is a Type-A camera that can use all

the features of EX-series Speedlites.

Shoe-mount Speedlites Macro Lites

I_] _'_With an EX-series Speedlite not compatible with flash function settings

(p.216), only [Flash exposure compensation] can be set for [External

flash func. setting]. (With certain EX-series Speedlites, [Shutter

synchronization] is also settable.)

If flash exposure compensation is set with the external Speedlite, the

flash exposure compensation icon displayed on the camera's LCD

monitor will change from _ to _"_.

If the Speedlite's Custom Function has the flash metering mode set to

TTL autoflash, the flash will fire at full output only.

3O5

External Speedlites

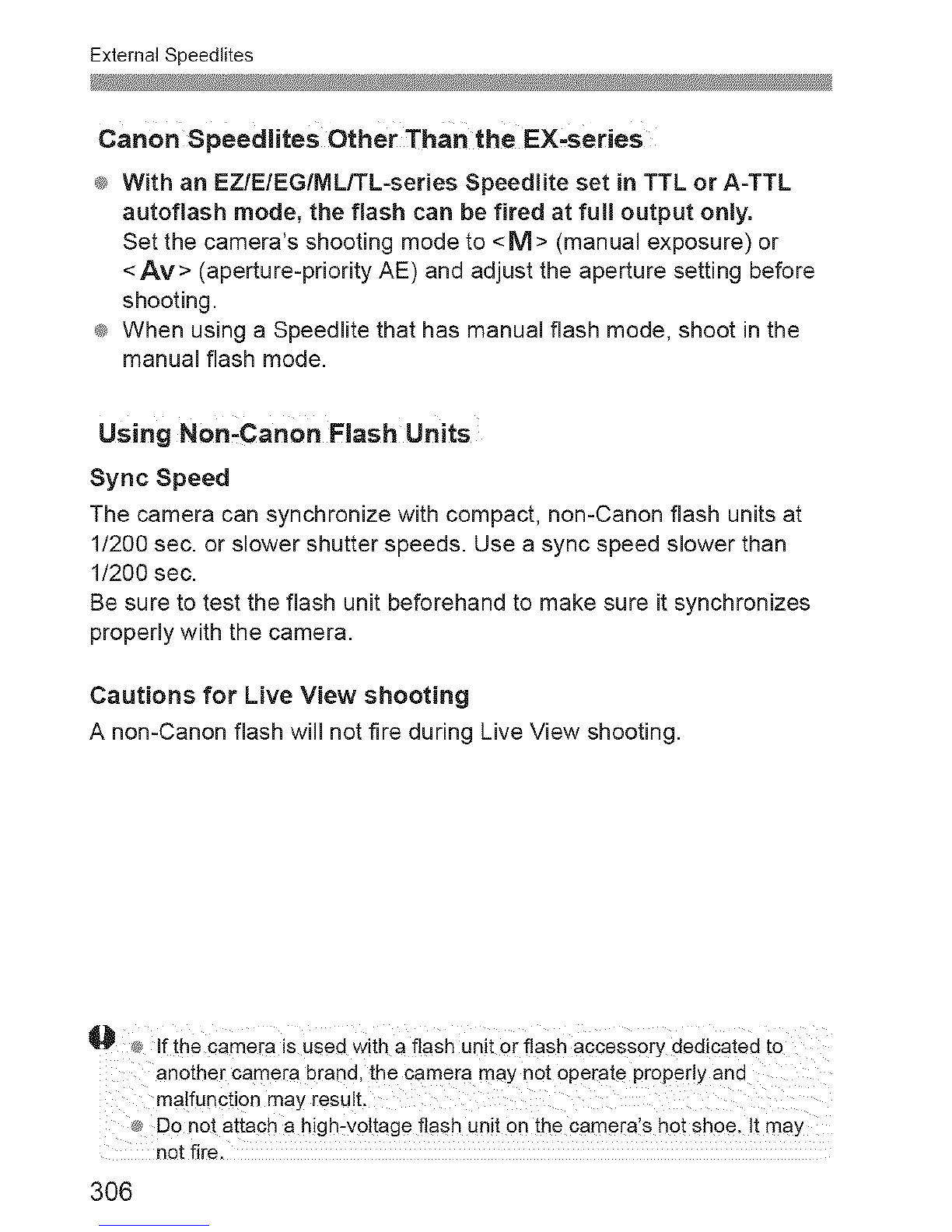

Canon Speedlites Other Than the EX-series

_With an EZIEIEGIMLITL-series Speedlite set in TTL or A=TTL

autoflash mode, the flash can be fired at full output only.

Set the camera's shooting mode to <M> (manual exposure) or

<Av> (aperture-priority AE) and adjust the aperture setting before

shooting.

_ When using a Speedlite that has manual flash mode, shoot in the

manual flash mode.

Using Non-Canon Flash Units

Sync Speed

The camera can synchronize with compact, non-Canon flash units at

1/200 sec. or slower shutter speeds. Use a sync speed slower than

1/200 sec.

Be sure to test the flash unit beforehand to make sure it synchronizes

properly with the camera.

Cautions for Live View shooting

A non-Canon flash will not fire during Live View shooting.

¢, Ifthe Camerais Usedwith a flash Unit0[flash access0ry dedicated t°

another camera brand, the camera may net operate properlYand

malfunctionmay result.

_ Donot attach a high-voltageflash unit Onthe camera's hot shoe. Itmay

not fire,

306

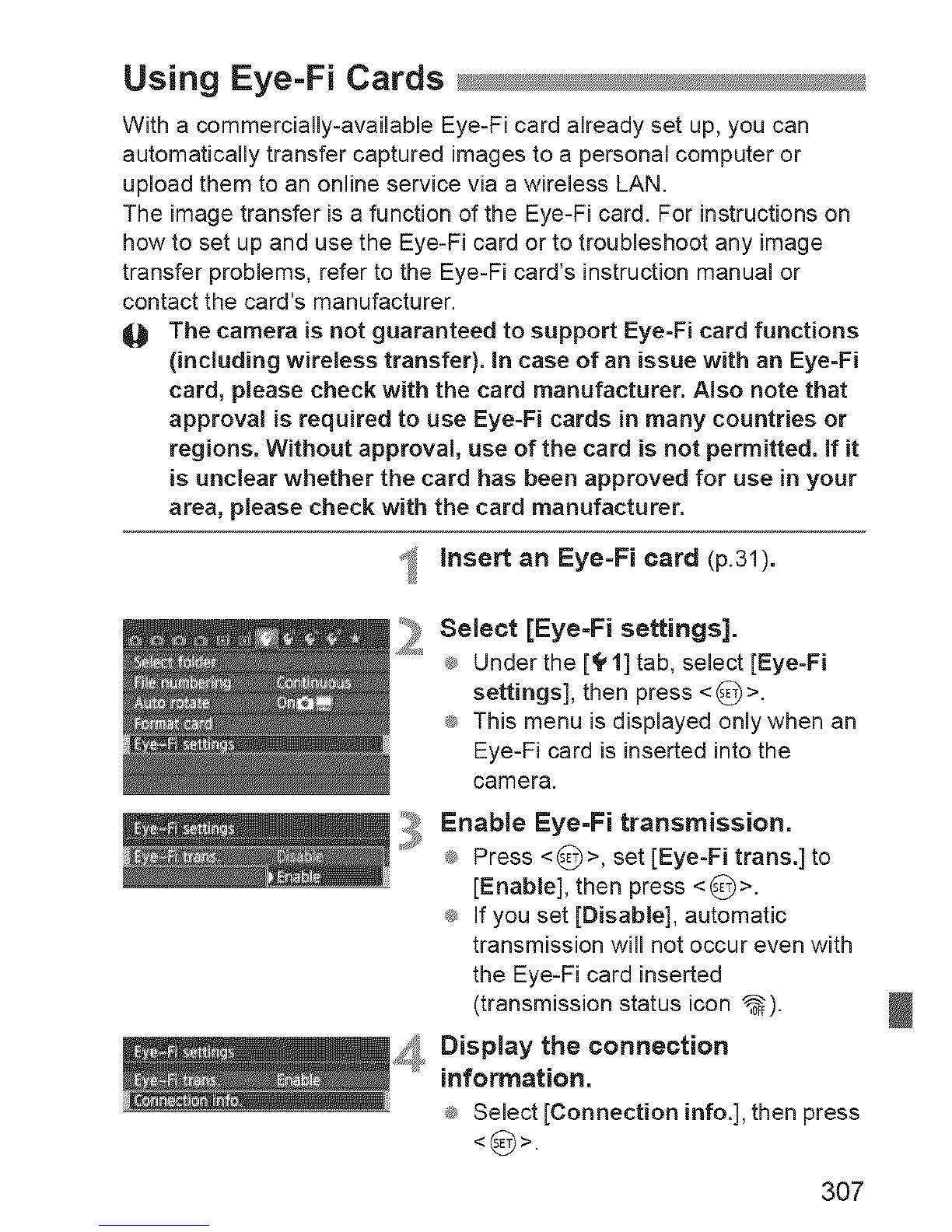

Using Eye=Fi Cards

With a commercially-available Eye-Fi card already set up, you can

automatically transfer captured images to a personal computer or

upload them to an online service via a wireless LAN.

The image transfer is a function of the Eye-Fi card. For instructions on

how to set up and use the Eye-Fi card or to troubleshoot any image

transfer problems, refer to the Eye-Fi card's instruction manual or

contact the card's manufacturer.

OThe camera is not guaranteed to support Eye-Fi card functions

(including wireless transfer), in case of an issue with an Eye-Fi

card, please check with the card manufacturer. Also note that

approval is required to use Eye-Fi cards in many countries or

regions. Without approval, use of the card is not permitted, if it

is unclear whether the card has been approved for use in your

area, please check with the card manufacturer.

Insert an Eye=Fi card (p.31).

Select [Eye-Fi settings].

_ Under the [_,1] tab, select [Eye-Fi

settings], then press < _) >.

_ This menu is displayed only when an

Eye-Fi card is inserted into the

camera.

Enable Eye=Fi transmission.

_ Press <0>, set [Eye-Fi trans.] to

[Enable], then press <0>.

_ If you set [Disable], automatic

transmission will not occur even with

the Eye-Fi card inserted

(transmission status icon %).

4isplay the connection

information.

®_Select [Connection info.], then press

<(_>.

307

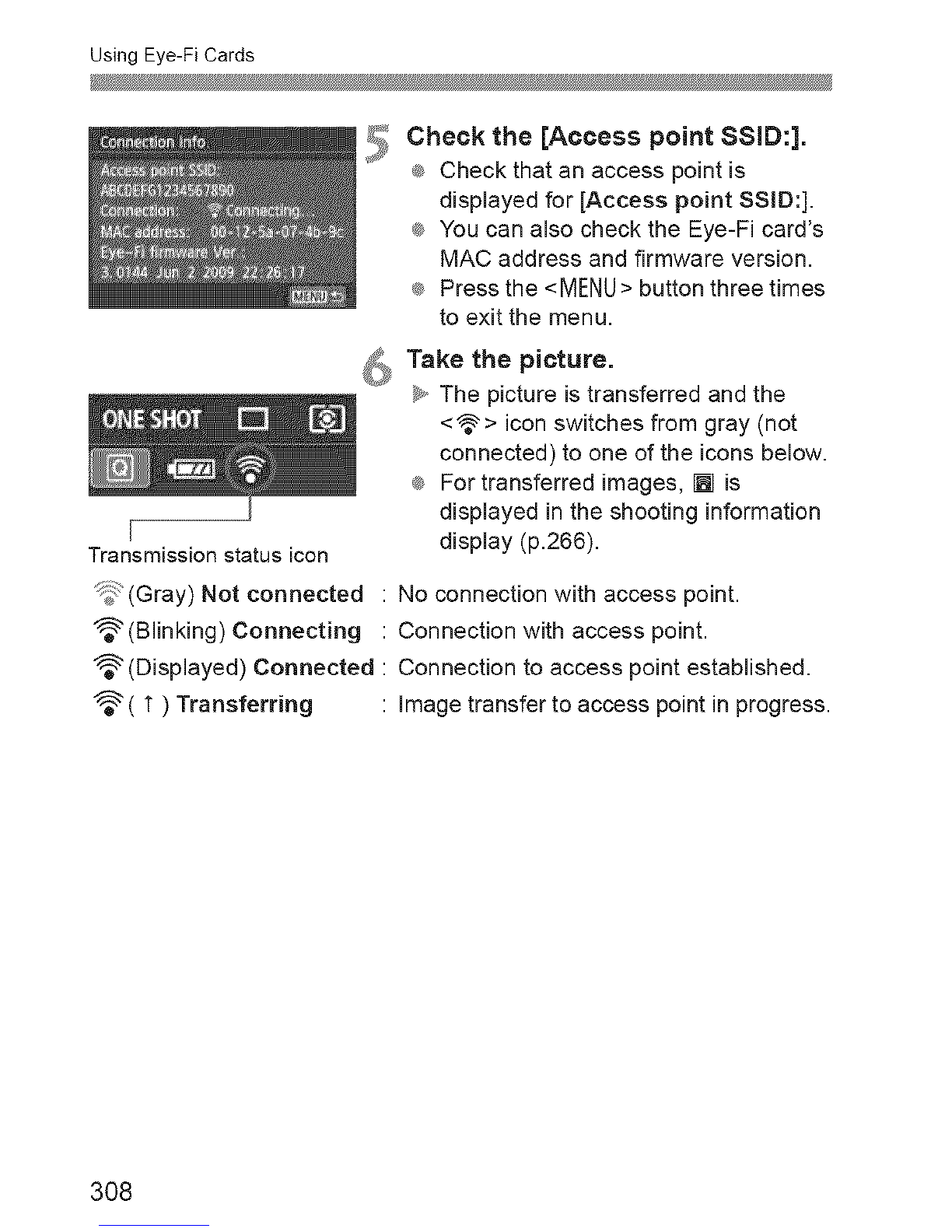

Using Eye-Fi Cards

[

Transmission status icon

5Check the [Access point SSID:].

® Check that an access point is

displayed for [Access point SSID:].

® You can also check the Eye-Fi card's

MAC address and firmware version.

® Press the <MENU> button three times

to exit the menu.

Take the picture.

_y,,The picture is transferred and the

<_" > icon switches from gray (not

connected) to one of the icons below.

® For transferred images, [] is

displayed in the shooting information

display (p.266).

'_/_:"(Gray) Not connected : No connection with access point.

"_'(Blinking) Connecting : Connection with access point.

_'(Displayed) Connected : Connection to access point established.

_'( t ) Transferring : Image transfer to access point in progress.

308
