Canon IXY DIGITAL 300a Manuale di istruzioni

CHAPTER 4. PARTS CATALOG

CONTENTS

PowerShot S330/DIGITAL IXUS 330/IXY DIGITAL 300a

Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1

Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2

Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3

OPTICAL UNIT ----------------------------------------------------------------------------------------------------------------- Pg4

Accessories ---------------------------------------------------------------------------------------------------------------------------- Pg5

Service Tools -------------------------------------------------------------------------------------------------------------------------- Pg8

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg1

(7)

(8)

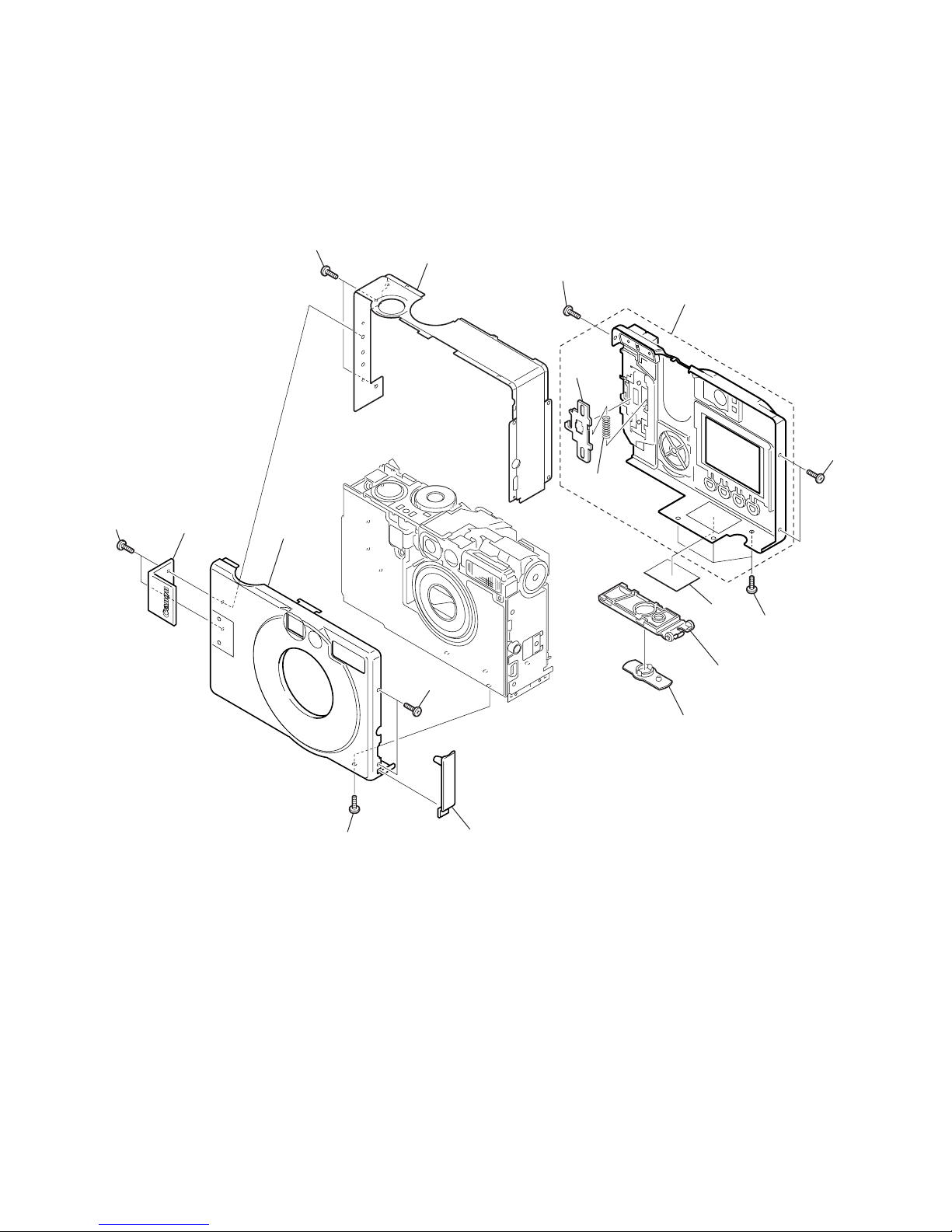

Casing Parts

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg1

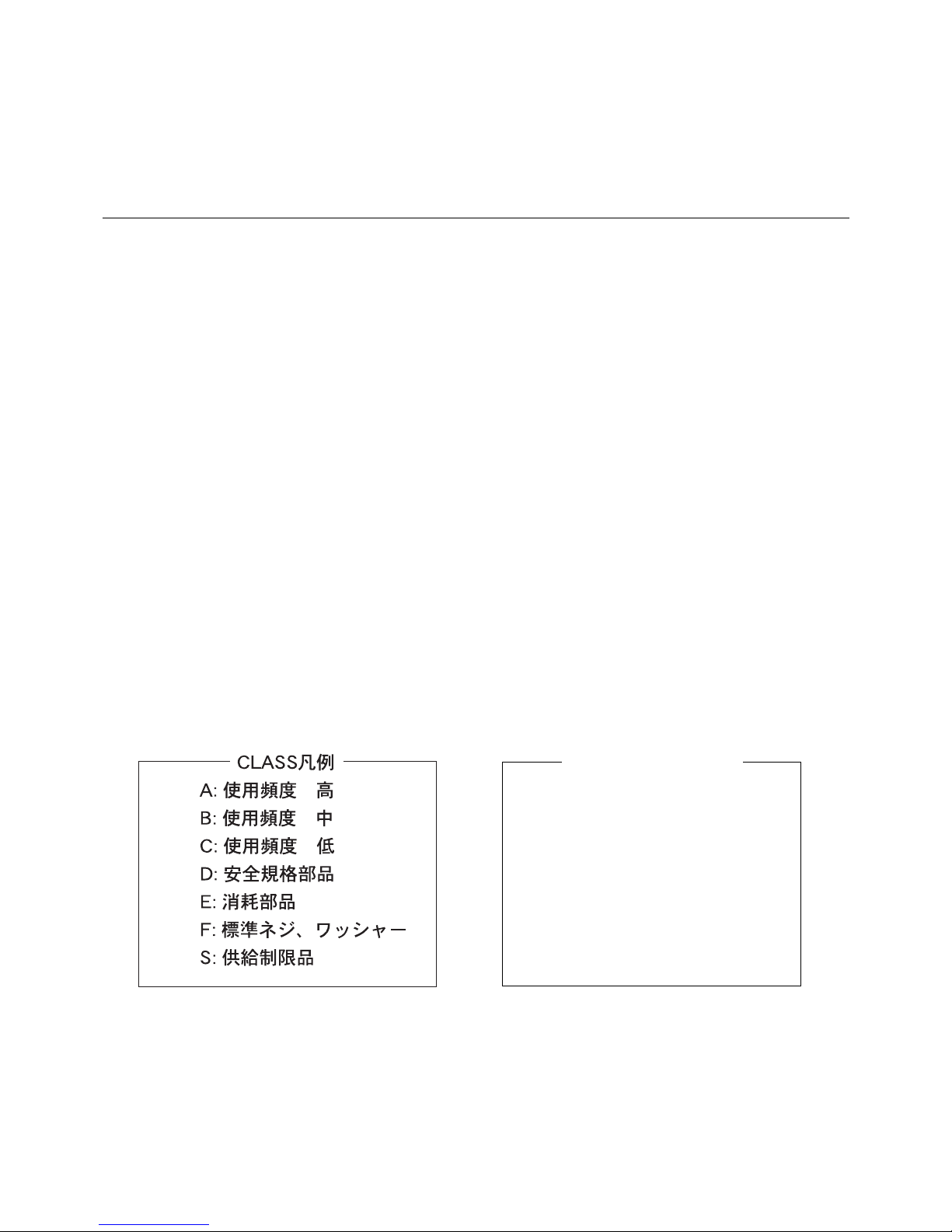

Category of CLASS

A: Frequency of use: High

B: Frequency of use: Middle

C: Frequency of use: Low

D: Safety-related critical parts

E: Consumable parts

F: Standard screws and washers

S: Supply of the parts is limited

1 CM1-1411-000 B 1 FRONT COVER UNIT POWERSHOT S330

CM1-1412-000 B 1 FRONT COVER UNIT DIGITAL IXUS 330

CM1-1407-000 B 1 FRONT COVER UNIT IXY DIGITAL 300a

2 CD1-3688-000 B 1 COVER, JACK

3 CD1-3689-000 B 1 COVER, DC COUPLER

4 CD1-3687-000 B 1 COVER, BATTERY

5 CY1-6155-000 B 1 PLATE, BODY NUMBER

6 CM1-1408-000 B 1 REAR COVER UNIT

7 CD1-3644-000 C 1 LOCK, CF COVER

8 CS8-5208-000 C 1 SPRING, LOCK

9 CD1-4302-000 B 1 RING, STRAP

10 CL1-1087-000 B 1 CENTER COVER UNIT POWERSHOT S330

CL1-1088-000 B 1 CENTER COVER UNIT DIGITAL IXUS 330

CL1-1086-000 B 1 CENTER COVER UNIT IXY DIGITAL 300a

11 CD1-3111-000 F 10 SCREW

12 CB1-8788-000 F 3 SCREW

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg2

(15)

(22)

17 21

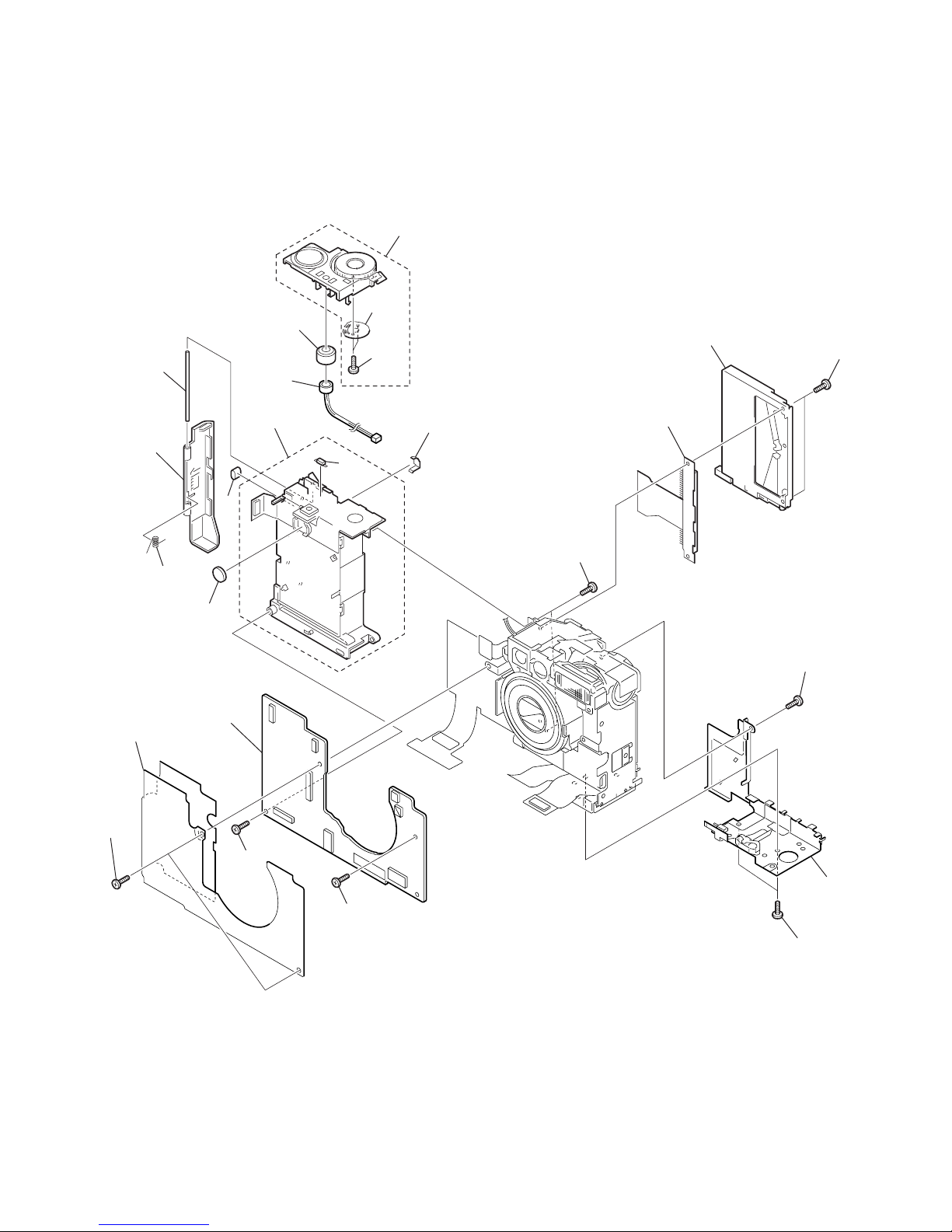

Internal Parts-1

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg2

1 CL1-1035-000 C 1 SHEET, SHIELD

2 CM1-1403-000 C 1 PCB ASS’Y, MAIN

3 CM1-1405-000 C 1 OPERATION KEY UNIT

4 CD1-3647-000 C 1 SHAFT, CF

5 CD1-3646-000 B 1 COVER, CF

6 CS8-6156-000 C 1 SPRING, CF

7 CK2-1220-000 C 1 GASKET (CIRCUIT PROTECTER)

8 WK1-5132-000 C 1 BATTERY, LITHIUM (2ND)

9 CM1-1417-000 C 1 BATTERY BOX UNIT

10 WD1-5064-000 C 1 FUSE, MATSU.DENKI UNHH206

11 CD1-3663-000 C 1 BUSH, MIC.

12 CM1-1193-000 C 1 MICROPHONE UNIT

13 CD1-3701-000 C 1 CLIP, MODE

14 CM1-1410-000 B 1 MODE BASE UNIT

15 CD1-3656-000 C 1 BRUSH, MODE

16 CM1-1406-001 C 1 CF FPC UNIT

17 WS3-5698-000 C 1 CF EJECT UNIT

18 XA1-7170-357 F 3 SCREW

19 XA4-9170-359 F 3 SCREW

20 CD1-3108-000 F 3 SCREW

21 CD1-3105-000 F 2 SCREW

22 XA4-9140-207 F 2 SCREW

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg3

Internal Parts-2

15 12

20 17

See Pg4

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg3

1 CM1-1416-000 B 1 OPTICAL UNIT

2 CM1-1144-000 B 1 FINDER UNIT

3 CD1-3565-000 C 1 HOLDER, LED

4 CM1-1414-000 B 1 FLASH UNIT

5 CB1-8846-000 C 1 CAP, TRIGGER

6 CM1-1401-000 C 1 DC/DC CONVERTER UNIT

7 CK2-1220-000 C 1 GASKET (CIRCUIT PROTECTER)

8 CD1-4295-000 C 1 FRAME, MAIN

9 CD1-3685-010 C 1 BASE, TRIPOD

10 CM1-1409-000 C 1 BACK LIGHT UNIT

11 WG2-5227-000 C 1 PANEL, LCD

WG2-5227-001 C 1 PANEL, LCD (SELECTION)

12 CM1-1418-000 C 1 SPEAKER UNIT

13 CD1-4320-000 C 1 CLOTH

14 XA4-9140-359 F 2 SCREW

15 XA1-7170-307 F 2 SCREW

16 XA4-5170-309 F 3 SCREW

17 CD1-3553-000 F 1 SCREW

18 XA1-7170-357 F 3 SCREW

19 CD1-3108-000 F 1 SCREW

20 CD1-3554-000 F 1 WASHER, WAVE

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg4

OPTICAL UNIT

PARTS LIST

SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg4

1 CD1-4309-000 B 1 CAP, BARREL 1

2 CD1-3595-000 B 1 ADHESIVE TAPE, FRONT

3 CD1-3577-000 B 1 CAP, FRONT

4 CD1-3574-000 B 2 PLATE, BARRIER

5 CD1-3579-000 C 1 BASE, BARRIER

6 CS8-5236-000 C 1 SPRING, BARRIER CLOSE

7 CD1-3575-000 C 1 PLATE, BARRIER DRIVE

8 CS8-5235-000 C 1 SPRING, BARRIER OPEN

9 CD1-3576-000 C 1 RING, BARRIER DRIVE

10 XA4-5140-357 F 1 SCREW

PowerShot S330

DIGITAL IXUS 330

IXY DIGITAL 300a

Pg5

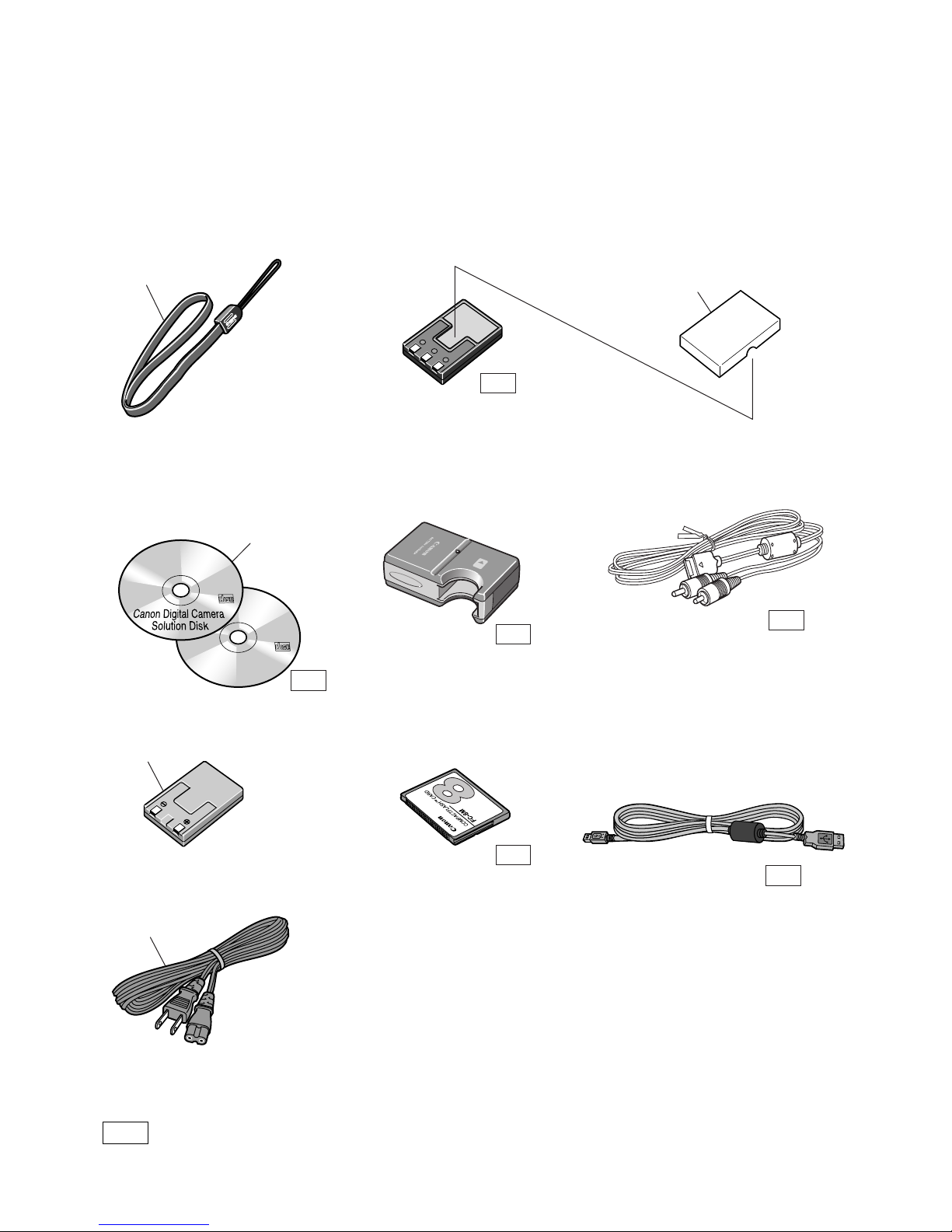

Wrist Strap WS-110 Battery Pack NB-1LH

USB Interface Cable

IFC-300PCU

AV Cable AVC-DC100Battery Charger

CB-2LS/2LSE

CF Card FC-8M

Canon Digital Camera

Solution Disk,

ArcSoft Camera Suite Disk

DC Coupler DR-500

AC Cable

N.S

TERMINAL COVER

NB-1LH

N.Sl : N.S Stand for No Stock (Product available)

Accessories-1
