Please read this guide before operating this scanner. After you finish reading this guide, store it in

a safe place for future reference.

Package Contents

Scanner and Accessories

Documentation

• Quick Start Guide (this document)

• Additional Documents

CanoScan Setup Utility CD-ROM

• Software Programs

- ScanGear (scanner driver)

- CanoScan Toolbox

- ArcSoft PhotoStudio

- Presto! PageManager (Windows only)

- ScanSoft OmniPage SE (not supported for Windows 98 First Edition)

- Adobe RGB (1998) (Windows only)

• On-screen Manuals

- Scanning Guide (for ScanGear, CanoScan Toolbox, and troubleshooting)

- Manuals for bundled application programs

*In this guide, Windows XP screenshots are used to illustrate explanations common to all

operating systems.

Table of Contents

Package Contents ........................................ 1 Using the Scanner Buttons .......................... 5

Installing the Software ................................ 2 Scanning Film ............................................... 6

Preparing the Scanner ................................. 3 Specifications ............................................... 9

Try Scanning ................................................. 4

Quick Start Guide

Scanner USB Cable Film Guide*

(for 35mm film strip/slide )

*Built into the document cover

AC Adapter Shield

Installing the Software

1Place the CanoScan Setup Utility CD-ROM in the

drive.

If prompted, select your language and place of residence.

CanoScan Setup Utility program starts.

• For Macintosh: Double-click the [Setup] icon. Enter the

administrator ID and password on the authentication dialog

box.

2Click [Easy Install] on the main menu.

3Click [Install] to start installation.

Carefully read the License Agreement, and then click [Yes] to

proceed. All the software programs and on-screen manuals will

be installed on your computer.

4For the bundled applications, follow the on-screen

instructions to perform the installation.

5When the installation is complete, click [Restart] to

restart your computer.

• Do NOT connect the scanner to a computer before installing the software. If you

connect the scanner and the Found New Hardware Wizard appears, click [Cancel].

• Quit all running applications before installation, including anti-virus software.

• For Windows 2000/XP, log in as an administrator to install the software.

• Make sure to remove the CD-ROM from the drive and store it in a

safe place.

• If you encounter a problem during installation, see

"Troubleshooting" in the Scanning Guide.

• If you later upgrade your OS to Windows XP, reinstall the software.

Preparing the Scanner

English

Preparing the Scanner

Unlocking the Scanner

1Peel the seals off the scanner.

2Slide the lock switch on the bottom of the scanner toward the unlock mark ( ).

Connecting the Scanner

1Connect the scanner to your computer with the supplied USB cable.

2Connect the supplied AC adapter to the scanner, and then plug in.

• Do not tilt the scanner more than 90 degrees from horizontal when releasing the lock.

• Handle the scanner with both hands. Be careful not to drop the scanner.

• Always lock the scanner when carrying or transporting it.

• When locking the scanner, do not lift up the back and tilt the front (scanner button

location) downward. You may be unable to set the lock.

• Only use the USB cable and the AC adapter provided with the scanner. Use of other

cables or adapters may lead to a malfunction.

• When the scanner is connected to the USB 1.1 port on Windows XP and "HI-SPEED USB

Device Plugged into non-HI-SPEED USB Hub" message appears, ignore the message. The

scanner operates in this condition without problems.

• The scanner does not have a power switch. The power is activated as soon as the AC

adapter is plugged in.

Unlock Mark

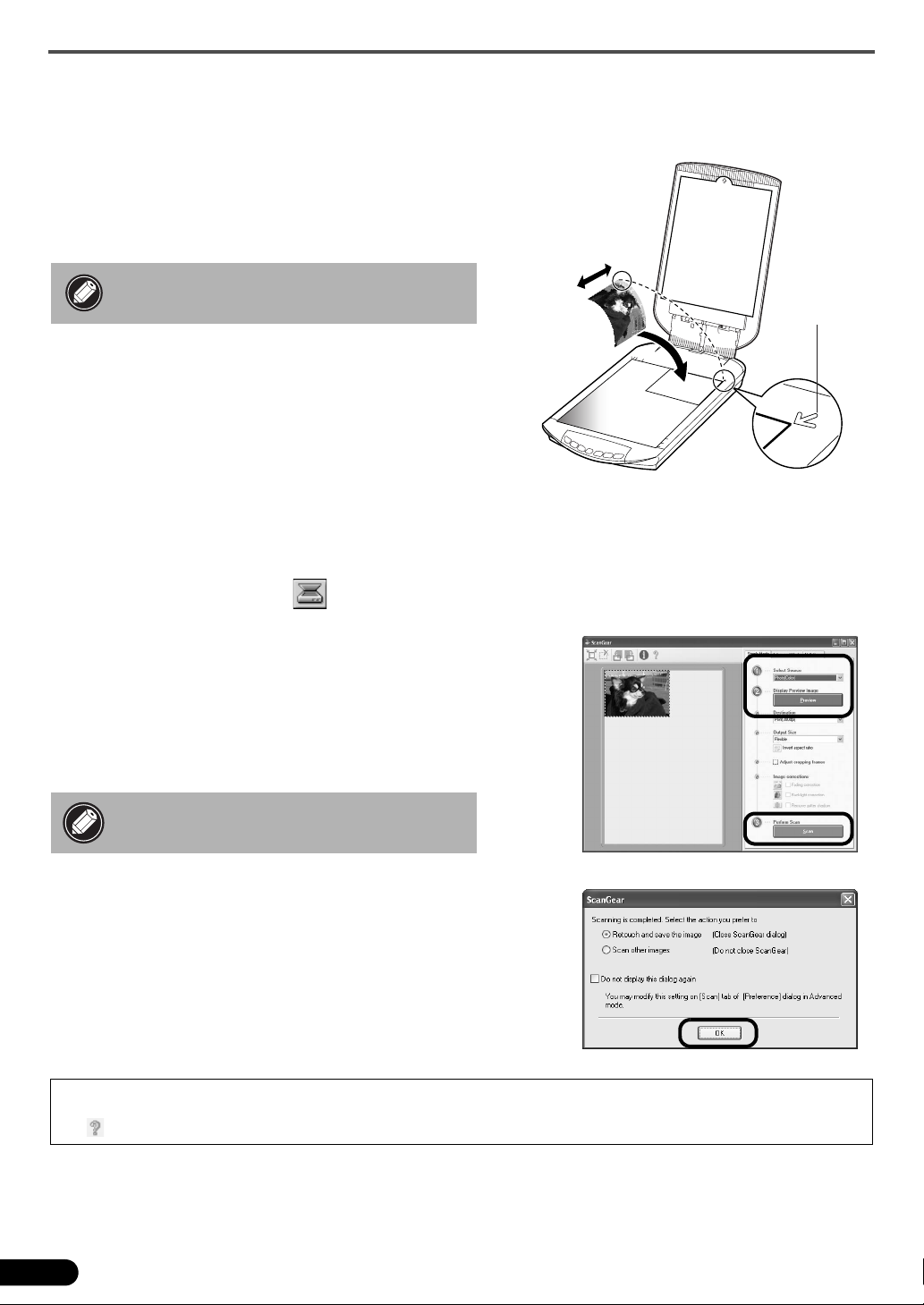

Try Scanning

This section explains the basic scanning procedures using the image editing program, ArcSoft PhotoStudio,

and the scanner driver, ScanGear.

1Place a document on the document glass and

close the document cover.

2Start ArcSoft PhotoStudio.

For Windows: Select [start] - [(All) Programs] -

[ArcSoft PhotoStudio 5.5], then click [PhotoStudio 5.5].

For Macintosh: Open [Applications] - [PhotoStudio]

folders, then double-click the [PhotoStudio] icon.

3From the [File] menu, click [Select Source] and select the scanner model.

For Windows: Do not select the one that includes [WIA] in the model name.

4Click the [Acquire] icon to start ScanGear.

5Select the type of document you are scanning in

[Select Source] and click [Preview].

6Set [Destination] and/or [Output Size] as needed.

7Click [Scan] to start scanning.

8When prompted to close ScanGear, click [OK].

9Save the scanned image in ArcSoft PhotoStudio and

close the window.

When opening the document cover,

support it with your hand until it stops.

Do not touch the scanner while it is

operating.

• For more information on scanning using ScanGear, bundled applications, and troubleshooting, see the on-screen

manual Scanning Guide. To open the Scanning Guide, double-click the Scanning Guide icon on the desktop, or click

on in ScanGear or CanoScan Toolbox.

Top

Bottom Alignment

Mark

Using the Scanner Buttons

English

Using the Scanner Buttons

Scanner buttons allow you to copy, scan, e-mail, and save scanned images in PDF format with a press of a

button. Simply place your document on the scanner, and then press the scanner button for the required

function. For more information, see the Scanning Guide.

• Before using scanner buttons, make sure that all the software programs are installed on your computer using the [Easy

Install] option of the CanoScan Setup Utility program. See "Installing the Software" on page 2.

•For Mac OS X 10.3 and 10.2.8: Before using the scanner buttons, you need to set Image Capture (in [Applications]

folder) to open CanoScan Toolbox automatically when a scanner button is pressed.

Start Image Capture, and then perform the following.

- Mac OS X 10.3: Click [Options] and select CanoScan Toolbox in [When a scanner button is pressed, open:].

- Mac OS X 10.2.8: Select [Other] in [When a scanner button is pressed, open:]. Select CanoScan Toolbox and click [Open].

Click [OK] and quit Image Capture. For more information, see "Troubleshooting" in the Scanning Guide.

PDF Buttons

PDF buttons allow you to easily create PDF

iles according to your needs. Note that these

buttons are not labeled on the scanner.

COLOR Button

Scans color images in A4 or Letter size*at 300

pi.

BLACK & WHITE Button

Scans black & white images in A4 or Letter

ize*at 300 dpi.

CUSTOM Button

Scans images in user-specified settings.

FINISH Button

Ends the operation and saves the scanned

image in a PDF file.

*The size may differ depending on your system

environment.

COPY Button

Prints (copies) the scanned image with a

printer.

PHOTO/FILM Button

Opens the scanned image in the bundled

application program, ArcSoft PhotoStudio.

E-MAIL Button

Attaches the scanned image to a new e-mail

message.

The first time you press this button, you will be

prompted to select the e-mail program to use with

this function.

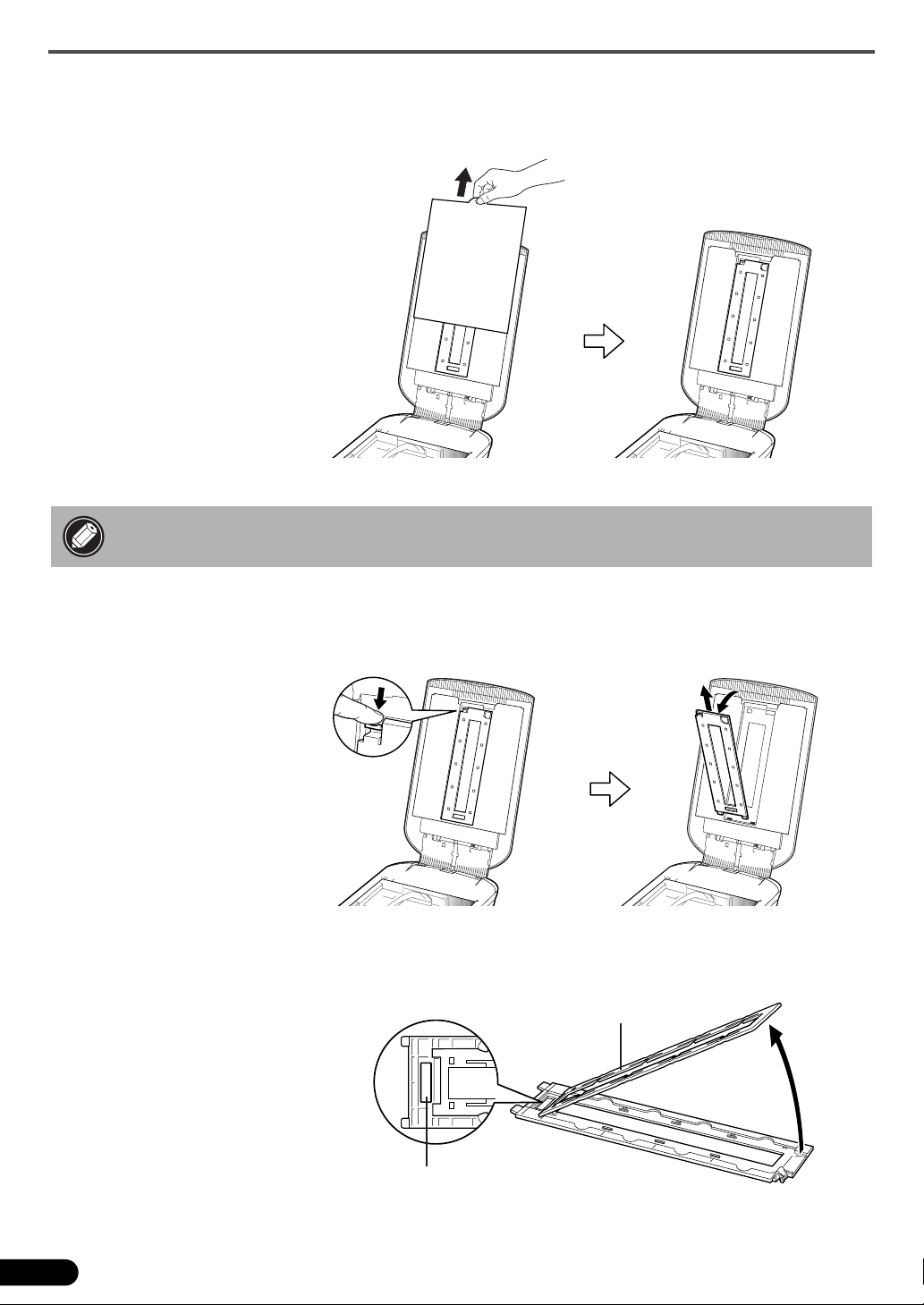

Scanning Film

This scanner can scan 35 mm film (film strip or slide). Follow the procedure below when scanning film.

1Remove the protective

sheet from the

document cover.

When you finish scanning,

put the protective sheet back

by aligning it with the

grooves in the document

cover and sliding it

downward into place.

2Remove the Film Guide

from the document

cover.

Hold the document cover so

that it doesn't close, then a

press down and hold the tab

at the Film Guide's top left

and btilt the Film Guide

outward to lift it up.

3Open the Film Holder.

Pinch the both side of the

Film Holder to open.

Always put the protective sheet back when you are not scanning film to protect the

light source in the document cover.

Calibration Slot

Film Holder

Scanning Film

English

4Insert the film into

the Film Guide.

Place the film face

down with the frames

in reverse order.

5Set the Film Guide to the

document cover, and

close the document

cover.

Hold the document cover and

ainsert the bottom edge of

the Film Guide into the

bottom groove in the

document cover, and then b

tilt the top of the Film Guide

up into the document cover

until it locks securely into

place with a click.

• Use a blower brush to remove any dust from the film, which will affect the image quality,

and take care to hold the film by its edges to avoid transferring dirt or fingerprints to it.

• Do not block the calibration slot on the Film Guide when scanning film. Colors will not

be scanned correctly if the calibration slot is obstructed.

• Close the Film Guide securely. Press lightly until it clicks into place.

How to Use the Shield

When scanning short or curled film, extra light

may enter through gaps and produce bands of

color around the edges of the scanned image.

If this occurs, use the supplied shield as shown in

the figure.

Scanning Film

6Start ArcSoft PhotoStudio, then start

ScanGear.

Follow the steps 2 to 4 in "Try Scanning" on page 4.

7Select [Negative Film (Color)] or [Positive

Film (Color)] in [Select Source] to match the

type of film you are scanning, then click

[Preview].

8Place a check mark beside the number(s) of

the frame(s) you want to scan. Perform

image corrections as needed.

9Click [Scan] to start scanning.

10 When prompted to close ScanGear, click [OK].

11 Save the scanned image in ArcSoft PhotoStudio

and close the window.

Do not touch the scanner while it is

operating.

• Do not leave the film strip in the film guide for an extended period of time as heat from

the unit may damage the film.

• For more information on scanning film, see “Scanning Film” in the Scanning Guide.

Specifications

English

Specifications

*1 Optical Resolution represents the maximum sampling rate based on ISO 14473.

*2 For film scanning only.

*3 The fastest speed in USB 2.0 Hi-Speed mode on Windows PC. Transfer time is not included. Scanning

speed varies according to the document types, scan settings, or specifications of the computer.

*4 Calibration processing time is not included.

*5 AC adapter type varies according to the region in which the scanner is purchased.

Use only AC adapters listed in the user instructions.(Canon AC Adapter: K30279 is for United Kingdom

and K30278 is for other EU countries). Do not use them for other products

• Specifications are subject to change without notice.

Model Number: K10293 (CanoScan 4400F)

Scanner Type Flatbed

Scanning Element CCD 6-line color

Light Source Cold cathode fluorescent lamp

Optical Resolution *1 4800 x 9600 dpi

Selectable Resolution 25–19200 dpi (ScanGear)

Scanning Bit Depth

Color 48 bit input (16 bit for each color)

48 bit or 24 bit output (16 bit or 8 bit for each color)

Grayscale

48 bit input (16 bit for each color)

16 bit

or 8 bit output

Scanning Speed *3

(Photo or Document)

Color 7.7 msec./line (2400 dpi), 14.8 msec./line (4800 dpi)

Grayscale, B&W 7.7 msec./line (2400 dpi), 14.8 msec./line (4800 dpi)

Scanning Speed

(Film)

7.4–74.0 msec./line

Preview Speed *3*4 Approximately 5 sec.

Interface USB 2.0 Hi-Speed

Maximum Document Size A4/Letter: 216 x 297 mm

Film Type/Number of Frames 35 mm strip (6 frames max)/35 mm slide (4 frames max)

Scanner Buttons 7 buttons (PDF x 4, COPY, PHOTO/FILM, E-MAIL)

Operating Range

Temperat ure 10qC to 35qC (50qF to 95qF)

Humidity 10% to 90% RH, 20% to 80% RH for film scanning

without condensation formation

Power Requirements AC adapter (100/120/230/240V)*5

Power Consumption In operation: 17 watts maximum, Stand-by: 4 watts

(Using supplied AC adapter)

Maximum Exterior Dimensions 259 x 474 x 83 mm

Weight Approximately 2.8 kg

Optional Accessory Kit Accessory Kit CSAK-4400F

Altri manuali per 4400F - CanoScan - Flatbed Scanner

Indice

Lingue:

Altri manuali Canon Scanner

Canon

Canon imageFORMULA DR-G1100 Production Document... Manuale utente

Canon

Canon Canoscan CS8000F Manuale utente

Canon

Canon imageFORMULA DR-7580 Manuale utente

Canon

Canon CanoScan FS2710 Manuale utente

Canon

Canon ImageFormula R10 Manuale utente

Canon

Canon imageFORMULA DR-2050C Manuale utente

Canon

Canon DR-X10C - imageFORMULA - Document Scanner Manuale utente

Canon

Canon IMAGE FORMULA DR-C125 Manuale utente

Canon

Canon ScanFront 220 Manuale tecnico

Canon

Canon CanoScan LiDE 35 Manuale utente

Canon

Canon imageFORMULA DR-3080CII Manuale utente

Canon

Canon CanoScan D1230UF Manuale utente

Canon

Canon CR-25 - imageFORMULA Desktop Check Scanner Manuale utente

Canon

Canon Microfilm Scanner 350II Manuale utente

Canon

Canon imageFORMULA DR-2010M Manuale utente

Canon

Canon CanoScan LiDE 80 Manuale utente

Canon

Canon PS-7000 Manuale utente

Canon

Canon CanoScan LiDE 25 Manuale utente

Canon

Canon CanoScan LiDE 30 Manuale utente

Canon

Canon DR-X10C - imageFORMULA - Document Scanner Manuale utente

Canon

Canon CanoScan 3200 Manuale utente

Canon

Canon CanoScan LiDe 50 Manuale utente

Canon

Canon CanoScan D2400UF Manuale

Canon

Canon imageFORMULA DR-2050C Manuale utente

Manuali Scanner popolari di altre marche

Plustek

Plustek Scanner Manuale utente

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuale utente

Renkforce

Renkforce DS100-5M Manuale utente

Image Access

Image Access WideTEK A2 Manuale utente

Fujitsu

Fujitsu FI-4860C2 Manuale utente

GeoSlam

GeoSlam ZEB Horizon Istruzioni per l'installazione

Kodak

Kodak i5800 Scanner Manuale utente

Kodak

Kodak i7300 Manuale utente

Revopoint

Revopoint POP Manuale utente

Fujitsu

Fujitsu fi-4860C Manuale utente

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuale utente

Faselase

Faselase F6 Manuale utente

Fujitsu

Fujitsu CardMinder Manuale utente

Uniden

Uniden BC340CRS Manuale utente

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuale utente

Mustek

Mustek PageExpress 4800 Pro Manuale utente

Optex

Optex 750830 Manuale utente

Innova

Innova 5210 Manuale utente
