Canyon CNS-SW7 Manuale utente

TABLE OF CONTENTS

INTRODUCTION 3

SAFETY PRECAUTIONS 3

PACKAGE CONTENTS 4

DEVICE OVERVIEW 4

BUTTON OPERATION SUMMARY 5

BASIC OPERATION 6

CURRENT TIME MODE 7

FUNCTIONAL DISPLAY 7

WEATHER FORECAST FEATURE 7

CURRENT TIME MODE SETTINGS 8

DAILY ALARM MODE 9

ENABLING DAILY ALARM/HOURLY CHIME 9

DAILY ALARM SETTINGS 9

CHRONOGRAPH MODE 10

OPERATING CHRONOGRAPH 10

TIMER MODE 11

QUICK SET VALUE AND USER PRESET VALUE 11

USER PRESET VALUE SETTINGS 11

OPERATING TIMER 12

PACER MODE 13

OPERATING PACER 13

PACER SETTINGS 13

LINKING WITH CHRONOGRAPH 14

DUAL TIME MODE 15

ALTIMETER MODE 16

TEMPERATURE AND HISTORY DISPLAY 16

UNIT SELECTION AND ALTIMETER ADJUSTMENT 17

ZERO ALTITUDE ADJUSTMENT 17

ABSOLUTE ALTITUDE ADJUSTMENT 18

SEA LEVEL PRESSURE ADJUSTMENT 19

FACTORY DEFAULT ADJUSTMENT 19

BAROMETER MODE 20

TEMPERATURE AND HISTORY DISPLAY 20

UNIT SELECTION AND BAROMETER ADJUSTMENT 21

ABSOLUTE PRESSURE ADJUSTMENT 21

FACTORY DEFAULT ADJUSTMENT 22

COMPASS MODE 23

MAGNETIC DECLINATION 23

CALIBRATING COMPASS 25

Thank you for purchasing CANYON CNS-SW7, a multi-functional watch device with

weather forecast function developed from advanced sensor technology. You have

made an excellent choice and we hope you will enjoy all of its exciting features. To

fully utilize the functions and features of CANYON CNS-SW7, please read through

the user manual carefully before using the product, and follow all of the procedures

in the manual to fully enjoy all features of the product.

Introduction

Safety Precautions

Please observe all safety precautions before using the device. Please follow all

procedures outlined in this manual to properly operate the device. The device

and its accessory, like most electronic or magnetic devices, may be at

interference with pacemaker. Please consult doctor or other professionals

before using the product.

zDo NOT attempt to disassemble or alter any part of the device that is not

described in this guide.

zDo NOT place the device near a heat source or directly expose it to flame.

zNever place the device in vicinity of equipments generating strong

electromagnetic fields. Exposure to strong magnetic fields may cause

malfunctions.

zAvoid exposing the device to extreme temperatures or chemicals such as

gasoline and alcohol.

zAvoid strong impacts for it will damage the device permanently.

zStore device and its accessory at a dry and well ventilated location when they

are not in use.

Package Contents

Product Image Item Name

CANYON CNS-SW7 Main Unit

Quick Guide

Documentation CD

Device Overview

[SR] Button [S/S] Button

[EL] Button

[M] Button [L/R] Button

Button Operation Summary

Mode Button [M]

zPress to cycle through 6 functional modes.

zPress and hold to enter/exit Setting Mode.

zDuring Settings Mode, press to cycle through different settings.

Sensor Button [SR]

zPress to cycle through Altimeter, Barometer, and Compass modes.

Start/Stop Button [S/S]

zPress to show current date at Current Time Mode.

zPress to toggle between functional displays within the same mode.

zPress to start/stop time counting at Chronograph Mode.

zPress to toggle between options.

zPress to increase values at Settings Mode.

Lap/Reset Button [L/R]

zPress to reset time counting at Chronograph Mode.

zPress to move cursor during History recalling display.

zPress to toggle between options.

zPress to decrease values at Settings Mode.

Light Button [EL]

zPress to turn on back light for 3 seconds

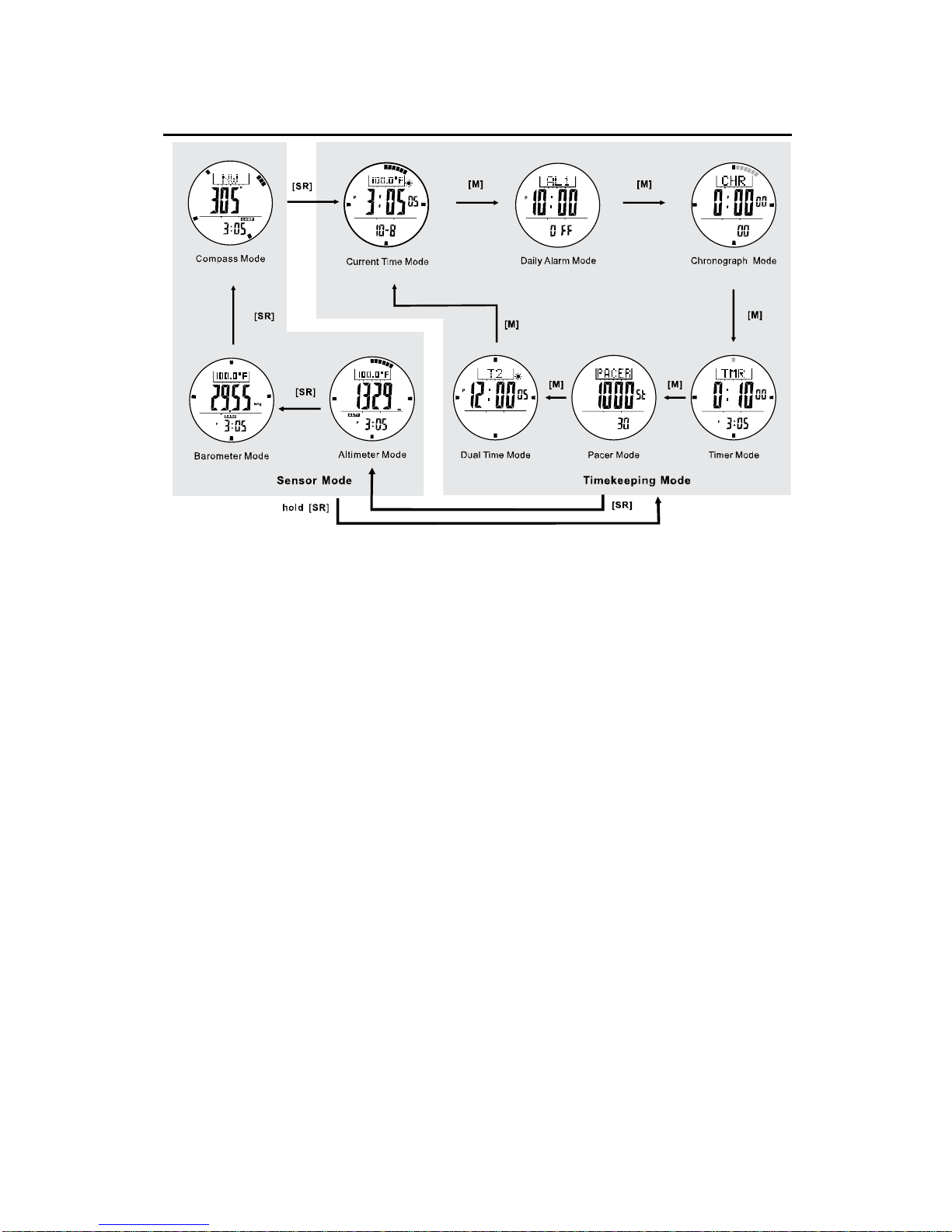

Basic Operation

CANYON CNS-SW7 is a multi-functional watch device that contains 9 functional

modes including Current Time Mode, Daily Alarm Mode, Chronograph Mode, Timer

Mode, Pacer Mode, Dual Time Mode, Altimeter Mode, Barometer Mode, Compass

Mode. Press [M] to cycle through 6 Timekeeping modes and press and hold [SR] to

activate and cycle through 3 Sensor Modes as shown above.

Current Time Mode

Functional Display

zPress [S/S] to toggle between

different functional displays

including Day of Week display,

Temperature display, Altitude

Tendency display, and Sea Level

Pressure Tendency display

Weather Forecast Feature

Sunny Cloudy

with sun

Cloudy Raining

zThe device provided 4 different

symbols indicating the forecasted

weather as shown.

zThe feature only occurs in Current

Time Mode and Dual Time Mode.

NOTE:

zIt is highly recommended that the

device to be kept at the same

altitude for at least 24 hours to

achieve higher accuracy predication.

zThe device presents weather

forecast function by adopting

general weather forecasting

principles. Dramatic weather

changes within a very short period of

time will not be reflected by device.

Current Time Mode Settings

zPress and hold [M] for 2 seconds to

enter Settings Mode. Upon entering,

the Settings Mode indicator SET will

be displayed at the top of screen.

zPress [M] to shift through different

digits and settings including

month-day format, 12/24 hour

format, LCD contrast level, and

beeping. Press [S/S] and [L/R] to

adjust values.

zPress and hold [M] for 2 seconds to

save modified settings and exit

Settings Mode.

Daily Alarm Mode

Enabling Daily Alarm/Hourly Chime

zPress [S/S] to switch between daily

alarm1, daily alarm2, and hourly

chime display.

zPress [L/R] to switch daily alarms

on/off at their displays respectively.

A daily alarm indicator will be

displayed on the screen when daily

alarm is switched on.

zPress [L/R] to switch hourly chime

on/off at its display. An hourly chime

indicator will be displayed on

the screen when hourly chime is

switched on.

Daily Alarm Settings

zPress and hold [M] for 2 seconds at

Alarm1/2 display to enter Settings

Mode. Upon entering, the Settings

Mode indicator SET will be displayed

at the top of screen.

zPress [M] to shift through different

digits and press [S/S] and [L/R] to

adjust values.

zPress and hold [M] for 2 seconds to

save modified settings and exit

Settings Mode.

Chronograph Mode

Operating Chronograph

zUpon entering, the Chronograph

Mode indicator CHR will be

displayed at the top of screen.

zThe device measures elapsed time

and current lap time.

zPress [S/S] to start counting. Press

the button again to stop counting

and the elapsed time will be

displayed on the screen. Press the

button the third time to resume

counting.

zPress [L/R] while counting to

display current lap time. Press the

button again to display next lap

time. The lap time display will return

to counting display automatically

after 10 seconds.

zPress and hold [L/R] for 2 seconds

to reset counter.

zDuring split time display, press and

hold [M] to recall all lap times and

total lap times accumulated.

zPress [S/S] and [L/R] to review

each lap time and total lap times

accumulated.

zPress and hold [M] to exit lap time

display and back to chronograph

display.
