WSD12PS-4AI

User Manual

WSD12PS-4AI

User Manual

PAGE 2

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

1. Description.

The WSD12PS-4AI is a four analog inputs datalogger designed for voltage measurement (

0÷5Vdc, 0÷10Vdc, 0÷25Vdc

) or current (

0÷25mA

)

selectable using jumpers, capable of powering external transducers with a 12Vdc or 24Vdc power supply (

up to 100mA

distributed on 4 analog

channels

). Measurements acquired are expressed in percentage of full scale.

2. Channel description.

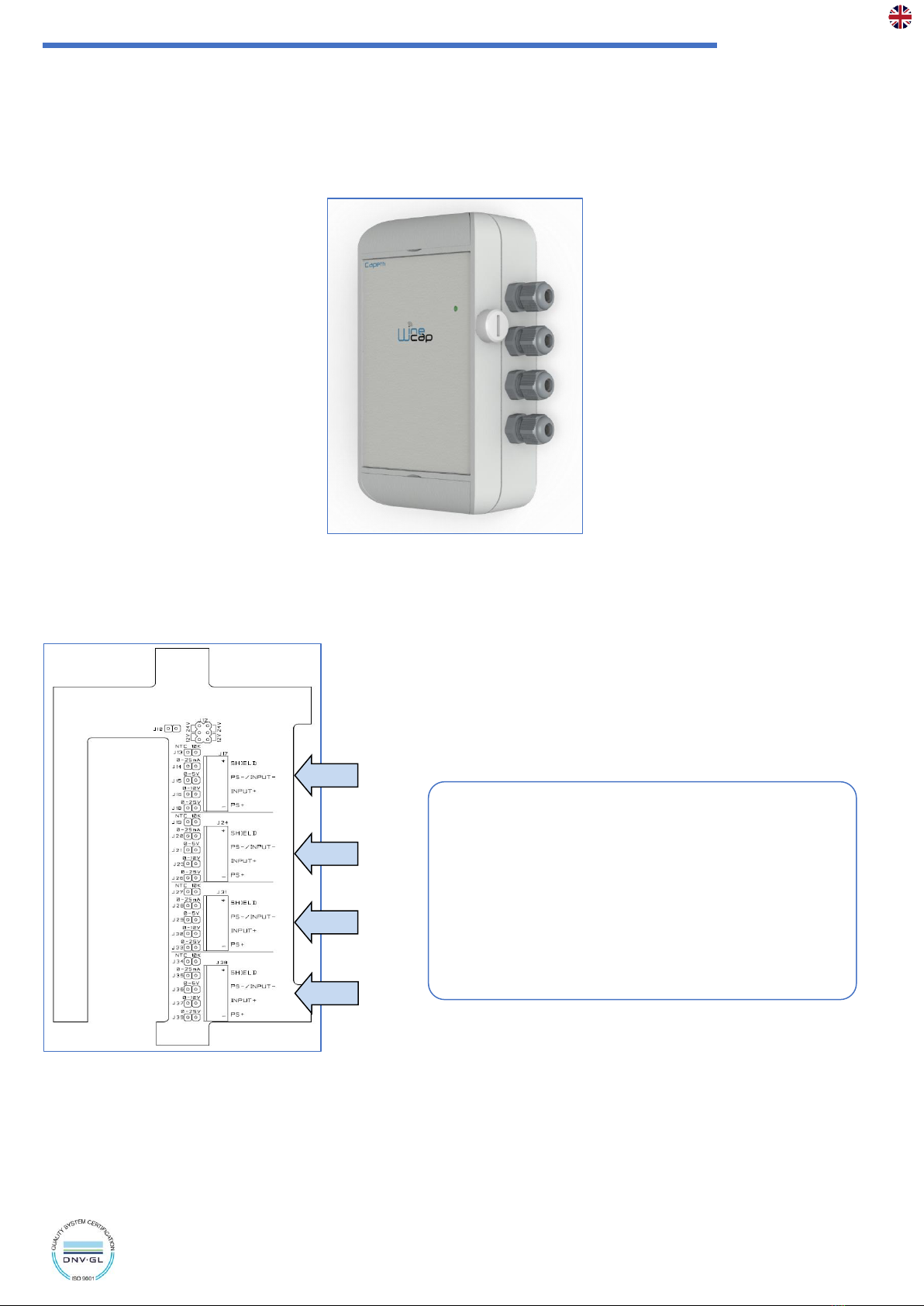

Picture 1 - Product image

SHIELD: shield cable connection

PS-/INPUT-: datalogger generated voltage negative pole. Input

signal negative reference.

INPUT +: Signal input. 0÷25mA, 0÷5Vdc, 0÷10Vdc, 0÷25Vdc. Full-

scale selectable using scale jumpers.

PS+: datalogger generated voltage positive pole to power-up

transducers with 12Vdc or 24Vdc @ 100mA selectable using

J12

jumper.

CH1

CH2

CH3

CH4

Picture 2 - Channel description

WSD12PS-4AI

User Manual

PAGE 3

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

3. Selecting the generated power supply

The device supplies for a specified time (

programmable warm-up time using WineCapManager

–from 1 [default] to 32 seconds

) a DC voltage on PS+ pin

of the terminal block. The value of the DC voltage can be selected using J12 (

Errore. L'origine riferimento non è stata trovata.

DC voltage generated for a specified time:

24Vdc @ 100mA

DC voltage generated for a specified time:

12Vdc @ 100mA (

default

)

Picture 3 –Jumper positions

Removing jumper J10 (

Errore. L'origine riferimento non è stata trovata.

), voltage generation on pin PS+ of the terminal block is disabled. This situation

may be useful in case the DC voltage is not necessary. Consequently, the battery life is increased.

4. Full-scale setting

The measurement’s full-scale selection, is done positioning a jumper on the proper strip:

0÷25mA input

(

default

)

0÷5Vdc input

0÷10Vdc input

0÷25Vdc input

Picture 4 - Full-scale setup

The measurement acquired is displayed as percentage of the selected full-scale.

5. Measurement’s scale impedance

Input

Input’s impedance

0÷25mA

100Ω

0÷5V

24KΩ

0÷10V

16KΩ

0÷25V

13.333KΩ

Picture 5 - Input impedance

WSD12PS-4AI

User Manual

PAGE 4

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

6. Warm-Up time

The device can be interfaced with different types of transducers and furnish proper power supply and guarantee the measure sample.

The transducer needs a warm-up time before physically performing a measure. The WSD12PS-4AI can be programmed using

WineCapManager

to supply a warm-up time variable from 1 (

default

) to 32 seconds.

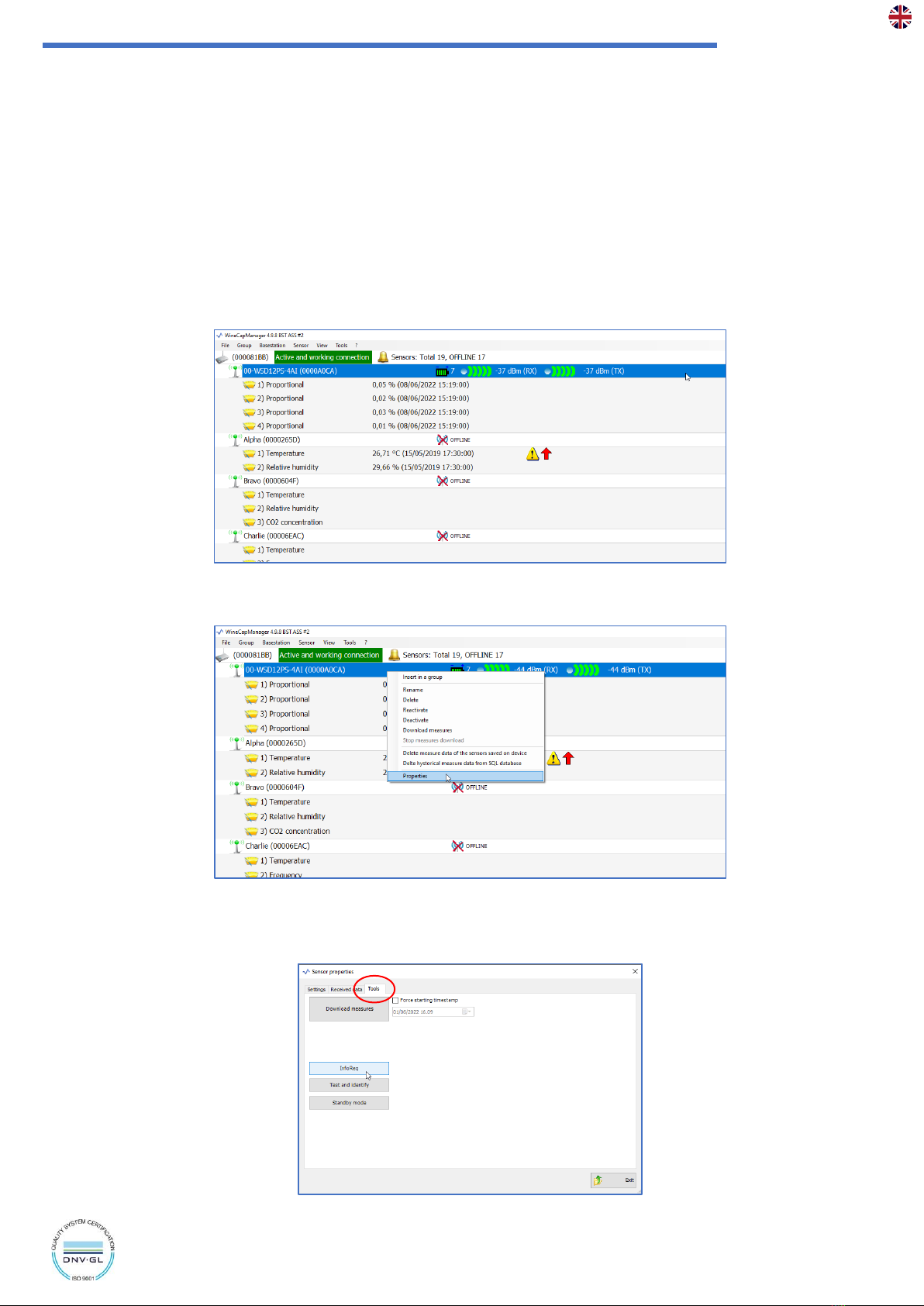

•Be sure that the device is linked to its gateway (

refer to 10 - Installation procedure.

)

•Run

WineCapManager

and open the plant related database. If the database doesn’t exist and the gateway is not properly licensed on

connected PC, refer to “

WineCap System - User Manual R30”

•From the

WineCapManager

main window select the WSD12PS-4AI row

•From the drop-down menu “

Sensor

” select the item “

Properties

”

•Select the card “

Tools

”

WSD12PS-4AI

User Manual

PAGE 5

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

•Click on “

InfoReq

”button

Select the card “

Calibration

”

•Modify the “

Zero [%]

” field with the desired warm-up value (

default=1 –maximum=32

). The inserted value is expressed in seconds and

represents the duration of output power supplied to transducer (

net off +0,4s of tolerance

WSD12PS-4AI

User Manual

PAGE 6

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

The following table shows different behaviours with different warm-up values:

Warm-Up value

Effetto

The device doesn’t generate any voltage but, in any case, carries out the measurements.

>=1

<=32

The device generates a voltage for a period in seconds equal to the value inserted +450ms

(

approximately

>32

The device sets-up the warm-up time to 32s and generates a voltage for a period of

approximately 32.45s.

Decimal value

The device round down the inserted value.

The device sets-up the warm-up time to 32s and generates a voltage for a period of

approximately 32.45s.

•Save the new configuration clicking on “

Write

”button.

7. Device pre-set and use mode.

a. Wireless Mode:

No setup operation is needed. Typically, the system is configured in factory, so the device is already associated to the system gateway. The

device is in STANDBY mode (

refer to Picture 7 - Command table

) for which is necessary to start it with the TEST command (

refer to 10 - Installation

procedure.

Otherwise, in case the device is in FACTORY RESET mode (

refer to Picture 7 - Command table

), that means it's ready for connecting to an existing

system, in order to associate it, make reference to the

“WineCap System - User Manual R30”

software manual. It is necessary to use the

WineCapManager

software on the PC connected to the gateway that will be linked with the device.

b. USB Logger Mode:

For this operation mode, stand-alone with data downloads through USB, the connection with the PC and the

WineCapManager

running on it

is necessary to modify the device 's operation mode. The sampling interval must be set with the device in STAND-ALONE

(refer to 11 - Stand-

alone USB datalogger installation.)

mode and automatically, the device 's clock is aligned with the PC's clock, in order to assure the temporal

reference of the sample.

Sampling operations start may be selected disconnecting the USB cable or giving the proper command with the magnetic key (

refer to 11 -

Stand-alone USB datalogger installation.

). More details on device 's connection/disconnection through the USB cable are available on the

WineCap

System - User Manual R30

manual.

c. On field transition from USB to Wireless datalogger:

This transition is practicable in field, during the sampling period, using the wireless network association command. When the association is

done, the datalogger becomes a wireless datalogger and, besides sending new measures to the gateway, starts a download process towards

the same gateway of the measures acquired during the stand-alone period (

refer to Picture 9 - Stand-alone device - Status table

WSD12PS-4AI

User Manual

PAGE 7

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

8. Wireless device user interface.

The user interface consists of a “virtual” button that can be activated using the

WineCapKey

and of a two-colours led.

To give a command, user must approach the

WineCapKey

to the device’s sensible area and keep it in that position.; the following picture (

Picture 6

- WineCapKey positioning

) shows device’s sensible points.

The following COMMAND table describes the available commands:

WIRELESS MODE COMMAND table

Flash count

Command

Description

1 flash

STATUS

Shows the device STATUS. As answer the led perform a flash sequence as reported in

the STATUS table. If the device is performing the TEST (

refer to TEST command

) this

command stops it.

2 flashes

TEST

Enter in TEST mode and transmits status and measurements every 5 seconds. If the

device is in STANDBY mode or it is out of radio range, this command forces the

connection procedure to the WSN and the return to the operative mode. The TEST

stops after 120 seconds. During TEST, the led continuously shows the STATUS to

monitor the received radio signal quality.

CAUTION: Measures acquired during TEST phase are NOT saved.

3 flashes

ENROLL

Association to the network: must be used when the device has not yet been included

in a network, starts the entry and association procedure to the gateway (

refer to

“WineCap System - User Manual R30”

4 flashes

+ 4 flashes

STANDBY

Temporary device deactivation: the device is stopped. The sampling process and the

radio are/is. turned off losing the connection to the network. To reactivate, a TEST

command is necessary. The STANDBY command must be given twice to confirm it: at

the first sequence the led flashes alternating RED and GREEN lights, waiting for the

second confirm sequence within 15 seconds. At the command execution the led

flashes as the STANDBY status (

refer to “Picture 8 - Status table - Radio signal quality”

5 flashes

+ 5 flashes

FACTORY RESET

The device performs the memory deleting procedure and goes in STOP status. All

samples, configuration and wireless network data associated are LOST. To reactivate

the device a new association and configuration procedure is necessary (

ENROLL

command

). Also in this case, the FACTORY RESET command must be given twice to

confirm it. At the command execution the led flashes as the “PROBE/DATALOGGER

NOT ASSOCIATED” status (

refer to “Picture 8 - Status table - Radio signal quality”

5 flashes

+ 3 flashes

LOGGER

NO WSN

As the previous command but performs only the WSN deleting procedure and

disassociate from the gateway. The device enters in LOGGER STAND ALONE mode:

data are kept, and the sampling activity CONTINUES with previous setup. Command

must be given with 2 sequences: 5 flashes and then 3 flashes. At the command

execution wait for the device reboot. At the STATUS command, “LOGGER” will be the

answer (

refer to “Picture 9 - Stand-alone device - Status table”

). A new association (

ENROLL

command

) is possible to a new gateway.

Picture 7 - Command table

Picture 6 - WineCapKey positioning

LED

WineCapKey

WSD12PS-4AI

User Manual

PAGE 8

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

9. Device enrolment.

Not necessary if performed in factory before delivery.

Enrol the device to the network referring to the

“WineCap System - User Manual R30”

. In case the device is already enrolled but in STANDBY status, a

TEST command must be issued (refer to

Picture 7 - Command table

)

10. Installation procedure.

After installing the gateway in appropriate place in charge, (

refer to “WineCap System - User Manual R30

”), be sure that the device is enrolled to the

gateway and activated.

Head for the environment to be monitored. On the way, to check the quality of the radio coverage, use the "Field Measurer" function.

This function is activated issuing the TEST

(refer to Picture 7 - Command table)

command: position the

WineCapKey

in the spot indicated in

Picture 6 -

WineCapKey positioning

and wait for two AMBER flashes, then remove the

WineCapKey

from device. The "Field Measurer" function lasts enabled for

two minutes.

To issue commands to the device, place the

WineCapKey

where indicated.

Once the

WineCapKey

, is detected, the led periodically emits AMBER flashes with a 2 second cadence.

For each flash, a different command is associated; to confirm the command the

WineCapKey

must be removed from the sensible area immediately

after the number of flashes corresponding at the desired command. The TEST corresponds to the second pulse and activate the "Field Measurer"

function.

The device will give back the radio signal quality through led flashes:

WIRELESS MODE STATUS Table

FLASH COUNT –WIRELESS MODE

STATUS/RADIO SIGNAL QUALITY

5 green flashes

ACTIVE - Radio signal: Excellent

4 green flashes

ACTIVE - Radio signal: Good

3 green flashes

ACTIVE - Radio signal: Fair

2 amber flashes

ACTIVE - Radio signal: Sufficient

1 red flash

ACTIVE - Radio signal: Insufficient

1 red flash 2” long

OUT OF RANGE

Network searching

2 red flashes 2” long

STANDBY

Radio off - No Logging

Short-long-short red

flashes series

FACTORY RESET

Device not enrolled –No logging

Picture 8 - Status table - Radio signal quality

Optimize reception selecting the best position: small movements can help.

If the signal is absent or insufficient at the install point, a

repeater WR12

should be put between (

refer to “WineCap System - User Manual R30

”). The

repeater

WR12

itself must be in a position where the signal level is at least sufficient.

The network will reconfigure itself automatically; the signal will be good again when the device synchronizes with the

repeater WR12

The link will not be reconfigured until completely lost by the device. Because of this, in some cases it could be necessary to force the operation.

In such cases, put the device in STANDBY mode, then run the TEST again (

refer to “WineCap System - User Manual R30

”).

NOTE: The display equipped datalogger

(WD04T)

is recommended, to verify the signal quality during devices installation.

11. Stand-alone USB datalogger installation.

Install the datalogger in appropriate place.

If the sampling process has not yet been activated, you can start it through the

WineCapKey

Bring it closer to the sensitive point, wait for 2 flashes (

TEST

)

(refer to Picture 7 - Command table)

and remove. The datalogger begins sampling

according to your settings through your PC.

Through the

WineCapKey

is possible to ask for the status, bring it close to the datalogger for 1 flash (

STATUS

) and remove it.

WSD12PS-4AI

User Manual

PAGE 9

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

STAND-ALONE DEVICE - STATUS TABLE Table

FLASH COUNT –STAND ALONE MODE

STATUS

1 green flash 2 seconds long

ACTIVE

2 red flashes 2 seconds long

STANDBY

Sequence of red flashes: short,

2 seconds long, short

FACTORY RESET

INVALID datalogger clock!

PC connection required.

Picture 9 - Stand-alone device - Status table

12. Shutting off/Reactivating the device.

If the device is shut off and left unused for a long time, you can issue the STANDBY command

(refer to Picture 7 - Command table)

. It corresponds to

the command number 4 and must be issued twice to confirm the operation.

Position the

WineCapKey

in the spot indicated in (

Picture 6 - WineCapKey positioning

), and wait for four AMBER flashes, then remove the

WineCapKey

from

device. Verify that the device asks for confirmation of STANDBY command with alternate GREEN/RED flashing, then position again the

WineCapKey

and wait for four flashes again. The device will confirm the STANDBY status lighting the RED led for 2 seconds twice. To reactivate the device

the TEST command must be issued.

13. Transducer’s connection layout.

Picture 10 - Connections layout

WSD12PS-4AI

User Manual

PAGE 10

WA0285E_WSD12PS-4AI_User Manual_R06 V6.0

www.capetti.it

14. Product versions

The device can be supplied in various versions, by the application.

The following table shows different features and identify the related ordering code.

Warm-Up

Cable

gland

Valve

CH1

CH2

CH3

CH4

Default

Range

Goretex

WSD12PS-4AI

1 second

From 1 to 32

seconds

Proportional

WSD12PS-4AIM4

1 second

From 1 to 32

seconds

Proportional

WSD12PS-4AIM8

1 second

From 1 to 32

seconds

Temperature

(

-30 ÷+80°C

)

NTC3K

Proportional

WSD12PS-4AIM9

12 seconds

From 1 to 32

seconds

0÷25mA

WSD12PS-4AIM10

5 seconds

From 1 to 32

seconds

0÷25mA

Picture 11 - Product code nomenclature

15. Technical Information

Power supply

Double 5,8Ah - 3,6 V type “C” lithium internal battery

Battery life (*)

Up to 3 years

(with 100mA charge distributed on 4 analog channels, 1 second

warm-up time, 12V or 24V power supply, samples every 60 minutes

and radio signal quality at least sufficient)

Power supply generated for transducers

+12Vdc or +24Vdc (

up to 100mA

) - (

Selectable onboard using jumpers

)

Warm-up time

From 1 (

default

) to 32 seconds (

Selectable using WineCapManager

)

Sampling interval

(*)

Selectable from one minute to 24 hours

(60 minutes default)

Datalogger capacity

64,000 samples (

for each channel

)

Working temperature

•Operative: -30°C ÷ +60°C

•Warehousing: -40°C ÷ +70°C

Radio frequency

ISM 868MHz

Radio coverage

Up to 6Km in line of sight

(can be extended using WR12 battery powered repeaters)

Sealing

IP65

Dimensions

90x160x50mm

Weight

450g

Case material

ABS

Mounting

Fix on 4 points

Connections

Wireless, USB

Cable external diameter

4.7mm maximum

Copper wire section

0.05 ÷ 2.5mm² / ÷ 14 AWG

Measures acquired (

4 channels

)

Possible Input Signals (

up to 4

)

0÷5Vdc, 0÷10Vdc, 0÷25Vdc, 0÷25mA

Measures acquired (

4 channels

) - Resolution

12 bits converter

Measures acquired (

4 channels

) - Measurement Expression

Expressed as full scale % setting

Measures acquired (

4 channels

) - Transducers Connection

Through 5mm pitch screw terminal blocks

Measures acquired (

4 channels

)

Settings (

measure/system of measure

)

Using jumpers (***)

* battery life may be influenced by fieldwork conditions, sampling/measuring interval and system configuration.

** radio coverage can be extended using up to 32 WR12 repeaters (maximum 16 for each path) between the device and the basestation.

*** refer to selected transducer’s documentation. Setup DIP switches in proper way.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Capetti Elettronica Registratore di dati

Capetti Elettronica

Capetti Elettronica WSD10DGII Manuale utente

Capetti Elettronica

Capetti Elettronica Winecap Lupo WSD15TIIDRO Manuale utente

Capetti Elettronica

Capetti Elettronica WSD12-LVD Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WSD15IIDIST Manuale utente

Capetti Elettronica

Capetti Elettronica MWDG-GSM Manuale utente

Capetti Elettronica

Capetti Elettronica WSD00T Manuale utente

Capetti Elettronica

Capetti Elettronica Winecap WSD12-4D Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WSD12-2DI Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WSD15TIDR Manuale utente

Capetti Elettronica

Capetti Elettronica WSD12-VW Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WSD12-TT1K Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WSD00THCOP Manuale utente

Capetti Elettronica

Capetti Elettronica WineCapKey WSD12T-KK Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WLRD00TH Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WSD12-4VW Manuale utente

Capetti Elettronica

Capetti Elettronica WSD10TII Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-CO Manuale utente

Capetti Elettronica

Capetti Elettronica WINECAP WSD02-TT10K Manuale utente

Capetti Elettronica

Capetti Elettronica WineCapKey WSD02T-KK Manuale utente

Capetti Elettronica

Capetti Elettronica Winecap WSD12-4D Manuale utente

Capetti Elettronica

Capetti Elettronica Wine cap WSD10TGII Manuale utente

Capetti Elettronica

Capetti Elettronica Winecap WSD12-TT10KB1 Manuale utente

Capetti Elettronica

Capetti Elettronica WSD15TIIDR Manuale utente

Capetti Elettronica

Capetti Elettronica WineCap WSD12T-DD Manuale utente

Manuali Registratore di dati popolari di altre marche

TESTO

TESTO 176 Manuale utente

HT Italia

HT Italia XL421 Manuale utente

HBM

HBM SOMAT XR CX22B-R Manuale utente

Agtrix

Agtrix 380i Manuale utente

Hobo

Hobo H8 Pro Manuale utente

Beijing ART Tech

Beijing ART Tech PCI2320 Manuale utente

Athena

Athena GET SL1 Manuale utente

Motec Systems

Motec Systems C185 Manuale utente

Beijing ART Tech

Beijing ART Tech USB2832 Manuale utente

Rotronic

Rotronic HygroLog HL20 Manuale utente

MRC

MRC DW-6092 Manuale utente

Racelogic

Racelogic VBOX LapTimer Manuale utente

Edu-Logger

Edu-Logger 900-240 Manuale utente

Elma

Elma DT173 Manuale utente

MadgeTech

MadgeTech PRTemp140 Scheda tecnica

Comet

Comet U0121M Manuale utente

pico Technology

pico Technology PT-104 Manuale utente

Soil Instruments

Soil Instruments GTecLink Manuale utente
