BOX-PPS
User Manual
WA5058E_BOX-PPS_User Manual_R04
V4.6
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
1/4
1. Description.
The BOX-PPS power supply kit is made by a 10 W polycrystalline photovoltaic panel with a mounting bracket, fixed to a plastic
case in which the MWDG-GSM basestion is housed. The case contains also GSM/GPRS and WSN antennas, the battery charger
and a 12V 9Ah sealed lead acid battery.
The kit is designed to supply enough power to guarantee a hourly data sending to the Service Center www.winecap.it using the
GSM connection in normal climatic conditions, also during winter.

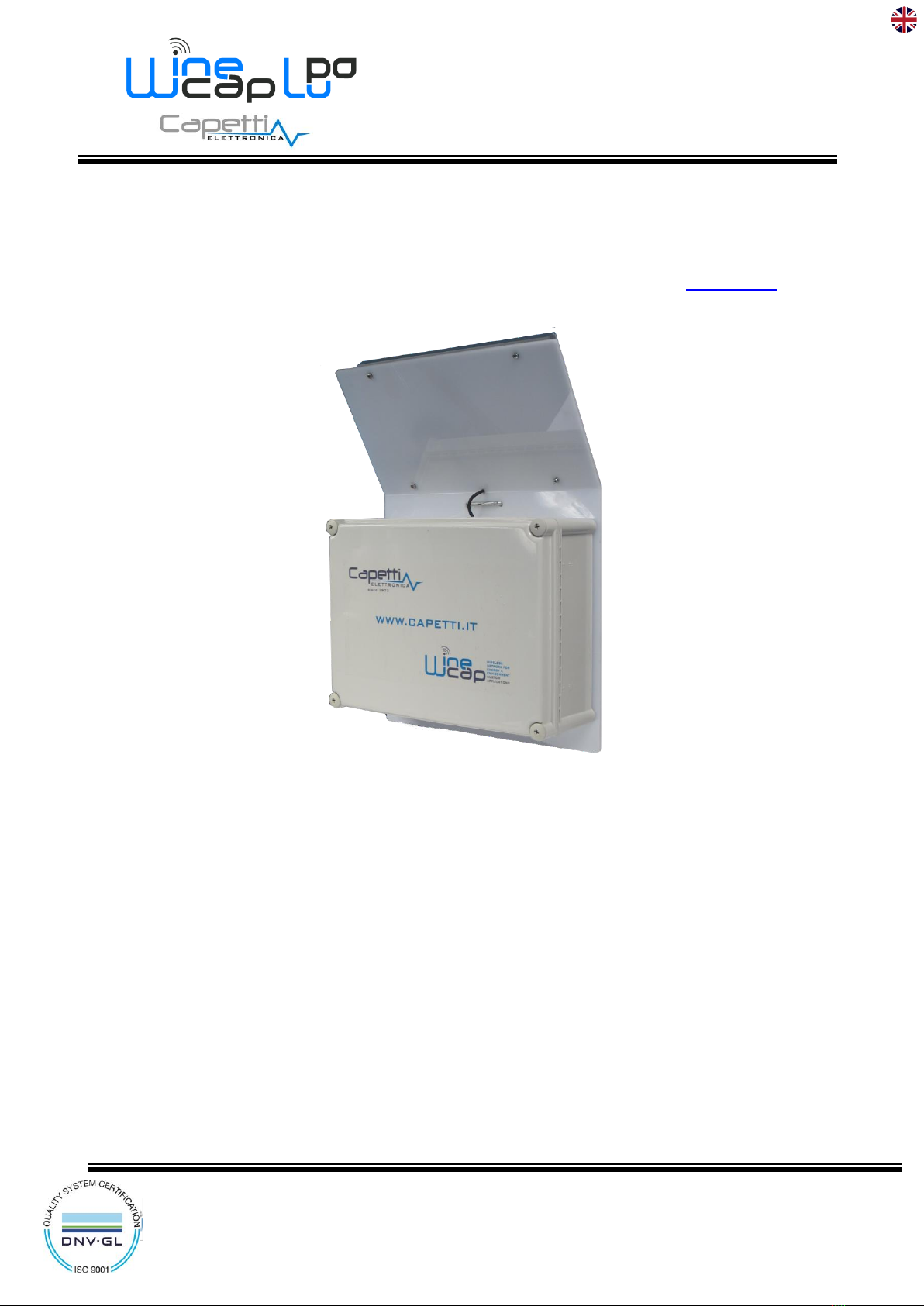

Picture 1 - Product Image
BOX-PPS
User Manual
WA5058E_BOX-PPS_User Manual_R04
V4.6
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
2/4
2. How to install.
For best results, also during winter, the solar panel must be installed facing SOUTH and the box must be placed vertically to hold
the solar panel inclination to 60°.

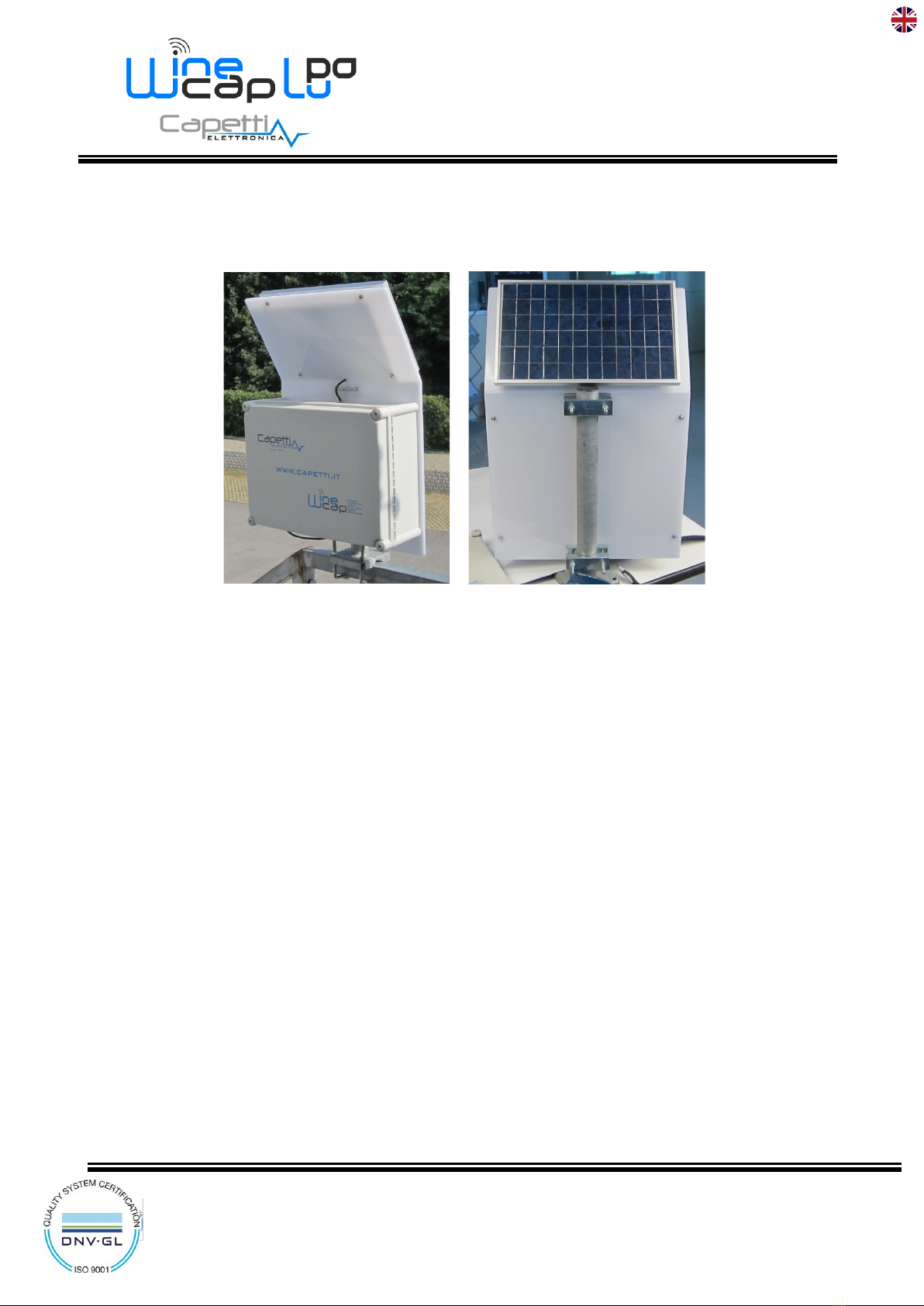

Picture 2 - Installation layout
BOX-PPS
User Manual
WA5058E_BOX-PPS_User Manual_R04
V4.6
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
3/4
3. Technical Information.
Box material
ABS
Bracket material
Opaque polycarbonate
Box dimensions
382x282x131mm
Bracket dimensions
384x545x5mm
Collar pitch
52mm
6A-12/24V charge controller - Nominal working voltage
12/24V
6A-12/24V charge controller - Maximum current
6.6A
6A-12/24V charge controller - Sealing
IP22
6A-12/24V charge controller - Dimensions
85x98x34mm
6A-12/24V charge controller - Weight
108g
6A-12/24V charge controller - Ambient temperature
from –25 to +50°C
6A-12/24V charge controller - Self-consumption
6mA
Battery - Type
Lead-calcium
Battery - Features
9Ah-12V
Battery - Case material
ABS
Photovoltaic panel - Nominal power
10W
Photovoltaic panel - Vmp
17.9V
Photovoltaic panel - Imp
0.56A
Photovoltaic panel - Voc
22.41V
Photovoltaic panel - Isc
0.61A
Photovoltaic panel - Dimensions
33.7x20.5x1.5cm
Photovoltaic panel - Weight
0.80Kg
BOX-PPS
User Manual
WA5058E_BOX-PPS_User Manual_R04
V4.6
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
4/4
4. Reference standards.
EN 61010 -1
For electromagnetic compatibility
EN 61000 - 3 - 2
EN 61000 - 3 - 3
EN 300 220 -2
EN 301 489 - 03
EN 61000 - 6 -1
This symbol indicates that this product is compliant with the European Directive 2011/65/CE that restricts
the use of substances in the manufacturing of electronic devices.
The “WEEE” logo on the label indicates that this product is compliant with the "WEEE" EC Directive.This
symbol (valid only in the European Union countries) indicates that the product it is applied to, MUST NOT
be discarded with ordinary household or industrial waste, but must be sent to an authorized reception
point. The end user should contact the device provider, either the manufacturer or the reseller, in order to
agree a collection and disposal process, after having checked the terms and conditions of sale.
The features shown may be subject to change without notice.
