CGC910BK

Caple 90cm Curved Glass Hood Black

Technical Manual

CGC910BK

Caple 90cm Curved Glass Hood Black

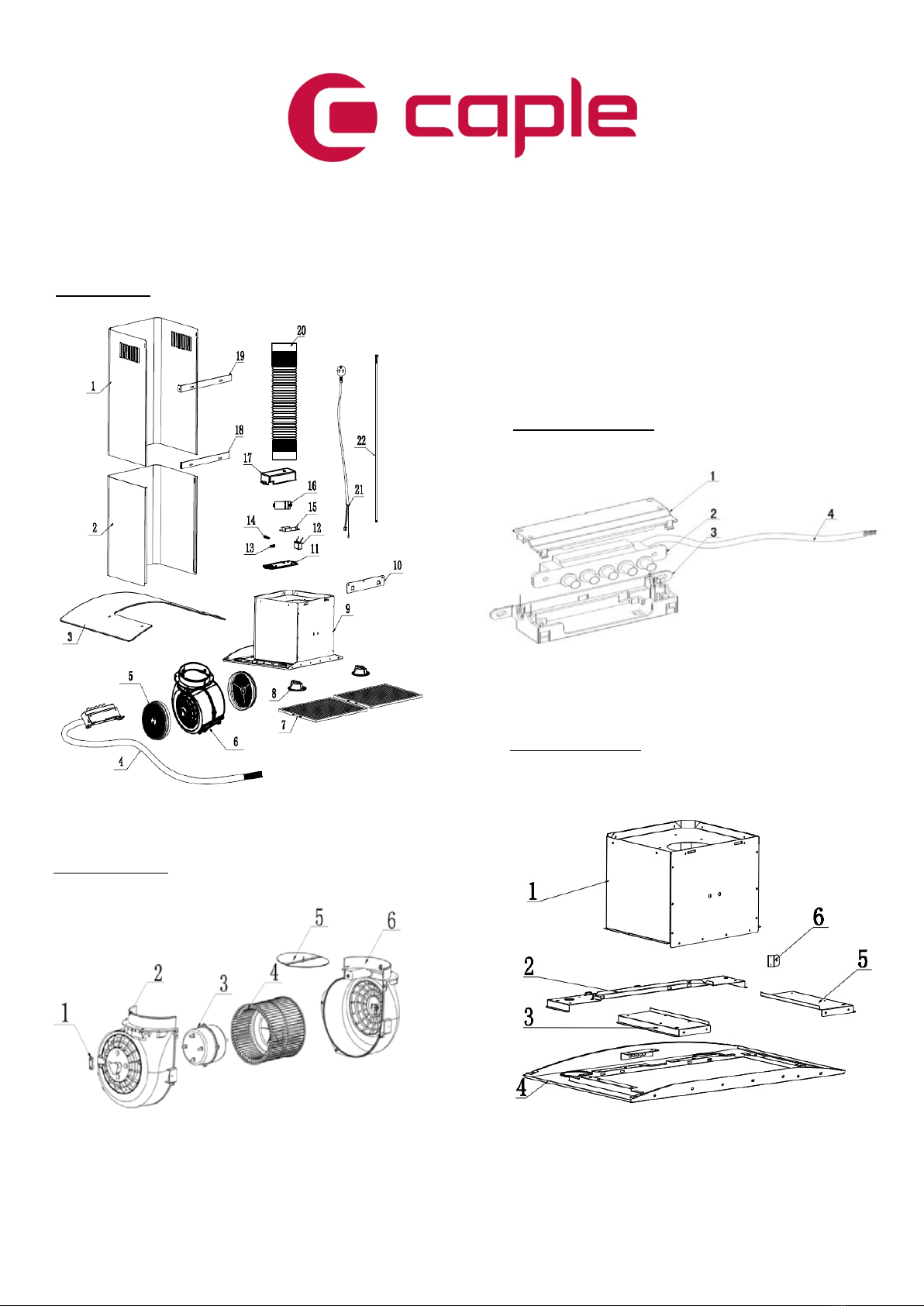

Whole Hood

Motor Assembly

Mechanical Switch

Chassis Assembly

CGC910BK

Caple 90cm Curved Glass Hood Black

For whole cooker hood

Item

Part Number

Description

Quantity

1

B21-2501-032-3

Upper Chimney (500mm height)

1

2

B21-2501-033-3

Lower Chimney (500mm height)

1

3

B33-2501-054-0

Glass

1

4

B76-4501-002-B

Mechanical Switch Assembly

1

5

B35-2501-014-0

Round carbon filter

2

6

B76-4102-003-B

Motor assembly(550m3h, 450mm cable)

1

7

B35-2501-022-0

Aluminium Filter

2

8

B62-2401-175-0

LED Lamp (warm colour)

2

9

B71-4501-008-3

Casing assemble

1

10

B23-2201-012-P

Hanging Board

1

11

B30-2501-025-0

PCB Box bottom

1

12

B64-2501-108-0

Motor capacitor (3uf)

1

13

B30-2201-068-0

Motor Holder

1

14

B30-2501-035-0

PCB Box wiring holder

1

15

B63-2501-044-0

Connection plug HJ-CO1-0

1

16

B63-2501-041-0

transformer HJ-T01-0

1

17

B30-2501-034-0

PCB Box Lid

1

18

B23-2501-031-P

Lower Chimney support bracket

1

19

B23-2501-029-P

Upper Chimney support bracket

1

20

B36-2201-040-0

∅153 plastic pipe

1

21

B62-2602-043-0

UK BS plug cable

1

22

B62-2501-129-0

LED Lamp cable

1

For motor accessory（B76-4102-003-B）

1

B30-2201-068-0

Motor holder

1

2

B30-2301-013-0

Motor housing(right)

1

3

B61-2401-286-0

Motor (#550-4)

1

4

B30-2301-014-0

Blower

1

5

B30-2201-022-0

One-way Valve Flap(Air Outlet)

2

6

B30-2301-012-0

Motor housing(left)

1

CGC910BK

Caple 90cm Curved Glass Hood Black

For Mechanical switch（B76-4501-001-B）

Item

Part Number

Description

Quantity

1

B30-2201-090-0

Switch box cover lid

1

2

B60-2501-089-0

Push button

1

3

B30-2201-089-0

Push button bottom

1

4

B62-2501-090-0

Switch Cable(1300mm)

1

For Chassis assembly（B71-4501-008-3）

Item

Part Number

Description

Quantity

1

B11-0501-002-B

Round casing

1

2

B23-2501-047-P

hanging plate

1

3

B23-2501-049-P

support board

1

4

B11-2501-098-3

Front panel assembly

1

5

B23-2501-051-P

Left support board

1

6

B23-2201-018-P

front support board

2

Fixing Kit - B74-4102-001-B
