Orbit Island Hood

Instruction Manual

OI363

2Instruction manual Oi363 Please keep this instruction manual for future reference

CONTENTS

Warnings 3

Environmental Protection 6

Uses 9

Installation 10

Remote Control 15

Timing 18

Cleaning and Maintenance 19

Caple Contact Details 22

3Instruction manual Oi363Please keep this instruction manual for future reference

WARNING

-The appliance is not intended for use by young children

or inﬁrm persons without supervision. Young children

should be supervised to ensure they do not play with

the appliance.

-The cooking surface and the inferior part of the cooker

hood must be at a minimum distance of 65 cm.

-The extracted air can’t be conveyed through or into

a duct used to let out fumes from appliances fed

by energy other than electric power (eg. centralized

heating, radiators, water-heaters, etc.).

-To evacuate the air outlet, please comply with the

pertaining rules given by competent authorities.

-Provide the room with an adequate aeration when a

cooker hood and appliances fed by energy other than

electric power (gas, oil, or coal stoves, etc.) are used

simultaneously. The cooker hood, when evacuating the

extracted air, could generate a negative pressure in

the room which can’t exceed the limit of 0.04 mbar, in

order to avoid the suck of exhausts deriving from the

heat source. Therefore the room should be provided

with air-intakes to allow a constant ﬂow of fresh air.

4Instruction manual Oi363 Please keep this instruction manual for future reference

-When performing the electrical connections on the

appliance, please make sure that the current tap is

provided with earth connection and that voltage values

correspond to those indicated on the rating label

placed inside the appliance itself.

-Before carrying out any cleaning or maintaining

operations, the appliance needs to be removed from

the electric grid. If the appliance is not provided with a

non-separable ﬂexible cable and plug, or with another

device ensuring omnipolar disconnections from the

grid, with an opening distance between the contacts of

at least 3 mm, then such disconnecting devices must

be supplied within the ﬁxed installation.

-If the ﬁxed appliance is endowed with a supply cord

and a plug, the appliance has to be put in a place

where the plug can be reached easily.

-The use of materials which can burst into ﬂames

should be avoided in close proximity of the appliance.

When frying, please pay particular attention to ﬁre risk

due to oil grease. Being highly inﬂammable, fried oil

is especially dangerous. Do not use uncovered electric

grills.In order to avoid possible ﬁre risk, all instructions

for grease-ﬁlter cleaning and for removing eventual

grease deposits should be strictly followed.

-This appliance complies with all relevant local

and national safety requirements. Inappropriate use

can, however, lead to personal injury and damage

to property.

5Instruction manual Oi363Please keep this instruction manual for future reference

-The cooker hood is not intended for outdoor use.

-It must only be used as a domestic appliance to extract

vapours and remove odours from cooking. Any other

usage is not supported by the manufacturer and could

be dangerous.

-Where a recirculation cooker hood is ﬁtted above a gas

hob, please ensure that there is an adequate supply of

fresh air into the room in which it is installed. Please

seek the advice of a qualiﬁed gas ﬁtter (e.g. GasSafe in

the UK) if necessary.

-Children under 8 years of age must be kept away from

the cooker hood unless they are constantly supervised.

-Children 8 years and older may only use the

cooker hood.

-unsupervised if they have been shown how to use it

safely and recognise and understand the consequences

of incorrect operation.

-The electrical safety of this appliance can only be

guaranteed when correctly earthed. It is essential

that this standard safety requirement is met. If in any

doubt please have the electrical installation tested by a

qualiﬁed electrician.

-Do not connect the appliance to the mains electricity

supply by a multi-socket unit or an extension lead.

These are a ﬁre hazard and do not guarantee the

required safety of the appliance.

6Instruction manual Oi363 Please keep this instruction manual for future reference

-The cooker hood can get very hot during cooking due

to heat rising from the hob.

-Do not touch the housing or the grease ﬁlters until the

cooker hood has cooled down.

APPROPRIATE USE:

-This appliance is intended to be used in household and

similar applications such as:

› Staff kitchen areas in shops, ofﬁces and other

working environments.

› Farm Houses.

› By clients in hotels, motels and other residential

type environments.

› Bed and breakfast type environments.

7Instruction manual Oi363Please keep this instruction manual for future reference

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle

where facilities exist. Check with your Local Authority or retailer for recycling advice. This

appliance is marked according to the European directive on Waste Electrical and Electronic

Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused

by inappropriate waste handling of this product. The symbol on the product indicates that

this product may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic equipment. Disposal

must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please

contact your local council, your household waste disposal service or the retailer where you

purchased the product.

WARRANTY

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you

must provide the following information to your retailer in order to receive a replacement: date

of purchase, model and serial number. Registration can also be completed online by visiting

www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together

with proof of purchase. If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

CE DECLARATIONS OF CONFORMITY

Radio Equipment Directive (RED) 2014/53/EU.

This Declaration is issued under the sole responsibility of the manufacturer.

Hereby, Caple declares that the radio equipment included in the product is in compliance with

the RED directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available on our website

www.caple.co.uk.

8Instruction manual Oi363 Please keep this instruction manual for future reference

UKCA DECLARATIONS OF CONFORMITY

This appliance has been manufactured to the strictest standards and complies with all

applicable legislation.

TECHNICAL FICHE

This appliance conforms to all current and applicable energy regulations. To view the Technical

Fiche that supports the energy labelling data, please visit the product page on our

website www.caple.co.uk.

9Instruction manual Oi363Please keep this instruction manual for future reference

USES

The appliance is already arranged both for re-circulation and ducted installation.

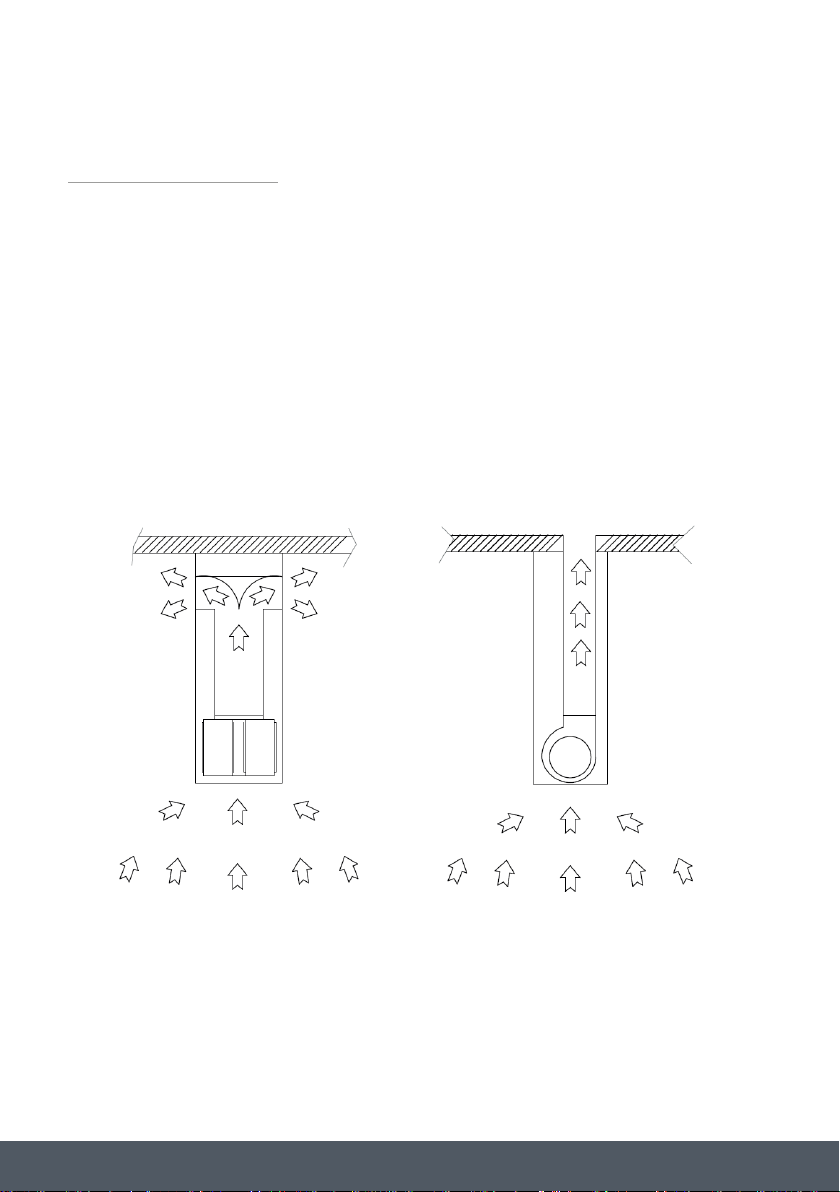

› In Recirculation mode (Fig.1), the air and fumes conveyed by the appliance are cleaned both

by a grease ﬁlter and by an active charcoal ﬁlter, and put again into circulation through the

side grids of the chimney. For this version an air deﬂector is placed in the upper part of the

chimney allowing air recycling as necessary.

› In ducted mode (Fig.2), fumes are directly conveyed outside, through an evacuation duct

connected from the extractor to the outside. Both charcoal ﬁlter and air deﬂector are not

necessary in this case.

USES The appliance is already arranged both for re-circulation and vented installation.- In Recirculation mode (Fig.1), the air and fumes conveyed by the appliance are cleaned both by a grease filter and by an active charcoal filter, and put again into circulation through the side grids of the chimney. For this version an air deflector is placed in the upper part of the chimney allowing air recycling as necessary.- In Vented mode (Fig.2), fumes are directly conveyed outside, through an evacuation duct connected from the extractor to the outside. Both charcoal filter and air deflector are not necessary in this case.

Fig.1.Fig.2.

10 Instruction manual Oi363 Please keep this instruction manual for future reference

INSTALLATION

Before installing the appliance, make sure that none of the parts are damaged in any way. In

case of damaged parts, contact your retailer and do not proceed with installation.

Read all of the following instructions with care before installing the appliance:

› If venting the hood, use an air outlet pipe of the shortest possible length.

› Limit the number of pipe bends.

› Use a duct of recognised and approved material.

› Avoid any abrupt changes of direction and use a duct with a diameter of 150mm constant

over the entire length.

NOTE:

For more information on venting, please see our ‘Extraction & Ventilation guide’ available at

www.caple.co.uk

ATTENTION: AT LEAST TWO PEOPLE ARE NEEDED TO PERFORM THE INSTALLATION.

Before installing the appliance, in order

not to damage the appliance itself, the

metal grease ﬁlter should be removed.

This can be removed by pushing the

special ﬁlter handle toward the back

side of the cooker hood and pulling it

downwards so to unfasten it from its slot

(Fig.3).

Before ﬁxing the hood, place the electric

feed correctly into the ornamental tube

and create a hole for air evacuation if

installing in vented/ducted mode.

INSTALLATIONBefore installing the appliance, make sure that none of the parts are damaged in any way. In case of damaged parts, contact your retailer and do not proceed with installation. Read all of the following instructions with care before installing the appliance:- If venting the hood, use an air outlet pipe of the shortest possible length. - Limit the number of pipe bends.- Use a duct of recognised and approved material.- Avoid any abrupt changes of direction and use a duct with a diameter of 150mm constant over the entire length.NOTE: For more information on venting, please see our ‘Extraction & Ventilation guide’ available at www.caple.co.ukATTENTION: Atleast two people are needed to perform the installation.Before installing the appliance, in order not to damage the appliance itself, the metal grease filter should be removed. This can be removed by pushing the special filter handle toward the back side of the cooker hood and pulling it downwards so to unfasten it from its slot (Fig.3A).Before fixing the hood, place the electric feed correctly into the ornamental tube and create a hole for air evacuation if installing in vented/ducted mode.Fig.3.

FIG.3
