HDMI Interface for Mercedes Benz
NTG5.5 & NTG6.0
car-solutions.com
car-solutions.com
Compatibility: E-Class 8.4"/12.3" 2016~
S-Class 12.3" 2018~
Sprinter 7“/10" 2019~
C class 7”/10" 2019~
A Class 7”/10" 2019~

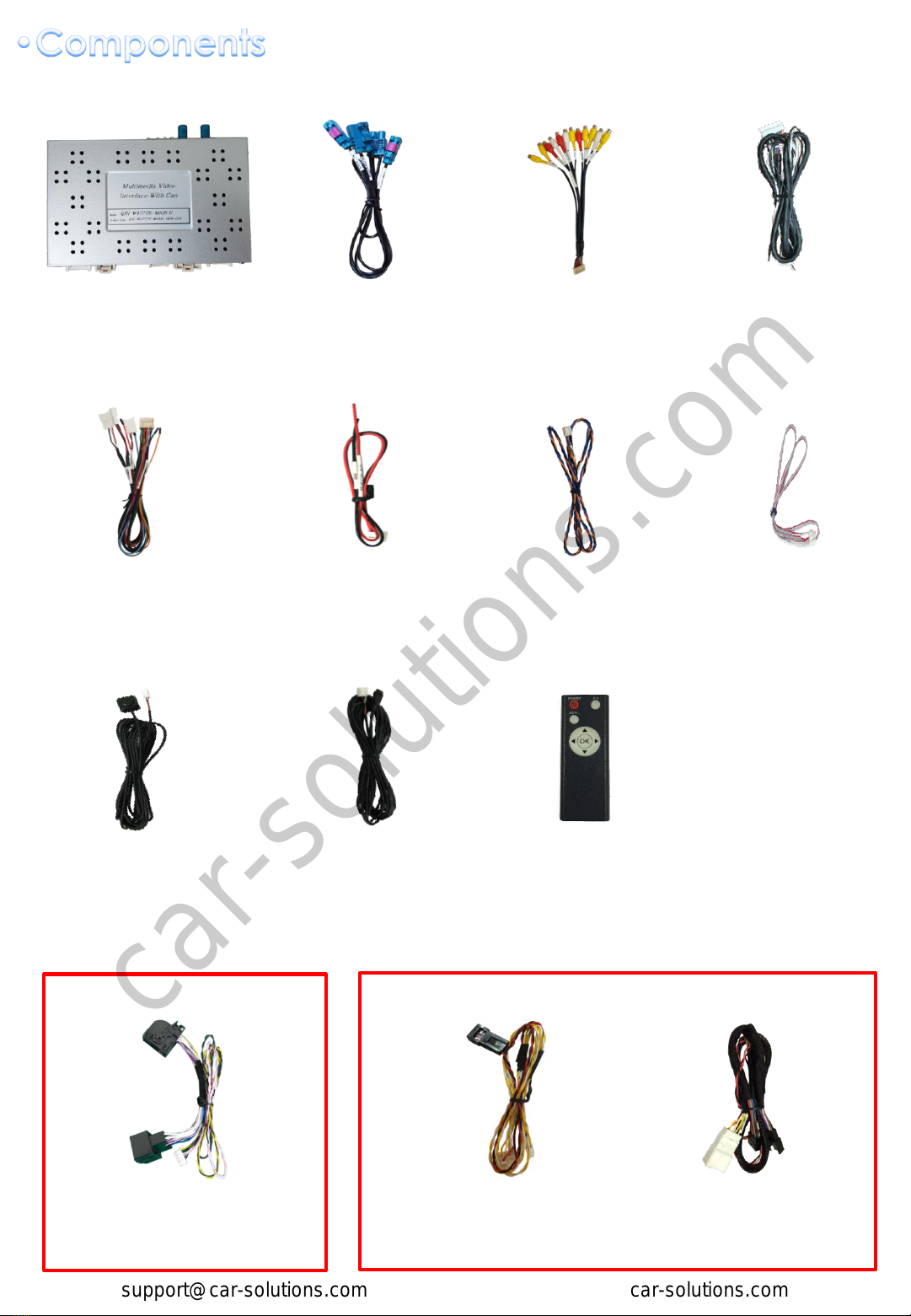

Components: Interface Main board *1
Interface Input / Output specification:
Input: LCD INPUT(CAR SYSTEM) *1
HDMI *1
Analog RGB *1
A/V *2
CVBS(Front Camera) *1
CVBS(Rear Camera) *1
Output: LCD OUTPUT(CAR SYSTEM) *1
AUDIO OUTPUT *1
VIDEO OUTPUT *2
Power Spec:
Input Power: 8VDC ~ 18VDC
Consumption: 5WATT
Switch input mode:
1. External video sources skip function: Able to control input videos on and off
via Dip switches
2. Able to switch videos via the remote and button switch
3. Able to detect the rear view camera by CAN
2
car-solutions.com
car-solutions.com
3
W222 POWER CABLE
HPOWER0177
W222 J BY J
HARETC0091
AV CABLE
HAVCAB0056
MULTI CABLE
HARETC0240
RGB CABLE
HRGBCA0013
LCD DUAL FAKRA
HLCDCA0058
UART CABLE
HTOUCH0031
BUTTON CABLE
HARETC0001
IR CABLE
HIRCAB0002
REAR CABLE
HARETC0002
REMOTE CTRL.
REMOTE0001
* Power cable for NTG5.5 [OPTION]
W177 POWER J BY J
HPOWER0231
Res. T/S CABLE
HTOUCH0009
* Power cable for NTG6.0
MAIN BOARD
QCPASS1371
car-solutions.com
car-solutions.com

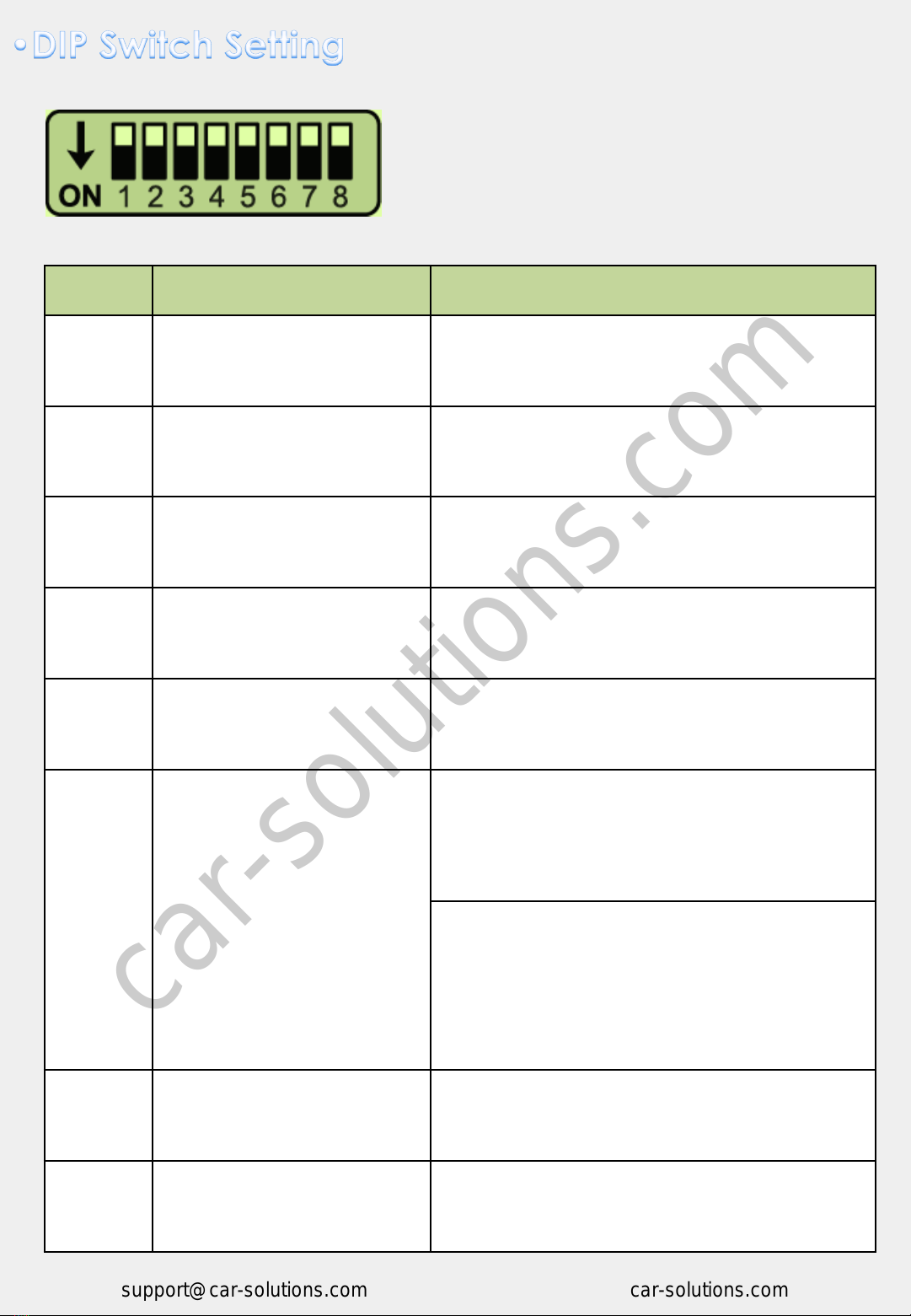

PIN FUNCTION Dip S/W SELECT
1 RGB
OFF : RGB MODE
ON : RGB MODE SKIP
2 HDMI
OFF : HDMI MODE
ON : HDMI MODE SKIP
3 AV1
OFF : AV1 MODE
ON : AV1 MODE SKIP
4 AV2
OFF : AV2 MODE
ON : AV2 MODE SKIP
5 LCD Resolution
OFF : 1920 * 720
ON : 960 * 540
6 LCD TYPE(CAR MODEL)
OFF :
Without OEM T/S : C-CLASS(10”)
With OEM T/S : A-CLASS(10"), SPRINTER(7")
ON :
Without OEM T/S : E-CLASS(8.4”/12.3”), S-
CLASS(12.3”), C-CLASS(7”)
With OEM T/S : GLE(10"), A-CLASS(7")
7 REAR CAMERA
OFF : OEM Rear Camera Mode
ON : Ext. Rear Camera Mode
8 OEM Touch Screen
OFF : Without OEM Touch Screen
ON : With OEM Touch Screen
4
* ON : DOWN / OFF : UP
Please make sure to disconnect the power cable
of the interface and reconnect the power cable
again to apply the dip switch changes.
car-solutions.com
car-solutions.com
5

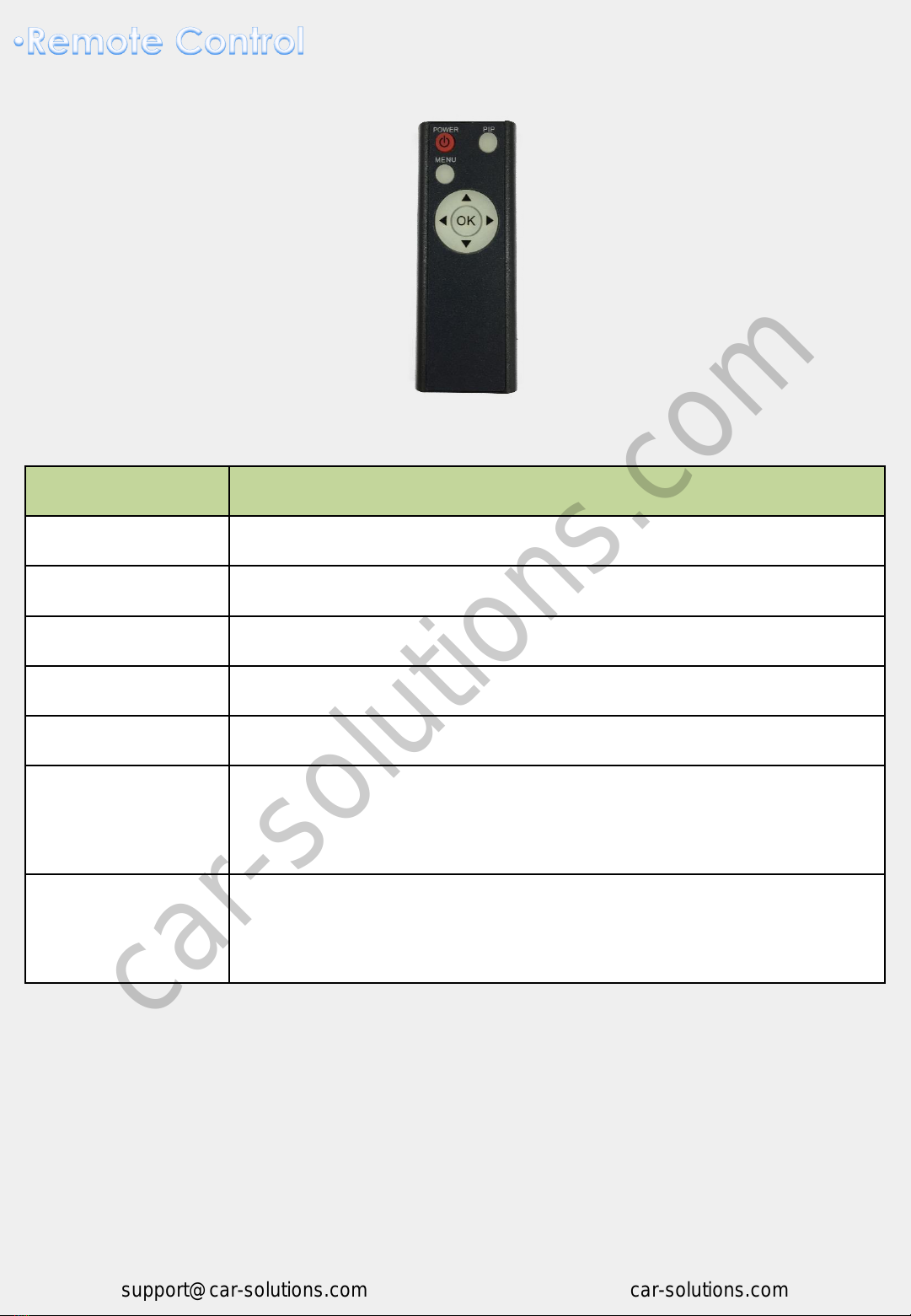

Key FUNCTION
POWER & PIP N/C
MENU Activating OSD menu
OK Making a selection, changing image display
▲Moving upward
▼Moving downward
◀
Moving leftward
(If you press this button 2 seconds long, you can access the
factory mode)
▶
Moving rightward
(If you press this button 2 seconds long, you can reset all the
data about user environment)
car-solutions.com
car-solutions.com
PARK
PAS TYPE: Select parking line type.
- NOT USED: Do not use parking line
- PAS ON: Use Flexible Parking Lines
- PAS OFF: Use fixed parking line
PAS SETUP: You can move the position of parking line.
REAR TYPE : Choose rear camera recognition.
-CAN : By connecting to “CAN” cable of the car gear, changing to rear camera
mode when shifting into reverse. (Connect “CAN” cable of the power cable to the
“CAN” cable of the car gear)
- LAMP : By connecting to the rear lamp of the car, switch to rear camera mode
when shifting into rear. (Connect “Rear-C” cable of the power cable to the rear
lamp of the car)
SAFE ENABLE : If it is enable, HDMI, RGB, and A/V mode doesn’t show up while
driving. (Default : OFF)
RADAR ENABLE: Set the parking distance alarm sensor to ON/OFF.
H-POSITION: Move the screen left and right.
V-POSITION: Move the screen up and down.
H-SIZE (NAVI): Adjust the left and right size of navigation.
PARK
UTIL
INFO
H-POSITION
V-POSITION
H-SIZE(NAVI)
Menu of FACTORY
MENU to Return SEL to Select/Save
PARK
UTIL1
UTIL2
INFO
PAS TYPE
PAS SETUP
REAR TYPE
SAFE ENABLE
RADAR ENABLE
Menu of FACTORY
MENU to Return SEL to Select/Save
6
car-solutions.com
car-solutions.com
UTIL1
AVOUT SELECT:
Select audio channel transmitted through AUX (HDMI,
AV)
AUTO FCAM TIME:
Front camera operation time adjustment
FCAM FUNC:
Select front camera display (ORI. FCAM/EXT. FCAM)
NAVI MODEL: RGB navigation setting
HDMI MODEL: HDMI device setting
FACTORY RESET: Factory mode reset
UTIL2
REMOTE DATA:
Select model to control the DVD and DTV device
REMOTE CONTROL: YES / NO
IR MEMORY: Register remote memory of DTV, DVD
CALIBRATE: Shows when Cap. T/S not connected
(Dip#8 OFF)
CTOUCH TYPE: Shows when Cap. T/S connected
(Dip#8 OFF)
MODE BUTTON: YES / NO
PARK
UTIL1
UTIL2
INFO
AVOUT SELECT
AUTO FCAM TIME
FCAM FUNC
NAVI MODEL
HDMI MODEL
FACTORY RESET
Menu of FACTORY
MENU to Return SEL to Select/Save
PARK
UTIL1
UTIL2
INFO
REMOTE DATA
REMOTE CONTROL
IR MEMORY
CALIBRATE/CTOUCH TYPE
MODE BUTTON
Menu of FACTORY
MENU to Return SEL to Select/Save
7
System version information
PARK
UTIL1
UTIL2
INFO
SYSTEM VERSION
(MAIN -180719)
(MCU : P1.8.08.16
Menu of FACTORY
MENU to Return SEL to Select/Save

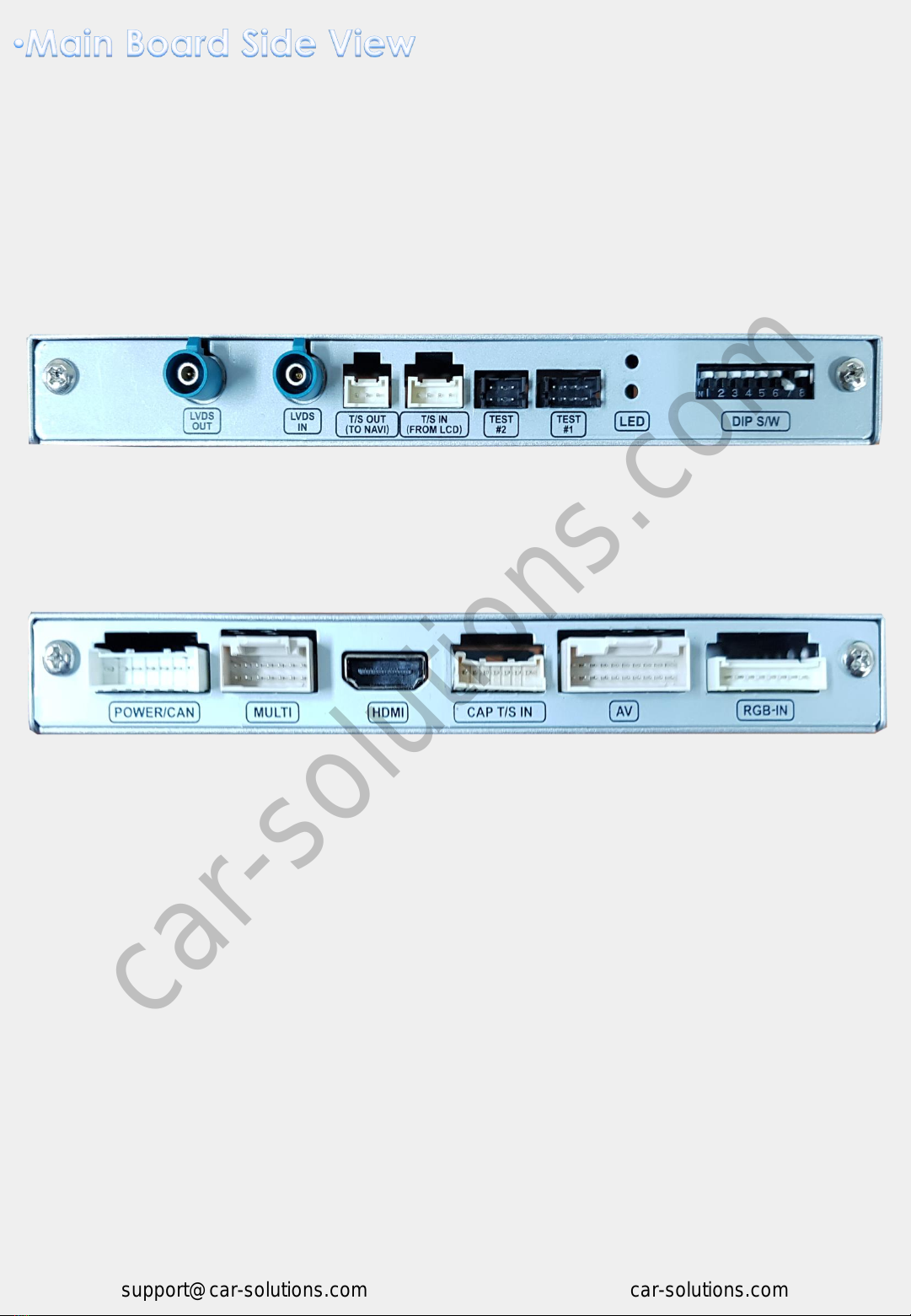

car-solutions.com
car-solutions.com

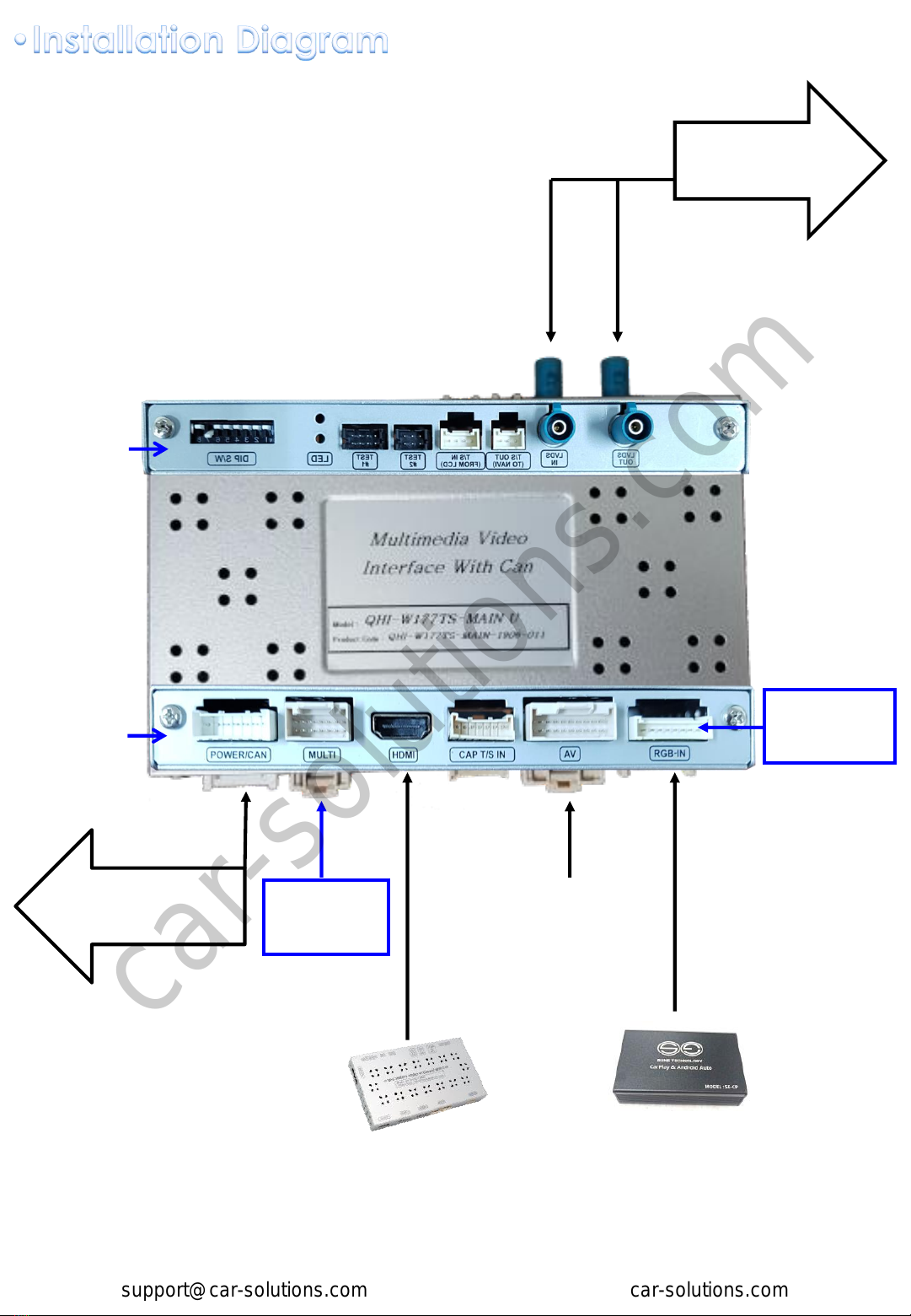

9
A/V in *2
Rear camera in *1
Front camera in *1
AUX out *1
Video out *2
V2 IR for
DTV IR
connection
* Side View
* Side View
* Please refer next
page for LVDS in/out
connection
RGB Pin#7 is
UART-TX for
UART Touch
* Please refer next
page for power/CAN
connection
Android
Navigation
CARPLAY
BOX
car-solutions.com
car-solutions.com
10

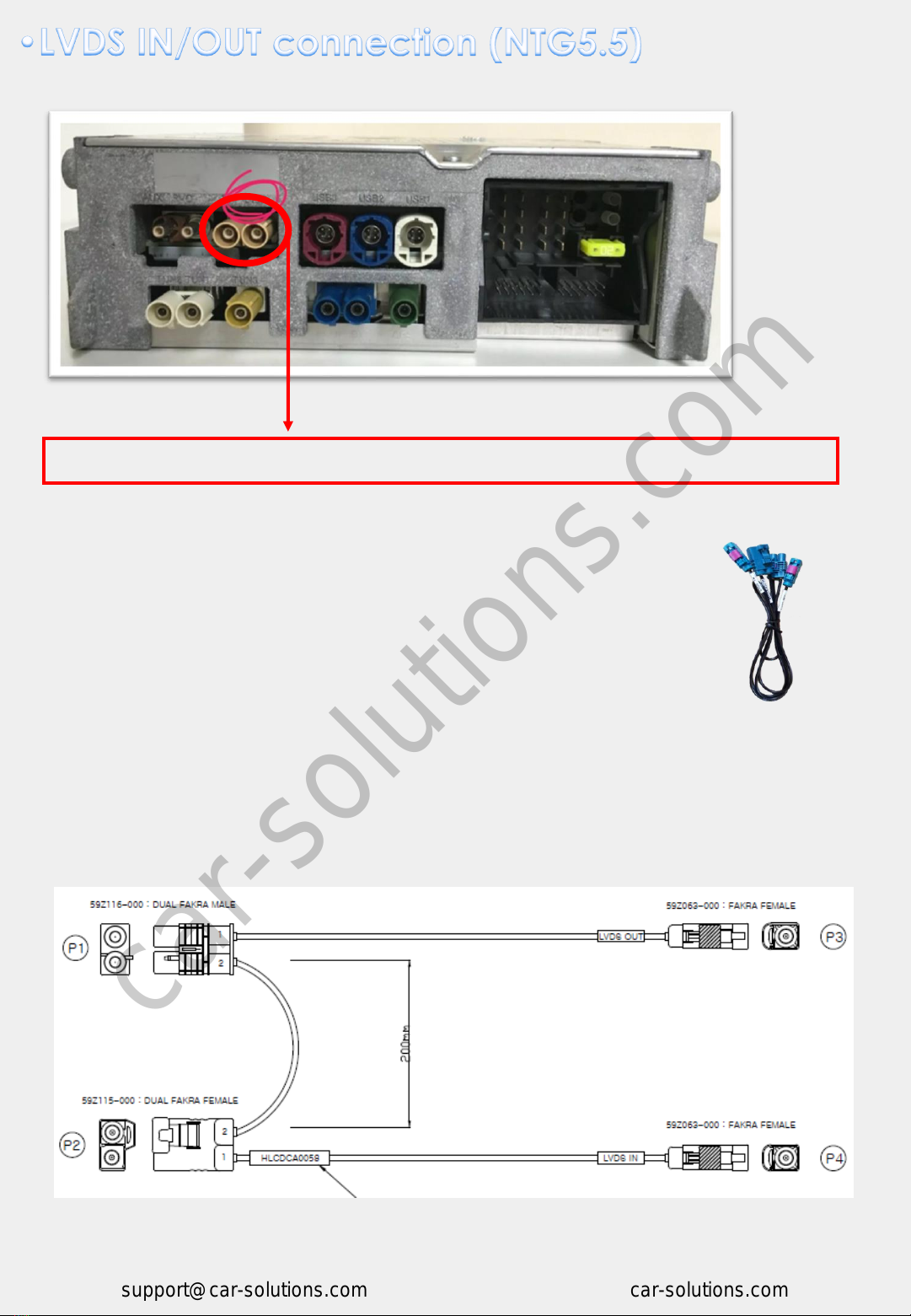

In case of 10” and 12.3” screen of NTG 5.5, please use
provided LVDS cable HLCDCA0058
1. Disconnect the OEM LVDS cable from the backside of
head unit
2. Connect the OEM cable to the female connector of
supplied LVDS Fakra cable
3. Connect the male connector of supplied LVDS cable
to the backside of monitor
Please find beige LVDS connector from NTG5.5 head unit for 10”/12.3” screen
LCD DUAL FAKRA
HLCDCA0058
car-solutions.com
car-solutions.com
