CareCo Pano 2.0 Manuale utente
USER MANUAL
Scan me on your
phone camera
to watch our
assembly video.
PRODUCT CODE: WA02010037
PRODUCT CODE WA02010037
2
CareCo (UK) Limited, 1 Turing Court, Tel: 0333 015 5000
Great Notley, Braintree, CM77 7AT www.CareCo.co.uk
Thank you for choosing CareCo.
This manual can be viewed in PDF format at the
following URL: www.careco.co.uk
INTRODUCING YOUR NEW PANO 2.0
The Pano 2.0 is the ideal walking aid for users looking to stay active.
Its clever zimmer frame and rollator combination design makes this walker the go-to reliable aid
for users looking to gain independence in their life.
Due to CareCo’s commitment to continuous product improvement, product information and
designs are subject to change without notice. No claims can be made based on the data or
illustrations in this user manual.
3
BEFORE USE
Before you begin using your walker, please ensure you, and any persons that may assist you in
its use, take the time to read, understand and follow the instructions given within this manual
carefully.
We recommend that you keep this user manual in a safe place for future reference.
If you have any questions about use, maintenance, or safety, please contact CareCo.
KEY DEFINITIONS
This user manual contains warnings and suggestions marked with the following symbols:
WARNING! Highlights a potentially hazardous condition/situation for the user and/or
product.
SUGGESTION General suggestions and advice for operating the product.
Need help with assembly?
We’ve put together a step-by-step assembly guide to help
you get your product set up safely and correctly. Just scan
the QR code with your phone camera to play the video.
PRODUCT CODE WA02010037
4
GETTING STARTED 5
CARTON CONTENTS
PRODUCT COMPONENTS
SETTING UP YOUR PANO 2.0
HOW TO USE YOUR PANO 2.0 8
USER INSTRUCTIONS
FOLDING & UNFOLDING
BACKREST
COMFORT ADJUSTMENTS 10
HANDLE HEIGHT ADJUSTMENT
SEAT HEIGHT ADJUSTMENT
TRANSPORTATION AND STORAGE 11
TRANSPORTATION
STORAGE
LOOKING AFTER YOUR PANO 2.0 11
CLEANING
MAINTENANCE
MAINTENANCE SCHEDULE
REPAIRS
WARNINGS & TECHNICAL INFORMATION 13
SPECIFICATIONS
PRODUCT REISSUING
RECYCLING & DISPOSAL
INTENDED USE
PRODUCT IDENTIFICATION
GENERAL WARNINGS
EXPECTED LIFETIME 17
WARRANTY 18
NOTES 19
CONTENTS
5
GETTING STARTED
CARTON CONTENTS
ITEM NUMBER DESCRIPTION QUANTITY
1 Base Frame w/Seat 1
2 Backrest 1
3 Star Knob 2
4 Front Wheel Assembly 2
5 Rear Leg 2
6 Handle Assembly LHS 1
7 Handle Assembly RHS 1
Contact CareCo immediately if any of the listed contents are missing.
We strongly recommend that you keep the box and internal packaging for the duration of your
warranty period.
PRODUCT CODE WA02010037
6
PRODUCT COMPONENTS
1. Backrest
2. Star Knob
3. Base Frame
4. Seat
5. Handle
6. Rear Leg
7. Front Wheel
SETTING UP YOUR PANO 2.0
2. Insert the Front Wheels into the front
frame base.
An audible “click” will conrm secure.
1. Remove all outer packaging before placing
components on a level surface.
1
2
3
4
5
7
6
X2
7
3. Insert the Rear Legs into the rear frame
base.
An audible “click” will conrm secure.
4. Insert the Handle into the top of the frame
and secure using the star knobs provided.
5. Insert the backrest into the frame bracket.
An audible “click” will conrm secure.
6. Your new Pano 2.0 is ready to use
SUGGESTION If for any reason the walker needs to be disassembled, use the set-up
instructions as a guide to disassemble the walker.
X2
X2
PRODUCT CODE WA02010037
8
HOW TO USE YOUR PANO 2.0
USER INSTRUCTIONS
WALKING POSITION
Walk with the walker close to your body, face
forwards and ensure your back is straight.
USER CONTROL
Hold the handles with a comfortable grip and
allow your arms to sit naturally by your side.
NEGOTIATING THRESHOLDS & FIXED OBSTACLES
Tilt the front of the walker upwards when travelling through doorways and over curbs.
SITTING & RESTING
Use the seat to rest when needed, ensuring the walker is on a at, even surface.
LIFTING & CARRYING
Grasp the handles or areas of the frame that are clear from pinch points, then lift with your legs.
Hold the walker at a comfortable and manageable height when moving from one location to
another.
9
FOLDING & UNFOLDING
FOLDING
Pull the seat handle upwards to close the
walker.
UNFOLDING
Push the seat handle downwards to open the
walker.
WARNING! Keep hands and body away from cross frame pivot to avoid possible pinch
points.
BACKREST
FOLDING
Lift the backrest upwards to fold the backrest.
UNFOLDING
Lower the backrest to unfold the backrest.
PRODUCT CODE WA02010037
10
COMFORT ADJUSTMENTS

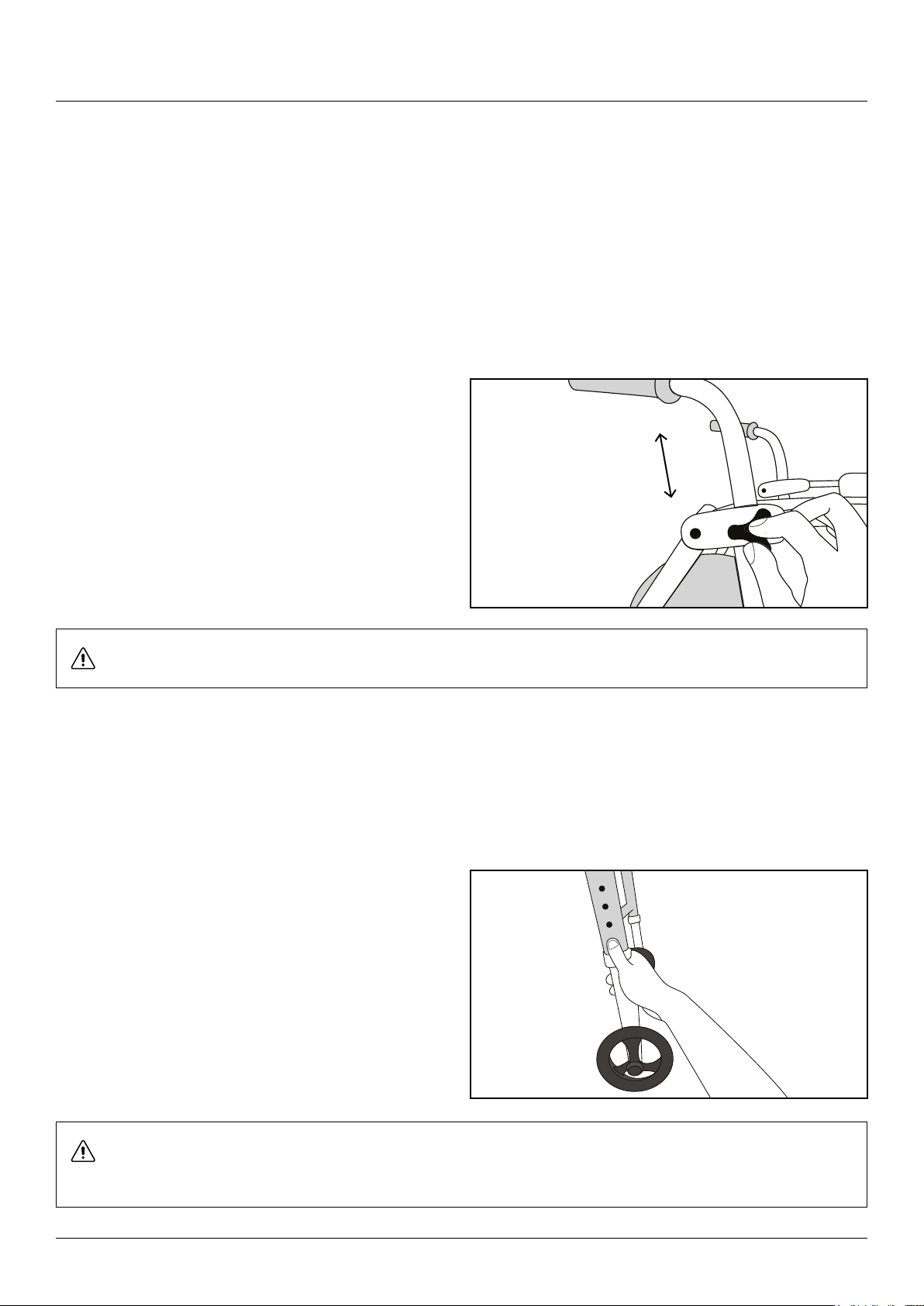

HANDLE HEIGHT ADJUSTMENT
To set the correct handle height, stand upright behind the walker with arms by side.
Adjust the height of the hand grips so they are level with the users’ wrists.
1. Loosen the star knob by turning it
anticlockwise, then remove it from the
handle bracket.
2. Lift or lower handle to the desired height.
3. Reinsert the star knob into the handle
bracket, then tighten by turning it clockwise.
4. Repeat on the opposite side.
WARNING! Ensure both handles are level and secure before use.
SEAT HEIGHT ADJUSTMENT
The seat height can be adjusted by raising or lowering the walker’s wheel & leg assemblies.
1. Press and hold the assembly height
adjustment button.
2. Raise or lower the assembly to the desired
height.
3. Release the adjustment button.
4. Repeat for the remaining three assemblies.
WARNING! Ensure the assemblies are level and secure before using the walker as a
seat.
