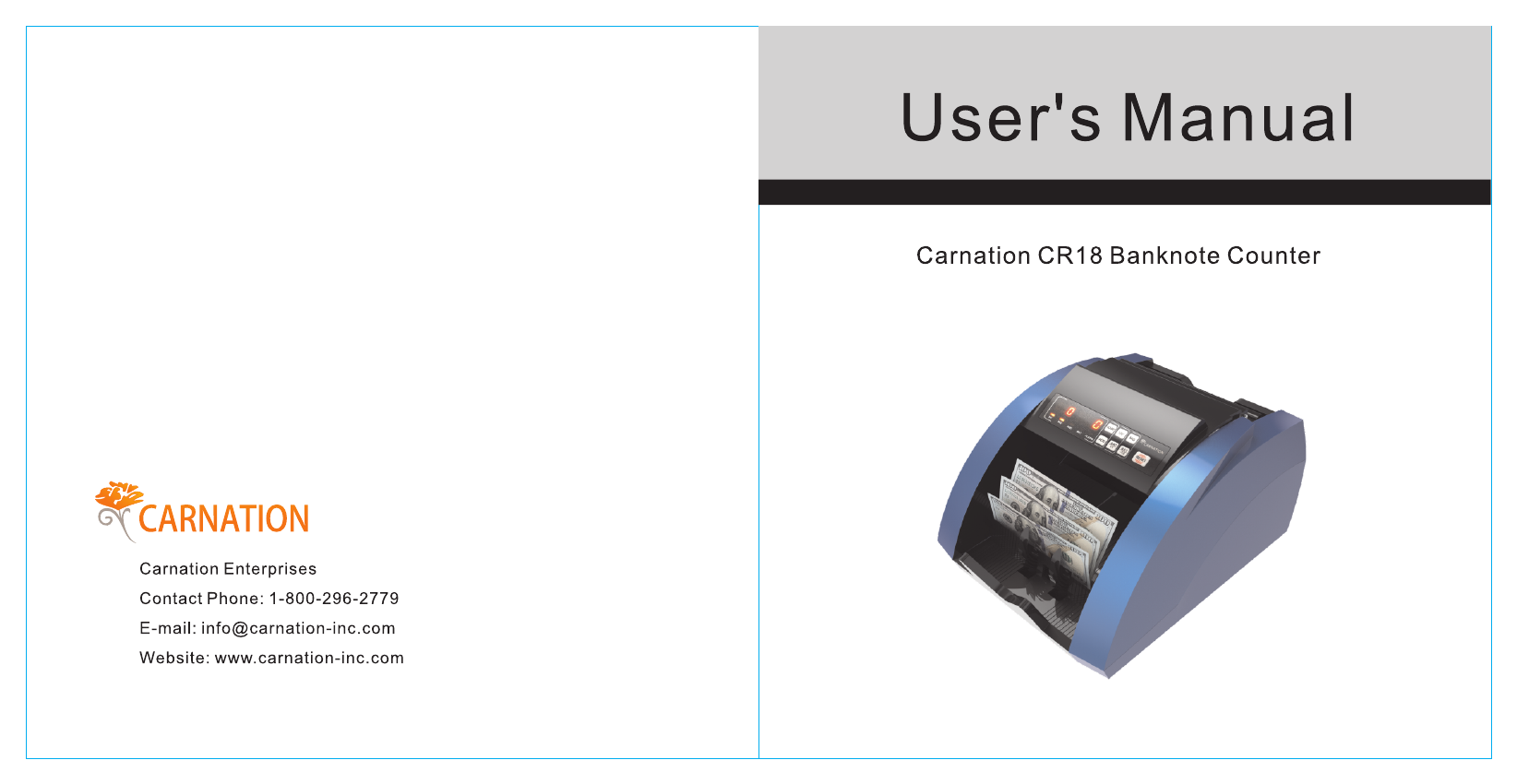

Carnation CR18 Manuale utente
CARNATIONCARNATION
CARNATION CR 180 CARNATION CR 180CR 18 CR 18
CARNATION
CARNATION
100
100
100
CR18
Code Problem Solution
E01/02 Left/right counting sensor Clean dust off sensor/Replace sensor
E03 Code disc sensor
Clean dust off sensor/fasten
sensor/replace sensor
E04 Feeder sensor
Clean the obstruction/Test MG function
E05 Receiving sensor Clean dust off sensor/replace sensor
E10 UV sensitivity Lower UV sensitivity
EE1
Counterfeit or suspicious banknote.
Banknote without UV feature
Remove and press RESET to continue counting,
if the machine stops frequently,
adjust the sensitivity level
EE2
Counterfeit or suspicious banknote.
Banknote without MG feature
Remove and press RESET to continue
counting, if the machine stops frequently,
adjust the sensitivity level.
EE4 Half-piece or torn banknote
EE5
Some banknotes are glued together
Remove and press RESET to continue counting
EE6
Counterfeit or suspicious banknote
Banknote without or with low MG
feature
Remove and press RESET to continue counting, if the
machine stops frequently, adjust the sensitivity level.
EE7
Banknote are not fed correctly into
the feeder
Arrange banknotes according to instructions on page 4.
EE8
Feeding board is not in the horizontal
position or banknote width not within
the range (50-85mm)
Adjust the position of the feeding board
Remove and press RESET to continue counting
CARNATION CR 180 CARNATION CR 180CR 18 CR 18
CARNATION
CARNATION
CARNATION CR 180 CARNATION CR 180CR 18 CR 18
CARNATION
CARNATION
CARNATION CR 180 CARNATION CR 180CR 18 CR 18
CARNATION
CARNATION
CARNATION CR 180 CARNATION CR 180CR 18 CR 18
CARNATION
CARNATION

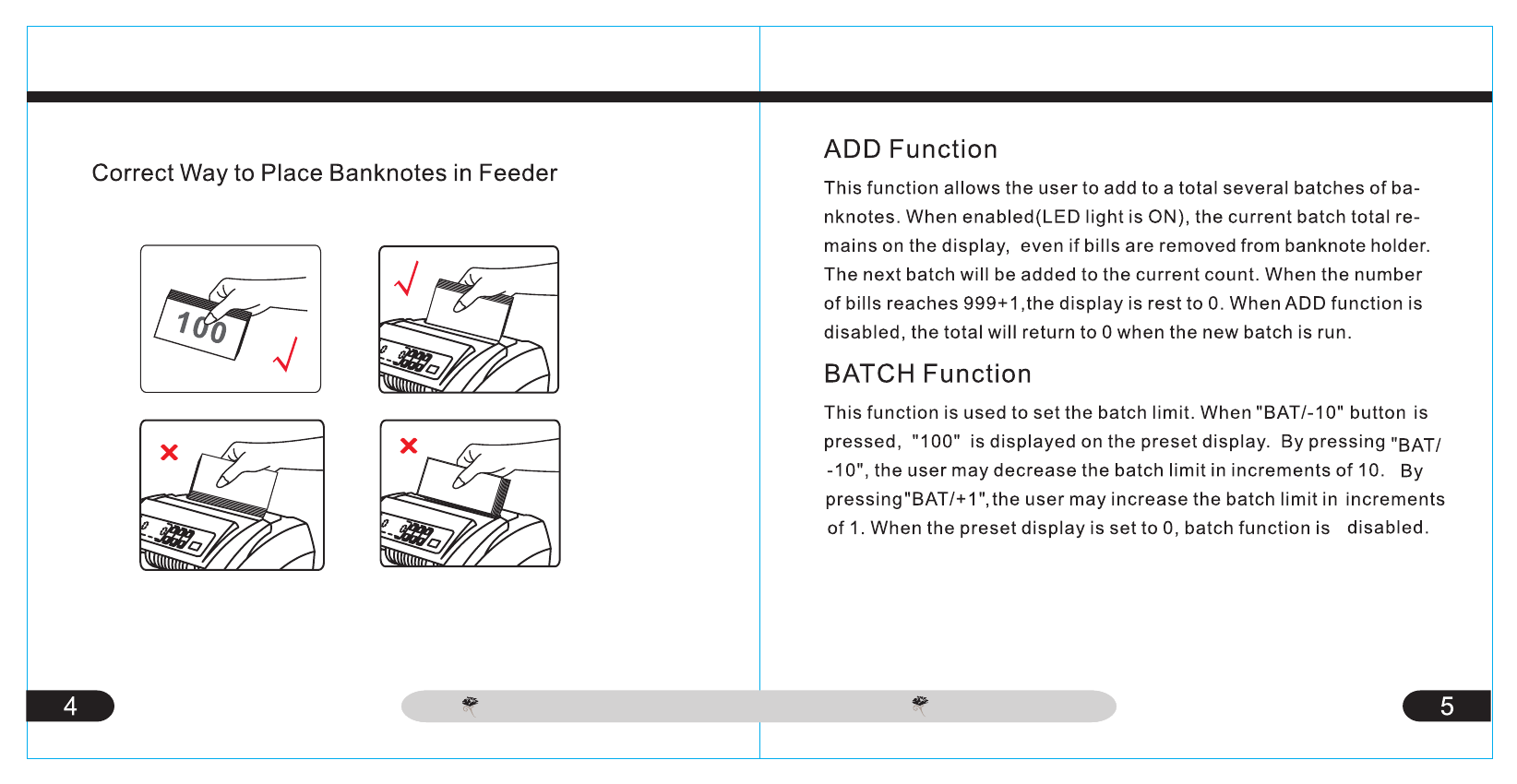

Funcion de Adicion (ADD)
Funcion de Lote (BATCH)
Funciones de Deteccion de Billetes Falsificados
CARNATION CR 180 CARNATION CR 180CR 18 CR 18
CARNATION
CARNATION
8
11
9
10
Boton de COUNT
Boton de UV
Boton de ADD
Boton de BAT/ +1 de batch funciones
18.Boton de BAT/ -10 de funciones
19.Boton de Reinicio (RESET)
CARNATION CR 180 CARNATION CR 180CR 18 CR 18
CARNATION
CARNATION
100
