Carr 220041 Manuale utente
Quality and Style that Endures
Follow the diagram and the written
directions carefully for a proper, safe
installation.
Should you encounter an unusual,
unforeseen problem, contact our
Technical Help Line
7:00 AM – 3:00 PM Pacific Time
(951) 719-1068
Visit our web-site at
www.CARR.com
Warranty Information
on our website
Carr Pattern Co., Inc.
MOUNTING INSTRUCTIONS:
220051
220052
223411
223412
220541
220542
220081
220082
MOUNTING INSTRUCTIONS FOR RAINGUTTER BRACKET KIT
Part No’s: 220041 / 220051 / 220061 / 220541 / 222741 / 223411 / 220081
220042 / 220052 / 220062 / 220542 / 222742 / 223412 / 220082
For Deluxe, Low, M-Profile and C-Profile Light Bars
MATERIALS NEEDED:
Phillips screw driver, drill motor,1/8” drill bit.
MATERIALS FURNISHED: Two Rain-gutter Brackets, eight sheet metal screws and instruction page.
220041/220042
220061/220062
222741
222742
1. Open the vehicle door.
2. Using diagrams provided place the rain-gutter brackets underneath topside of door jam in desired
location. You may have to pull back the weather stripping.
3. IMPORTANT: BEFORE DRILLING ANY HOLES IN YOUR VEHICLE, BE SURE THAT
THE POSITION OF YOUR BRACKET WILL NO INTERFERE WITH THE DOOR
OPENING OR CLOSING. IF IT DOES MOVE YOUR BRACKET UP TO AVOID
HITTING YOUR DOOR.
4. Once you know the rain-gutter bracket will not interfere with you door, hold in place and mark four
holes on vehicle using the stainless steel rain-gutter brackets as a guide.
5. Using a 1/8" drill bit, drill through marked holes on vehicle.
6. Before mounting the rain-gutter bracket (if you have the stainless steel rain-gutter bracket) peel off
the plastic (PVC) protective tape. Place the bracket back into location and with the four sheet metal
screws provided securely fasten the bracket to the vehicle.
7. Brackets now will be tightly secured to the vehicle. (Refer to the Light Bar instruction guide for
installation of your Light Bar)
8. Repeat the same steps for the rain-gutter bracket on the other side.
MOUNTING INSTRUCTIONS FOR ’94-’02 DODGE RAM RAIN GUTTER KIT
Part No. 221501 / 221502
1. Open vehicle door.

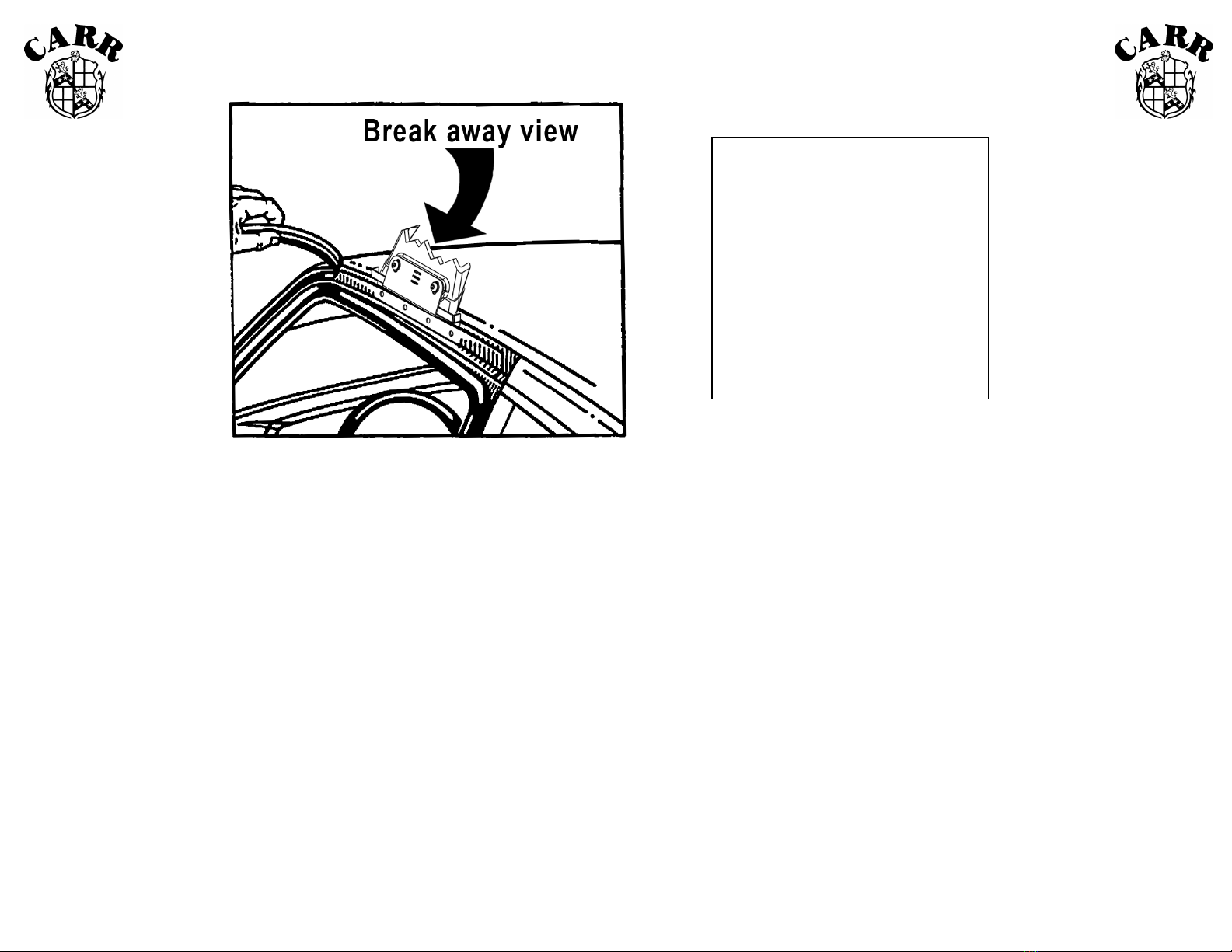

2. Refer to the diagram and peel back and take off the rubber
weather stripping as shown in the diagram.
3. Use a Phillips screwdriver to remove two or three of the sheet
metal screws on the channel that holds the rubber weather
stripping that you have just removed.
4. Place the rain gutter bracket between the channel and the body
metal of your truck.
5. Position the rain gutter bracket in the desired location.
6. Make sure that the rain gutter bracket rests on a ledge that is
formed in the body metal of the truck.
7. IMPORTANT: BEFORE DRILLING ANY HOLES IN
YOUR VEHICLE, BE SURE THAT THE POSITION OF
YOUR BRACKET WILL NO INTERFERE WITH THE
DOOR OPENING OR CLOSING. IF IT DOES MOVE
YOUR BRACKET UP TO AVOID HITTING YOUR
DOOR.
8. Once the rain gutter bracket is in position, hold tightly and drill
four evenly spaced 1/8” holes (make sure these holes line up
with the holes in the rain gutter bracket) through the channel,
through the rain gutter bracket and through the body metal of
your truck.
9. Remove the rain gutter bracket.
10. Drill out the four holes in the channel and the rain gutter bracket
with a 3/6” drill bit. (Important: DO NOT DRILL OUT THE
FOUR 1/8” HOLES IN THE BODY METAL OF YOUR
TRUCK WITH THE 3/16” BITDRILL BIT).
11. If you have the stainless steel rain gutter brackets, peel off the
white PVC tape now. Place the rain gutter brackets back into
position.
12. Align the holes and install the sheet metal screws. (Note: Do
not over-tighten the sheet metal screws to avoid stripping
them out).
13. Take some dishwashing soap and generously apply it to the
rubber weather stripping that has been removed.
14. You will find a notch at the top end of the channel where you
can start to feed the rubber weather stripping back down
through the cannel.
15. The rain gutter bracket now will be tightly secured to your
truck. (Refer to the Light Bar Instructions guide for installation
of your Light Bar).
16. Repeat the same steps for the rain gutter bracket on the other
side.
Materials Needed:
1. Phillips screw driver
2. Drill motor
3. 1/8” drill bit
4. 3/16” drill bit
5. Dishwashing soap
Materials Furnished:
1. 2 – Rain gutter brackets
2. 8 – Sheet metal screws
3. Instruction sheet
