| AIR PURIFIER |
ROOM AIR
PURIFIER
User Manual
RMAP-ST
RMAP-XL
RMAP-SST
RMAP-SXL
Features of the Room Air Purifier
Three level filter includes a pre-filter for large particles, a HEPA filter for
particles as small as 0.3 micron and an activated carbon filter for odors.
Advanced Filtration
Continuously samples incoming air, measures levels of pollution and indicates air
quality with an easy-to-read LED screen.
A powerful, 18-speed fan with 360-degree airflow pulls polluted air from below
and returns cleaner air in multiple directions.
Use Smart Auto mode to allow the air purifier to automatically adjust fan speeds
based on the air quality level.
Air Quality Monitoring
360-Degree Airflow
Easy Operation
Note Functions and specifications may differ depending on the model.
* Wi-Fi® connection required. Works with Alexa®, Google Home® and select Apple® and Android®
mobile devices. Free Carrier Home App download required. See User Guide at CarrierAtHome.com
for more details.
Connect Wi-Fi® models with the Carrier Home app so you can manage your air
purifier from anywhere by integrating with Alexa® or Google Home®.*
Smart Features
Table of Contents
How to Operate
Safety Precautions ......................................................................
Preparation Before Use ............................................................
Product Description ....................................................................
Product Operation .......................................................................
Indoor Air Quality Indicator ......................................................
Care and Maintenance ..............................................................
Troubleshooting ...........................................................................
Customer Support ......................................................................
Warranty ..........................................................................................
Legal Notice ................................................................................
3
5
7
12
16
17
19
20
21
22
Before Using
Things You
Should Know
USER MANUAL
3
Safety Precautions
Power Supply
Indication Description
Indicates that there is a possibility of injury or material damage in case of
violation of the instructions.
This product has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug is intended to fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit in the outlet, contact a qualified electrician. Do not
attempt to defeat this safety feature.
Indicates that there is a possibility of death or serious injury in case of
violation of the instructions.
WARNING
CAUTION
Read these instructions thoroughly for the safety of users and to prevent property damage.
This air purifier is for 120V use only.
Note
Be sure to plug your product into a 120V outlet.
►Do not turn off the product by unplugging the power plug while in use.
►Contact customer service if the power plug or the power cord is damaged.
►Connect the power plug firmly to the wall outlet and do not use a damaged
power plug, a damaged power cord, or loose outlet.
Unplug the product during thunder and lightning. Product can be damaged due
to electric shock.
►If the product is not used for long period of time, unplug the unit to prevent
unnecessary overheating and to save electricity consumption.
4
ROOM AIR PURIFIER
WARNING
Plug the product into an outlet. Do not press the product up against the wall plug.
• Do not extend the power cord at will.
• Do not use with a power strip as it may cause electric shock or fire.
Leave at least 12 inches (30 cm) between wall and product.
• If the air inlet and outlet space is crowded, it may impact the product's ability to filter
and recirculate the air.
Place on flat surface.
Initial Setup
►Do not use the product near flammable substances or a gas leak.
►Do not use the product in places exposed to high humidity, oil, grease, or water.
►Do not install the product in direct sunlight or near a heating vent.
PROHIBITED
When Using
CAUTION
Avoid installing the product within 3 feet (1 meter) of a television or other electronic device.
Turn off power immediately if water or other foreign matter enters the product. Dry the
product completely before turning on.
Using a dirty pre-filter or no filter will degrade product performance.
If there is a strange sound, burning smell or smoke coming from the product, unplug it
immediately and contact customer service.
►Do not replace the filter while the product is in use or plugged in.
►Do not use filters that are not recommended by the manufacturer.
►Do not move the product while in use.
PROHIBITED
►Do not clean when power is on as it may cause electric shock or malfunction.
CAUTION
When Cleaning
PROHIBITED
Safety Precautions
USER MANUAL
5
How to Prepare/Change the Filter
•
An integrated filter is included with the new product.
•
Remove the filter packaging before plugging in the product.
12
Hold the top cover of the product
with both hands and pull up.
Grasp the filter cover hole on the rear
and pull it forward.
3
Remove the filter from the product
and then remove the plastic
packaging from the filter.
►Failing to remove the packaging will
result in abnormal sounds and the
filter will not work properly; and it
may cause a fire or other damage to
the product.
CAUTION
•
Remove the plastic packaging from the filter before use.
•
Keep plastic packaging away from children as it may cause suffocation.
4
Slide the filter back into the unit.
Filter cover
hole
Plastic
packaging
You cannot return the filter once the plastic packaging is removed.
Note
Preparation Before Use
6
ROOM AIR PURIFIER
5
6
Replace filter cover.
►Insert the cover into the fixed groove
at the bottom of the product.
►Slide the cover forward so that the
cover fits into the top grooves.
Hold the top cover of the product with
both hands and slide it back in place,
making sure the logo appears in the front.
7
When the filter installation is complete,
press the +" " button on the
control panel for five seconds or more
to reset the filter indicator light.
►The red filter light will turn off when
the product is reset.
Sleep
Auto
Fixed groove
at bottom
Cover-positioning
groove at top
1
2
How to Install Casters (Optional)
3
4
Inside of the air purifier package, there is a small box containing four casters and eight screws.
Retain the removed bottom bases and screws for future use.
Replace each base with a caster, utilizing two screws per caster.
If there is no caster box inside the product box, please contact
customer service at 1-888-320-0909.
Remove the four bottom bases from the air purifier with a screw driver.
Preparation Before Use
Note
USER MANUAL
7
Product Description
Air Inlets
Bottom Base
Display
Air Outlet
Filter
Remote is only for
Wi-Fi® models
Carrier Room Air Purifier
Note Product features and specifications may vary depending on the model.
Control Panel
Indoor Air
Quality
Indicator
+
+
–
–
•
•
•
•
•
•
•
•
OK
AUTO
8
ROOM AIR PURIFIER

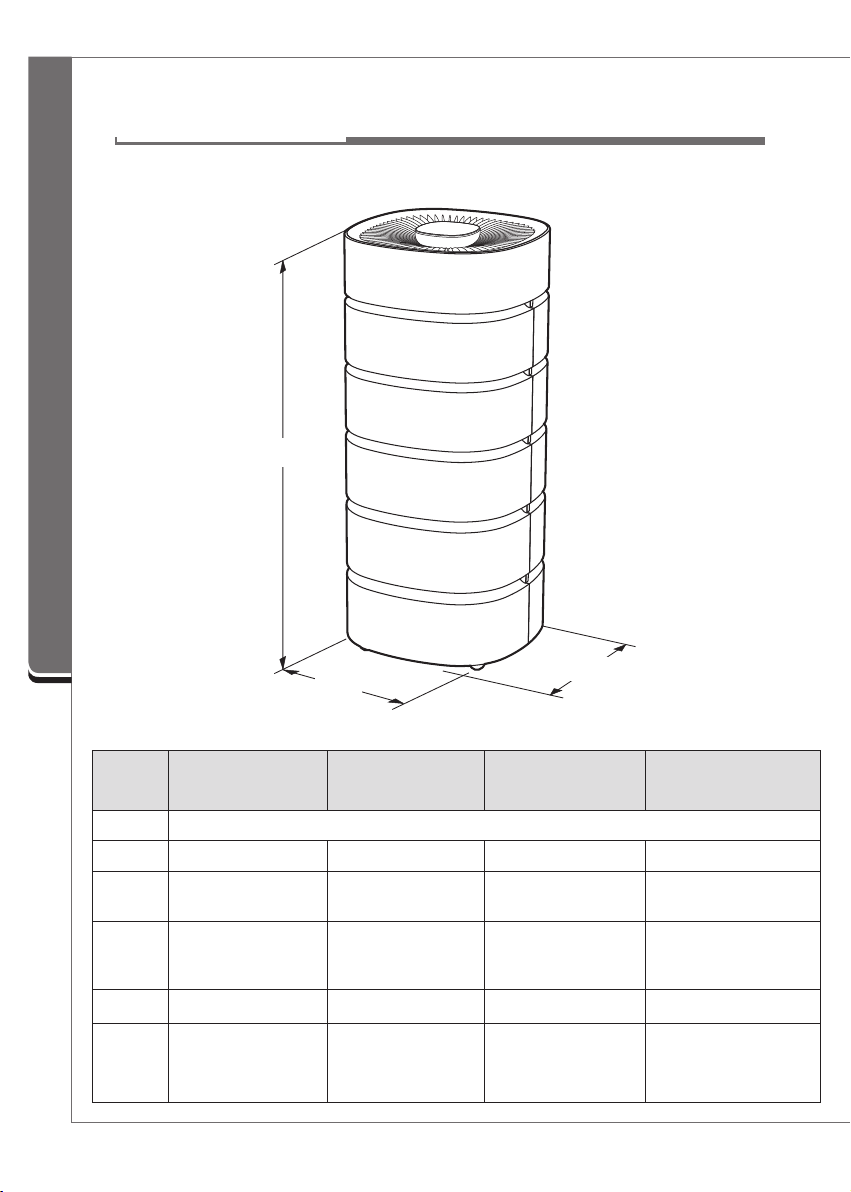

Product Specifications
Width
Height
Depth
Model Room Air Purifier
RMAP-ST
Room Air Purifier XL
RMAP-XL
Smart Room Air Purifier
RMAP-SST
Smart Room
Air Purifier XL
RMAP-SXL
Power 120V, 60Hz, 1-phase
Wi-Fi
®
No No Yes Yes
Remote
Control No No Yes Yes
Dimensions
13.7" W x 13.7" D x 26.5" H
350mm W x 350mm D
x 675mm H
13.7" W x 13.7" D x 31.5" H
350mm W x 350mm D
x 800mm H
13.7" W x 13.7" D x 26.5" H
350mm W x 350mm D
x 675mm H
13.7" W x 13.7" D x 31.5" H
350mm W x 350mm D
x 800mm H
Room Size
Up to 430 sq. ft. Up to 560 sq. ft. Up to 430 sq. ft. Up to 560 sq. ft.
Filter
Replacement
Model
Number
RMAPFIL-ST
RMAPFIL-XL RMAPFIL-ST
RMAPFIL-XL
Product Description
