Carrier Air V Manuale utente

A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT 2

ELECTRICAL DATA 2

OPERATING INSTRUCTIONS 3

ENJOYING THE “AIR SHOWER “5

ENERGY SAVING TIPS 5

INSTALLATION INSTRUCTIONS 6

Step 1. Selecting an Installation Location &

Installing the Roof Top Air Conditioner 6

Step 2. Installing the Ceiling Assembly 9

Step 3. Electrical Wiring 10

Step 4. Completing the Installation 11

TROUBLE SHOOTING GUIDE 12

NORMAL MAINTENANCE PROCEDURES 13

PART DIAGRAM 14

CONTENTS

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

OWNER’S GUIDE -

A FEW WORDS ABOUT YOUR NEW

AIR CONDITIONING UNIT

Thank you for choosing the Air V, Carrier Recreational Vehicle Air Conditioner, for your cooling needs.

You can feel confident in your selection because the same pride in craftsmanship and engineering knowledge

that goes into Carrier equipment to cool the Astrodome in Texas, the famous Sistine Chapel in Rome,

the Washington DC Halls of Congress and thousands of other installations worldwide has gone

into the construction of your unit.

In addition to cooling the room, your Carrier unit will also filter and dehumidify the room’s air.

The Air V air conditioners quietly give you maximum cooling comfort. Now you can “Feel Carrier’s Cool”!

This manual will supply you with all the information you need for installing, operating and maintaining your new unit.

Take a few minutes to discover how to get the most in cooling comfort and economic operation from

your new Air V.

Please keep this manual handy for future reference, and be sure to send in your warranty card.

You can also contact us by the internet web site, www.airv.com .

All wiring must comply with local and national electrical codes. All wiring must be installed by qualified electricians.

If you have any questions about the following instructions, contact a qualified electrician.

Check the available power supply and resolve any wiring problems BEFORE installing and operating this unit.

This air conditioner is designed to operate from a 115V AC, 60Hz, 1 Phase power supply.

The unit nameplate is located on the left side of the condenser orifice that is on the rear of the basepan. The

wiring diagrams are located on the cover of the control box. The ceiling assembly unit wire diagrams are

located on the ceiling panel.

Note the unit’s model, serial number, and the ceiling assembly serial number. Record this information on the

front cover of this manual. Refer to Figure 4 of page 9 for serial number location.

ELECTRICAL DATA

OWNER’S GUIDE - 3

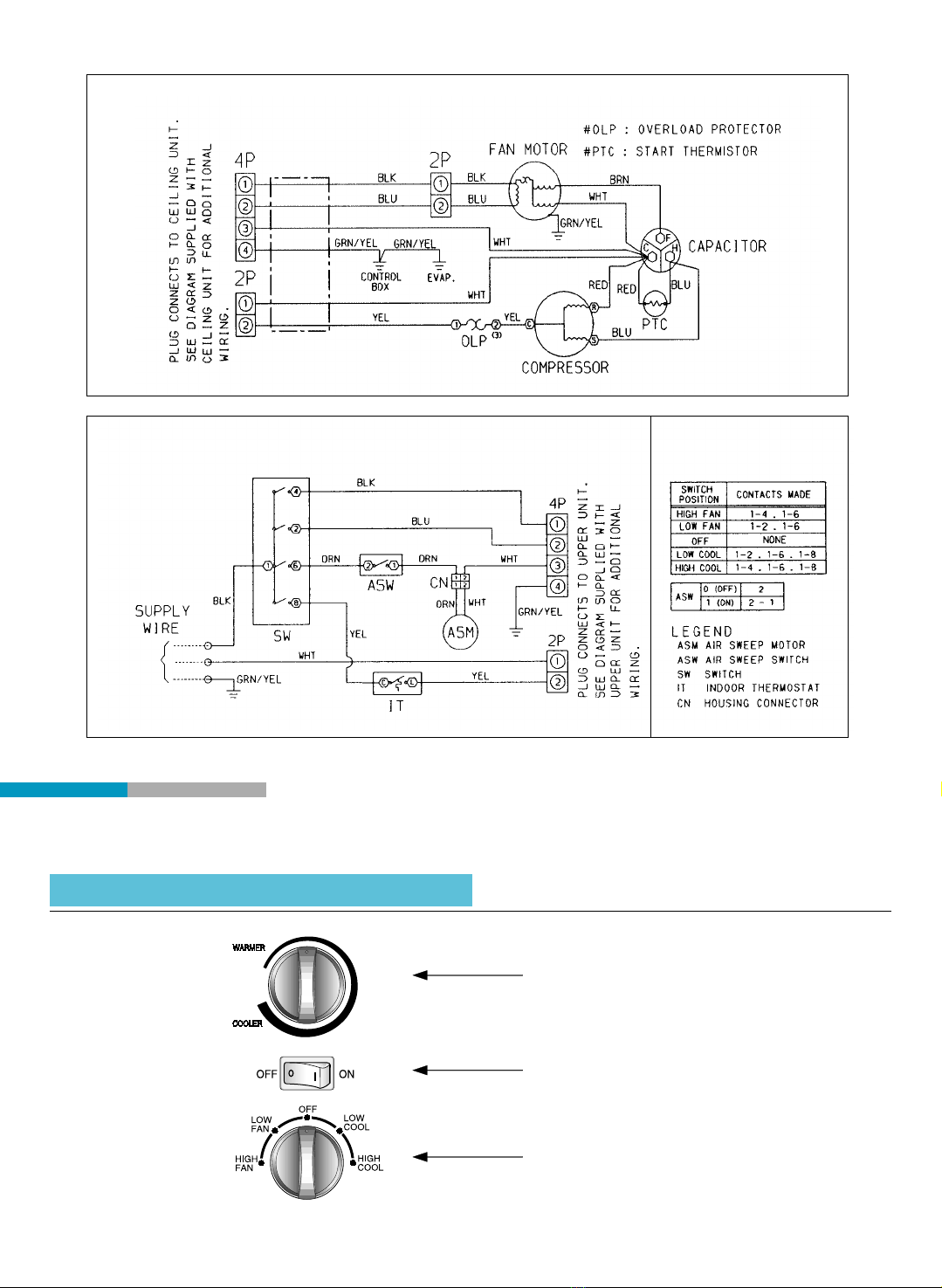

SCHEMATIC DIAGRAM of Upper Unit

SCHEMATIC DIAGRAM of Ceiling Unit

OPERATING INSTRUCTIONS

GLOSSARY OF CONTROL SYMBOLS

Automatic Thermostat Control

Air Sweep Control

Master Control

OWNER’S GUIDE -

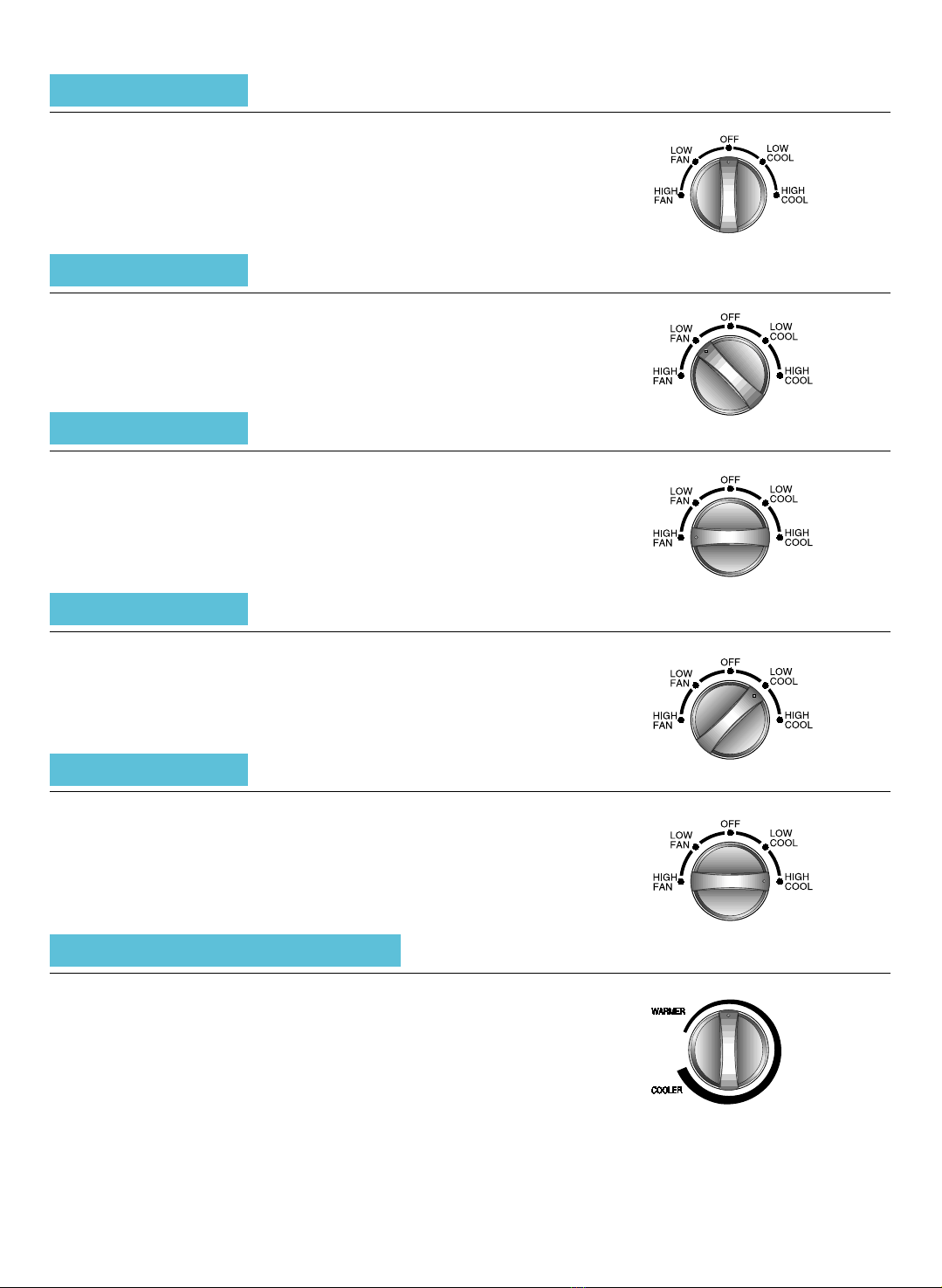

When dial is turned to the OFF position the unit will NOT operate.

When leaving your vehicle for any period of time, make sure the

master control dial is set to the OFF position.

OW FAN will circulate relatively small quantities of air WITHOUT

cooling. Choose the OW FAN setting simply by rotating the dial

to this position.

HIGH FAN will circulate larger quantities of air WITHOUT cooling.

Choose the HIGH FAN setting simply by rotating the dial to this

position.

OW COO will provide light cooling. Choose the OW COO

setting simply by rotating the dial to this position.

It is also recommended for nighttime use or relatively hot days.

HIGH COO provides maximum cooling. Choose the HIGH COO

setting simply by rotating the dial to this position.

It is recommended for quick cooling or extremely hot days.

Once the room is cooled, switch to a lower setting.

The thermostat maintains the room temperature automatically.

Turn the thermostat toward COO ER for lower temperature

control, or toward WARMER if a higher temperature setting is

desired. The cooling operation automatically starts when the room

temperature rises above your desired thermostat setting and stops

when the room temperature reaches your desired setting.

(NOTE: The fan will operate continuously to maintain optimum

temperature control.)

OFF

LOW FAN

HIGH FAN

LOW COOL

HIGH COOL

THERMOSTAT CONTROL

OWNER’S GUIDE -

1 2

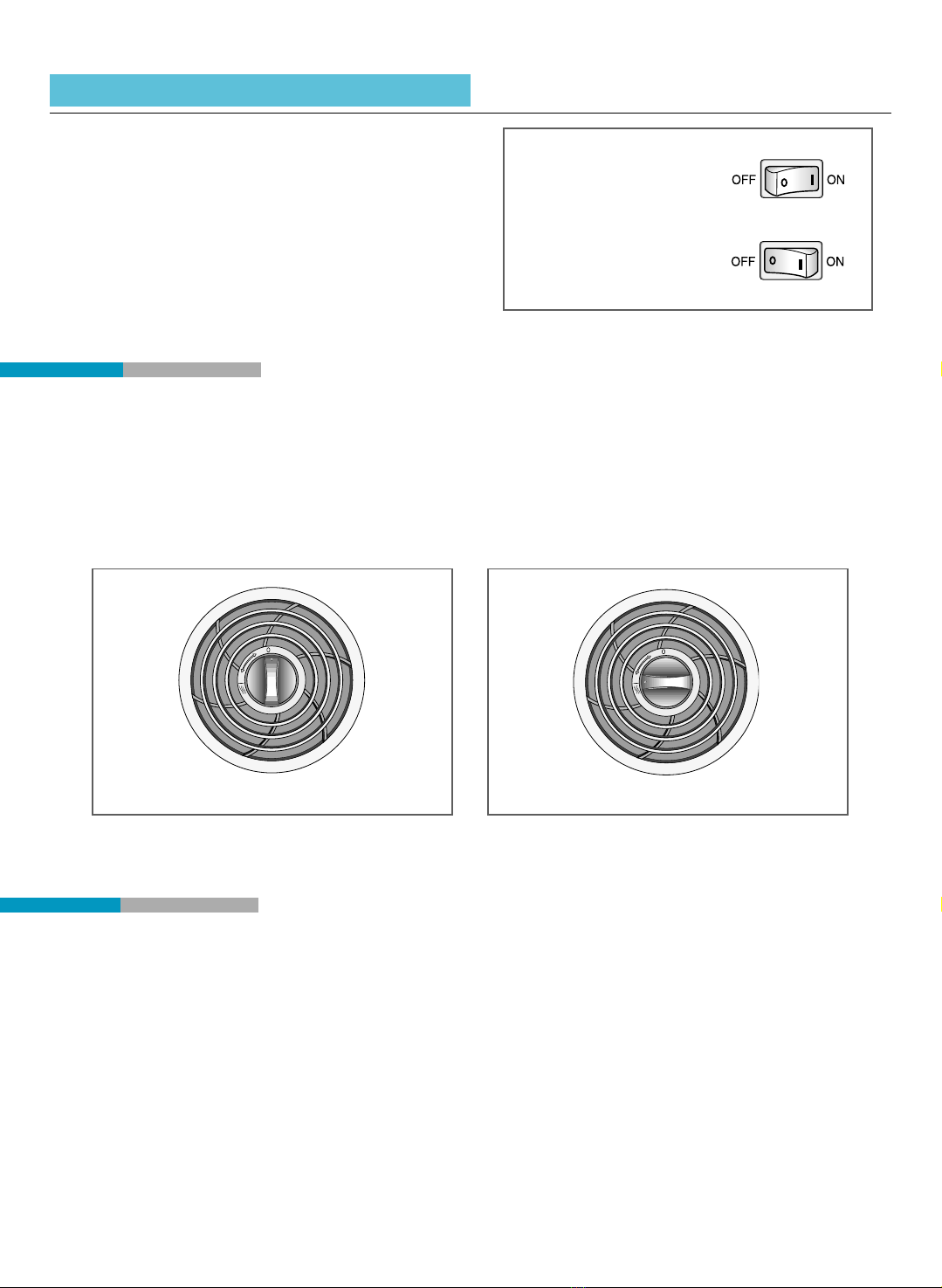

AIR SWEEP CONTROL

Your unit provides an automatic air sweep to cool the room

more efficiently. When the air sweep switch is set on (|),

the horizontal blade moves slowly up and down and dis-

tributes the air around the room. The direction of the verti-

cal blades can be adjusted manually (make sure the air

sweep is off). With the air sweep in the off position, the

horizontal blade can be closed by pushing the PUSH mark

on the blade, and can be opened by pushing it again.

|- Setting for automatic

air sweep on

- Setting for automatic

air sweep off

Keep the unit’s air filters clean. (See the Normal

Maintenance Procedures section of this manual

on page 13)

Select the thermostat setting that suits your comfort

needs and leave it at that chosen setting.

Your unit provides you with more efficient cooling

air with the direct air discharger. On extremely hot

days or after much activity, you can take an “air

shower” and cool off quickly.

You can enjoy direct air by rotating the knob to

the open position and closing the front or rear

horizontal blade. (Closing the front blade may

provide direct air more efficiently)

ENERGY SAVING TIPS

Normal Position(Close) Enjoying the “AIR SHOWER”(Open)

ENJOYING THE “AIR SHOWER”

OWNER’S GUIDE -

1 2 3

Moving parts can cause personal injury. Be careful when test-running the unit.

Do not operate the unit with exterior cover removed.

WARNING

During extreme outdoor temperatures, the heat gain

of the vehicle may be reduced by:

- parking the vehicle in a shaded area

- keeping the windows and doors closed

- avoiding the use of heat producing appliances

Test run the unit with proper power supply outlet. Refer to the Operating Instructions section in this Owner’s Guide.

Make sure all the controls operate correctly then disconnect the power supply of the unit.

Your Air V unit has been designed for use in recreational vehicles.

Check the roof of the vehicle to determine if it supports both the roof top unit and the ceiling assembly without

additional support. Make sure the interior ceiling mounting area will not interfere with existing structures.

Once the location for your air conditioner has been determined, a reinforced and framed roof hole opening must

be cut (if there is no hole) or you may use existing vent holes.

Remove all screws which secure

the roof vent to the vehicle.

Remove the vent and any

additional trim. Carefully remove

all chalking from around the

opening so the surface is clear.

- using window shades (binds and/or curtains)

For a more permanent solution to reduce the high

heat gain, window awnings and/or window glass

tinting should be considered.

INSTALLATION INSTRUCTIONS

BEFORE INSTALLATION

STEP 1 - SELECTING AN INSTALLATION LOCATION &

INSTALLING THE ROOF TOP AIR CONDITIONER

CASE A.

If a roof vent is already present in the desired mounting location for the air conditioner, the following steps must be

performed:

It may be necessary to seal

some of the old roof vent

mounting screw holes which

may fall outside of the air

conditioner basepan gasket.

Examine the roof opening size. If

the opening is smaller than 14”

14”, the opening must be

enlarged. If the opening

exceeds 14” 14”, a mounting

plate (frame) must be

fabricated to reduce the

opening size (See Figure 1).

OWNER’S GUIDE - 7

CASE B.

If a roof vent opening is not used, a new opening (See Figure 1) will have to be cut into the vehicle roof. A matching

opening will also have to be cut into the interior vehicle ceiling. Be careful when cutting the ceiling opening because

if the ceiling opening is carpeted, snagging could occur. After the opening in the roof and interior ceiling are the

correct size, a framed support structure must be placed between the exterior roof top and interior ceiling. The

reinforced framed structure must follow the following guidelines:

Hole for Wires

• Allow 24” (working length) of supply wiring through the support frame and make sure that all wiring passing

through any mechanical structure must be protected from insulation chaffing using a rubber grommet or strain

relief.

• After the support frame is built and both the roof exterior and the interior ceiling are cut, make sure that the

electrical wiring can be routed to the control board. Seal the gap around the electrical supply wiring using a

rubber grommet.

• The roof top air conditioner must be mounted on a level plane from front to rear and side to side when the vehicle

is parked on a level plane. Figure 2 shows maximum allowable degrees that the Air V can be mounted above or

below level.

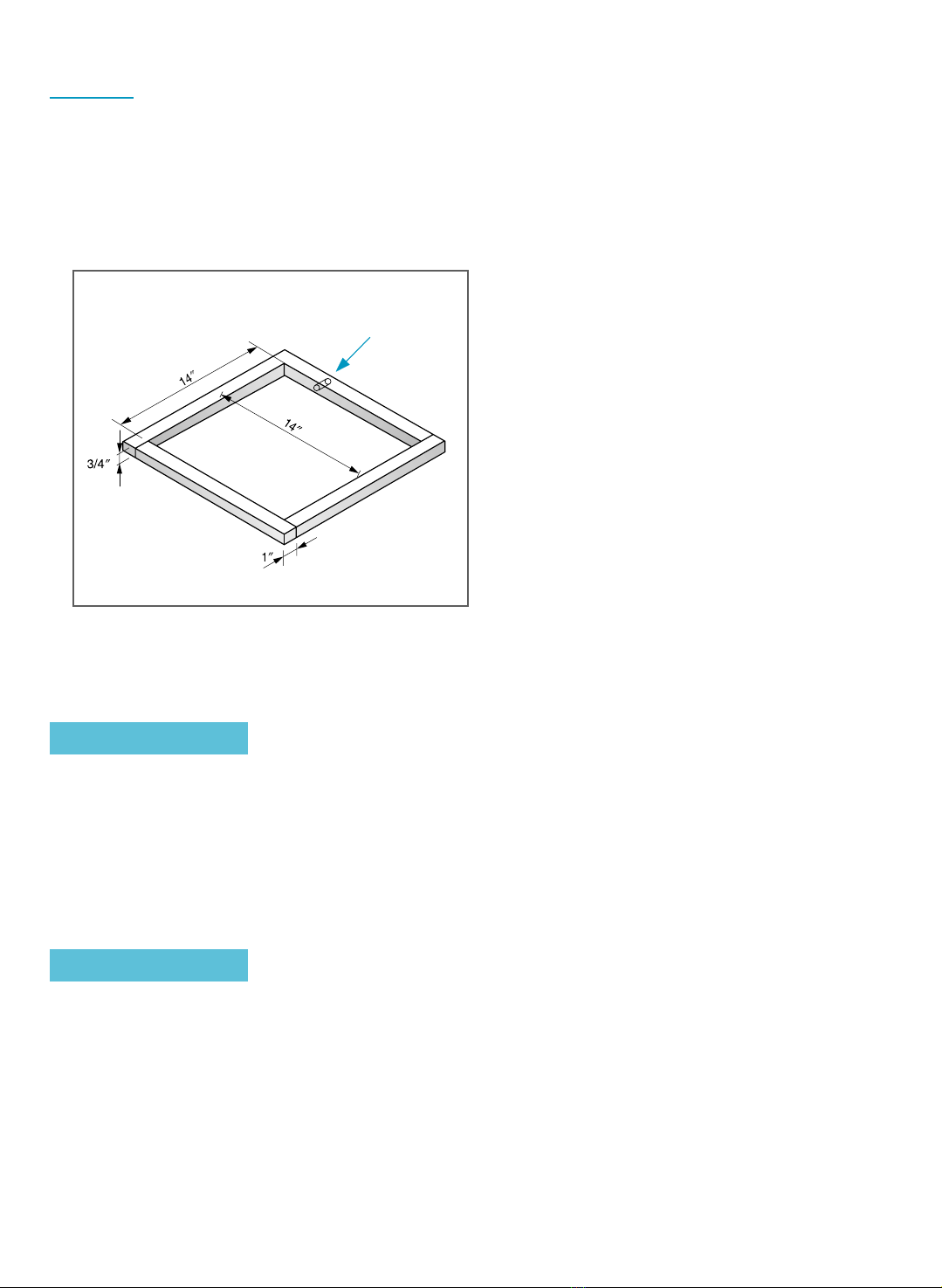

Figure 1

CAUTION

It must be capable of supporting both the weight

of the roof top air conditioner and the interior

ceiling assembly

It must be capable of holding the roof outer

surface and interior ceiling apart and supporting

them, so that when the roof top air conditioner

and ceiling assembly are bolted together, no

collapsing occurs.

We recommend that the spacing between the

vehicle roof top and the interior ceiling top be no

less than 3/4”. A typical support frame is shown in

Figure 1.

There must be an opening through the frame for

the power supply wiring. Route the supply wiring

through the frame at the same time the support

frame is being installed.

CAUTION

OWNER’S GUIDE - 8

• If the roof of the vehicle is sloped (not level) such that

the roof top air conditioner cannot be mounted within

the maximum allowable degree specifications, an

exterior leveling shim will need to be added to make the

Air V level. A typical leveling shim is shown in Figure 3.

• Once the roof top air conditioner has been leveled, some

additional shimming may be required above the interior

ceiling assembly. The roof top air conditioner and the

interior ceiling assembly must be square with each other

before they are secured together.

• After the mounting hole area is properly prepared,

remove the carton and shipping pads from around the

roof top air conditioner. Carefully lift the unit on top of

the vehicle. Do not use the outer plastic shroud for lifting.

Place the roof top air conditioner over the prepared

mounting hole.

• The pointed end (nose) of the shroud must face toward

the front of the vehicle. From inside the vehicle, pull the

electrical harness down from the roof air conditioner

through the mounting opening and let it hang.

* Height Varies

To Make Unit

Level

Figure 3

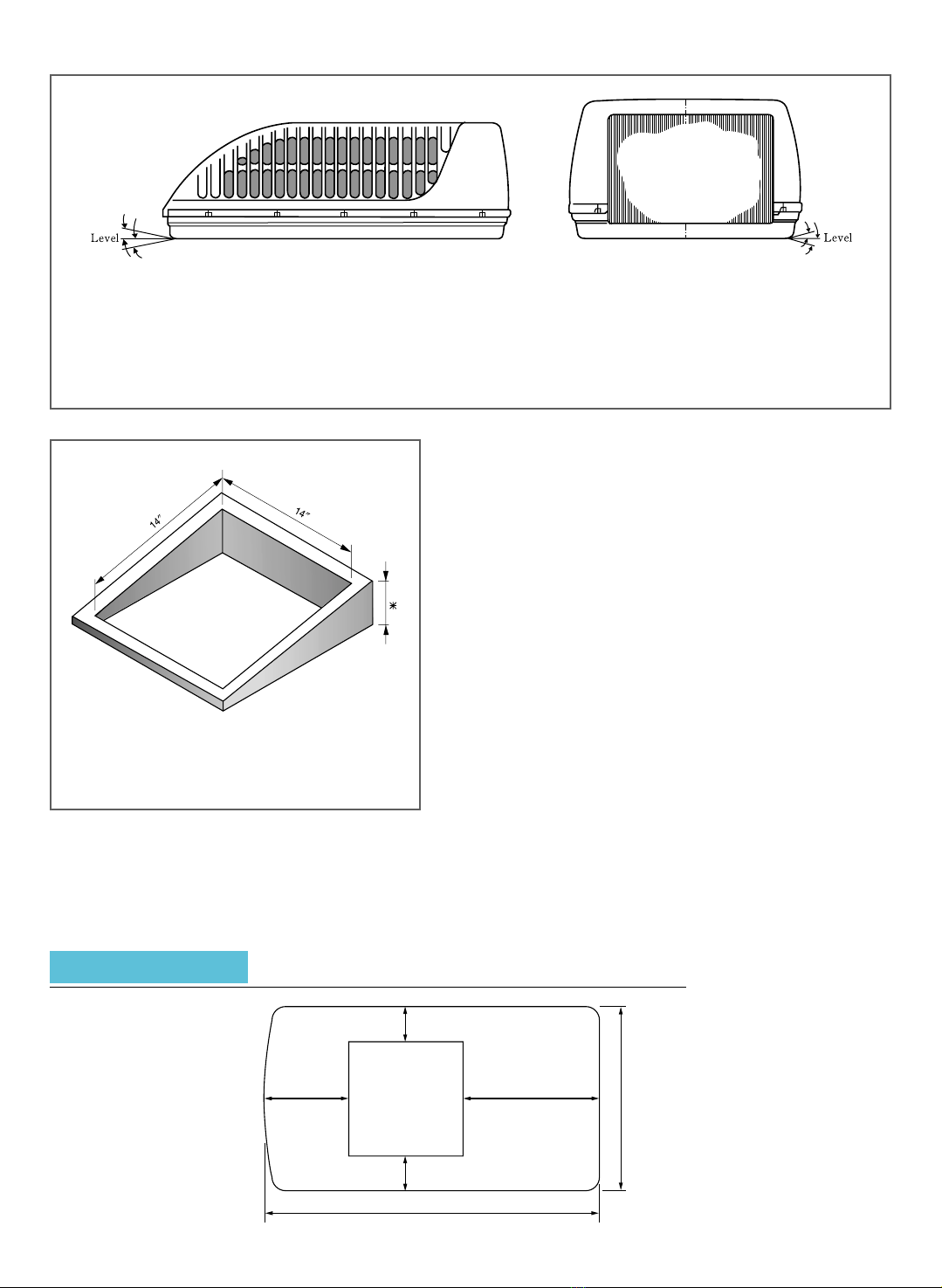

ALLOWABLE OFFSET FOR CARRIER AIR CONDITIONERS

WITH CARLYLE ROTARY COMPRESSORS

Above or Below

Level 10°Max.

Above Level 10°Max.

Below Level 0°Max.

Figure 2

AIR CONDITIONER DIMENSIONS (Roof Top Unit)

NOTE

22.6"

16.7"

14" x 14"

OPENING

4.3"

41"

REAR OF

UNIT

10.3"

4.3"

OWNER’S GUIDE -

Carefully take the ceiling assembly out of the

carton. (The controls are factory installed in the

ceiling assembly.)

Remove the ceiling grille from the ceiling assembly

frame.

Before the ceiling assembly can be mounted to

the roof top air conditioner, the fabric duct collar

must be fastened to the basepan of the air

conditioner with 4 screws (See 햲, Figure 4).

Before lifting (mounting) the ceiling assembly, check

the gasket on the underside of the roof top air

conditioner. The gasket must be centered over the

roof opening.

Before lifting the ceiling assembly, pull the fabric

duct collar so it hangs out of the way and does not

get caught under the ceiling assembly frame.

Make sure that you have properly matched the roof top air conditioner and interior ceiling assembly. The following

step by step instructions must be performed in the following sequence to insure proper installation.

SERIAL NUMBER

OF UPPER UNIT

SERIAL NUMBER

OF CEILING UNIT

STEP 2 - INSTALLING THE CEILING ASSEMBLY

Secure the ceiling assembly frame to the roof top

air conditioner with the mounting bolts (See 햳,

Figure 4). You must start (thread) the mounting

bolts by hand to avoid cross-threading. DO NOT

START THE MOUNTING BOLTS WITH AN AIR GUN.

The mounting bolts should be tightened evenly.

Do not over-tighten each bolt. The bolt tightening

process is complete when the basepan gasket

has been evenly compressed to 60%.

Pull the fabric duct collar through the ceiling

assembly frame opening and pull the four corners

to extend below the duct opening

(See 햴, Figure 4).

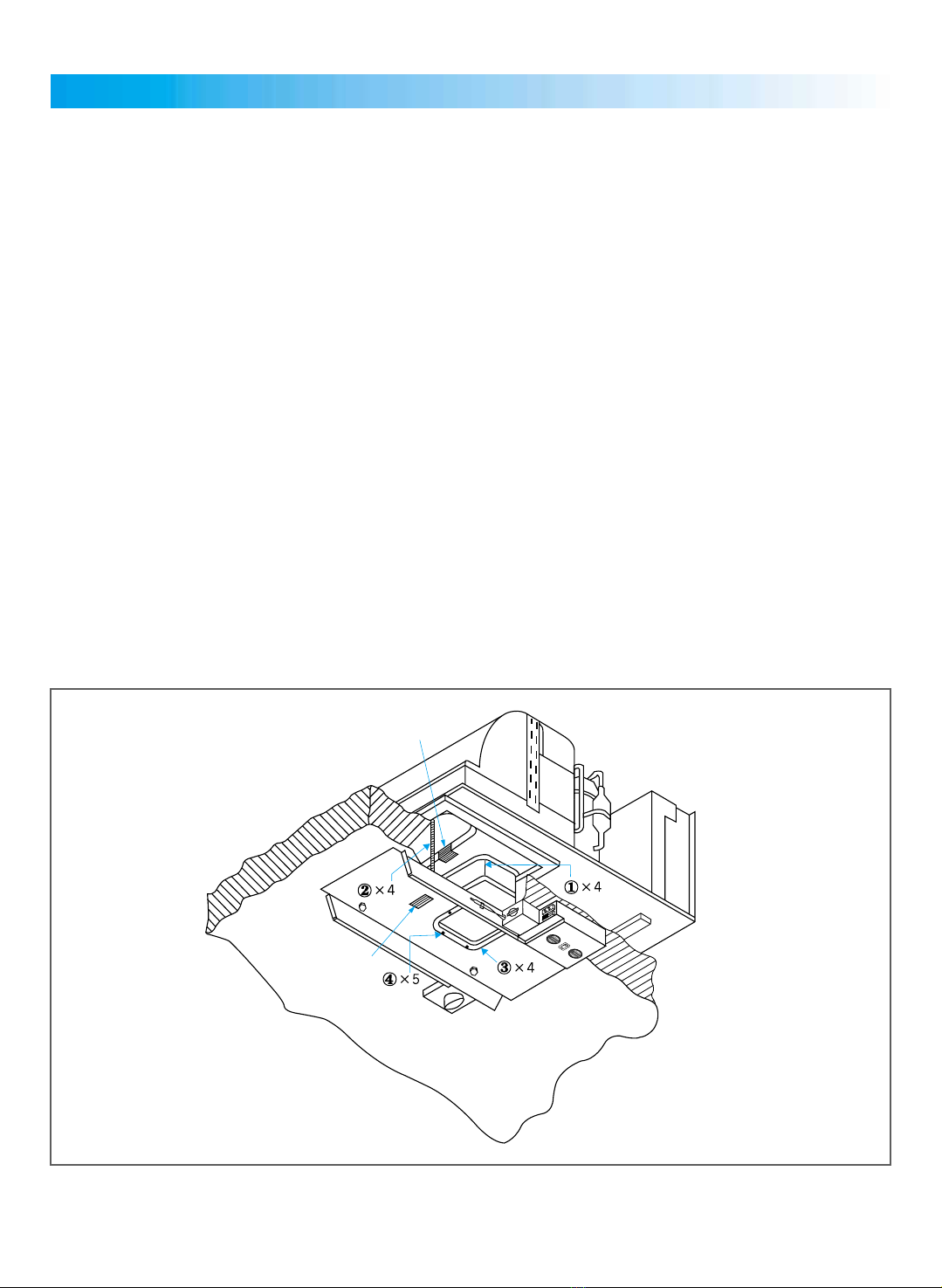

Figure 4

OWNER’S GUIDE -10

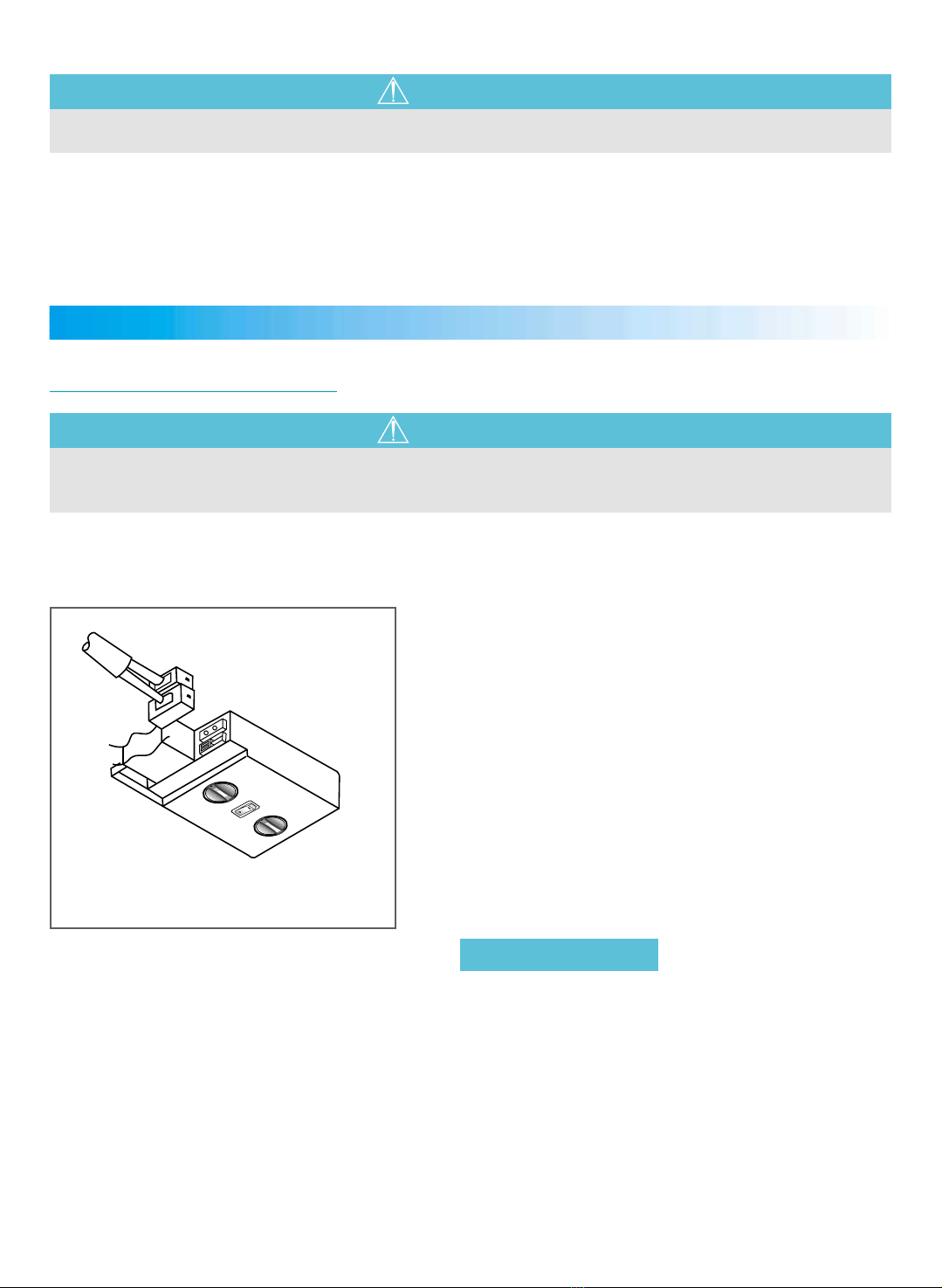

STEP 3 - ELECTRICAL WIRING

Pull fabric tight. This will prevent the material from

gathering inside the discharge duct.

Route a copper, with ground, supply wiring with

minimum, #12 AWG from its power source to the

junction box. Do not attach them at this time.

Take the roof top air conditioner electrical harness and

plug it into the side of the selector switch control box.

Make sure that the “ridged” side of the plug is aligned

and matched with the “ridged” side of the selector

switch control box connection. DO NOT USE EXCESSIVE

FORCE (See Figure 5).

Remove the junction box cover (1 screw). Take the

supply wire and slide it into the back of the junction box

through the strain relief that is provided.

DO NOT USE DUCT TAPE ON OR AROUND FABRIC DUCT COLLAR.

WARNING

Fasten each side of the fabric duct with fitting

the duct plate to the ceiling assembly plate with

5 screws (See 햵, Figure 4). Trim any excess fabric

that may extend beyond edge of duct plate.

8 9

MAKE SURE THAT ALL POWER SUPPLY TO THE UNIT IS DISCONNECTED BEFORE PERFORMING ANY WORK ON THE

UNIT TO AVOID THE POSSIBILITY OF SHOCK OR INJURY AND/OR DAMAGE TO THE EQUIPMENT.

WARNING

ROUTING 115V AC WIRING

After the interior ceiling assembly frame is properly secured to the roof top air conditioner, the following electrical

connections must be performed.

Figure 5

CAUTION

WHEN USING INSULATED CABLES, STRIP THE OUTER JACKET

BACK TO EXPOSE 4-6 INCHES OF THE INSULATED LEADS. STRIP

THE INDIVIDUAL WIRE LEAD ENDS FOR THE CONNECTION.

(EXPOSE ABOUT 3/4” OF BARE WIRE.) THEN TIGHTEN UP ON

THE CABLE. DO NOT OVERTIGHTEN! THIS COULD RESULT IN

PINCHING THROUGH THE PLASTIC WIRE INSULATION AND

CAUSE A SHORT OR “HOT” WIRES. (YOU COULD GET

SHOCKED.) THE CLAMP IS INTENDED FOR STRAIN RELIEF OF

THE WIRES, AND SLIGHT PRESSURE IS USUALLY SUFFICIENT TO

ACCOMPLISH THIS.

Altri manuali per Air V

Indice

Altri manuali Carrier Condizionatore d'aria

Carrier

Carrier CRHEATER136A00 Manuale utente

Carrier

Carrier 38VMA Series Manuale utente

Carrier

Carrier AQUASNAP AIR COOLED CHILLERS WITH COMFORTLINK CONTROLS... Manuale operativo

Carrier

Carrier WeatherMaker 50FC-16 Series Manuale utente

Carrier

Carrier 42TVEA010 Manuale utente

Carrier

Carrier 42QTD024713GE Manuale utente

Carrier

Carrier 40MAQ Manuale utente

Carrier

Carrier 42QHF012DS Manuale utente

Carrier

Carrier 40VMA Series Manuale utente

Carrier

Carrier CA16NA 018-061 Manuale operativo

Carrier

Carrier 40GVC Manuale utente

Carrier

Carrier 48TC series Manuale di installazione e d'uso

Carrier

Carrier International 51ZM Manuale utente

Carrier

Carrier 38BK-009 Manuale utente

Carrier

Carrier 50AJ/AK/AM020 Manuale utente

Carrier

Carrier 50EE Istruzioni e ricette

Carrier

Carrier 90MA/MF/MU Guida all'installazione

Carrier

Carrier 48LCB07 Guida utente

Carrier

Carrier GEMINI SELECT 38APD025-100 Manuale utente

Carrier

Carrier 24ABB Comfort Manuale utente

Carrier

Carrier COMFORT 50ES-A Manuale di istruzioni

Carrier

Carrier CRTWOPOS012A00 Manuale utente

Carrier

Carrier 40TSF0131UP Manuale utente

Carrier

Carrier 24APA7 Performance Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
