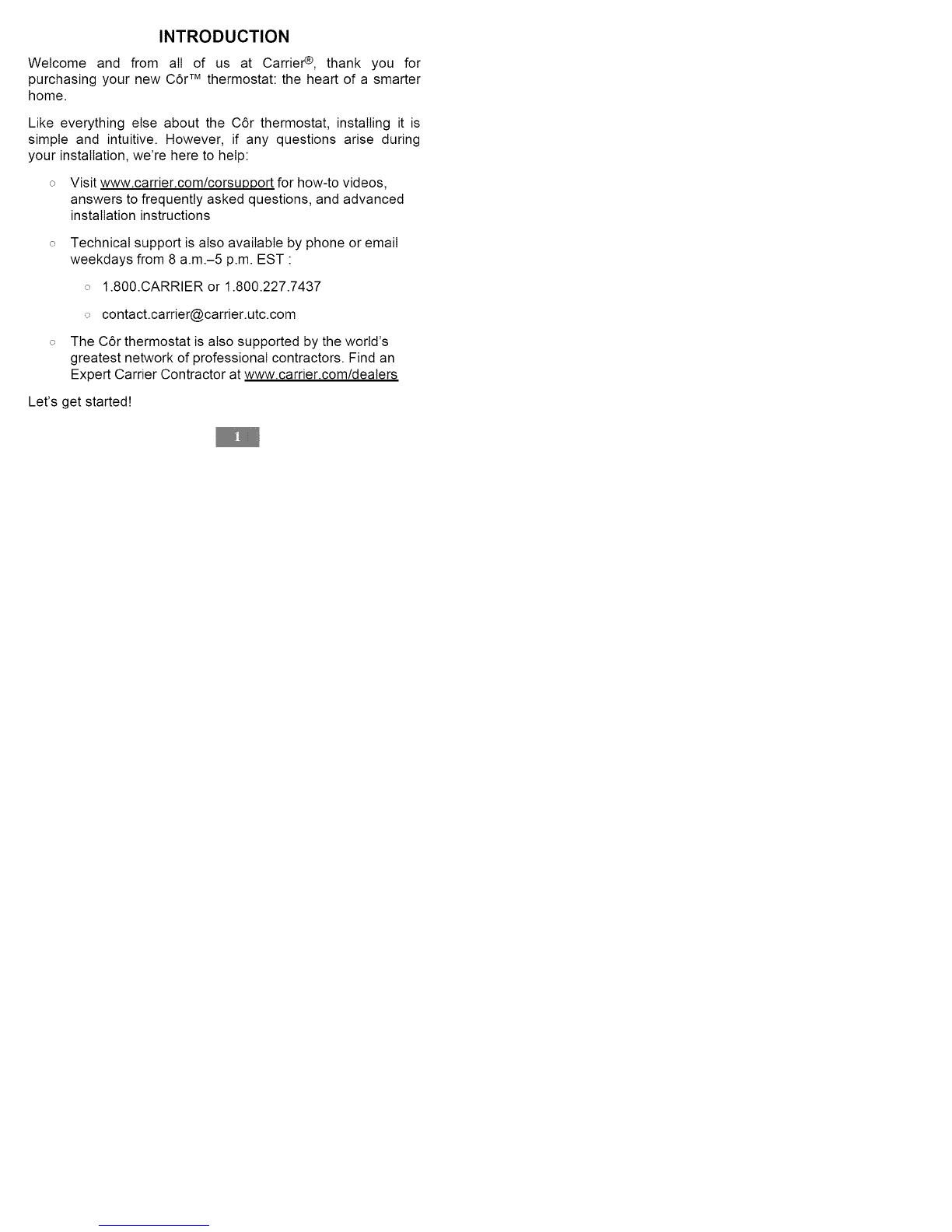

INTRODUCTION
Welcome and from all of us at Carrier _, thank you for
purchasing your new C6r TM thermostat: the heart of a smarter
home.
Like everything else about the C6r thermostat, installing it is
simple and intuitive. However, if any questions arise during
your installation, we're here to help:
Visit www.carrier.com/corsupport for how-to videos,
answers to frequently asked questions, and advanced
installation instructions
Technical support is also available by phone or emaiI
weekdays from 8 a.m.-5 p.m. EST :
o 1.800.CARRIER or 1.800.227.7437
The C6r thermostat is also supported by the world's
greatest network of professional contractors. Find an
Expert Carrier Contractor at www.carrier.com/dealers
Let's get started!
COMPATIBLE HEATING AND COOLING SYSTEMS
Your Carrier C6r thermostat works with most centralized
residential heating and cooling systems.
o Heating and Cooling: Up to Two Stages
o Heat Pumps: One or Two Stage + One or Two Stage
Auxiliary Heat
o Gas, Oil, Electric
o Dual Fuel Systems - Gas Furnace with a Heat Pump
o Geothermal Systems
o Accessories: Whole Home Humidifier, Dehumidifier or
Ventilator
o 802.11 b/gin Home Wireless Router
Before beginning installation, check the compatibility of your
home comfort system at www.carrier.com/wirecheck.
Professional installation is recommended for:
o Systems Without a Common (C) Wire - see page 5
o Variable-Speed Systems
o Find an Expert Carrier ¢ Contractor
at www.carrier.com/dealers
ITEMS INCLUDED IN THE BOX
A. The C6r TM Thermostat and backptate
B. Mounting screws and drywall plugs
C. Installation guide, quick start guide, and wire labels
D. Large Backptate (optional)
Wire Labels
Installation Guide
Quick Start Guide
B.
f
D. k.
6_
A150042
ITEMS YOU'LL NEED FOR INSTALLATION
A. Pencil
B. Phillips screwdriver
C. Small flathead screwdriver
D. Drill with a 3/16" drill bit
E. Password for your home's wireless network
F. Internet-connected device, such as a smartphone, tablet or
computer
A150044
STEP 1. REMOVE THE COVER FROM YOUR OLD
THERMOSTAT
Most covers snap off easily but some are attached by screws.
A. If you do not have a wire connected to C, visit
www.carrier.com/corsupport for Advanced Installation and
Configuration Instructions.
B. If you have wires connected to Rh, Rc, and C, You'll use two
breakers or switches to disconnect power in Step 2.
A. &
RcRHG YWC RcRHG YW C
A150045

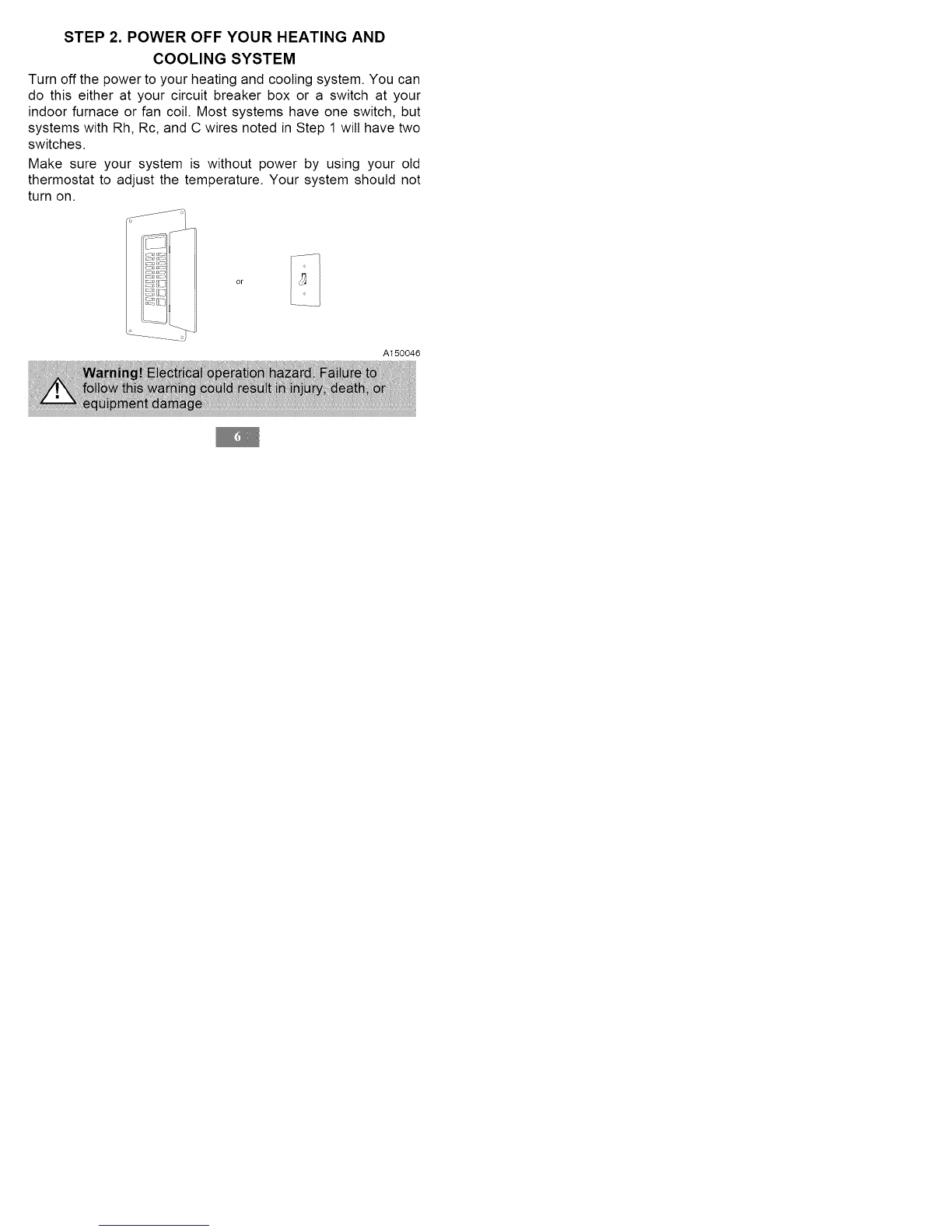

STEP 2. POWER OFF YOUR HEATING AND
COOLING SYSTEM
Turn off the power to your heating and cooling system. You can
do this either at your circuit breaker box or a switch at your
indoor furnace or fan coil. Most systems have one switch, but
systems with Rh, Rc, and C wires noted in Step 1will have two
switches.
Make sure your system is without power by using your old
thermostat to adjust the temperature. Your system should not
turn on.
At50046
STEP 3. REMOVE YOUR OLD THERMOSTAT
Using your old thermostat as a guide, use the provided wire
labels to identify each wire. Don't worry about any
non-connected wires.
Disconnect each wire. Most thermostats' wires are connected
using screws; simply loosen each screw with a screwdriver.
Remove your old thermostat base by unscrewing it from the
wail. Be careful not to let any wire labels fall off or wires fall
back into the wall.
Discard any jumper wires
or brackets between Rh, Rc,or R Rc Rh G Y w C
................................................................................................................U
A150047
STEP 4. INSTALL THE COR TM THERMOSTAT
Gently pull the wires through the hole in the back plate. Center
the wires in the back plate. Mark the mounting holes on the wall
with a pencil.
Drill mounting holes on the pencil marks with a 3/16" drill bit.
Insert the plastic drywall anchors into the wall. Use the screws
provided to secure the back plate to the wall.
A150048

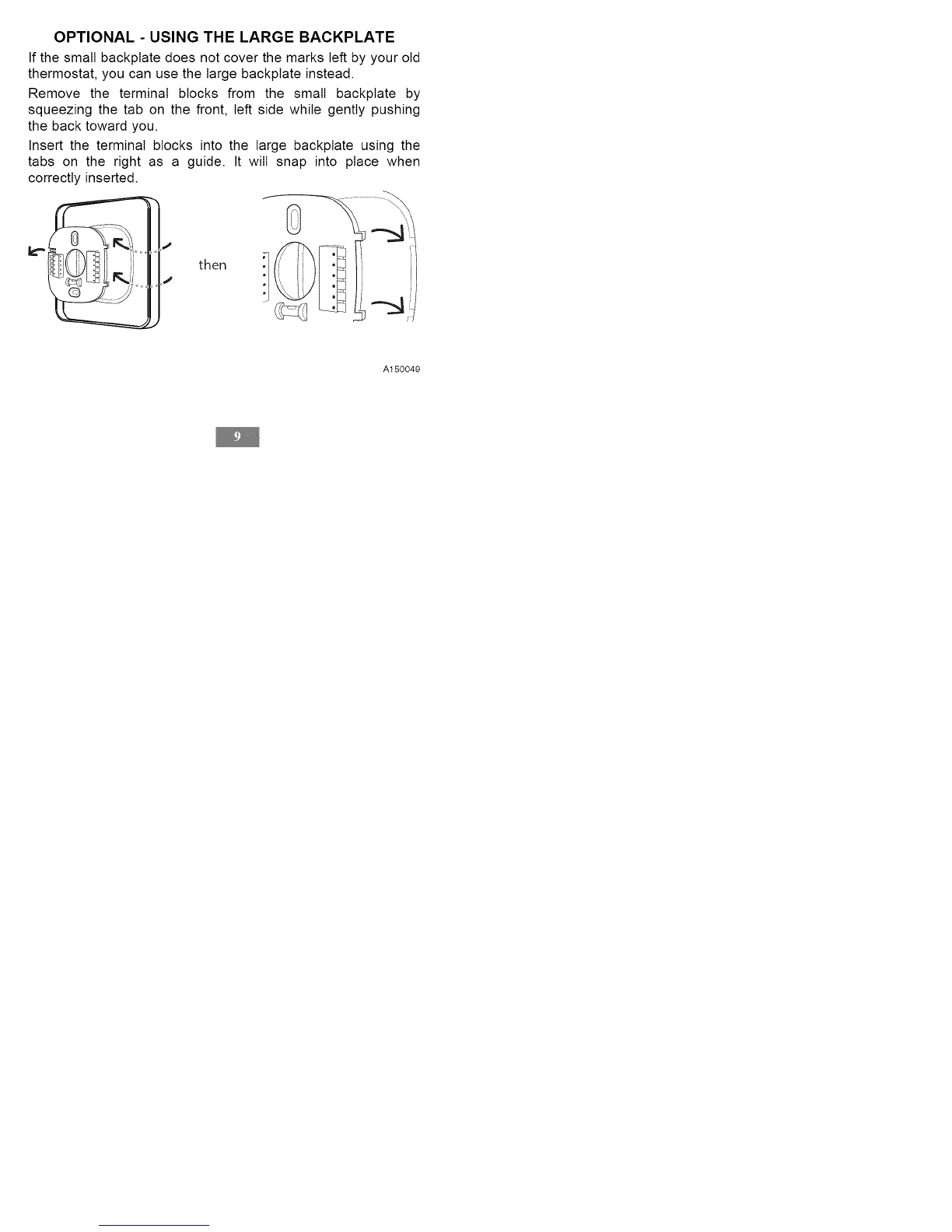

OPTIONAL - USING THE LARGE BACKPLATE
If the small backptate does not cover the marks left by your old
thermostat, you can use the large backptate instead.
Remove the terminal blocks from the small backptate by
squeezing the tab on the front, left side while gently pushing
the back toward you.
Insert the terminal blocks into the large backplate using the
tabs on the right as a guide. It will snap into place when
correctly inserted.
_J then
/
A150049
