CAS PW-II Manuale utente

CONTENTS

PRECAUTIONS.................................................. 4

PREFACE ............................................................... 6

NAMES AND FUNCTIONS.......................... 6

OPERATIONS...................................................... 8

1. Simple Weighing Mode ..................................... 8

2. Weighing with Tare............................................ 8

3. Changing Unit of Weight (Unit ver. only)...... 9

4. HOLD Function (Hold ver. only) .................... 9

5. How to Set Auto Power Off ............................ 10

BATTERY MAINTENANCE ......................11

ERROR MESSAGE..........................................11

SPECIFICATIONS .......................................... 12

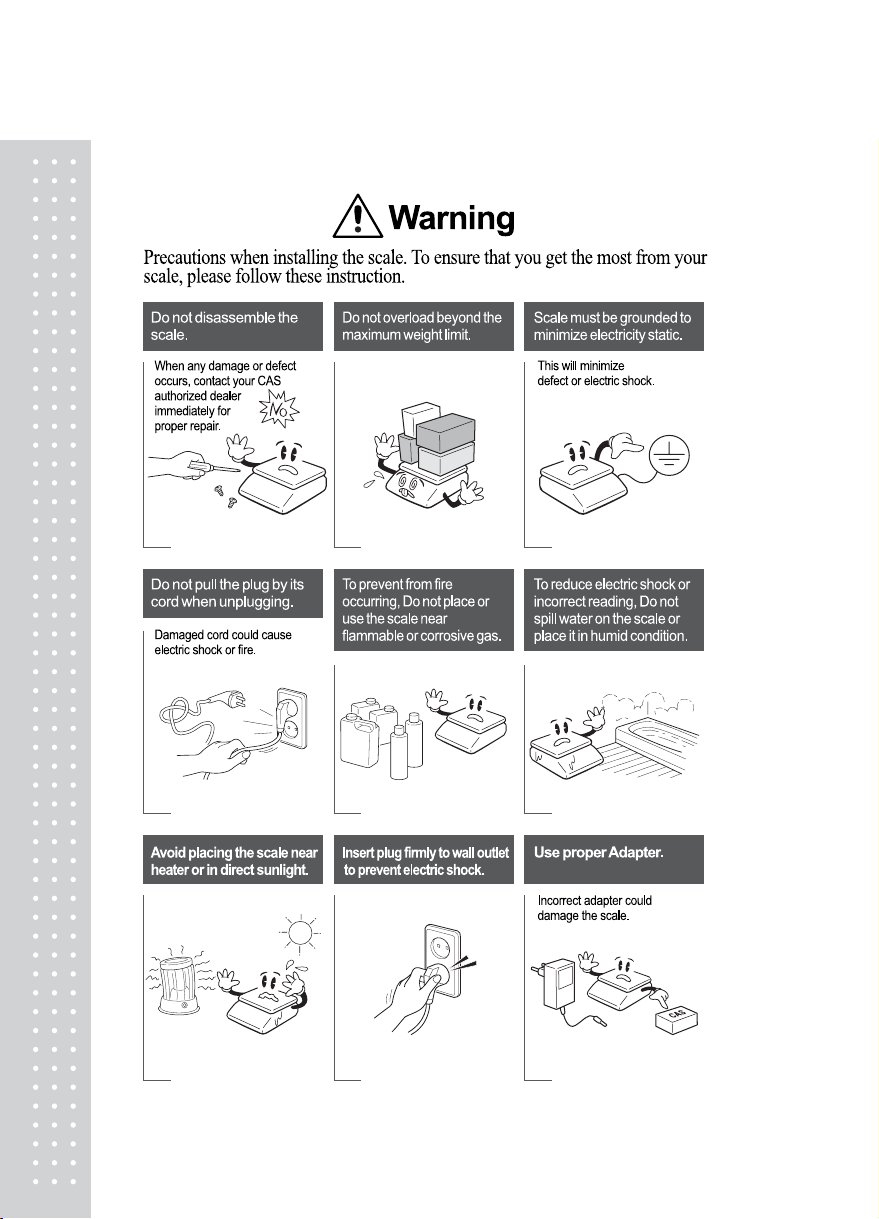

PRECAUTIONS

PREFACE

Thank you for purchasing CAS PW-II.

This model has been designed with CAS reliability, under rigid quality control

and with outstanding performance. Your special departments can enjoy this

high quality reliable CAS product.

We believe that your needs will be satisfied and you will have proper reliability.

This manual will help you with proper operation and care of the PW-II.

Please keep it handy for future reference.

NAMES AND FUNCTIONS

OVERALL VIEW

DISPLAY & KEYBOARD

■HOLD Version

■KEY FUNCTIONS

KEYS FUNCTIONS

Used to set the zero point.

Used to input or cancel the weight of tare.

Used to make the weight of commodity stable.

This weight is average value.

Used to turn on and off the scale.

■Unit Version (Option)

■KEY FUNCTIONS

KEYS FUNCTIONS

Used to set the zero point.

Used to input or cancel the weight of tare.

Used to convert the unit of weight.

Used to turn on and off the scale..

OPERATIONS

■Turn on the display by pressing key. Then, the display will show all the segments and

count up "0" to "9". You may stop this automatic counting by pressing the key.

■When you turn on the display, make sure that platter is empty. Otherwise, display will show

"Err 1", an error of initial zero range. Please refer to "ERROR MESSAGE" section for

more information on page 11.

■When the weight becomes stable the display shows the stable sign ( ○) on.

■You may need to make it "0.000" by pressing key unless the display indicate "0.000"

under the empty platter.

1. Simple Weighing Mode

①Place a commodity on

the platter. ②Remove the commodity

from the platter.

2. Weighing with Tare

■TARE means the weight of container being used for a commodity.

■TARE key function is to subtract the weight of the container from full weight loaded.

Place a container on①

the platter. ②Press the key. ③Place a commodity into

the container, then the

display

will show onlythe weight of

the commodity.

④Remove container and

commodity, then the display

will show the weight of the

container with "-" symbol.

⑤Press the key, then

display will show the

"0.000".

3. Changing Unit of Weight (Unit ver. only)

■Press the key in the simple weighing mode.

You may select kg, lb, oz, or gram as the unit of weight.

4. Hold Function (Hold ver. only)

②"HOLD" will be displayed

twice

③ The average weight will be

displayed. The hold function will

be automatically stopped after the

commodity on the tray is removed

or the average weight is blinked 6

times.

①When the weight is

unstable, press the key.

5. How to Set Auto Power Off

Auto-Power off function is to automatically power off as time is set.

This function is helpful to save battery, which is not in use.

The following is the setting procedure of Auto-power off.

①When the scale is turned

on press key, holding

key. Then you will see the

"AP-10".(If you have set this

before,display will show

previous value.)

②Press the key, then you

will see the "AP-oF" (If you

have set this before, display

will show previous value.)

③Press the key until the

display shows the "AP-X0"

that you wish to take.

(Refer to TABLE 1.)

④Press the key, and then

the scale saves what you

programmed and shows all

the segments, counting up

"0" to "9".

TABLE 1.

DISPLAY FUNCTION

AP-oF

This function does not automatically power off.

AP-10

This function does automatically poweroff when the scale is not in use for 10 minutes.

AP-30

This function does automatically poweroff when the scale is not in use for 30 minutes.

AP-60

This function does automatically poweroff when the scale is not in use for 60 minutes.

* "e" value may be various on capacity of product model.

Please refer to "SPECIFICATION" on page 16. For example, a product model

which capacity is 2.000kg has 1g as "e" value

BATTERY MAINTENACE

LOW BATTERY WARNING

When the battery is low the display shows the "BATT" sign.

You can replace the battery new one.

If you still use the scale without replacing the battery the scale may provide

incorrect result on measurement.

※Low Battery status. ※ Battery cut off display.

ERROR MESSAGE

Error Message

on Display

Description Solution

"Err 0" The "Err 0" occurs when scale is not stable. Remove unstable

facts.

"Err 1" The "Err 1" occurs when a current zero point has

shifted from the last span calibration. Please call your CAS

dealer.

"Err 3" The "Err 3" is an overload error. Please remove the

weight.
