Digital Camera

EX-H10

User's Guide

Thank you for purchasing this CASIO product.

• Before using it, be sure to read the precautions contained in this User's Guide.

• Keep the User's Guide in a safe place for future reference.

• For the most up-to-date information about this product, visit the official EXlLIM

Website at http:!/www.exilim.com/

To go to "Getting the Most Out of Dynamic Photo" click here!

You can use the procedures in this section to crop either a moving subject or a still

subject out of a snapshot and then insert it into another snapshot.

Moving Subject Other Image Dynamic Photo Image

1. Press [BS] and then select the "Dynamic Photo" scene.

2. Press [SET], use [A] and [V] to specify the subject type, and then

press [SET].

20 images per

second 20 shots

10 images per 20 shots

second

20 shots

5 images per

second

1 shot

Records multiple images of

the subject, which are

cropped and combined to

create movement against

the background image.

Records a single subject,

which is cropped and

inserted into the

background image.

• To create a still subject, select "Still Subject".

c105 Dynamic Photo

First, shoot an image that includes the subject

you want to extract.

• Shoot an image in which the subject is as large as

possible. Also, the image should include some easily

identifiable reference point that you can use for later

alignment in step 4, below.

• If you selected "Moving Subject" the camera will

record multiple subject images. Do not move the

camera until shooting is complete.

• Flash is turned off automatically at this time.

Next, compose the image again, this time without

the subject you want to extract. Take care so the

image composition here is as close as possible

to the image composition in step 3. This second

image will let the camera know what part of the

image in step 3 needs to be cropped.

• A semi-transparent view of the imageyou shot in step

3(which includes the subject) will be visible on the

monitor screen to help you compose the background

image properly.

Press the shutter button to shoot the background only.

The camera compares the images you shot in steps 3 and 5 and extracts the

subject. The extracted subject image will appear on the monitor screen. If you

selected "Moving Subject", the subject image will be moving on the display.

• You can interrupt an ongoing image extraction process at any time by pressing

[MENU] or [BS].

• When shooting the subject image, shoot against a white wall or some other surface

of a color that is different from that of the subject. The camera will not be able to

crop the subject image properly if it is the same or similar color as the background.

• The camera may not be able to cleanly crop a subject that is not clearly defined on

the monitor screen due to backlighting, shadows, light smear, insufficient lighting,

etc. When shooting the subject, make sure that it is clearly defined and outlined on

the monitor screen.

• The background you shoot in step 5 of the above procedure is not saved. Only the

cropped subject image is saved.

106 Dynamic Photo

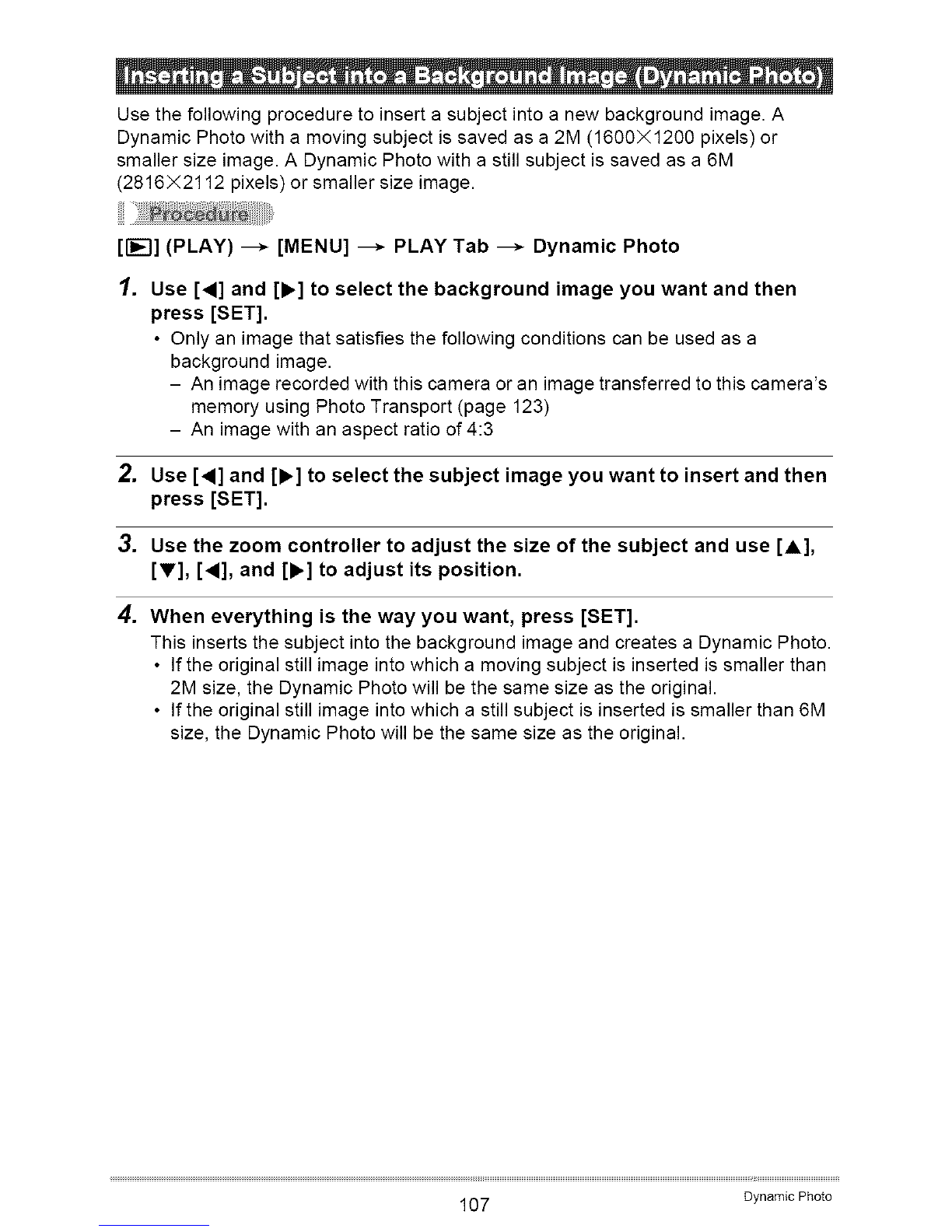

Use the following procedure to insert a subject into a new background image. A

Dynamic Photo with a moving subject is saved as a 2M (1600X1200 pixels) or

smaller size image. A Dynamic Photo with a still subject is saved as a 6M

(2816X2112 pixels) or smaller size image.

[i_] (PLAY) ---_ [MENU] ---_ PLAY Tab ---_ Dynamic Photo

.Use [,] and [,] to select the background image you want and then

press [SET].

• Only an image that satisfies the following conditions can be used as a

background image.

- An image recorded with this camera or an image transferred to this camera's

memory using Photo Transport (page 123)

- An image with an aspect ratio of 4:3

2. Use[,] and [,] to select the subject image you want to insert and then

press [SET].

3. Use the zoom controller to adjust the size of the subject and use [A],

[V], [_], and [b] to adjust its position.

4. When everything is the way you want, press [SET].

This inserts the subject into the background image and creates a Dynamic Photo.

• If the original still image into which a moving subject is inserted is smaller than

2M size, the Dynamic Photo will be the same size as the original.

• If the original still image into which a still subject is inserted is smaller than 6M

size, the Dynamic Photo will be the same size as the original.

107 Dynamic Photo

_NOTE

• The camera comes with a number of extracted sample subjects in its built-in

memory, which you can use to create Dynamic Photos, if you like.

• Performing a delete or format operation will delete the sample subjects in built-in

memory. If you delete the sample subjects, you can download them from the

Dynamic Photo Special Site (http://dp.exilim.com/) and restore them to built-in

camera memory.

• You can copy the sample subjects to a memory card using the "Built-in ---_ Card"

copy operation (page 104).

1. Press [1"_-I](PLAY) and then use [<] and [,] to display the Dynamic

Photo you want to view,

2. If the Dynamic Photo has a moving subject, press [SET].

• Subject movement is repeated as a continuous loop.

A Dynamic Photo (a background image plus subject) is stored as a series of 20 still

images. You can use the following procedure to convert the 20 images that make up

a Dynamic Photo to a movie.

[i-_-I] (PLAY) ---_ Dynamic Photo Screen ---_ [MENU] ---_ PLAY Tab ---_

Movie Converter

• The final movie format is Motion JPEG.

• The final movie image size is 640X480 pixels.

, IMPORTANT!

• This operation can be used only to convert Dynamic Photos to movies.

• Following conversion, the movie will be played back three times.

108 Dynamic Photo

" k

!H_ @i ii _iiX!! ....

You can take a memory card that contains the images you want

to print to a professional print service and have them printed.

..,n,,ng,m°goso°°..,n,o.w,t.Momo C°.OS,o,

You can use a printer equipped with a memory card slot to print

images directly from a memory card. For details, see the user

documentation that comes with your printer.

Connecting Directly to a PictBridge Compatible

Printer

You can print on a printer that supports PictBridge (page

110).

After transferring the images to your computer, use

commercially available software to print.

• You can specify which images you want to print, the number of copies, and date

stamp settings before printing (page 112).

109 Printing

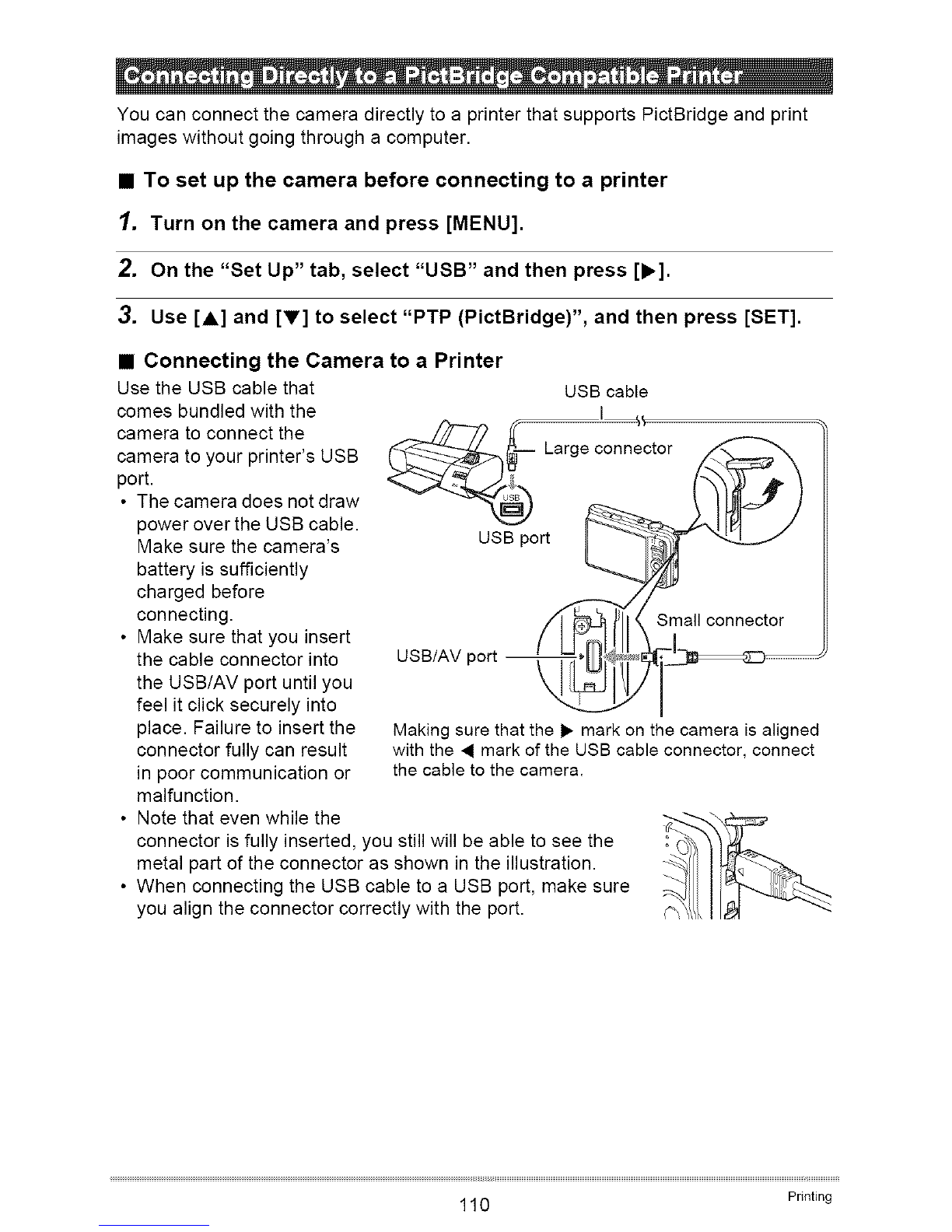

YoucanconnectthecameradirectlytoaprinterthatsupportsPictBridgeandprint

imageswithoutgoingthroughacomputer.

•To set up the camera before connecting to a printer

1. Turn on the camera and press [MENU].

2. On the "Set Up" tab, select "USB" and then press [,].

3. Use [i] and [V] to select "PTP (PictBridge)", and then press [SET].

•Connecting the Camera to a Printer

Use the USB cable that

comes bundled with the

camera to connect the

camera to your printer's USB

port.

• The camera does not draw

power over the USB cable.

Make sure the camera's

battery is sufficiently

charged before

connecting.

• Make sure that you insert

the cable connector into

the USB/AV port until you

feel it click securely into

place. Failure to insert the

connector fully can result

in poor communication or

malfunction.

• Note that even while the

USB cable

-- Large connector

o..0o.L-ld

USB/AV port _ _i" _

Making sure that the I_ mark on the camera is aligned

with the ._ mark of the USB cable connecter, connect

the cable to the camera.

connector is fully inserted, you still will be able to see the

metal part of the connector as shown in the illustration.

• When connecting the USB cable to a USB port, make sure

you align the connector correctly with the port.

110 Printing

•To print

1. Turn on the printer and load paper.

2. Turn on the camera.

This will display the print menu screen.

3. Use[A] and [V] to select "Paper Size", and then

press [,].

Use [A] and [V] to select a paper size and then

press [SET].

• The following are the available paper sizes.

3.5"×5", 5"×7", 4"×6", A4, 8.5"×11", By Printer

• Selecting "By Printer" prints using a paper size selected on the printer.

• See the documentation that comes with your printer for information about

paper settings.

Use [A] and [V] to specify the print option you want.

1 Image : Prints one image. Select and then press [SET]. Next, use [4]

and [1_] to select the image you want to print.

DPOF Printing : Prints multiple images. Select and then press [SET]. With this

option, images will be printed in accordance with DPOF settings

(page 112).

• To toggle date stamping on and off, press [BS]. The

date stamp will be printed when "On" is indicated on

the monitor screen.

.Use [A] and [V] to select "Print" and then press

[SET].

Printing will start and the message "Busy... Please

wait..." will appear on the monitor screen. The message will disappear after a

short while, even though printing is still being performed. Pressing any camera

button will cause the printing status to re-appear. The print menu screen will re-

appear when printing is complete.

• If you selected "1 Image", you can repeat the procedure from step 5, if you

want.

7. After printing is complete, turn off the camera and disconnect the USB

cable from the printer and camera.

11 1 Printing

•Digital Print Order Format (DPOF)

DPOF is a standard that allows you to include image type, number of copy, _r_

and time stamp on/off information on the memory card with the images.

After configuring settings, you can use the memory card to print on a home DPOF

printer that supports DPOF or take the memory card to a professional print

service.

• Whether or not you will be able to use DPOF settings for printing depends on the

printer you are using.

• Some professional print services may not support DPOF.

• Configuring DPOF Settings Individually for Each Image

[r_-I] (PLAY) --_ Snapshot Screen ---_ [MENU] ---_ PLAY Tab ---_

DPOF Printing --_ Select images

1. Use [,] and [_.] to scroll through the files until the image you want to

print is displayed.

.Use [A] and [V] to specify the number of copies.

You can specify avalue up to 99. Specify 00 if you do not want to print the image.

• If you want to include the date in the images, press [BS] so "On" is shown for

date stamping.

• Repeat steps 1 and 2 to configure settings for other images, if you want.

3. Press [SET].

112 Printing

•Configuring the Same DPOF Settings for All the Images

[i-_'-I](PLAY) ---* Snapshot Screen ---* [MENU] ---* PLAY Tab ---*

DPOF Printing --* All images

.Use [A] and [V] to specify the number of copies.

You can specify a value up to 99. Specify 00 if you do not want to print the image.

• If you want to include the date in the images, press [BS] so "On" is shown for

date stamping.

2. Press [SET].

DPOF settings are not cleared automatically after printing is complete.

The next DPOF print operation you execute will be performed using the last DPOF

settings you configured for the images. To clear DPOF settings, specify "00" for the

number of copies of all images.

Tell your print service about your DPOF settings!

If you take a memory card to a professional print service, be sure to tell them that it

includes DPOF settings for the images to be printed and the number of copies. If you

don't, the print service may print all the images without regard to your DPOF settings,

or they may ignore your date stamp setting.

113 Printing

Altri manuali per Exilim EX-H10

Indice

Altri manuali Casio Macchina fotografica digitale

Casio

Casio EXILIM K860PCM1DMX Manuale utente

Casio

Casio QV-300 Manuale utente

Casio

Casio Exilim EX-P600 Guida alla risoluzione dei problemi

Casio

Casio EX-FC100BK Manuale utente

Casio

Casio Exilim EX-S100 Manuale utente

Casio

Casio EXILIM Exilim EX Z 2 Manuale utente

Casio

Casio EX-FC150 - EXILIM Digital Camera Manuale utente

Casio

Casio Exilim EX-S600 Manuale utente

Casio

Casio Exilim EX-S100 Guida alla risoluzione dei problemi

Casio

Casio EX-Z200RD - EXILIM ZOOM Digital Camera Manuale utente

Casio

Casio EX-V8 - EXILIM Hi-Zoom Digital Camera Manuale utente

Casio

Casio EX-Z2000 - EXILIM Digital Camera Manuale utente

Casio

Casio QV-200B Guida alla risoluzione dei problemi

Casio

Casio Exilim EX-Z1000 Guida alla risoluzione dei problemi

Casio

Casio QV-70C Guida alla risoluzione dei problemi

Casio

Casio Exilim EX-Z60 Manuale utente

Casio

Casio QV-5000SX Manuale utente

Casio

Casio Exilim EX-Z120 Manuale utente

Casio

Casio Exilim EX-Z750 Manuale utente

Casio

Casio Exilim EX-FH100 Manuale utente

Casio

Casio EXILIM EX-ZR100 Manuale utente

Casio

Casio EX-M1 - EXILIM Digital Camera Manuale di istruzioni

Casio

Casio QV-120 Manuale utente

Casio

Casio EX-Z3 - Exilim 3.2MP Digital Camera Manuale elenco delle parti

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
