CONTENTS

Specifications ..................................................................2

Block Diagram .................................................................3

Circuit Description ...........................................................3

Troubleshooting...............................................................5

Major Waveforms ............................................................8

Schematic Diagrams ....................................................... 9

PCB View ...................................................................... 11

Exploded View...............................................................12

Parts List ....................................................................... 13

SPECIFICATIONS

GENERAL

Number of keys: 49

Polyphonic: 8-note

Preset tones: 100

Auto-rhythms: 100

Auto-accompaniment: CASIO Chord/Fingered

Demonstration tune: Classical Medley

Built-in speakers: 8 cm dia. 1.1 W Input Rating: 1 pc.

Terminal: AC Adapter Jack (DC 7.5 V)

Power source: 2-way AC or DC source

AC: AC adapter

DC: 5 AA size dry batteries

Power consumption: 1.8 W

Dimensions(HWD): 63 x 650 x 217 mm

(2-1/2 x 25-9/16 x 8-1/2 inches)

Weight: 1.4 kg (3.1 lbs) excluding batteries

ELECTRICAL

Current drain with 9V DC:

No sound output 34 mA ±20%

Maximum volume 110 mA ±20%

with keys C3, D3, E3 and F3 pressed

in Church Organ tone, Volume; Maximum

Speaker Output Level at 4 Ωload: 510 mV ±20 %

with key E2 pressed in Church Organ tone

Volume; Maximum

Minimum operating voltage: 5.5 V

Nomenclature of Keys

— 2 —

BLOCK DIAGRAM

CPU

MSM6387-22

LSI101

Amplifier

AN8053N

IC101

Speaker

Oscillator

Q102, X101

VDD

Keyboard

Buttons

Filter

Q101

KO0 ~ KO8

KI0 ~

KI7

AVDD

CIRCUIT DESCRIPTION

Key Matrix

KO0 ~ KO9

MSM6387-13

KI0 KI1 KI2 KI3 KI4 KI5 KI6 KI7

KO0 0 1 C2 C#2 D2 D#2 E2 F2

KO1 2 3 F#2 G2 G#2 A2 A#2 B2

KO2 4 5 C3 C#3 D3 D#3 E3 F3

KO3 6 7 F#3 G3 G#3 A3 A#3 B3

KO4 8 9 C4 C#4 D4 D#4 E4 F4

KO5 Tone Rhythm F#4 G4 G#4 A4 A#4 B4

KO6 Tempo

Up Tempo

Down C5 C#5 D5 D#5 E5 F5

KO7 Start/

Stop Fill-In F#5 G5 G#5 A5 A#5 B5

KO8 Demo C6

KO9 Normal Fingered CASIO

Chord

— 3 —

Pin No. Terminal In/Out Function

1, 2 TEST1, TEST2

—

Not used. Connected to ground.

3 RESET In Power ON reset terminal. On: +5 V Off: 0 V

4 AVDD In +5 V source for the built-in DAC

5 OUT Out Sound waveform output

6 AGND In Ground (0 V) source for the built-in DAC

7 GND In Ground (0 V) source

8 COSI In 21.725 MHz clock pulse input

9 COSO

—

Not used

10 VDD In +5 V source

11 ~ 18 KI0 ~ KI7 In Input terminals from keys and switches

19, 20 KO11, KO10

—

Not used

21 ~ 30 KO9 ~ KO0 Out Key and switch scan signal outputs

CPU (LSI101: MSM6387-13)

Containing a sound data ROM and a DAC (Digital to Analog Convertor), the CPU provides sound waveform

in accodance with the pressed key and the selected tone.

The following table shows the pin functions of LSI101.

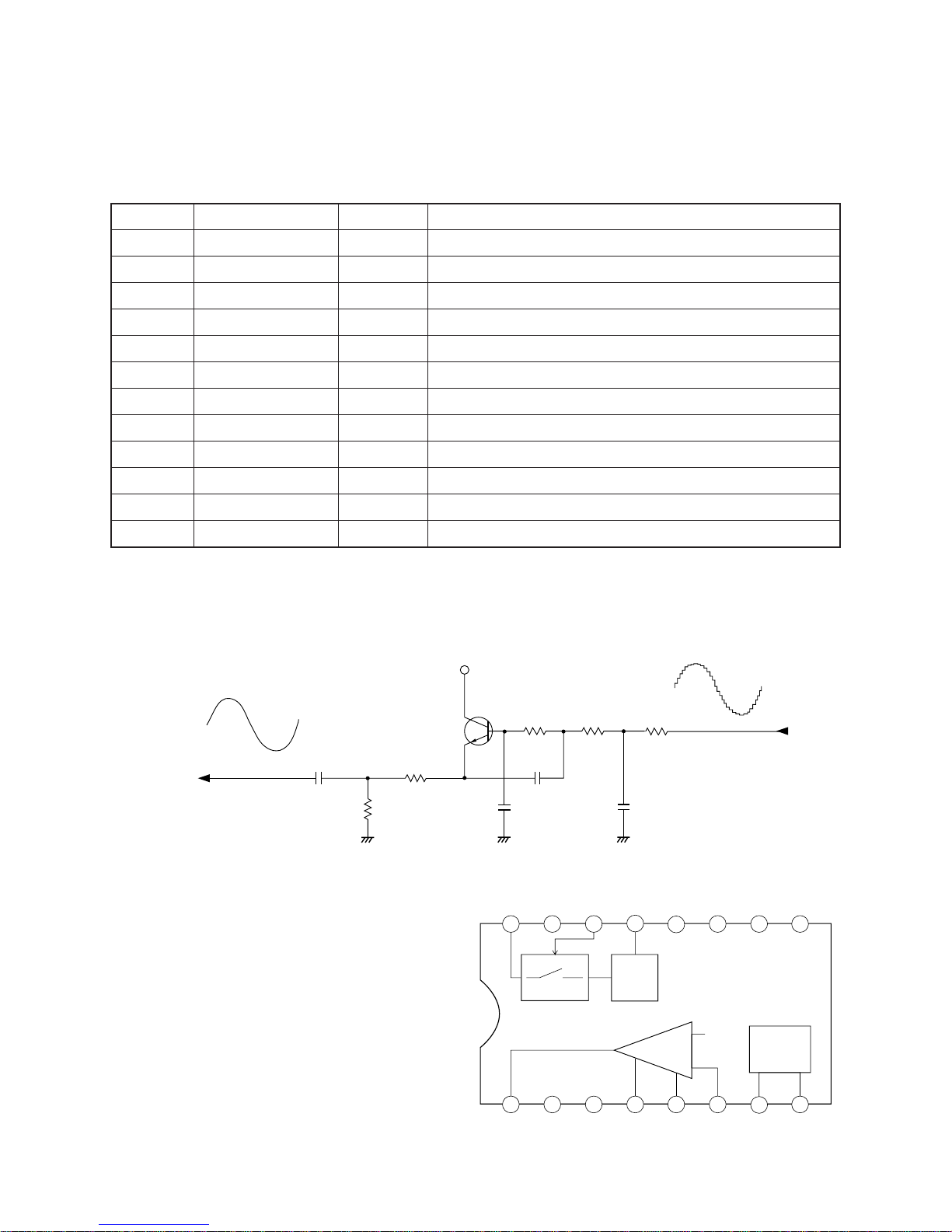

Filter Block

Since the sound signal from the CPU is a stepped waveform, the filter block is added to smooth the waveform.

AVDD

C108

Q101

2SC1740SQ

C107

R107

R2106

C106

C109

R105

R104

R108

To power amp

From CPU

Amplifier/Voltage Regulator

(IC101: AN8053N)

The right figure shows the internal block of IC101.

16 15 14 13 12 11 10 9

SP AMP VREF

5V REG

POWER

SPO NC SP GND PC-1 PC-2 SPI SPM VREF

VCC NC CONT 5V

VREG NCNC NC PRE GND

— 4 —

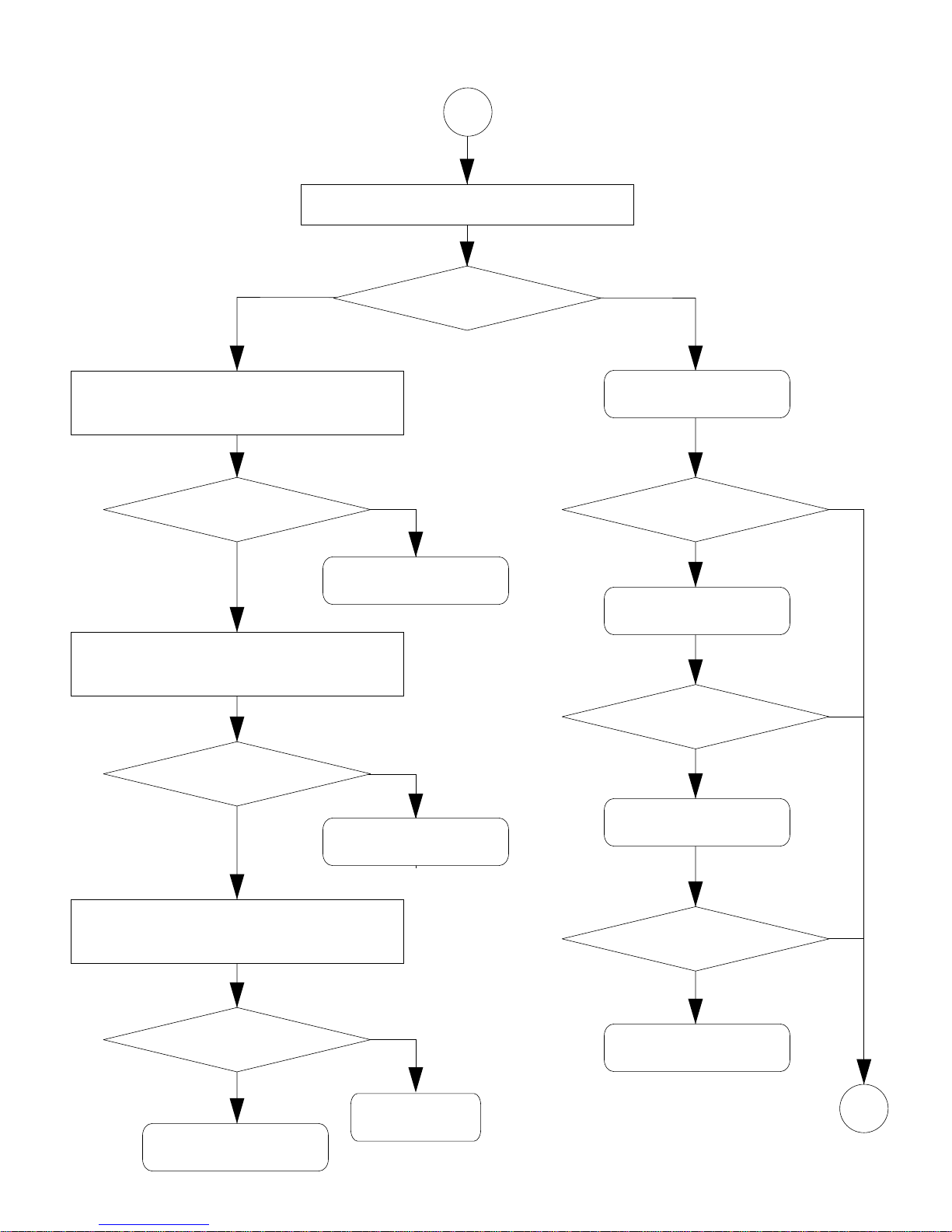

TROUBLESHOOTING

No power

Power indicator does not light up.

Connect an AC adapter into the power jack.

Does the keyboard work?

Measure voltage at pin 16 of IC AN8053N.

Is the voltage +6.8 V?

Check contact of the power jack.

Is it OK?

Replace the jack. Check soldering at pins of the

power jack.

Is it OK?

Check D102.

If D102 is defect,

replace it.

Solder the pins.

Check contact at battery springs.

Replace D101.

Check contact of power switch.

Clean the switch contacts.

Yes

No Yes

Yes No

— 5 —

No sound

Measure voltage at pin 13 of IC AN8053N.

Is the voltage +5 V ?

Measure voltage at pin 16 of IC AN8053N.

Is the voltage +6.8 V?

Follow flow chart

of No Power.

Measure voltage at pin 14 of IC AN8053N.

Is the voltage 0 V?

Clean contacts of the

power switch.

Replace IC AN8053N.

Turning power on, measure voltage

at pin 3 of LSI MSM6387-13.

Does the voltage raise

from 0 V to +5 V?

Clean contacts of the

power switch. A

Yes No

NoYes

Yes

— 6 —

Measure voltage at pins 22 ~ 30 of LSI

MSM6387-13.

End

Is the voltage +0.3 V?

Replace LSI

MSM6387-13.

Does the keyboard work?

Replace ceramic

oscillator X101.

Does the keyboard work?

Replace transistor Q102.

Does the keyboard work?

Check the circuit around

Q102 and X101.

Touch pin 5 of LSI MSM6387-13 with test

rod (+) of multimeter in resistance range,

connecting test rod (-) to ground.

Is a noise made?

Touch pin 6 of IC AN8053N with test rod (+)

of multimeter in resistance range,

connecting test rod (-) to ground.

Is the noise made?

Using a multimeter, check conductivity of

speaker at terminals on the main PCB.

Is it OK?

Replace speaker.

Replace LSI

MSM6387-13.

Check filter circuit around

Q101.

Yes No

Yes Yes

Yes

Replace IC

AN8053N.

Yes

— 7 —

MAJOR WAVEFORMS

Clock pulse COSI

MSM6387-13 pin 8

Key scan signal KO0

MSM6387-13 pin 30

Key scan signal KO1

MSM6387-13 pin 29

Sound signal output

MSM6387-13 pin 5

Filter output

Emitter of Q201

Power amp input

LA4598 pin 6

Power amp output

LA5498 pin 3

Tone : Flute (No.13)

Key : A3

Volume : Maximum

50 ns

CH1: 1V

2 ms

CH1: 5 V

–CH2: 5 V

–

2 ms

CH1: 50 mV CH2: 0.5 V

CH1: 50 mV CH2: 50 mV

2 ms

CH1

CH2

CH1

CH2

CH1

CH2

6Power amp input

AN8053N pin 6

7Power amp output

AN8053N pin 1

2Key scan signal KO0

MSM6387-13 pin 30

3Key scan signal KO1

MSM6387-13 pin 29

1Clock pulse COSI

MSM6387-13 pin 8

4Sound signal output

MSM6387-13 pin 5

5Filter output

Collector of Q101

— 8 —

— 9 —

SCHEMATIC DIAGRAMS

— 10 —
