Casio PV-750 Plus Manuale per l'uso e la cura

1

Use the following procedure to load batteries before using it for the first time.

1. Slide the battery switch on the back of the PV Unit to the REPLACE

BATTERIES position.

P

REPLACE BATTERIES NORMAL OPERATION

2. Pull with your finger on the battery compartment cover tab to release it,

and then open the cover.

P

REPLACE BATTERIESNORMAL OPERATION

Battery switch

Before using the PV-750Plus

for the first time…

2

3. Load two new batteries, making sure that their positive (+) and negative

(–) ends are facing in the proper directions.

P

REPLACE BATTERIES NORMAL OPERATION

4. Taking care not to damage its tabs, replace the battery compartment

cover back onto the PV Unit.

5. Slide the battery switch back to the NORMAL OPERATION position.

Important!

• Always make sure the battery switch is in the NORMAL OPERATION

position at all times, except when loading batteries.

6. Remove the stylus from the PV Unit.

• Pull the stylus straight out in the direction indicated by the arrow.

3

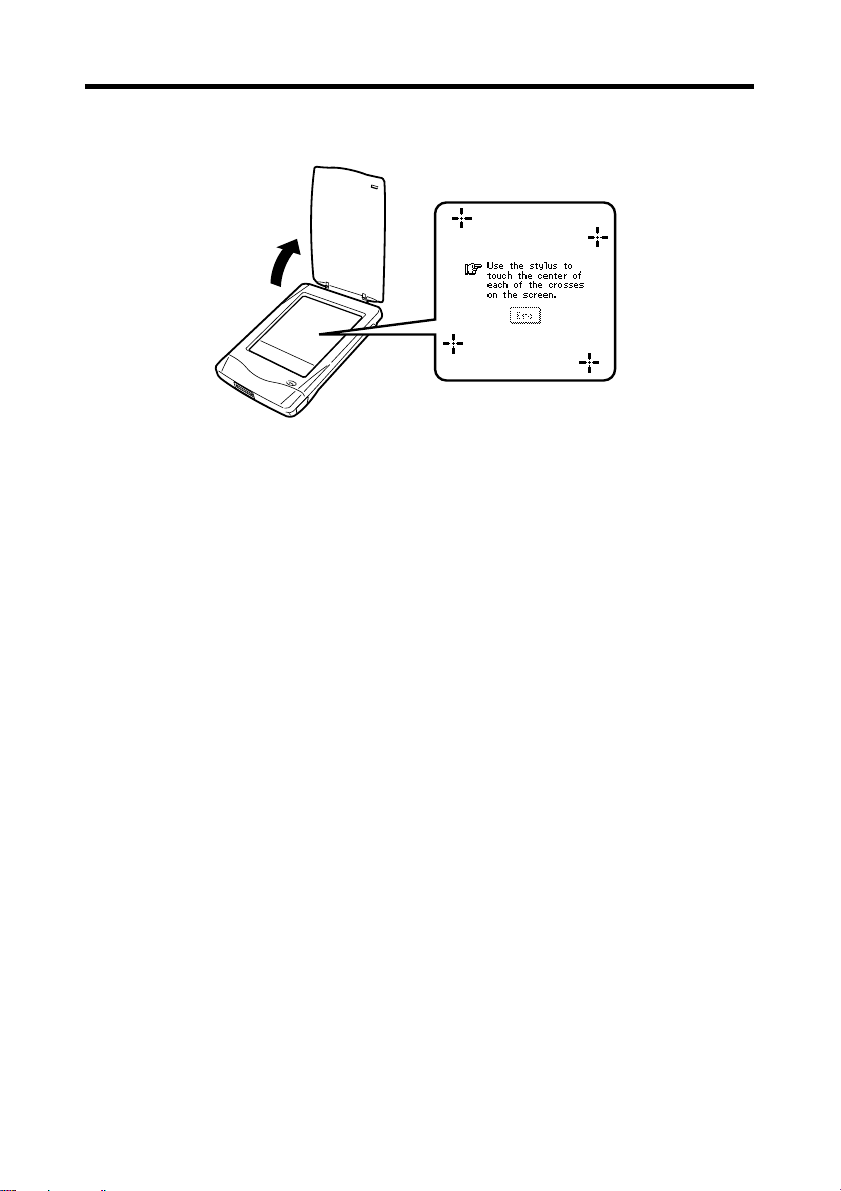

7. Open the cover.

• If the above does not appear on the display, remove the batteries and

then reload them into the PV Unit, making sure you follow proper

procedures. If this does not solve the problem, refer to “Troubleshooting”

on page 201.

8. Tap the center of each of the four cross marks as they appear on the

screen.

• The contrast adjustment screen appears next.

9. Tap Hor Jto adjust the contrast of the display, and then tap OK.

• This causes the system language selection screen to appear.

10. Tap the button next to the language you want to select as the system

language, and then tap Set.

11. In response to the message that appears (Check your home time setting

and correct it if necessary!), tap OK to change to the pop up tool screen.

12. Check the time setting and correct it if necessary (page 174).

4

About the EL backlight

• The PV Unit is equipped with an EL backlight that allows easy viewing

of display contents in a theater, or anywhere else where lighting is dim.

• Note, however, that frequent or extended use of the ELbacklight shortens

battery life.

The following shows how backlight use affects battery life under controlled

test conditions*.

* Test Conditions

• “Battery Life” is the number of hours before battery failure when the

unit is left on (5 minutes of a processing operation and 55 minutes of

continuous display only (no processing operation) per hour in the

Contacts Mode, plus the backlight operation described below). The above

values assume ambient temperature of 20°C, starting with a fresh set of

new batteries.

• “Backlight Operation” is the number of minutes the backlight is turned

on per hour during the display only (no processing operation) period.

• Be sure to use alkaline batteries. Manganese batteries provide very short

battery life.

Backlight Operation Battery Life

3 minutes per hour Approximately 80 hours

15 minutes per hour Approximately 40 hours
