Castle Care-Tech EURO mini Manuale utente

EN50131-1

Grade 2 Compliance

User Manual

RINS1209-5

EN50131-1

Grade 2 Compliance

The EURO mini Keypad

Page 1

Contents

Introduction 1-5

Using EURO mini with PIN Codes 5-9

Intelligent Setting 10-11

When Problems Arise 12

Setting Individual Areas 13-14

Chime Facility 16

Omitting Zones 17-18

Keypad Hold Up/Personal Attack 19

Manager Menu 20-21

Changing Date & Time 22

Change/Add Codes 23-27

Review History Log 28

Walk Testing Detectors 29

Testing your Sounder 30

Allow Engineer Menu 31

Note the specification of EURO mini may vary

between different software version, and some

facilities in the manual may not be available.

Check with your installer for full details. This

equipment may be used in systems installed to

a lower grade, which will be agreed with your

installation company. There are no user

serviceable parts contained in this product.

For electrical products sold within the European Community. At the end

of the electrical products useful life, it should not be disposed of with

household waste. Please recycle where facilities exist. Check with your

Local Authority or retailer for recycling advice in your country.

When disposing of the product, the batteries must be removed and

disposed of separately in accordance with the local regulations.

The EURO mini Keypad

Page 2

Using your EURO mini Alarm System just

couldn’t be easier!

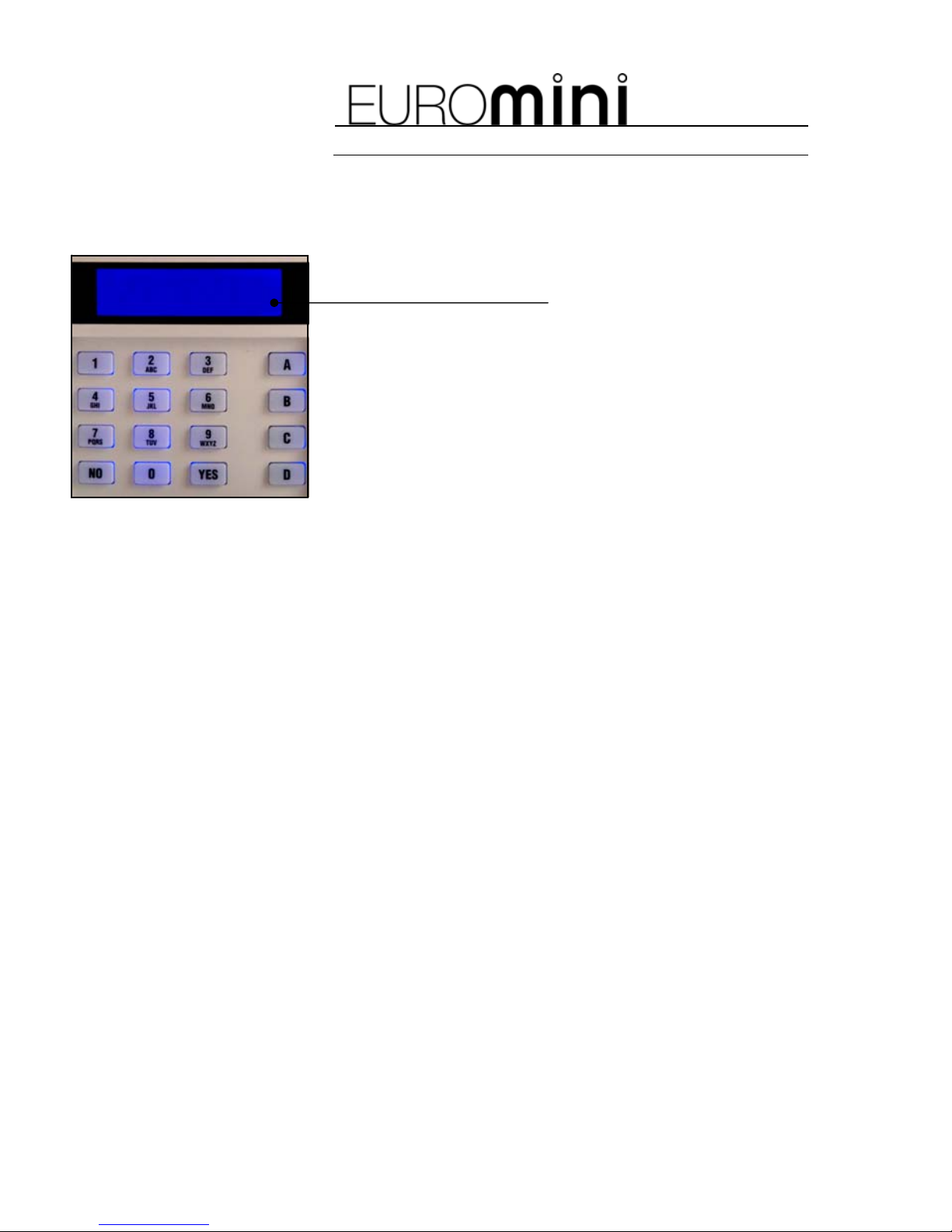

This is the Keypad from where you control

your Alarm System*

The LCD display guides you through user

menus and gives you any important messages

regarding the status of the system.

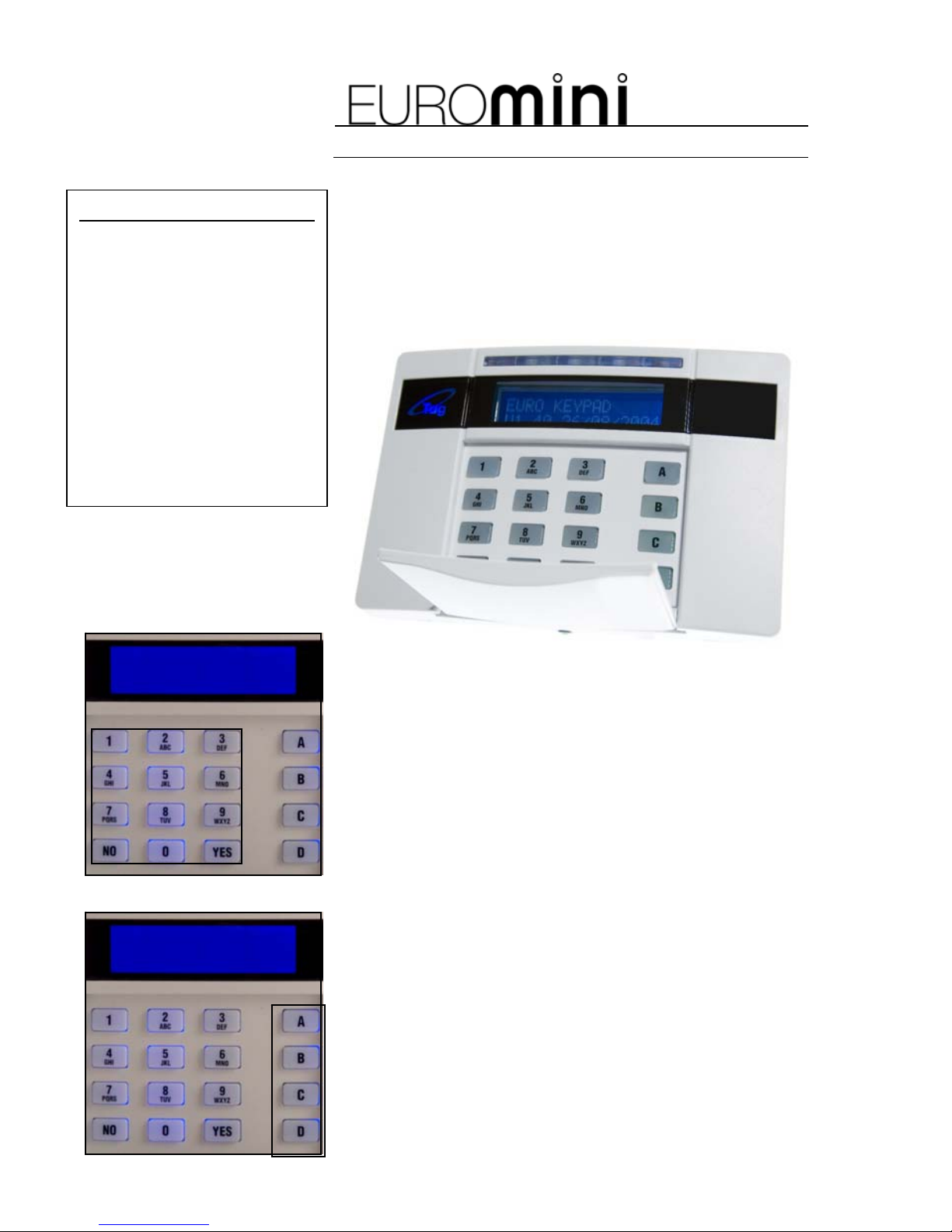

The 10 digit numeric keypad is where you use

your PIN code.

The A B C D keys allow you to choose which

level of security you wish to apply when you

leave the building, or to part-set the system.

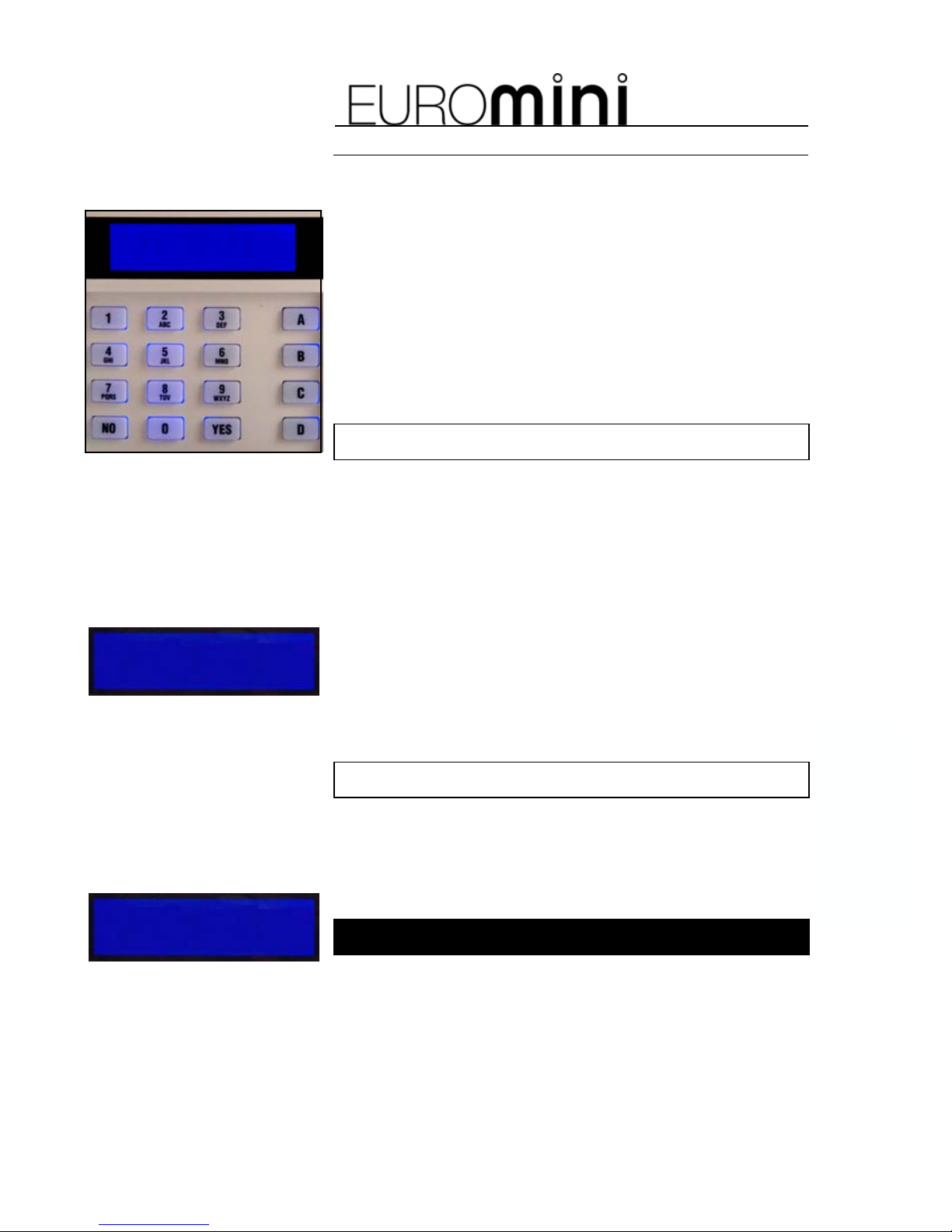

EUROmini

me:

MAINS

FAIL

MAINS

FAIL

EUROmini

me:

Note:

For your security, the

keypad becomes disabled

for 90 seconds after 30

incorrect key-presses. It

will subsequently be

disabled again after 7

further incorrect key-

presses. Once a correct

code has been registered,

the keypad is returned to

normal operation.

*Please note that Keypad design

may differ from that shown.

Using Proximity Tags

Page 3

Your EURO mini system may have been

enabled for use with proximity tokens, or

‘Tags’.*

If you have Tag Readers installed then

simply hold your Tag against the ‘Tag’

logo.

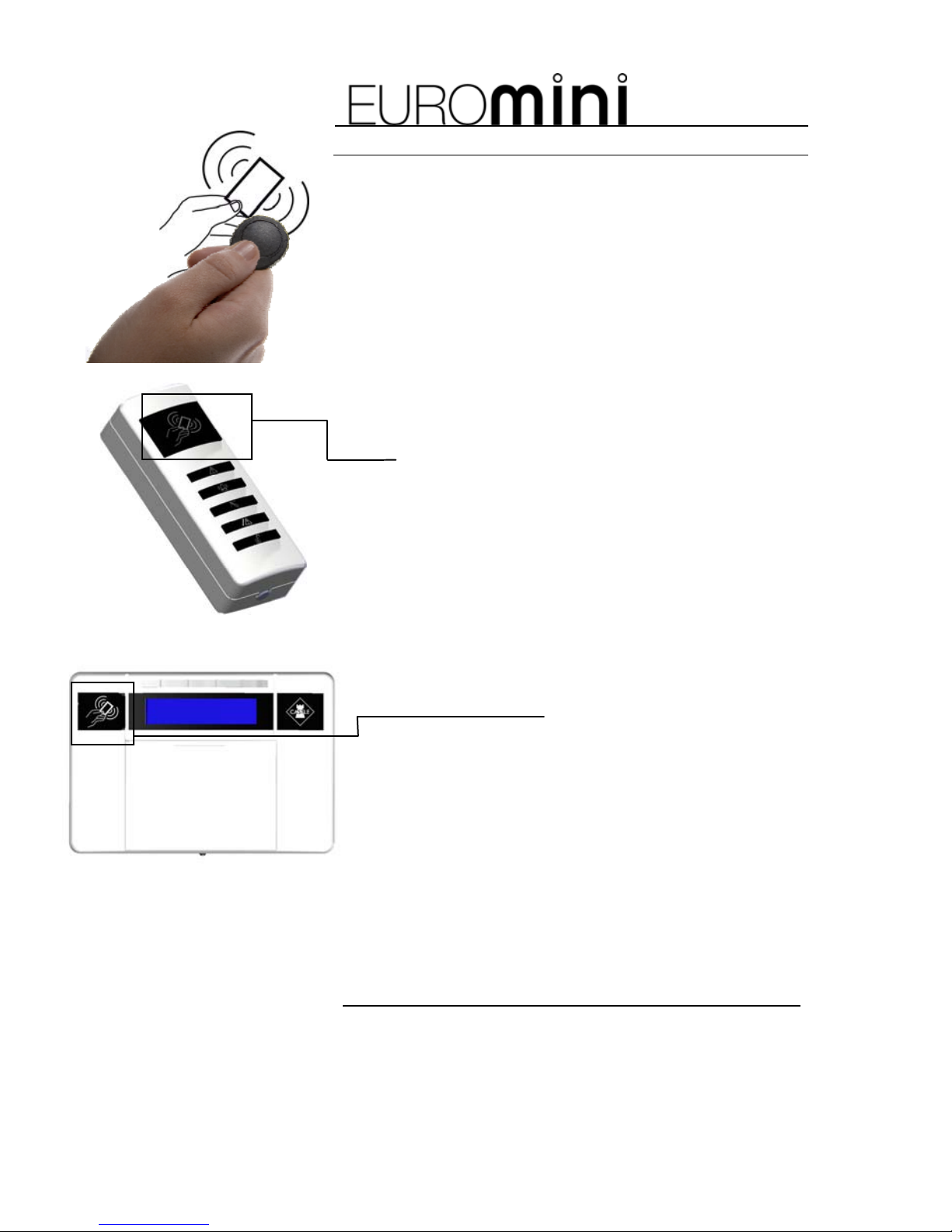

When using the keypads, hold your Tag to

the area shown left.

When your Tag has been accepted there

will be an acknowledgement ‘beep’.

You can use your Tag in place of a pin

code for all operations of the alarm

system, i.e. setting, unsetting, and

entering the Manager and User Menus.

*The Tag facility will only work with EURO mini

systems fitted with an EUR-068 or EUR-064

keypad.

Security Checks

Page 4

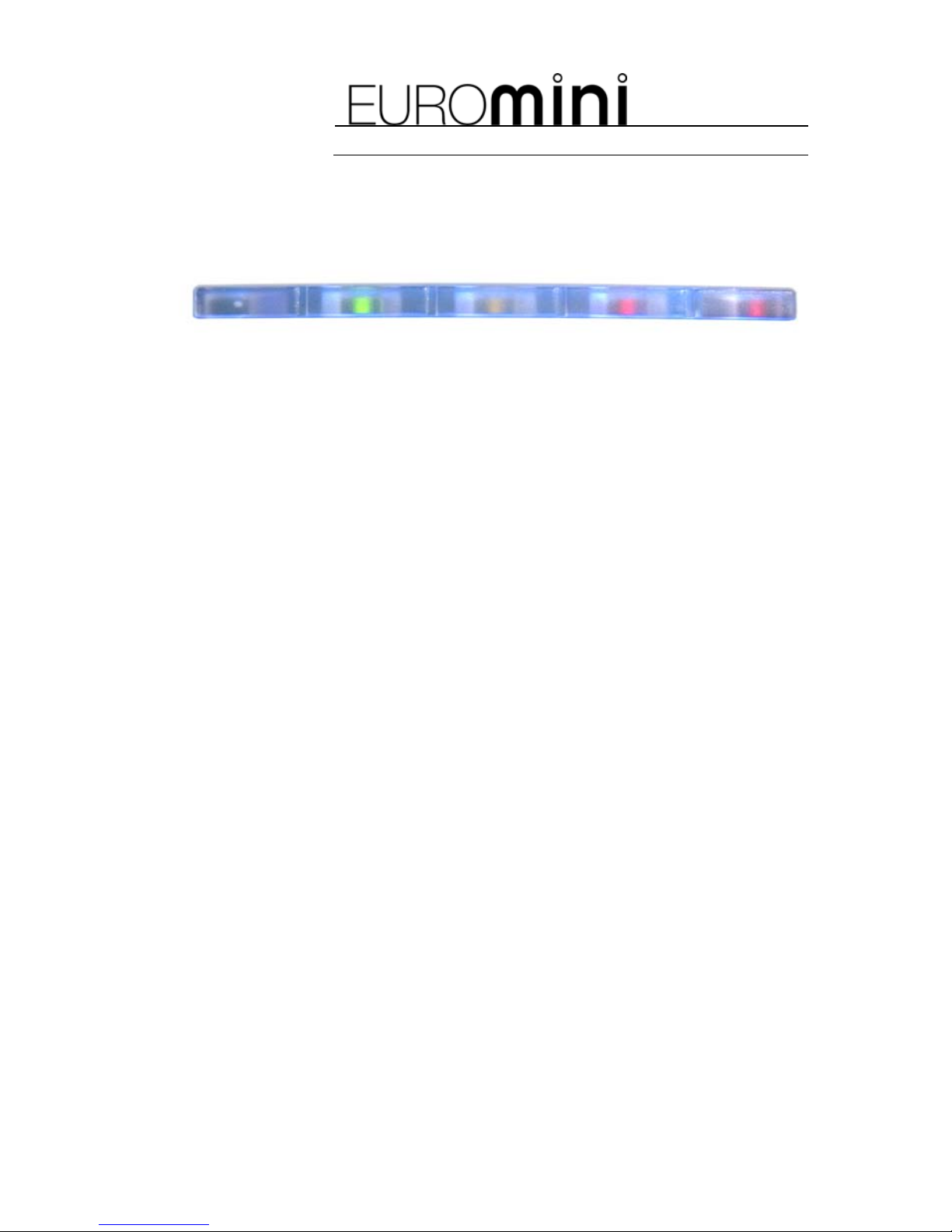

All keypads have LEDs to clearly indicate

what is happening.

The ‘Alert’ (orange) LED will flash if there

is information to display for you. Enter

your code to see the information. After a

code has been entered, one of the

following lamps will light: Alarm, tamper or

fault. The relevant detail of the problem

will be shown on the display. To clear the

display, press the ‘Yes’ key (or the display

will clear automatically after 3 minutes.)

The ‘Alarm’ (red) LED will flash after code

entry if an alarm occurs.

The ‘Tamper’ (red) LED will flash after

code entry if the wiring or equipment is

tampered with.

The ‘Fault’ (orange) LED will light after

code entry to indicate if a technical fault

occurs.

The ‘Unset’ (green) LED will light for 5

seconds after unsetting any part of the

system. It will also light during the setting

procedure, going off once set.

Alert Alarm Tamper Fault Unset

Security Checks

Page 5

Before you set your system:

You must ensure all doors and

windows are securely closed and

any pets or people are excluded

from areas protected by movement

sensors.

Close Windows

Close Doors

Exclude Pets & People

Leaving the Building

Page 6

If you are leaving the building, go

to your keypad and key in your PIN

code or present your Tag. Select

the level of security you wish to set

by pressing the ABCD keys.

Exit tone Starts

Leave by agreed Exit Route,

within the designated time.

Close and Lock the Final Exit

Door

Exit tone will cease

EURO

mini

is now SET

SETTING [009]

OFFICE

If your exit is timed,

you will see the screen

above.

If you use a final-door-

set, you will see the

screen below.

EUROmini

me:

SETTING [009]

House

Leave via

Exit Route

If Unable to Set

Page 7

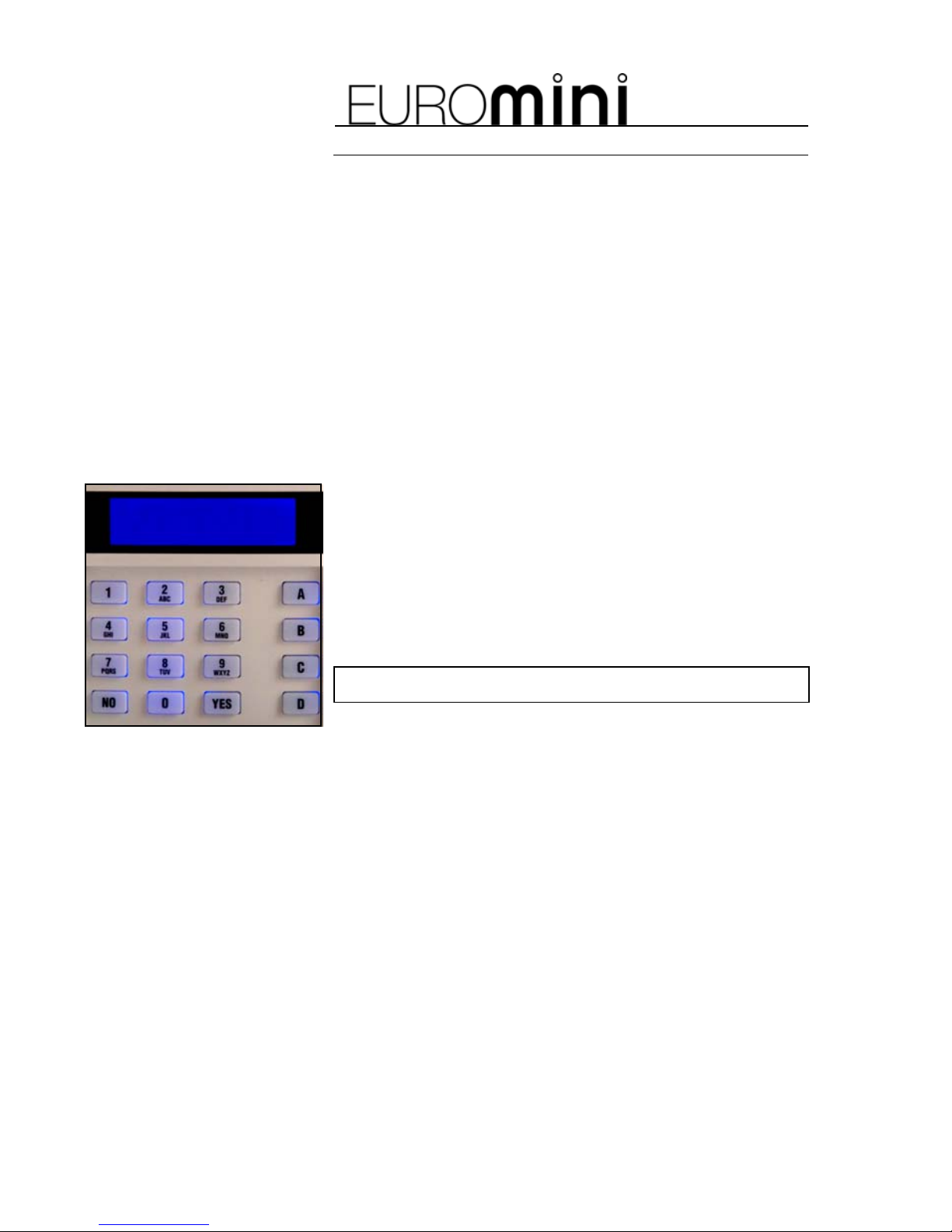

If when you key in your PIN code

a warning tone sounds and the

unset

LED comes on, the keypad

display will show the nature of the

problem.

The tone will cease after about 10

seconds.

Press the

‘NO’

key

The system will remain unset, so

you can resolve the problem.

For example, you may have left a

door open, if so, close the door.

Now commence the setting

procedure again.

UNABLE TO SET

BACK

DOOR

Faults when Leaving the Building

Page 8

If when you have closed the final

exit door, the exit tone continues

to sound an interrupted tone…

“beep – beep – beep – “

You have probably left a

protected door on the exit route

open.

Return to the keypad and note

the message on the display.

Stop the setting procedure with

your PIN code or your Tag.

Close the open door

Now commence the setting

procedure again (see page 6).

EXIT VIA

HALLWAY
