Castle Creations CC BEC Manuale utente

10 AMP MAX OUTPUT

6S MAX INPUT

4.8 - 9.0 VOLTS SELECTABLE OUTPUT

ONLY 11 GRAMS

SWITCHING REGULATOR

BEST RX POWERBEST RX POWERBEST RX POWER

OF U.S. AND

IMPORTED PARTS

This product is MADE IN THE USA of U.S. and imported parts.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a

period of one year from date of purchase.

This product may contain chemicals known to the State of California to cause cancer and or

birth defects or other reproductive harm. Do not ingest this product, it may hurt you.

850866 00004 7

This product is MADE IN THE USA of U.S. and imported parts.

Thank you for purchasing Castle Creations’ CC BEC switching power

regulator. We think you’ll ﬁnd it to be the most capable and ﬂexible

BEC on the market. Please use this product within its capabilities.

SPECIFICATIONS CURRENT OUTPUT

Length: 1.2” (30mm) Peak: 10 amps

Continuous:

<12 volts input = 7 amps*

<24 volts input = 5 amps*

*Ratings are determined with a 5mph

airﬂow on the BEC. Servo connectors are

not rated for current in excess of 5 amps.

Users are encouraged to replace the

connectors if more than 5 amp currents

are anticipated.

Width: 0.6” (15mm)

Height: 0.4” (10mm)

Weight: 0.4 oz (11 grams)

Input

Voltage:

5v to 25.2v

(2S to 6S LiPo)

LED: LED

indicates proper function of CC BEC. If LED is

o 

check for proper setup.

VOLTAGE OUTPUT

Default setting: 5.1 volts. User selectable in 1/10th volt increments

between 4.8 and 9 volts.

Castle Link USB Interface required to change output voltage (sold separately).

LOW INPUT VOLTAGE

In the event that the input voltage falls below the desired output

voltage, the CC BEC output is essentially equal to the input level.

CC BEC cannot output more voltage than the battery it draws from.

The CC BEC will not operate or produce any output when input voltage

drops below 4.8 volts.

RF NOISE

Always range check your model. This device should be treated

much like a speed control. Try to keep as much distance as possible

between the radio receiver and components and the CC BEC unit.

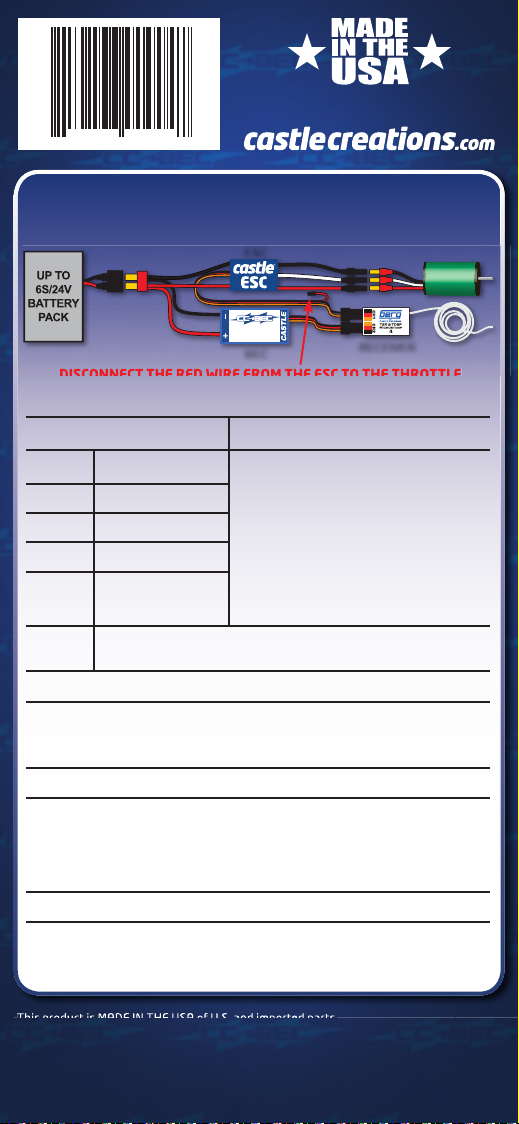

DISCONNECT THE RED WIRE FROM THE ESC TO THE THROTTLE

CHANNEL ON YOUR RECEIVER WHEN USING THE CC BEC

(DISREGARD IF USING WITH PHOENIX HV CONTROLLERS)

DISCONNECT THE RED WIRE FROM THE ESC TO THE THROTTLE

1 0 amppeak

4.8 V-9V out6S ( 25 V) m axin

BEC REC EIVER

ESC

MOT O R
