Cateye CC-RS100W Guida alla risoluzione dei problemi

Copyright © 2018 CATEYE Co,.Ltd.

This Quick Start manual will explain how to set up the computer and how to install the

computer and the sensor to the bicycle.

* In this manual, orange text/icons on the computer screen represent ﬂashing items.

* This manual and YouTube videos for this product are subject to change without notice.

* An instruction manual (PDF) detailing all functions is available on the website.

Start

Follow the steps below to set up the computer and the sensor.

Menu

4. Test operation

Return to Top

3. How to install the speed sensor

2. How to install the bracket

1. Set up the computer

1. Set up the computer

Use these buttons for setup.

Menu

2. Set the speed unit

1. Clear all data (initialization)

Initialize the computer.

Press the AC button on the back of the computer.

The whole display turns on and then switches to the speed unit setting screen.

3. Enter the tire circumference

Enter the tire circumference of your bicycle.

Refer to “Determine tire circumference” to enter the 4-digit tire circumference (mm). (0100 to

3999 mm)

• Press the MODE button : The ﬂashing value increase

• Press and hold the MODE button : Move digit

After entering the circumference, press the MENU button to conﬁrm.

Entering the tire

circumference

Conﬁrm

Increase the value

Move digit

(Press and hold)

Select either “km/h” or “mph.”

Press the MODE button to switch between speed units.

After selecting the unit, press the MENU button to conﬁrm.

Setting the speed unit Conﬁrm

6. Set the minute

Enter the current minute.

5. Set the hour

Enter the current hour.

Press the MODE button to increase the ﬂashing value (hour).

After setting the hour, press and hold the MODE button to conﬁrm.

Hour

Conﬁrm

(Press and hold)

Increase the value

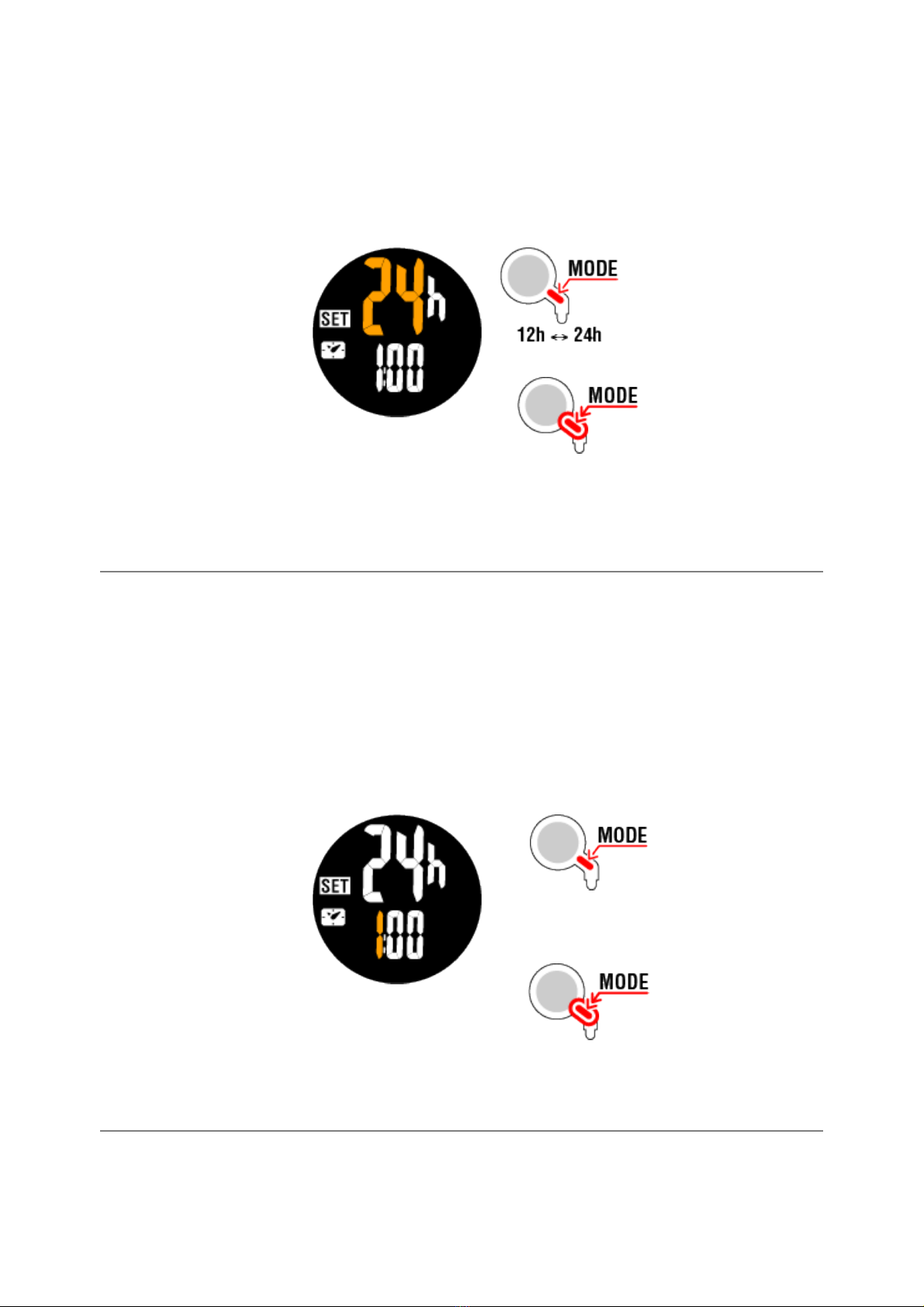

4. Set the clock display

Select either “12h” or “24h.”

Press the MODE button to switch between time formats.

After selecting the format, press and hold the MODE button to conﬁrm.

Clock display

Conﬁrm

(Press and hold)

4. Test operation

Return to Menu

Setup is completed

The measurement screen appears.

Now, setup of the computer is completed.

3. How to install the speed sensor

2. How to install the bracket

Press the MODE button to increase the ﬂashing value (minute).

After setting the minute, press the MENU button to conﬁrm.

Minute

Conﬁrm

Increase the value

Determine tire circumference

1. Set up the computer

Determine tire circumference (L) by referring to the tire size chart or by measuring the actual

tire circumference of your bicycle.

Tire circumference reference table

You can ﬁnd the circumference on the tire size chart.

* The tire size or ETRTO code is indicated on the side of the tire.

Measure actual tire circumference

You can measure the tire circumference of your bicycle.

With tire air pressure adjusted appropriately, apply a load to the bicycle.

Using the valve, etc., as a marker, rotate the tire once and measure the distance traveled

along the ground.

Return to “1. Set

up the computer”

2. How to install the bracket

Menu

1. Set up the computer

1. Mount the bracket

Handlebar diameter
