personal cyclocomputer

2OS 1.1

Introduction

Thank you very much for purchasing the CAT EYE OS 1.1.

Read "SETUP GUIDE" first, for the installation and the basic operation of the product.

Read this "REFERENCE GUIDE" when you want to know more about the CAT EYE OS 1.1.

Important

Warning!

•Do not give excessive attention to the monitor or the data. Always pay attention to

the road, traffic and your surroundings.

•Keep this product away from children. If children should use this product, they

should have adult supervision.

•Dispose of the used batteries properly. Keep batteries out of children's reach. In

case a battery is swallowed, contact a doctor immediately.

Caution!

•Avoid dropping or severely jarring the main unit.

•Avoid exposing the main unit to direct sun light for extended periods of time.

•Do not disassemble the main unit.

•Do not apply chemicals (thinner or benzene) to the unit.

•Static electricity could cause a function error, resulting in abnormal display of the data.

•Periodically check the positions and mounting conditions of the magnet and the sensor.

■Buttons ----------------------------------------------------------------------------------- 3

■Setup ----------------------------------------------------------------------------------- 4-5

■Functions ----------------------------------------------------------------------------- 6-8

■Menu Screen ------------------------------------------------------------------------9-16

■Troubleshooting --------------------------------------------------------------------- 17

■Specifications ------------------------------------------------------------------------ 18

■Optional parts/Limited Warranty ------------------------------------------------------------ 19

■Registration --------------------------------------------------------------------------- 20

OS 1.1 3

Buttons

See how the four buttons work in the various modes.

START/STOP button (ENTER)

Normally this button starts and stops timer that effects the other functions like average speed,

etc. When measuring, the speed scale icon flashes.

While setting up the unit this button enters and completes each selection.

MODE button (SELECT: FWD/REV)

Normally this button switches the function of the lower display. In the setting mode this

button forwards and reverses among options.The right button is FWD (forward) and the left

button is REV (reverse).

MENU button

This button is used to bring up the MENU screen, where previously stored data can be

reviewed or settings can be changed.

RESTART button

This button is used only after replacing the battery or when screen freezes or appears erratic.

Reset operation (Resetting the screen data)

Simultaneously press START/STOP/ENTER button and either

MODE/SELECT button in order to reset the daily Trip Distance,

Average Speed, and Elapsed Time to zero, and the Countdown

data to its original setting.Total Distance (Odo) and Clock Time

are not effected.

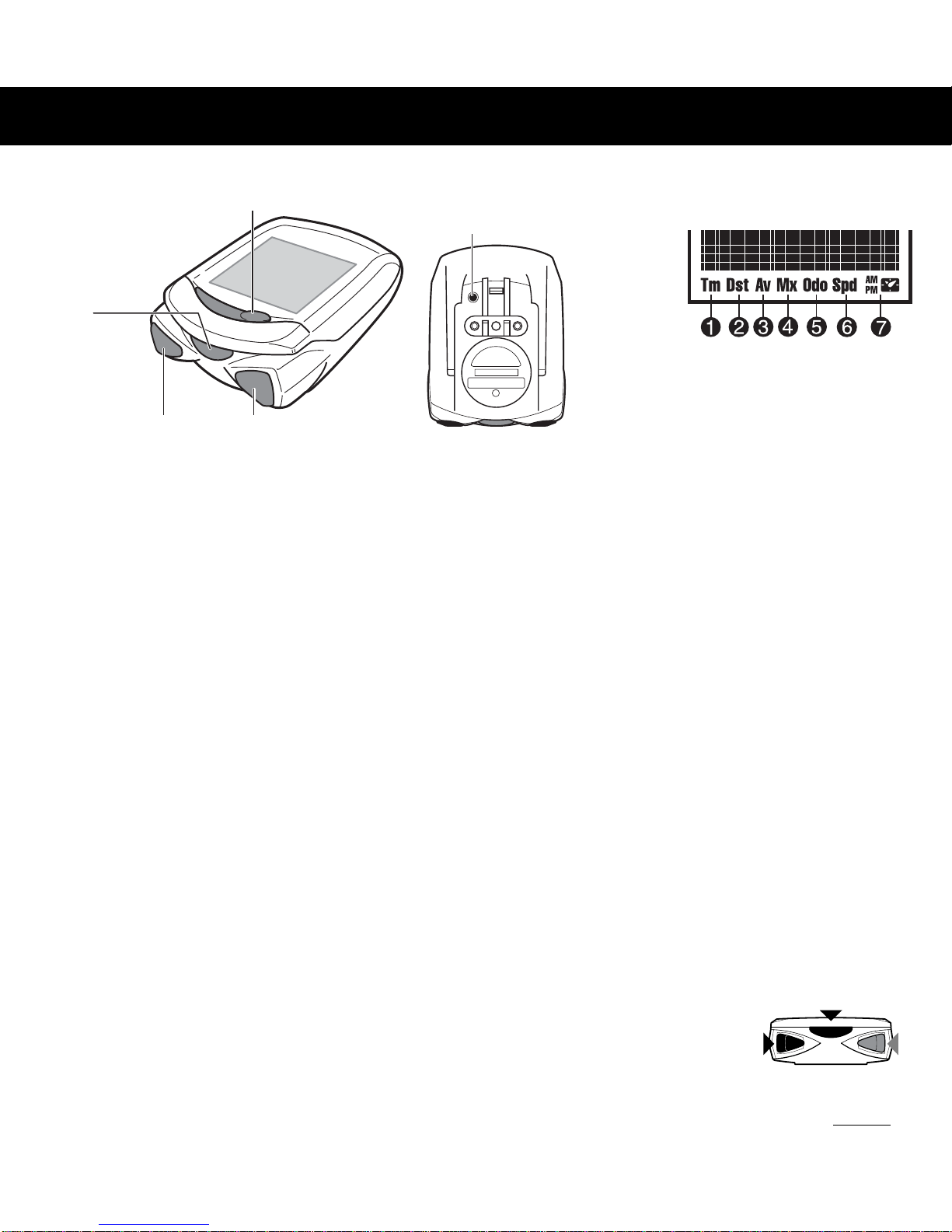

Measurement icons

1Elapsed Time icon

2Trip Distance icon

3Average Speed icon

4Maximum Speed icon

5Total Distance icon

6Current Speed icon

7Clock Time icon

REV FWD

MODE button (SELECT)

RESTART button

START/STOP

button

(ENTER)

MENU button

Press simultaneously

4OS 1.1

Setup (CLEAR ALL DATA)

Before first use or to erase all the stored data (Format operation)

To erase all the data stored in the main unit, carry out the format

operation.

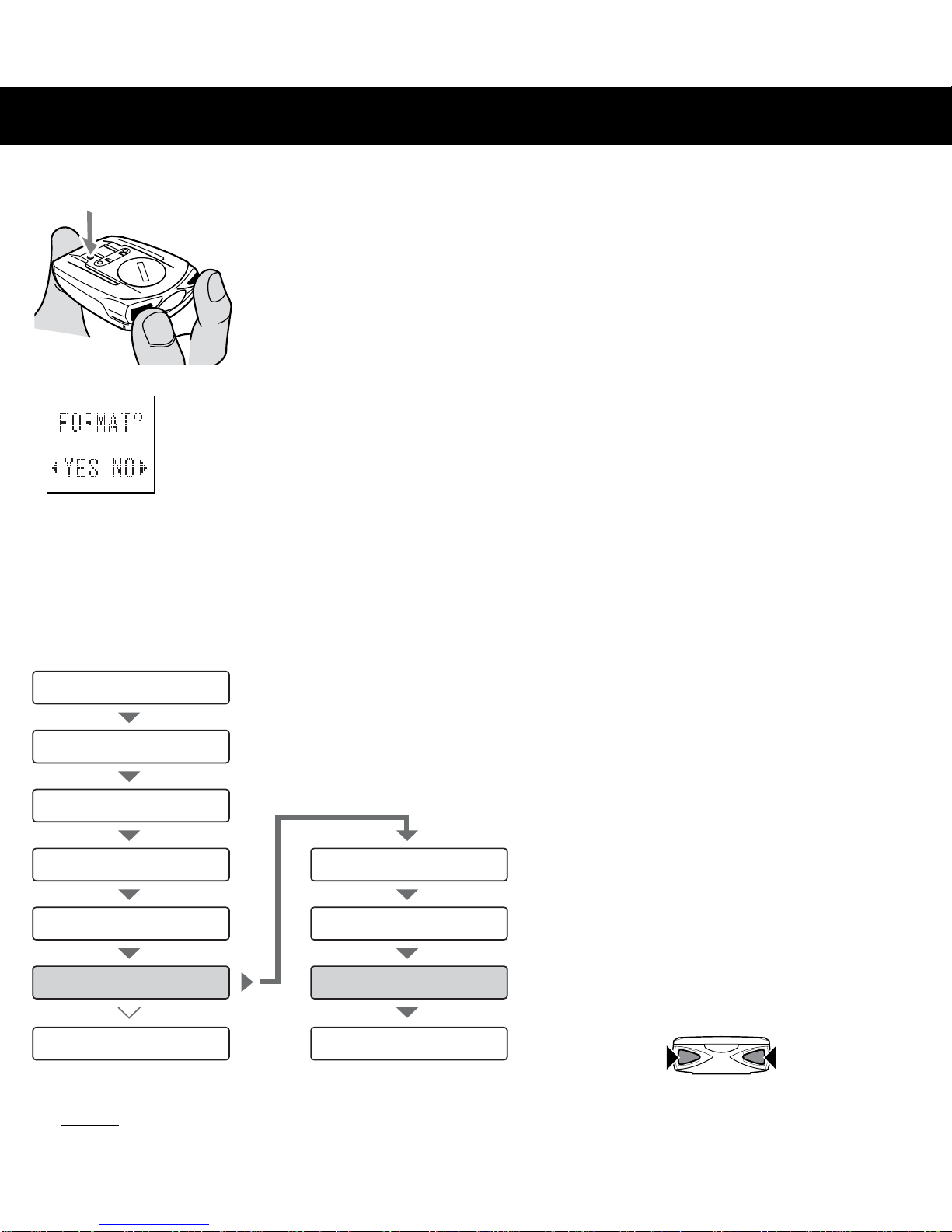

1. Hold the unit as shown in the figure.

PRESS AND HOLD the two MODE/SELECT buttons, press and

release RESTART button on the back of the OS. CONTINUE

HOLDING DOWN the two MODE/SELECT buttons forTWO MORE

SECONDS and let go. Now the FORMAT YES/NO prompt will

appear.

2. SelectYES and press ENTER/START/STOP button.

Caution: Take note that all the data is erased by this operation. If

you want to stop the formatting operation, select "NO", and

the Clock Time setting screen will appear. Since the clock

has already been returned to its initial setting, set only the

time.

Once format operation is done, the unit needs to be set up from the

first step.

Setup In addition to Quick Setup that is writ-

ten in the Setup guide, there is Cus-

tom setup (see the next page). In the

Custom setup, you can select only

your favorite functions that you want

to use, and you can also choose your

preferred font size and input your per-

sonal data.

Note: By pressing the two SELECT/

MODE buttons simulta-

neously you can go back to

the next previous screen.

Setup process

Speed scale setting

Tire size setting

Date setting

Time scale setting

Clock time setting

Custom setup entrance

Setup finished

YES

Function customizing

Font size setting

Personal data input

Setup finished

QUICK SETUP CUSTOM SETUP Goes to previous screen

OS 1.1 5

Setup (Custom setup)

Custom setup

To personalize your Cat Eye OS1.1, selectYES in Custom setup prompt.

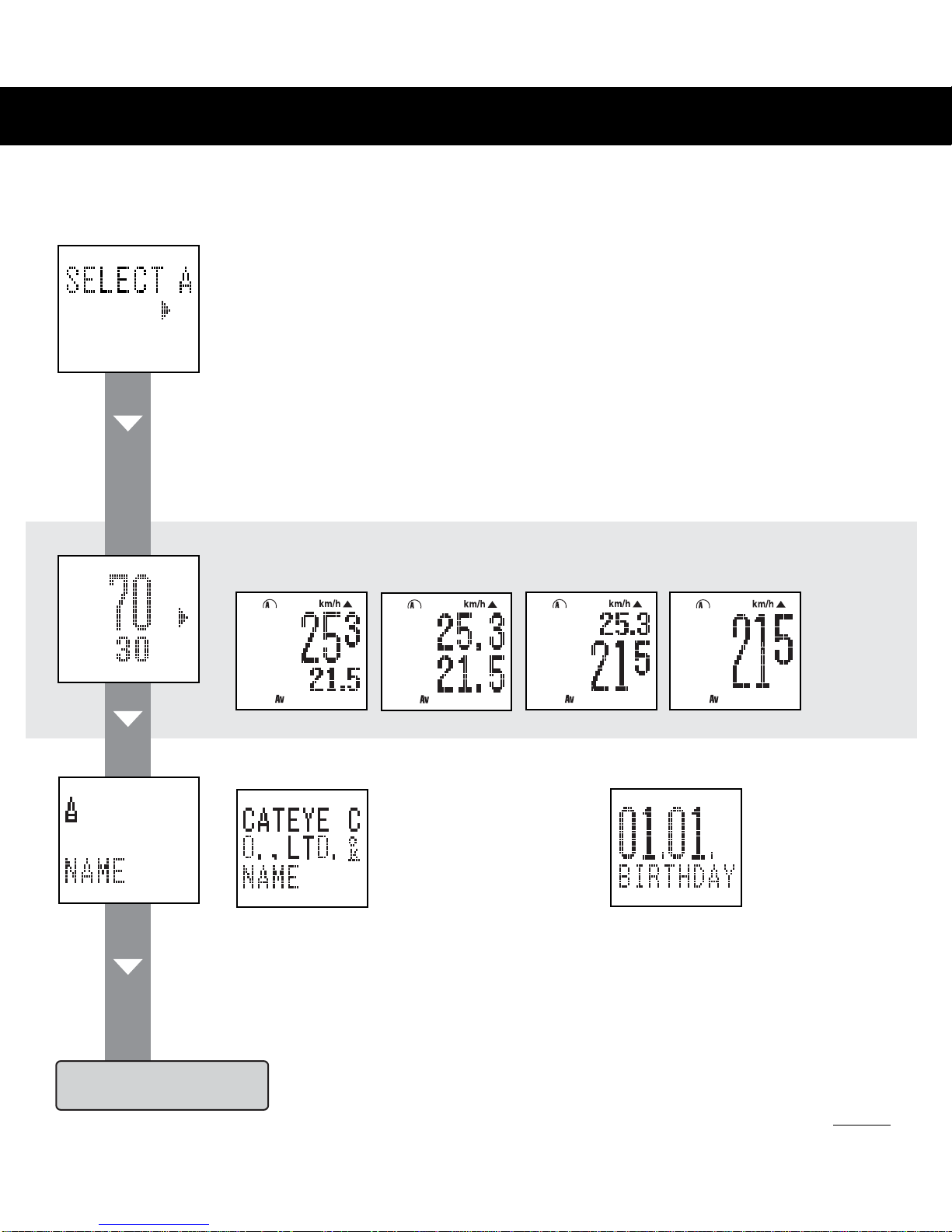

Function customizing

You can choose to display just the functions you would like. Press EN-

TER/START/STOP button to select each function you would like to dis-

play.You can also simply SELECT ALL to display all seven cyclocomputer

functions. you can choose any of the following 6 functions (current speed

is always displayed):ElapsedTime,Trip Distance, Average Speed, Maxi-

mum Speed, Total Distance and Clock.To complete function custom-

ization navigate to "FINISHED" and press ENTER/START/STOP but-

ton. (Refer to page12.)

Font size

Choose a display percentage font size.

Personal data input

Input your name. Up

to 16 letters can be

input. (Refer to Per-

sonal data input on

page 14. Note, how-

ever, that your name

and birthday cannot

be entered separately

during setup.)

You can change the settings later, using the function settings on

the MENU screen. Refer to Pages 9-16.

Setup finished

70:30(%) 50:50(%) 30:70(%) 100(%)

Input your birth-

day month and

day (mm/dd).

6OS 1.1

Functions (Spd, Tm, Dst, Av, Mx, Odo)

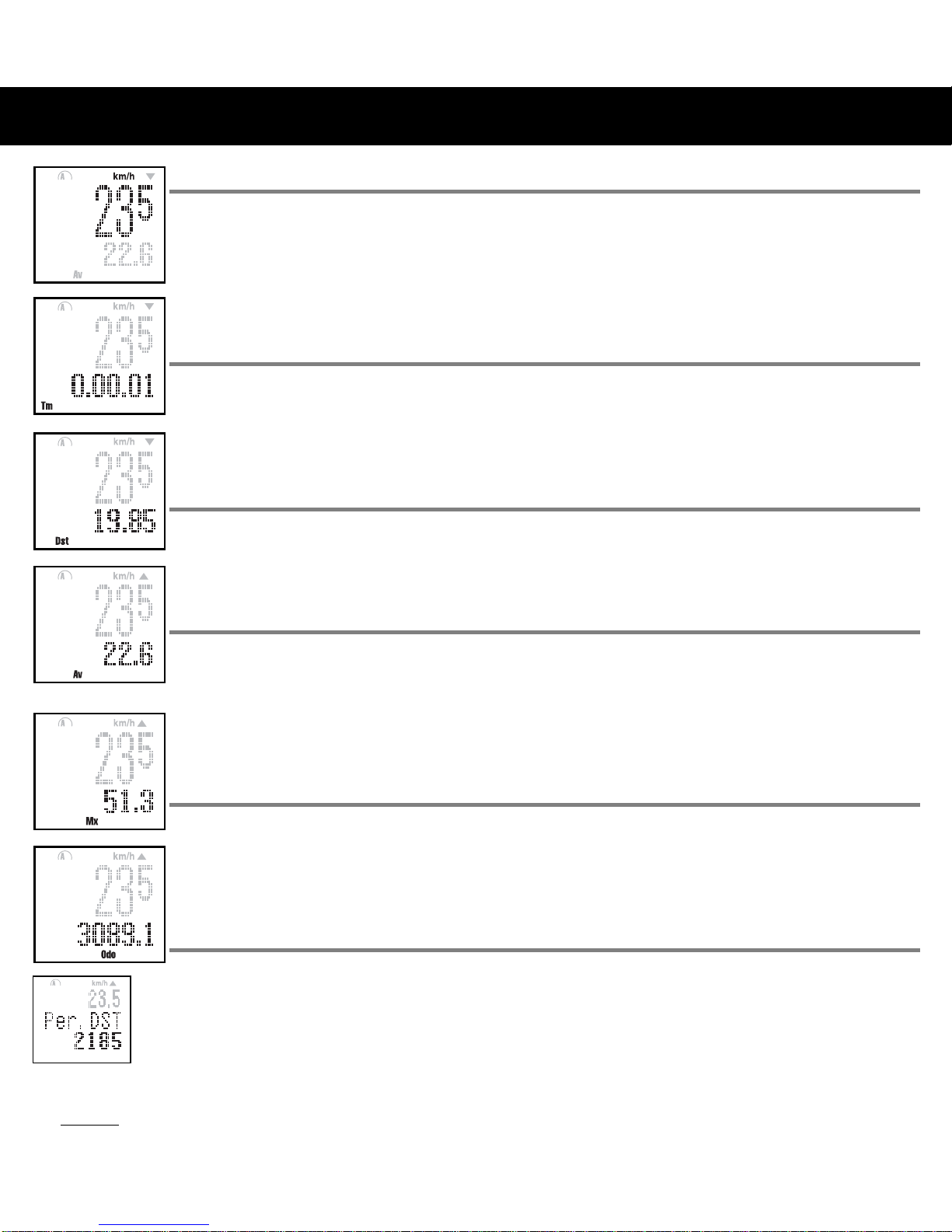

Current Speed

Current Speed always displays in the upper display. The data is updated

once a second. When the font size is 100%, Current Speed appears be-

tween Clock Time and Elapsed Time and is indicated by the flashing Spd

icon.

0.0(3.0)-65.9 mph [0.0(4.0)-105.9 km/h]

Elapsed Time

This is the ride time from the start to the present and shown in hours, min-

utes and seconds. Performing a reset operation returns the data to zero.

After 9:59'59" the timer will continue counting from 0.00.00.

0.00.00 - 9.59.59

Trip Distance

The trip distance from the start to the present time is displayed. Performing

a reset operation returns the data to zero.

0.00 - 99999.99 mile [km]

Average Speed

The average speed from the start to the present time is displayed. Perform-

ing a reset operation returns the data to zero. When the trip distance exceeds

99999.99km or the elapsed time exceeds 99:59'59", [ERROR] will appear on

the display and calculation of Average Speed will no longer compute.

0.0 - 65.9 mph [0.0 - 105.9 km/h]

Maximum Speed

The maximum instantaneous speed from the start to the present time is dis-

played. Performing a reset operation returns the data to zero. Maximum

speed is calculated regardless if the ride timer is on.

0.0(3.0)-65.9 mph [0.0(4.0)-105.9 km/h]

Total Distance

The odometer distance is accumulated continuously. It is not effected by

performing a reset operation. Odometer distance is calculated regardless if

the ride timer is on.

0.0 - 999999.9 mile [km]

If you push the two MODE buttons simultaneously, the personal distance

review screen will be displayed for three seconds.

OS 1.1 7

Functions (Clock Time, Countdown, Pace arrow, Eco mode, Auto mode)

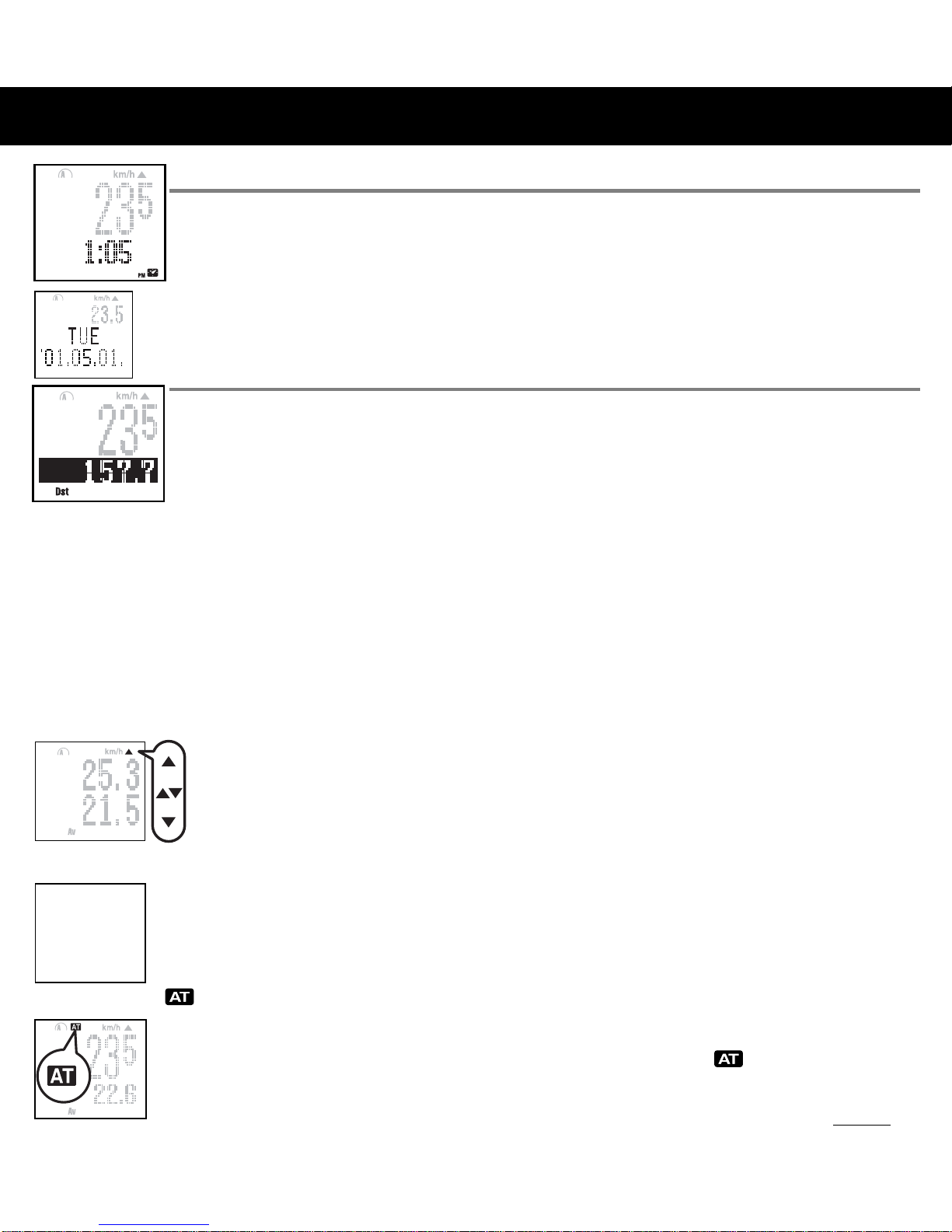

Clock Time

Time is displayed in 12h or 24h mode.

If you push the two MODE buttons simultaneously, the date/weekday re-

view screen will be displayed for three seconds.

Countdown

When the countdown function is on, the remaining distance or time (which-

ever you have selected), as compared to the time you started measuring,

will be displayed. If the measured distance/time exceeds your setting, a

negative value will flash. Resetting returns the countdown to the original

setting. If you push the two MODE/SELECT buttons simultaneously while

the countdown screen is visible, the screen you did not select will appear

for three seconds.

Note: The countdown has been set to "OFF" as a default.This function

will appear on the measuring screen only when it is set to "ON" in

the function setting process.

*In the sample screens above and on the previous pages, the digits are

shown at 70% and 30% size resectively.

Pace arrow The pace arrow indicates if the current speed is faster or slower than the

average speed. If the current speed is equal to the average speed, both

arrows appear.

Eco mode (Sleep mode)

When the main unit is left without receiving any signal for about three

minutes, the display goes blank. When any main button is pressed, or the

wheel starts again, the screen wakes up and returns to normal display.

Auto mode When Auto Mode is on, the unit automatically starts/stops measuring func-

tions related to the timer when the wheel is spinning. icon comes on. In

the default state, Auto Mode is off.

8OS 1.1

Functions (Personal data, Battery life)

Personal data display

On the normal operation screen, if you hold down the two MODE buttons

simultaneously for three seconds or longer, the current personal data set-

tings will be displayed for five seconds.

If only a NAME or BIRTHDAY has been entered, only that data will be

displayed. If no personal data has been entered, the space will be dis-

played in blank.

Battery life indicator

If this indicator appears, the battery is beginning to run down. When the

battery is consumed further, it begins to flash.

Note: Depending on the environment, the battery life indicator might

appear earlier than expected. Use the indicator as a rough stan-

dard.

If the display does not become darker even after adjusting the

display contrast, it is time to replace the battery.

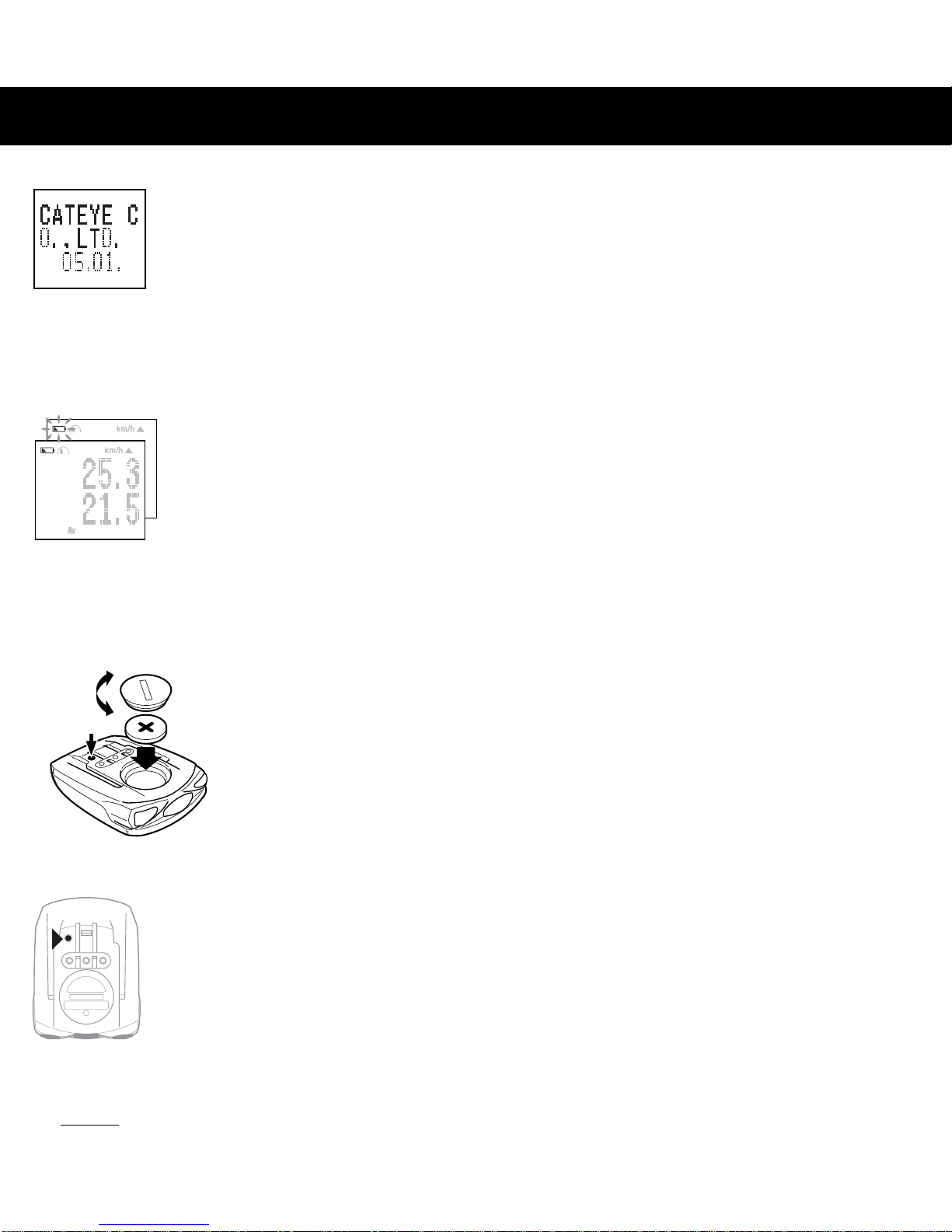

Replacing battery Battery life: approximately 1 year (if used for 1 hour a day)

After replacing the battery, press RESET button on the back of the

main unit. (Refer to the restart operation.)

Note: When the battery life indicator starts blinking, it is recom-

mended that the battery be replaced the same day. After

replacing the battery, you must reset the time.You do not

need to reset the date.

Restart operation (1.When erratic data appears; 2.After replacing battery)

In the following situations, press RESTART button on the back of the main

unit.

•after replacing the battery

•when pushing the buttons produce no effect, or the screen is frozen.

Caution: Pressing Restart button erases all ElapsedTime,Trip Distance,

Average Speed, Maximum Speed and Clock Time data.

After a restart, the clock time setting screen will appear auto-

matically. Be sure to reset the times.

RESTART

Open CR2032

OS 1.1 9

ENTER

(

START

STOP

)

ENTER

(

START

STOP

)

FWD

(

SELECT

)

FWD

(

SELECT

)

REV

(

SELECT

)

REV

(

SELECT

)

FWD

(

SELECT

)

REV

(

SELECT

)

Clockwise

Counter-

clockwise

Counterclockwise

Refer to

page 11 to 16

Last ride

day data

Maximum

speed

recorded

Yearly

distance

Weekly

distance Monthly

distance

Date Function

customiz-

ing

Display

contrast Personal

distance Mode

navigation

Personal

data

Font

size

Clock

time

Auto

mode

Tire size

Count

down

Refer to

page 10

Menu screen

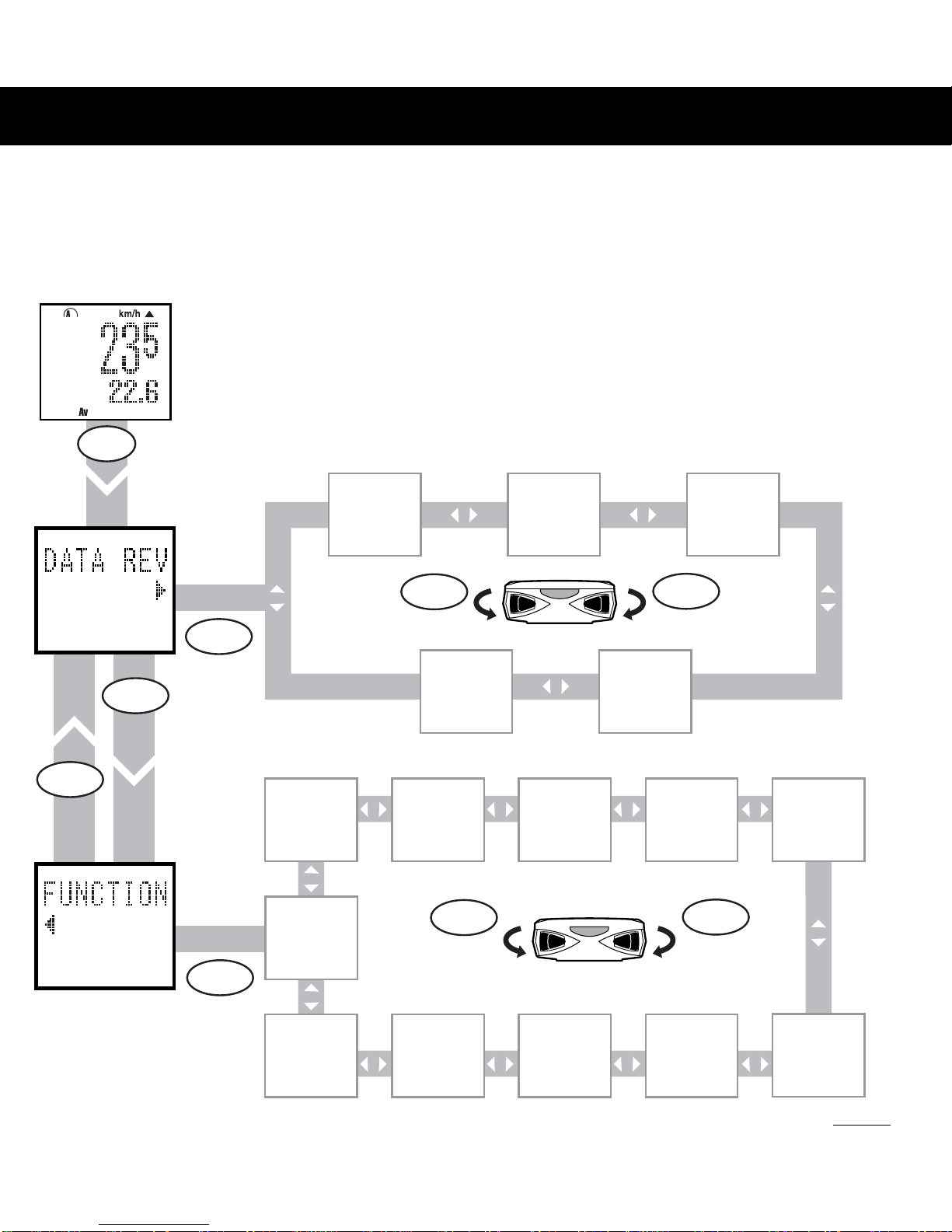

When MENU button is pressed, the screen changes from measuring screens to menu

screens.

Measuring screen Menu screens are divided into two categories:

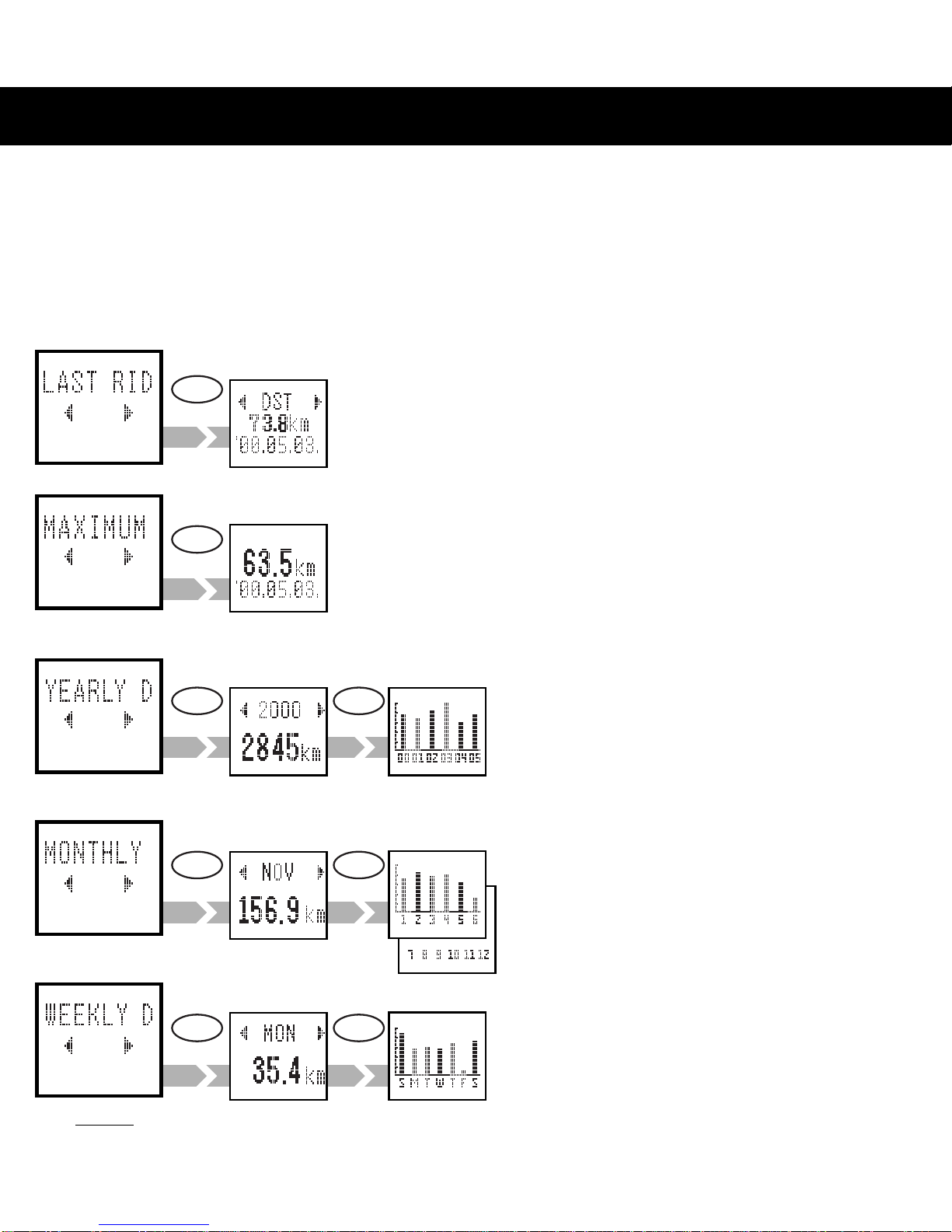

"Data Review" reviews the previous recorded data;

"Function Setting" allows you to change various settings.

Note: In the Menu Screen, battery runs down faster than the normal

measuring screen.

Data review (Checklist)

Function settings (Function checklist)

10 OS 1.1

Menu screen (Data review)

Data review

Checks and reviews the accumulated data of the past. Press MENU button again to return to measuring screen.

Note: The data of weeklky distance, monthly distance and yearly distance are the accumu-

lated amount of the trip distance (Dst).This accumulated amount is saved when the

clock passes midnight. When saved, the digits after the second decimal place are cut

off.Therefore, the accumulated amount differs from the data of odometer (Odo).

Shows all the data measured in the last ride day (0:00

- 23:59 or midnight to midnight). When the clock

passes midnight, the day's data is memorized as the

"last ride day data".

To reset the maximum speed ever recorded,

simultaneously press START/STOP/ENTER button

and either MODE/SELECT button while the maximum

speed ever recorded is visible.

Caution: When the maximum speed ever recorded

is reset, the maximum speed on the mea-

suring screen is also reset.

The yearly distance is displayed for the past

six years. Press ENTER/START/STOP

button and the screen shows the data in

the graph format. (Maximum value of the

graph: 12000km, Minimum value of the

graph: 500km)

The monthly distance is displayed for one

year. Press ENTER/START/STOP button

and the screen shows the data in the graph

format by six months period. (Maximum

value of the graph:1200km, Minimum value

of the graph: 50km)

A week's trip distance is displayed day by

day. Press ENTER/START/STOP button

and the screen shows the data in the graph

format. (Maximum value of the graph:

120km, Minimum value of the graph:5km)

ENTER

(

START

STOP

)

ENTER

(

START

STOP

)

ENTER

(

START

STOP

)

ENTER

(

START

STOP

)

ENTER

(

START

STOP

)

ENTER

(

START

STOP

)

ENTER

(

START

STOP

)

ENTER

(

START

STOP

)

Weekly distance

Last ride day data

Maximum speed ever recorded

Yearly distance

Monthly distance

Altri manuali per OS 1.1

Indice

Altri manuali Cateye Accessori per biciclette

Cateye

Cateye Velo5 CC-VL510 Manuale utente

Cateye

Cateye CC-ED200N Manuale utente

Cateye

Cateye DOUBLE SHOT PRO Manuale utente

Cateye

Cateye CC-AT200W Manuale utente

Cateye

Cateye CC-VL100 Manuale d'uso e manutenzione

Cateye

Cateye HL-1600 Manuale utente

Cateye

Cateye ASTRALE Manuale utente

Cateye

Cateye CC-5000 SOLAR 2 Istruzioni operative e di manutenzione

Cateye

Cateye Velo Wireless + Manuale utente

Cateye

Cateye CC-HB1OO Manuale utente

Cateye

Cateye CC-VT100W Manuale utente

Cateye

Cateye ENDURO 2 Manuale d'uso e manutenzione

Cateye

Cateye CC-MT400 Manuale utente

Cateye

Cateye CC-HB100 Manuale utente

Cateye

Cateye CC-CD200N Manuale utente

Cateye

Cateye Padrone Smart + CC-SC100B Manuale utente

Cateye

Cateye VELVO 5 Manuale utente

Cateye

Cateye VELO2 Manuale d'uso e manutenzione

Cateye

Cateye CC-CD300DW Manuale utente

Cateye

Cateye MITY 3 Manuale utente

Cateye

Cateye WEARABLEX SL-WA100 Manuale utente

Cateye

Cateye SINGLE SHOT HL-EL600RC Manuale utente

Cateye

Cateye Padrone Smart + CC-SC100B Guida all'installazione

Cateye

Cateye TL-LD170-W Manuale utente

Manuali Accessori per biciclette popolari di altre marche

Sigma

Sigma BC 16.16 Manuale utente

Playcore

Playcore Dero Setbacks Manuale utente

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manuale utente

buratti meccanica

buratti meccanica Clorofilla Trail Manuale utente

Shimano

Shimano SG-8R20 Istruzioni operative

BOB

BOB YAK Manuale utente

APLIC

APLIC 303303/20190717TW012 Manuale utente

SRAM

SRAM AXS BlipBox Manuale utente

Garmin

Garmin EDGE 500 Manuale utente

Shimano

Shimano FD-RX810 Manuale utente

KMART

KMART 43115907 Manuale utente

SIGMA SPORT

SIGMA SPORT Buster 2000 Manuale utente

NVO Components

NVO Components STEM Manuale utente

DAXYS

DAXYS BP188 Manuale utente

XLC

XLC BV-W17 Manuale utente

Deda Elementi

Deda Elementi SUPERBOX Manuale utente

Akku Vision

Akku Vision e-bike vision 10046 Guida rapida

Squire

Squire Inigma Manuale utente
