Cateye Strada Digital Wireless CC-RD420DW Manuale utente
Click the button and follow the
instructions.
CATEYE STRADA
DIGITAL WIRELESS
CC-RD420DW
Quick Start
START
Thank you for purchasing our cyclocomputer CATEYE STRADA DIGITAL WIRELESS.
This Quick Start Manual explains how to set up the computer and how to install the unit on
your bicycle.
Please set up the unit according to the specified procedure, then it will be ready for use as a
cyclocomputer.
•Beforeuse,readtheinstructionmanualthatcomeswiththeproductthoroughly
totheendtounderstandthefunctionsofthisunit,andtouseitsafelyina
correctmanner.
•Pacemakerusersshouldneverusetheheartratesensor.
Next
This PDF contains a movie file.
When you click on the movie screen, a message regarding security appears. Click the
“Trustinthetext” or “Play” button to close the message.
Click the screen again to play the movie.
Next
CATEYE STRADA DIGITAL WIRELESS
QuickStartManual Contents
Click the item you wish to view.
Return to a Cover
Settingupthecomputer
Howtoinstallthespeedsensor(movie)
Howtoinstallthebracket(movie)
Registeringanewsensor
Howtoweartheheartratesensor(movie)
Operationofbuttons

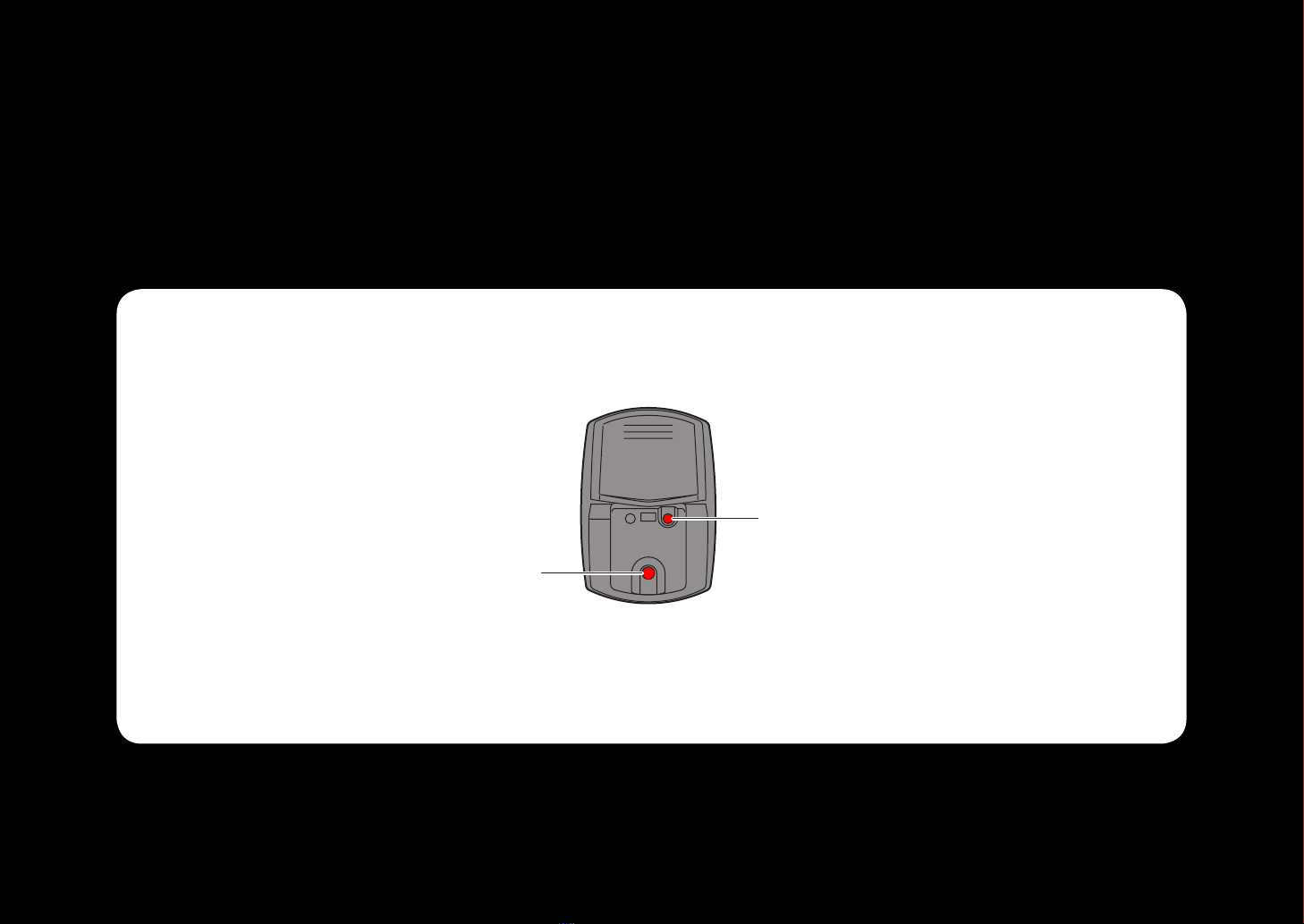

Set up the computer by operating the buttons as follows.
Check the button position before you start setting up.
MODE
MENU
Back
Press the MENU button and the MODE
button on the back of the computer.
Next
CATEYE STRADA DIGITAL WIRELESS
QuickStartManual Settingupthecomputer
Setting the speed unit
Entering the tire circumference
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute

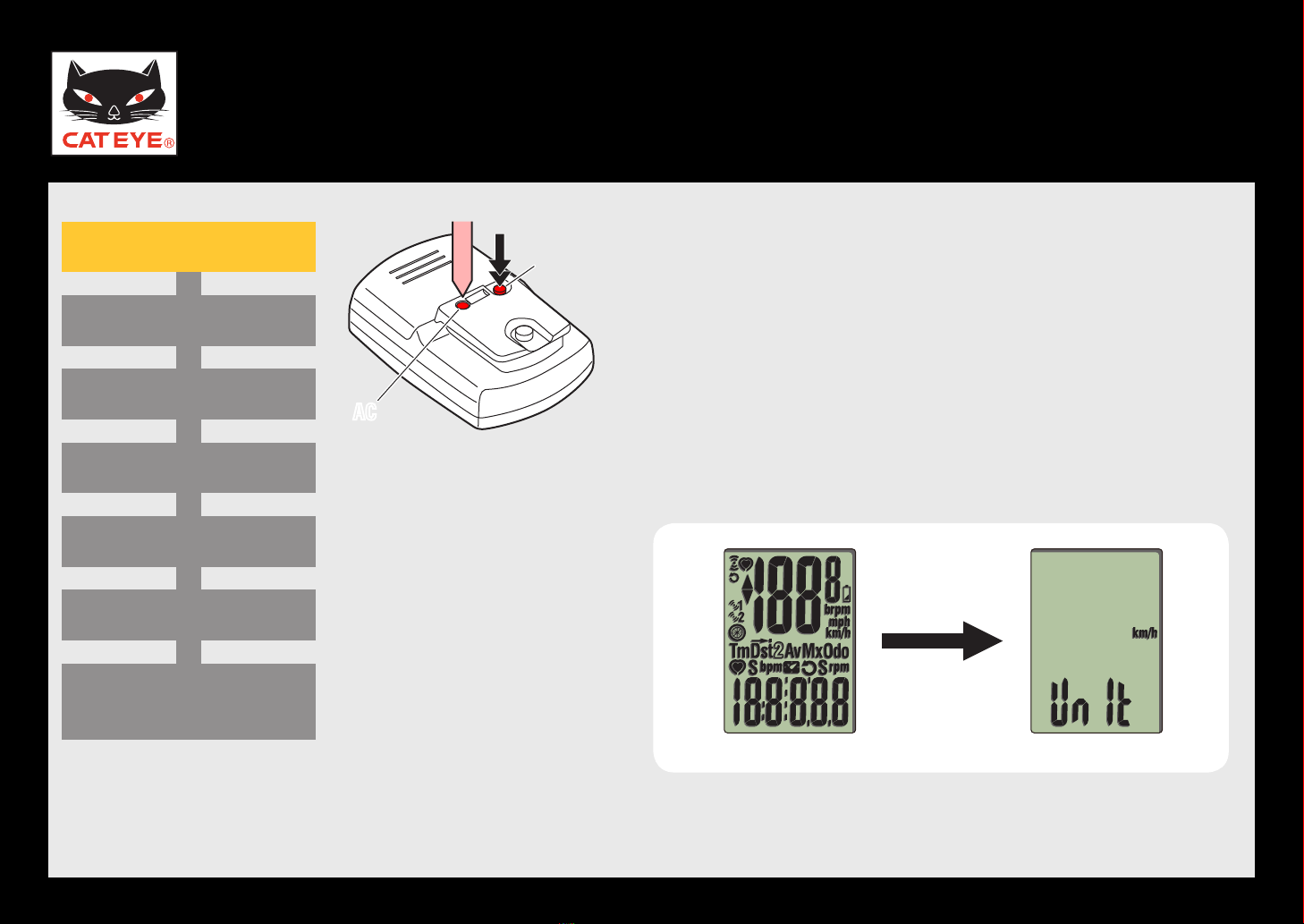

Clear all data (initialization) Formattingoperation
Press the MENU button on the back of the computer
and the AC button simultaneously.
Press and hold the* MENU button for 3 seconds
after you release the AC button.
After full lighting of the screen, the computer switch-
es to the speed unit setting screen to start setup.
ACAC
MENU
Full lighting Setting the speed unit
Return to Contents
Next
Return
CATEYE STRADA DIGITAL WIRELESS
QuickStartManual Settingupthecomputer
Entering the tire circumference
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the speed unit
Clear all data (initialization)

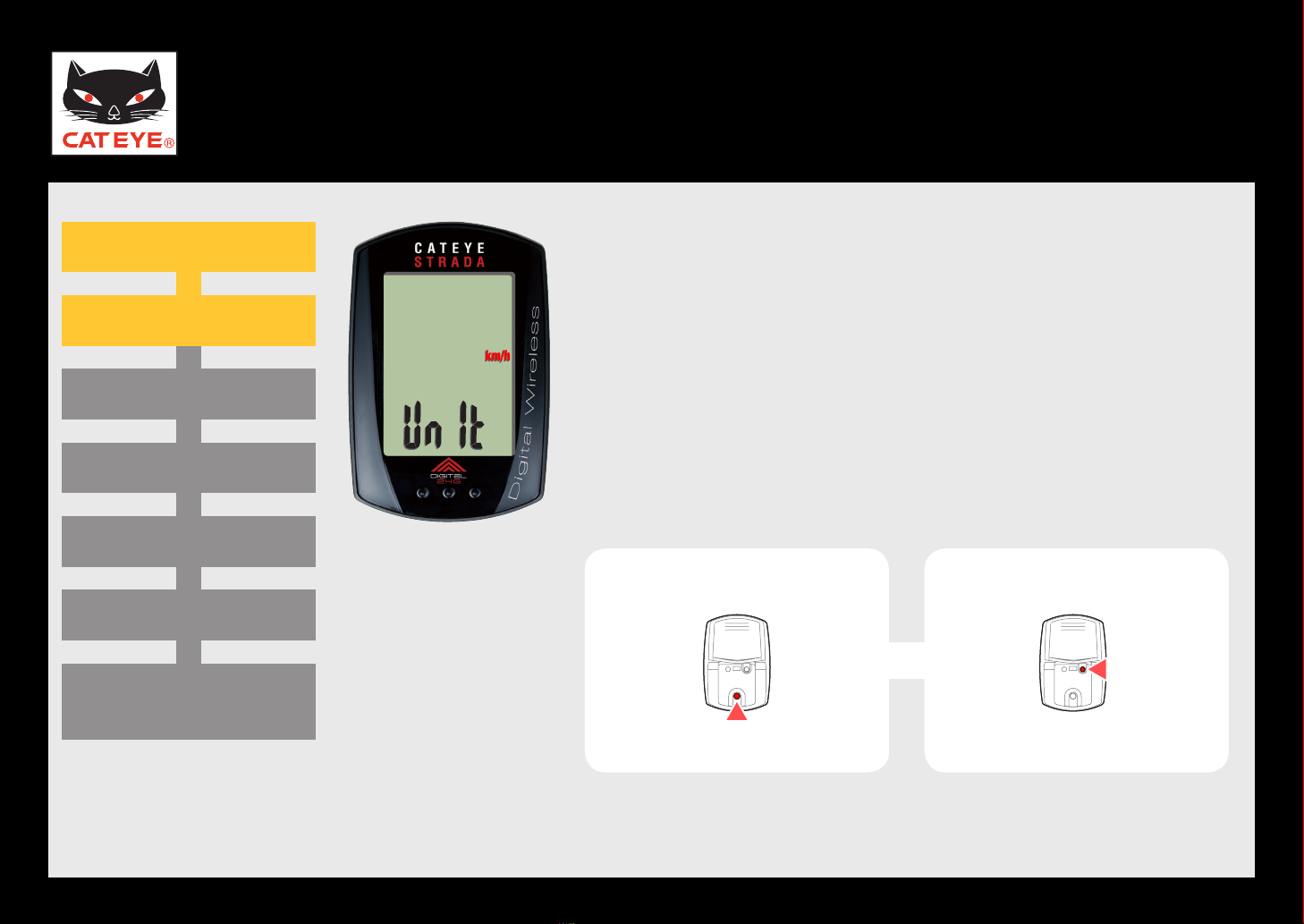

Setting the speed unit
Settingthespeedunit
When the MODE button is pressed, either “km/h” or “mph”
is selected for the speed unit display. Select the display of
your choice.
After selecting, press the MENU button to proceed to the
next step “Entering the tire circumference”.
MENU
To the next step
MODE
km/h ↔mph
Return to Contents
Next
Return
CATEYE STRADA DIGITAL WIRELESS
QuickStartManual
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Settingupthecomputer
Entering the tire circumference
Setting the speed unit

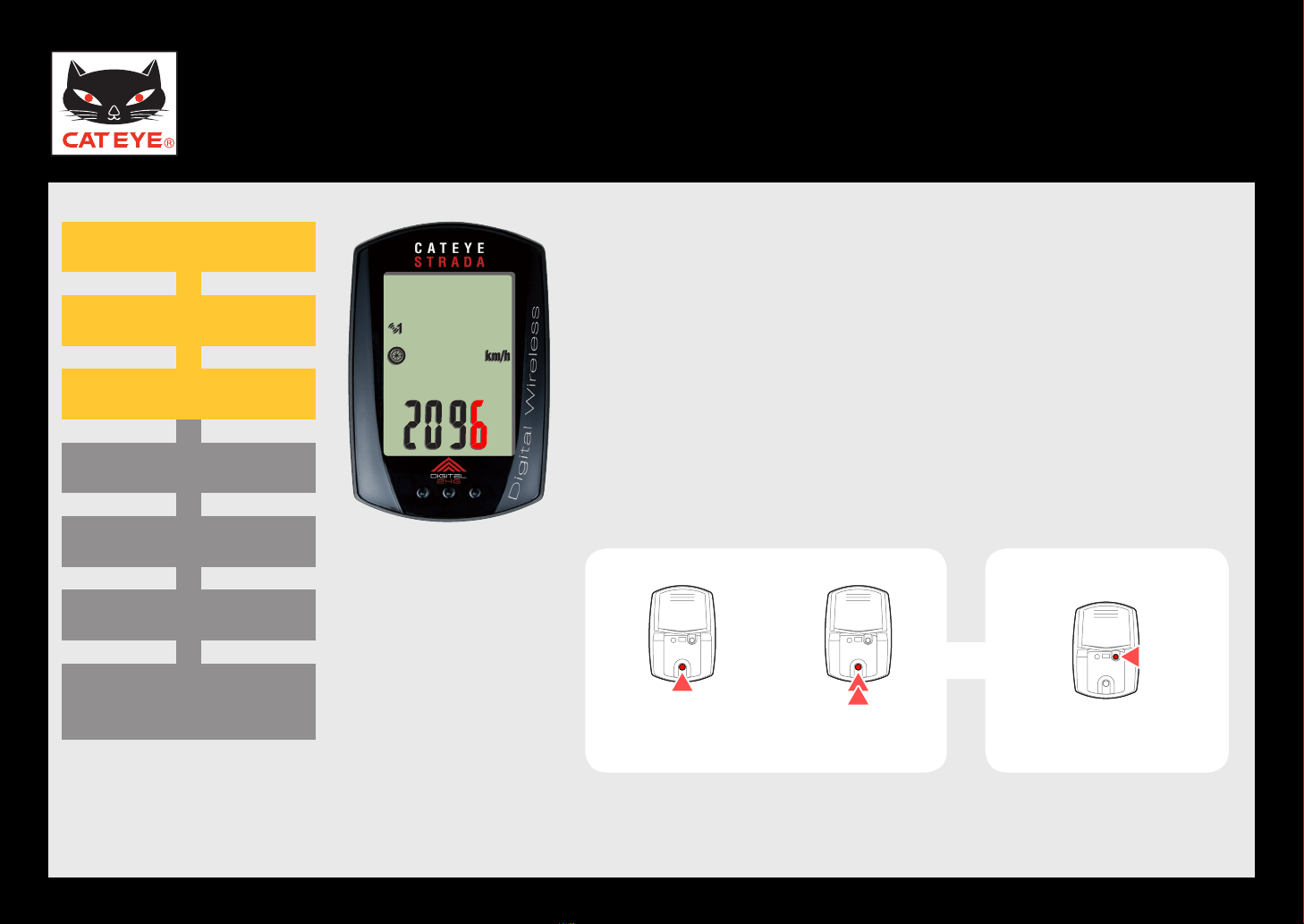

Clear all data (initialization) Enteringthetirecircumference
Enter the tire circumference (mm) of your bicycle with 4
digits using the tire circumference reference table.
Enter the tire circumference of the wheel to which the*
sensor magnet is attached (front or rear).
Pressing the MODE button increases the value flashing,
and pressing and holding the MODE button moves to the
next digit. After entering, press the MENU button to pro-
ceed to the next step “Setting the clock display”.
Entering the tire
circumference Move digitIncrease the value
MENU
To the next step
MODE
MODE
(Press and hold)
Return to Contents
Next
Return
Tire circum-
ference refer-
ence table
CATEYE STRADA DIGITAL WIRELESS
QuickStartManual Settingupthecomputer
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the clock display
Entering the tire circumference
Setting the speed unit

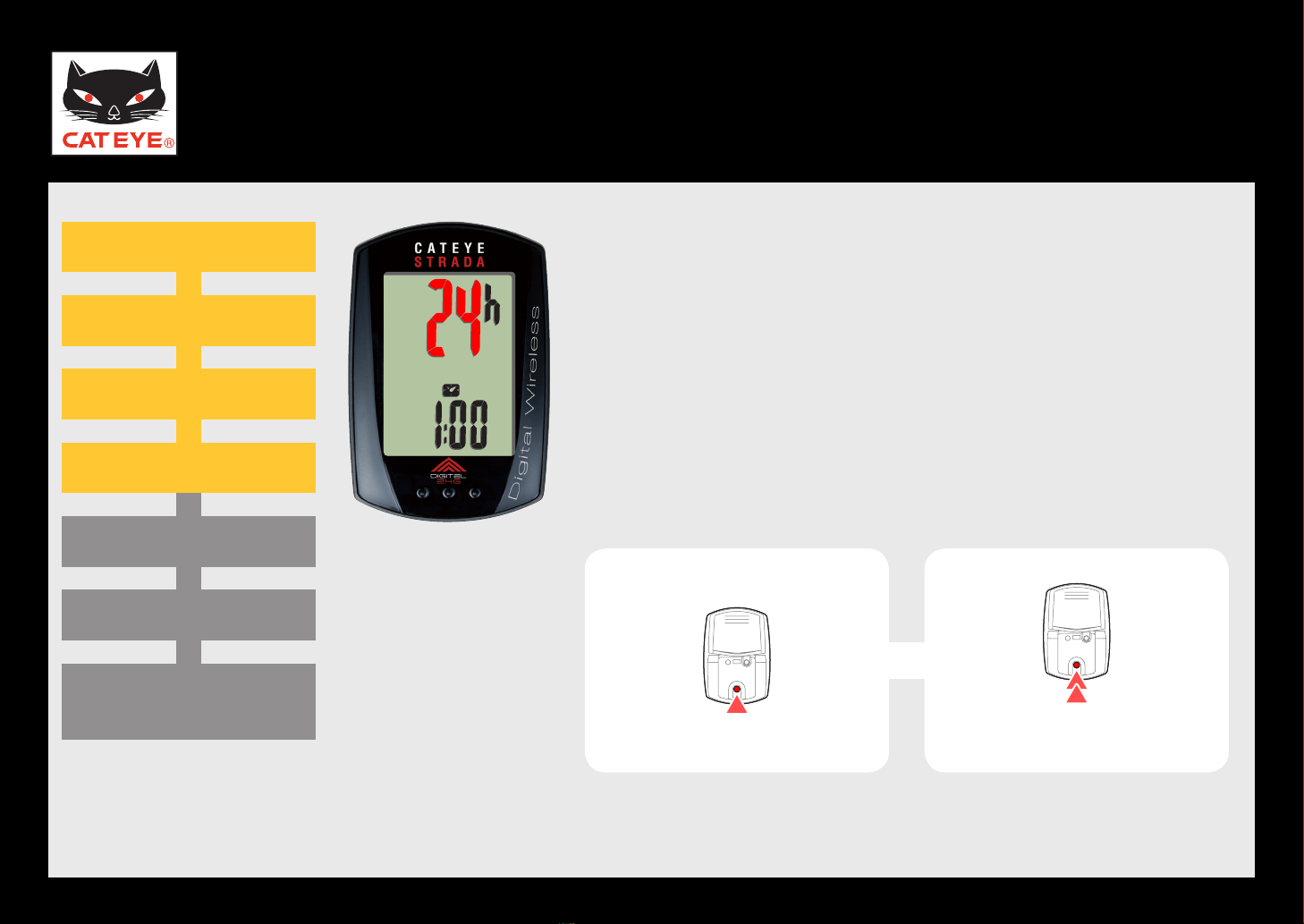

Clear all data (initialization) Settingtheclockdisplay
When the MODE button is pressed, either “12h” or “24h”
is selected for the clock display. Select the display of your
choice.
After selecting, press and hold the MODE button to pro-
ceed to the next step “Setting the hour”.
Clock display To the next step
MODE
24h ↔12h
MODE
(Press and hold)
Return to Contents
Next
Return
CATEYE STRADA DIGITAL WIRELESS
QuickStartManual Settingupthecomputer
Measuring screen
(Setup completed)
Setting the minute
Clear all data (initialization)
Setting the speed unit
Entering the tire circumference
Setting the clock display
Setting the hour
Settingthehour
Pressing the MODE button increases the value flashing
(“Hour” of the clock). Enter any value.
After entering, press and hold the MODE button to pro-
ceed to the next step “Setting the minute”.
Hour
MODE
Increase the value To the next step
MODE
(Press and hold)
Return to Contents
Next
Return
