Cavalry CAUC3701T0 Manuale utente

User's Manual

CAUC Series

Preface

Copyright

Please respect copyrighted content. Duplication or modification of this publication in whole or in

part is prohibited without express or written authorization.

Usage

Strong impacts or dropping the product may cause damage. Only allow qualified personnel to

repair this product. Disassembling or opening this product will void your warranty.

Disclaimer

Cavalry is not liable for compensation for data loss which may result from a malfunction of the

product or from changes due to improper use, repairs, defects, or battery change. Please back

up your data to avoid unexpected losses. Cavalry reserves the right to make changes to the

content of this manual without notice. The most current manuals and software are available for

download at our download page: www.cavalrystorage.com/su_download.htm

2 2

Thank you for choosing Cavalry.

We at Cavalry extend our sincere gratitude for your purchase of this product.

We hope our dedication to delivering high quality products with excellent

customer service will ensure your continued interest in our products.

This manual will assist in the operation of the product. To optimize your

experience with this product, we recommend reading this entire manual

before usage. Please keep this manual for future reference.

3 3

44

Table of Contents

Preface .................................................................................................... 2

List of Accessories ............................................................................. 5

Product Illustrations ........................................................................... 6

Features ............................................................................................. 8

Setup Instructions .............................................................................. 9

Troubleshooting ................................................................................. 14

Warranty and Contact ........................................................................ 16

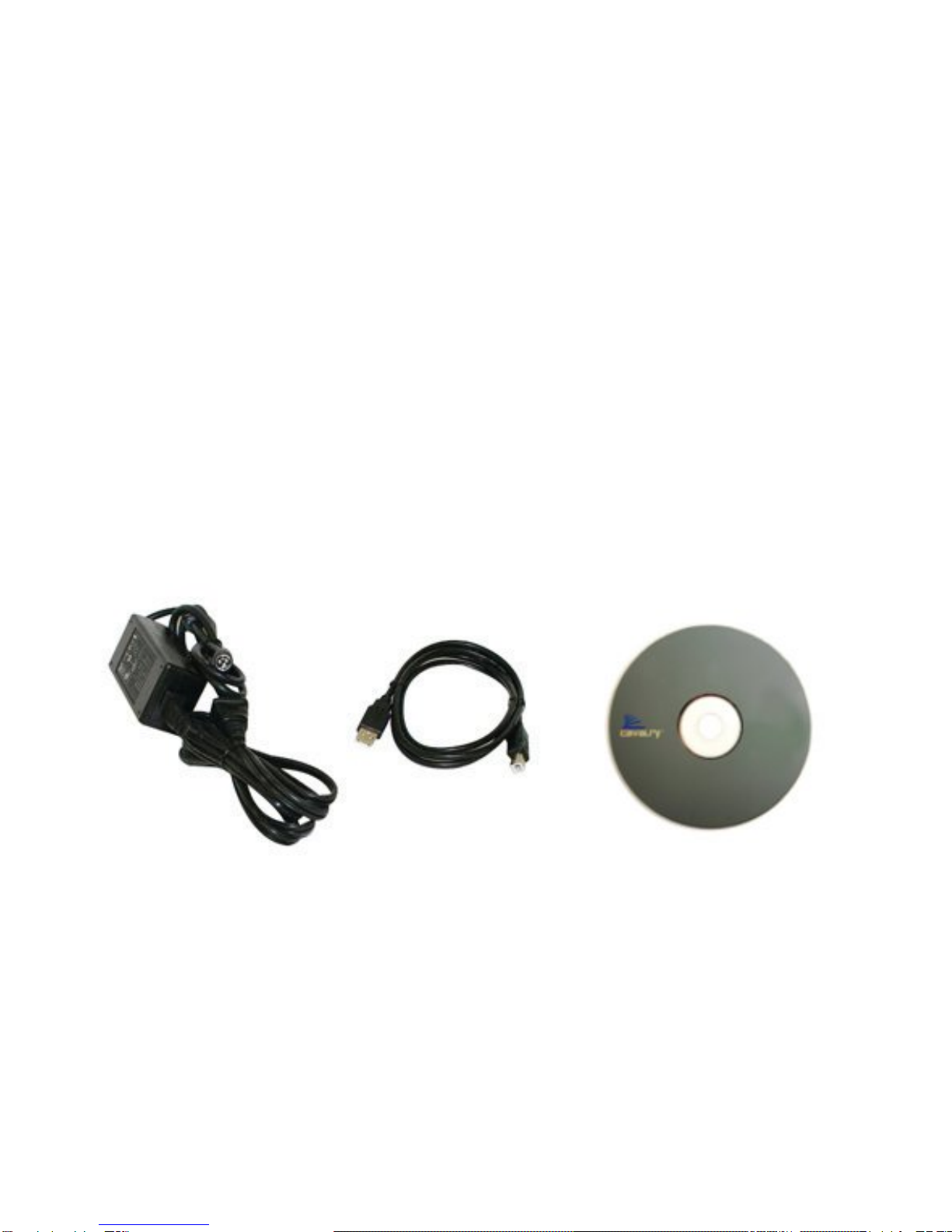

List of Accessories

1. External power adapter / power cord (may vary with product)

2. USB 2.0 cable

3. Resource CD

55

1

3

2

Front

1

1. LED Light Activity Indicator

2. One Touch Backup button

3. Power button

66

2

3

Back

4

5

4. 4-pin power jack

5. USB 2.0 port

77

8

Features

One Touch Backup

Plug-and-play for Windows 2000/XP/Vista

USB 2.0 interface

Pre-formatted to NTFS

Exceptional heat dissipating ability

Hard drive activity LED

Nearly silent operation

Slim and lightweight stackable design

Designed for use with a PC

8

Setup Instructions

Follow the steps below to successfully set up your Cavalry External Hard

Drive with your computer.

Step 1. Start your computer and wait for Windows to load completely.

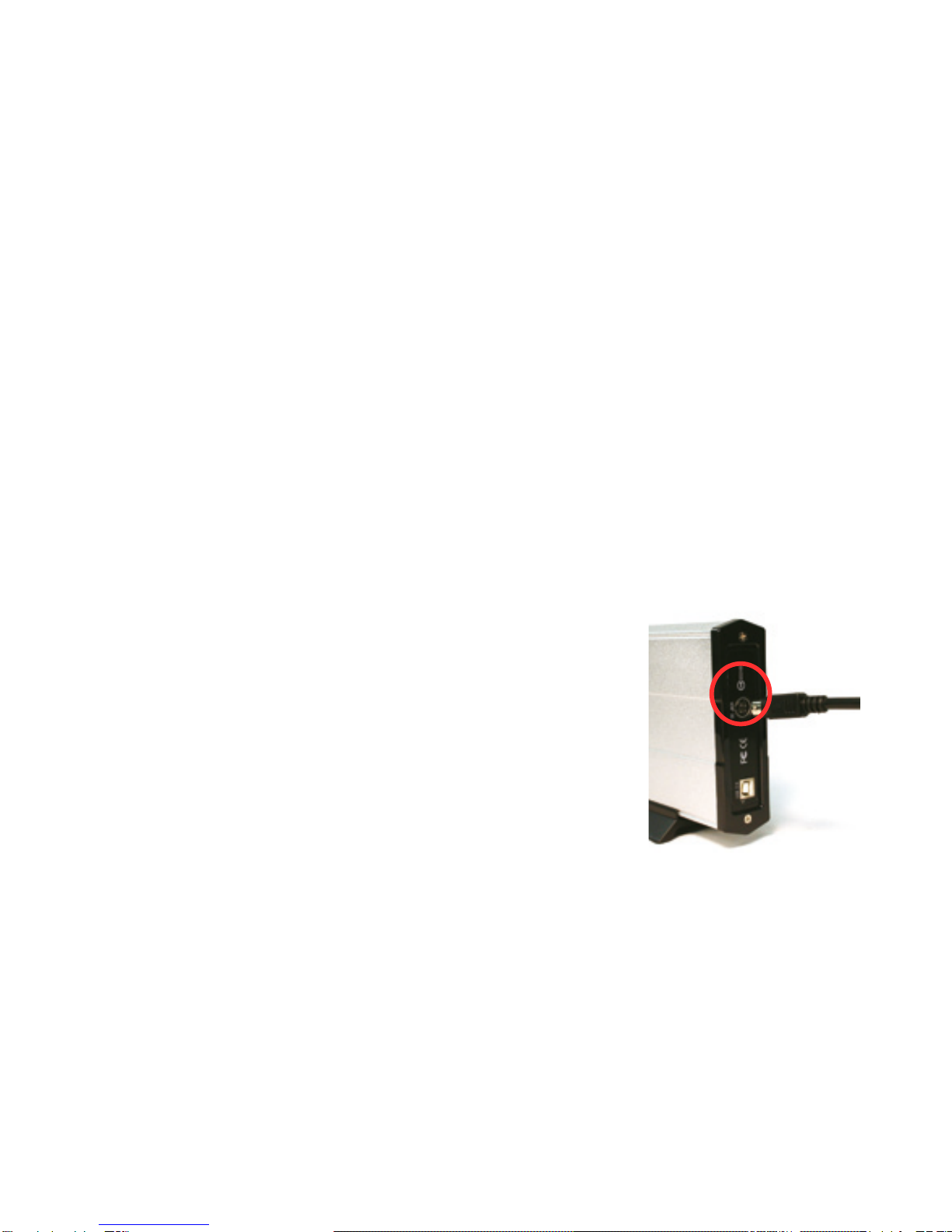

Step 2. Connect the power adapter to the drive. (Fig. 1)

Then plug the power adapter into an electrical outlet.

99

Fig. 1

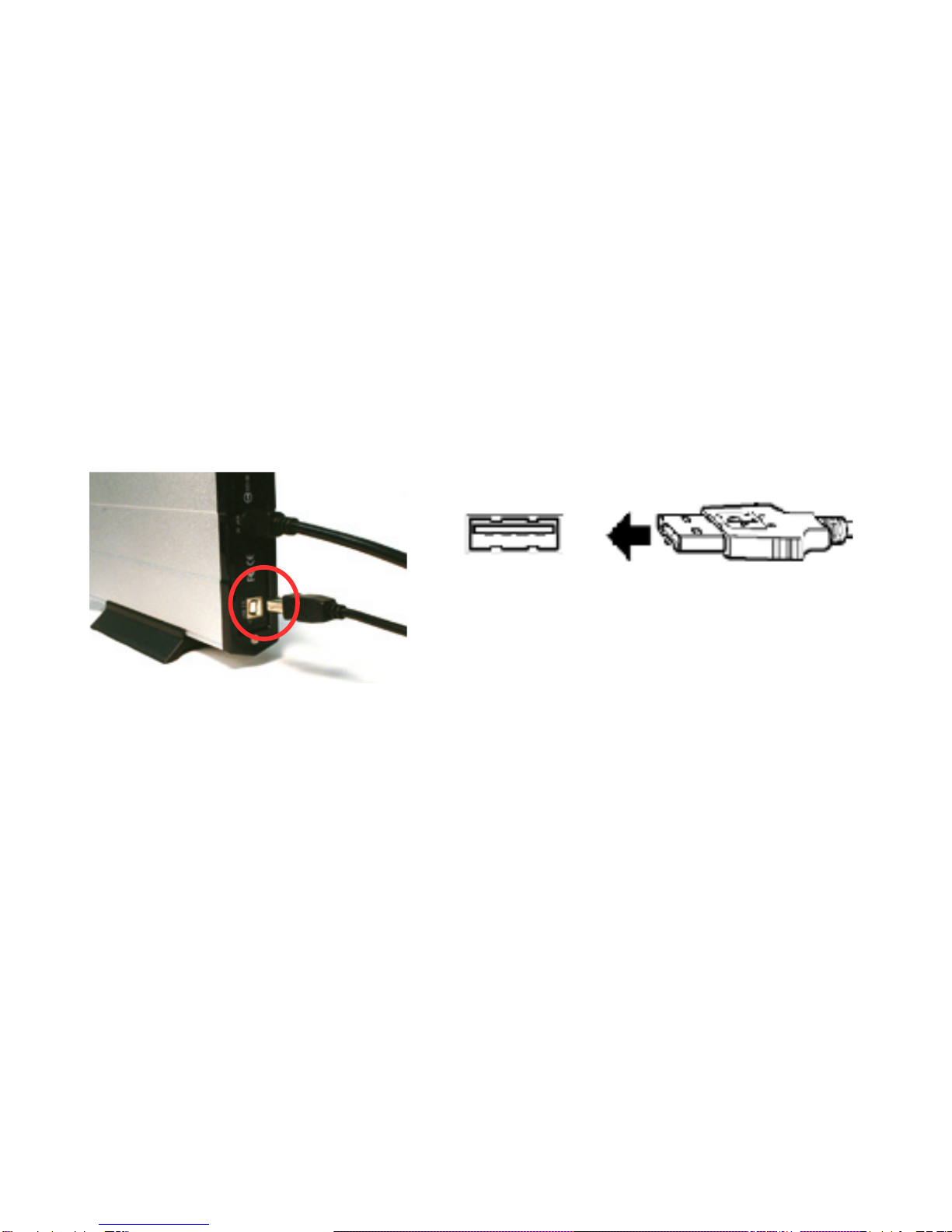

Step 3. Connect the square end of the USB cable to the hard drive. (Fig. 2)

Then connect the flat end of the USB cable to the USB port on your

computer. (Fig. 3)

Step 4. Turn the power switch on.

NOTE: Connect the USB cable to the drive before connecting the cable to

the computer. To disconnect, remove the cable from the computer first.

1110

USB Cable Plug

USB Port

Fig. 2

Fig. 3
