Chapter 1: DVR Features

Real time monitoring Supports real time surveillance via Monitor

Saves Recordings DVR saves real-time recording image to HDD

Backup Recordings Supports DVR backup via USB flash drive and hard drive.

Playback Recordings Supports DVR single CH and multiple CH playback of recorded files

Network operation Supports remote surveillance by multiple users simultaneously

Alarm Setting Supports HDD & video input alarm management and external alarm signal

inputs

Mouse Operation Supports Mouse operation for faster menu navigation.

PTZ Control Supports PTZ camera operations through RS-485.

List 1-1

Other Features：

H. 264 video compression format, supports D1, HD1, CIF resolution

ADPCM audio compression format

Windows Graphical interface

BNC and VGA video out ports

Supports remote live viewing via 3G mobile networks

Supports sending email alerts when motion is detected by system

Triplex (recording, playback and net transmitting at the same time)

Supports USB mouse, IR remote control operation

Rear USB2.0 ports for backup, upgrade and mouse operation.

Supports Double Encode bit network transmission

The video package time is adjustable

Multiple alarm record mode

Multiple language OSD

Supports auto maintenance

User Manual

Chapter 2:Layoutt

2.1 Front Panel

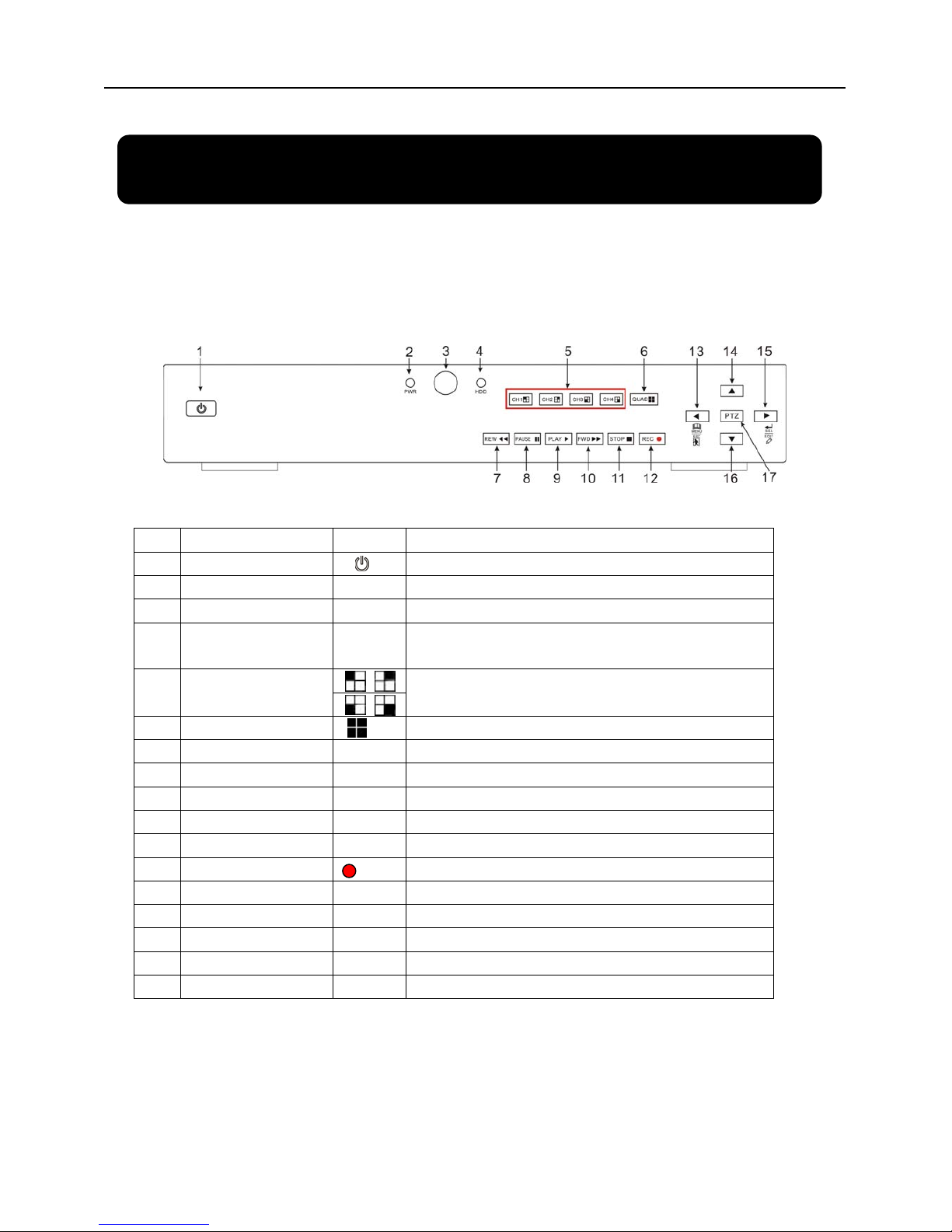

2.1.1 4-CH Front Panel (Details please refer to the real product)

Item Key title/Indicator Marks Functions

1 Power Switch Turn Power on and off

2 Power indicator PWR If the “Green” indicator is on the system is getting power

3 IR Receiver Receives signal from Remote Control

4 HDD indicator HDD When the “Red” indicator flashes it means the hard drive

is being read or written to.

5 Channel Select:

CH1 CH2 CH3 CH4 Select Single Channel Display

6 QUAD Display all cameras in Live display or playback mode

7 REW Move Left / Rewind

8 PAUSE Pause / play frame by frame

9 PLAY Enter into pop-up Menu/Play

10 FWD Move Right / Play Forward

11 STOP Stop Playback; stop manual recording

12 REC Start Manual recording

13 MENU/ESC Enter into main menu or exit menu

14 Up Move Up

15 SEL/EDIT Enter into pop up menu; Select key / Edit

16 Down Move Down

17 PTZ：Move to PTZ control mode

List 2-1

User Manual

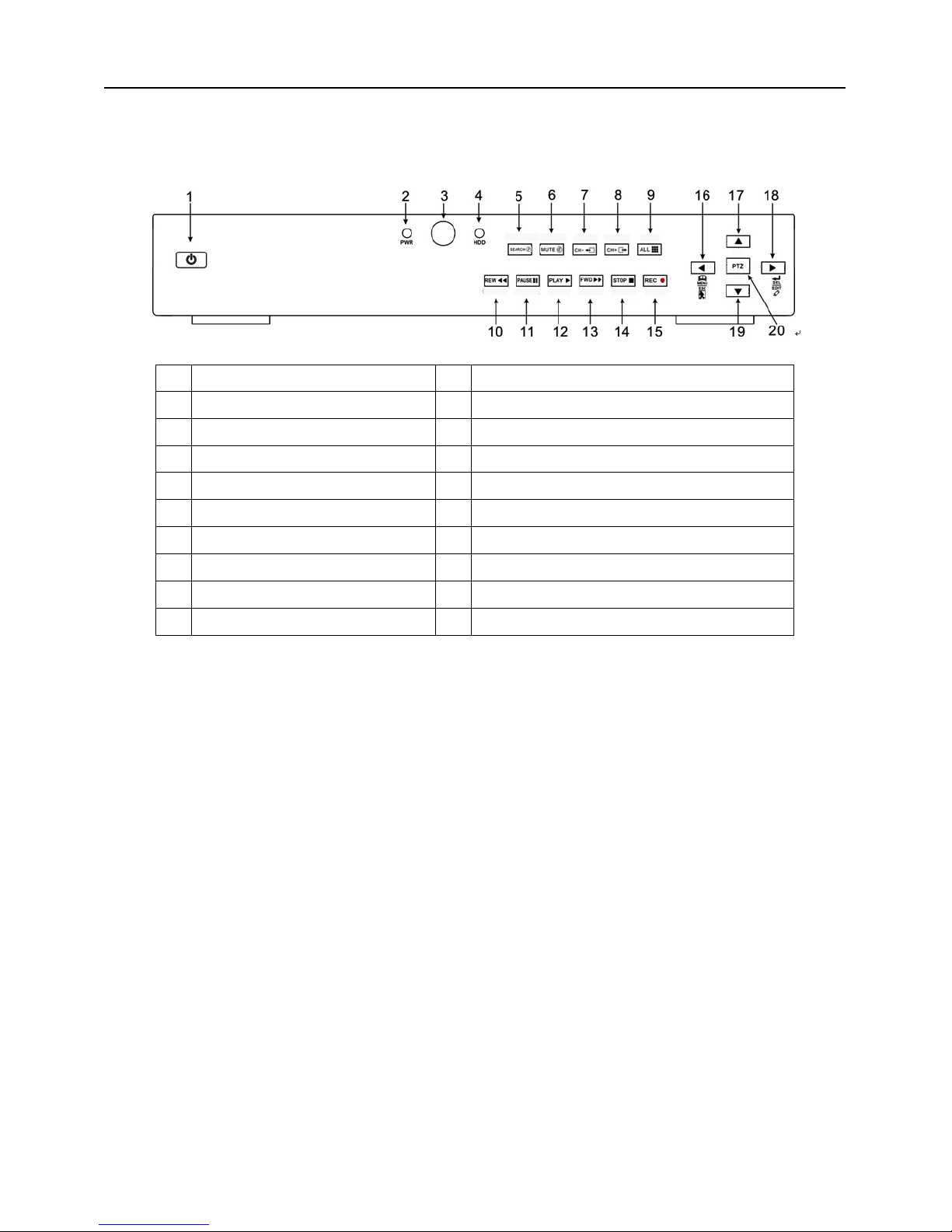

2.1.2 8-CH Front Panel (Details please refer to the real product)

1 Power Switch 11 PAUSE: Pause / Frame Play

2 PWR: PWR Indicator 12 PLAY: Play

3 IR receiver for Remote Control 13 FWD: Play Forward / Move Right

4 HDD: HDD Indicator 14 STOP: Stop Playback; Stop manual Recording

5 SEARCH: Recording Search 15 REC: Manual Recording

6 MUTE: Audio Mute key 16 MENU/ESC: Menu / Escape

7 CH-: Switch to previous channel 17 UP: Move Up

8 CH+: Switch to next channel 18 SEL/EDIT: Select / Edit

9 ALL: Preview all channels 19 DOWN: Move Down

10 REW: Rewind / Move Left 20 PTZ: Move to PTZ control mode

User Manual

2.2 Rear Panel

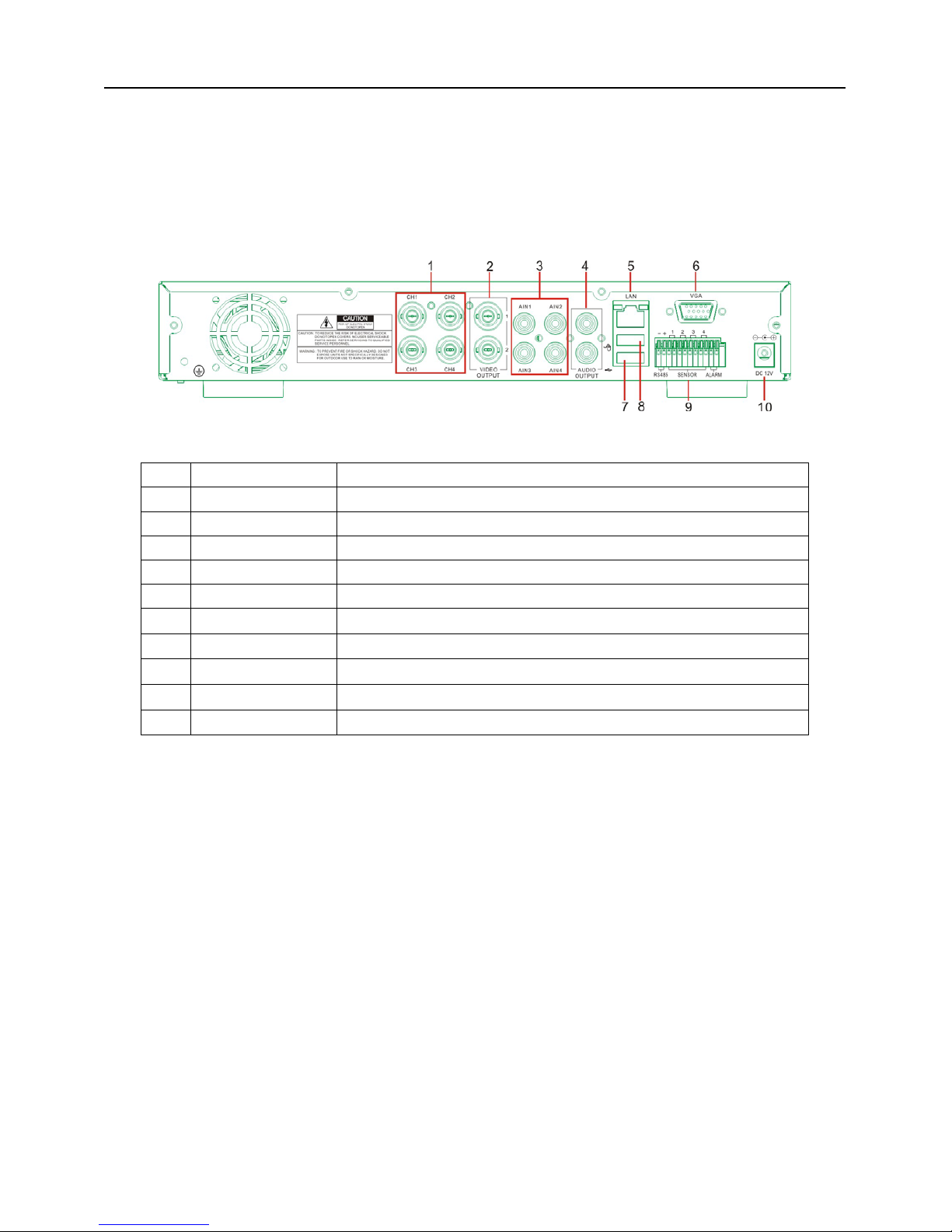

2.2.1 4-CH Rear Panel

(Details please refer to the real product)

Item Physical port Connection method

1 Video input Connect CH1-4 ( BNC interface)

2 Video output Connect monitor output ( BNC interface)

3 Audio inp ut Connect CH1-4 audio signal input (RCA interface)

4 Audio output Connect signal output (RCA interface)

5 Ethernet: Port Connect intranet, internet (RJ45 interface)

6 VGA Port Connect to VGA monitor

7 USB Port Connect USB device (Flash Drive, Hard Drive)

8 USB Port Connect USB mouse

9 RS-485/Sensor/Alarm RS485/Sensor/Alarm interface (see pin outs below)

10 Power Port Connect power supply - DC12V 3A

User Manual

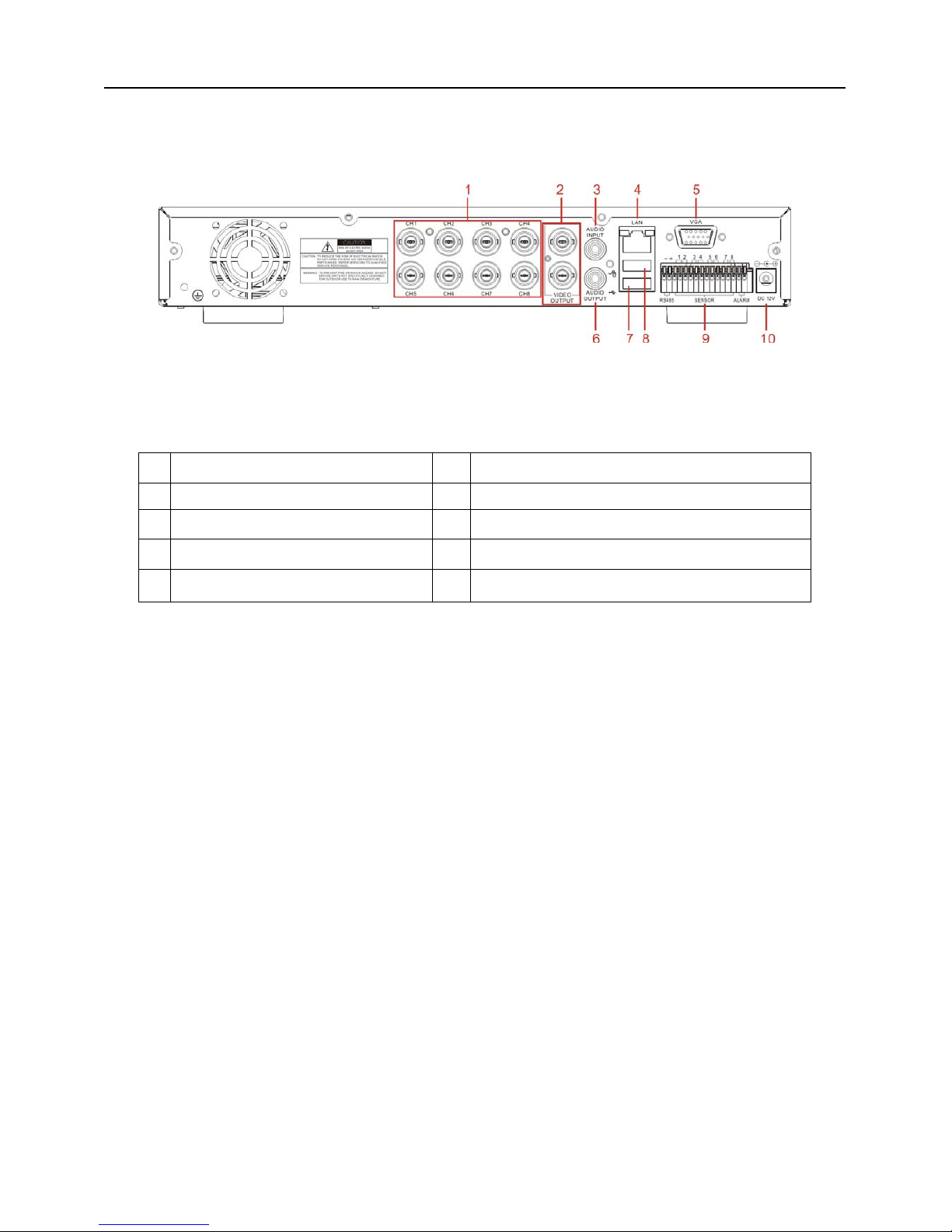

2.2.2 8-CH Rear Panel (Details please refer to the real product)

1 CH1-8: Video inputs 6 Audio Output

2 Video Outputs 7 USB port: backup to Flash Drive & Hard Drive

3 Audio Input 8 Mouse port

4 LAN: LAN port for Network Access 9 RS-485/Sensor / Alarm port

5 VGA port 10 Connect power supply

4-CH: RS485/Sensor/Alarm port

functions (from left to right):

Pin 1-2：PTZ Control port

Pin 1：RS-485A

Pin 2：RS-485B

Pin 3-4：Sensor 1 input

Pin 5-6：Sensor 2 input

Pin 7-8: Sensor 3 input

Pin 9-10：Sensor 4 input

Pin 11-12：Alarm Output

8-CH: RS485/Sensor/Alarm port functions

(from left to right):

Pin 1-2：PTZ Control port

Pin 1：RS-485A / Pin 2：RS-485B

Pin 3-4：Sensor 1 input

Pin 4-5：Sensor 2 input

Pin 6-7：Sensor 3 input

Pin 7-8：Sensor 4 input

Pin 9-10：Sensor 5 input

Pin 10-11：Sensor 6 input

Pin 12-13：Sensor 7 input

Pin 13-14：Sensor 8 input

Pin 15-16：Alarm Output

User Manual

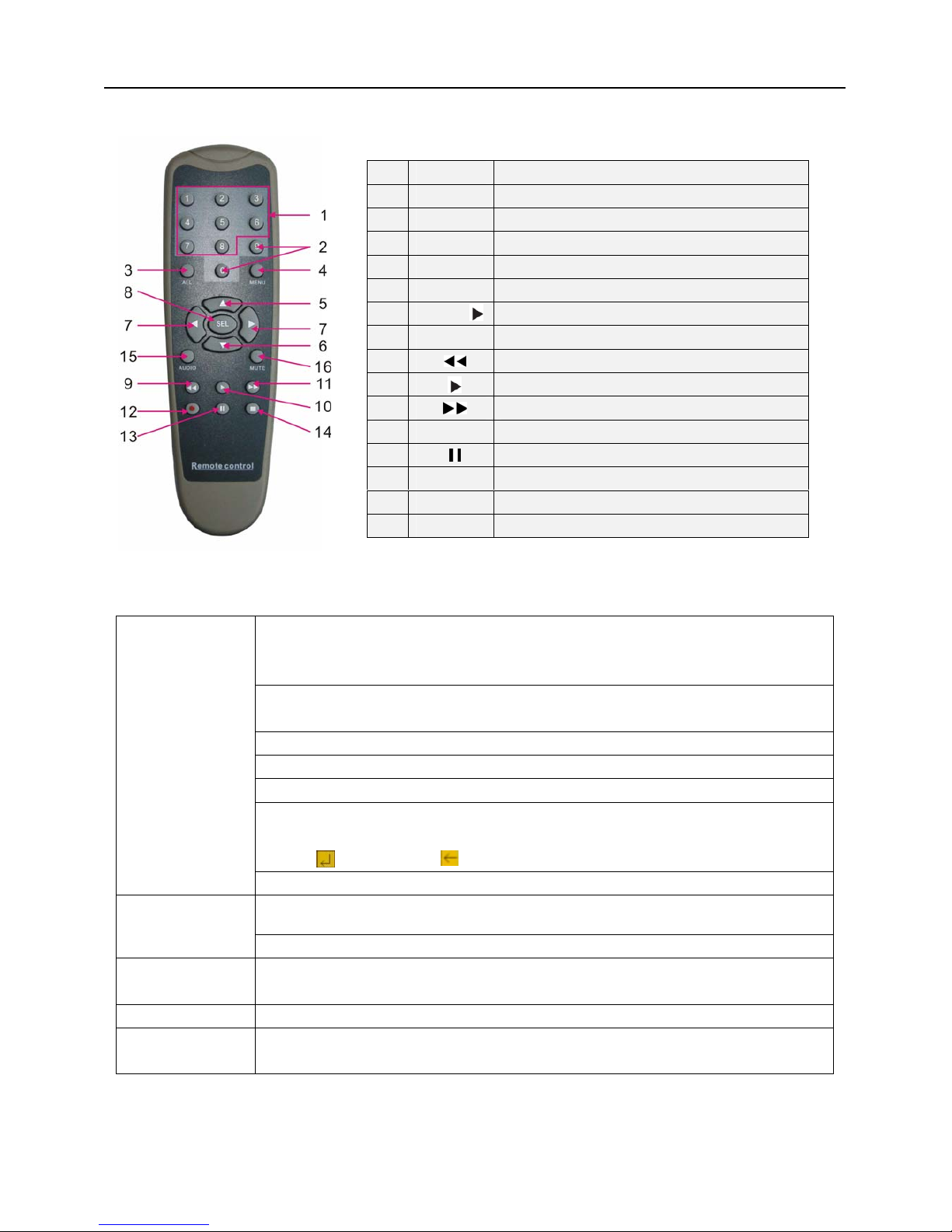

2.3 Remote Control

Mouse Operation

You can use a mouse instead of front panel buttons or remote control.

In menu lock mode, Enter into pop-up menu and clicking any sub menu to pop up Log-in

window; on menu unlock mode, enter into pop-up menu, and then clicking left key to

enter into any sub menu directly.

After entering main menu, clicking left key could enter into any sub menu; On[Detailed

file] menu mode, clicking left key could playback one recording file.

Change the status of check box and motion detection area.

Clicking combo box to access pull-down menu

By clicking left key you can adjust Color control bar and volume control bar.

By clicking left key you can select values in edit boxes or pull-down menu and supports

Chinese word input, special symbol, numeric and character input, use instead of

[Enter- ] or [Backspace ]

Click left key of

Mouse

In the [Detailed file] menu mode, clicking left key will playback one recording file.

In live display mode, clicking right key will display pop-up menu (shown as Picture 5-1).

Click right key of

Mouse In Main menu or sub menu mode, clicking right key will exit current menu.

Double-click Left

key of Mouse In live display or playback mode, double-clicking left key will maximize the screen.

Moving Mouse Select menu item

Sliding Mouse On motion mode, sliding mouse will select motion area; On [Color set] menu mode,

sliding mouse will adjust color control bar and volume control bar.

List 2-3

1 1-8 Channel Select 1-8 ; Numeric key

2 9、0 Numeric Key

3 ALL Preview all Channel

4 Menu Enter/Exit Main Menu

5 ▲Up Key

6 ▼Down Key

7 ◄/Left / Right Key

8 SEL Select Key/ Edit Key

9 Rewind key

10 Play Key, Enter to recording search menu

11 Forward Key

12 ●Manual Recording

13 Pause / Frame Play

14 ■Stop manual recording; Stop Playback

15 Audio Undefined

16 Mute Undefined

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali CCTVDISCOVER Registratore digitale

CCTVDISCOVER

CCTVDISCOVER JE-D7004 Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
