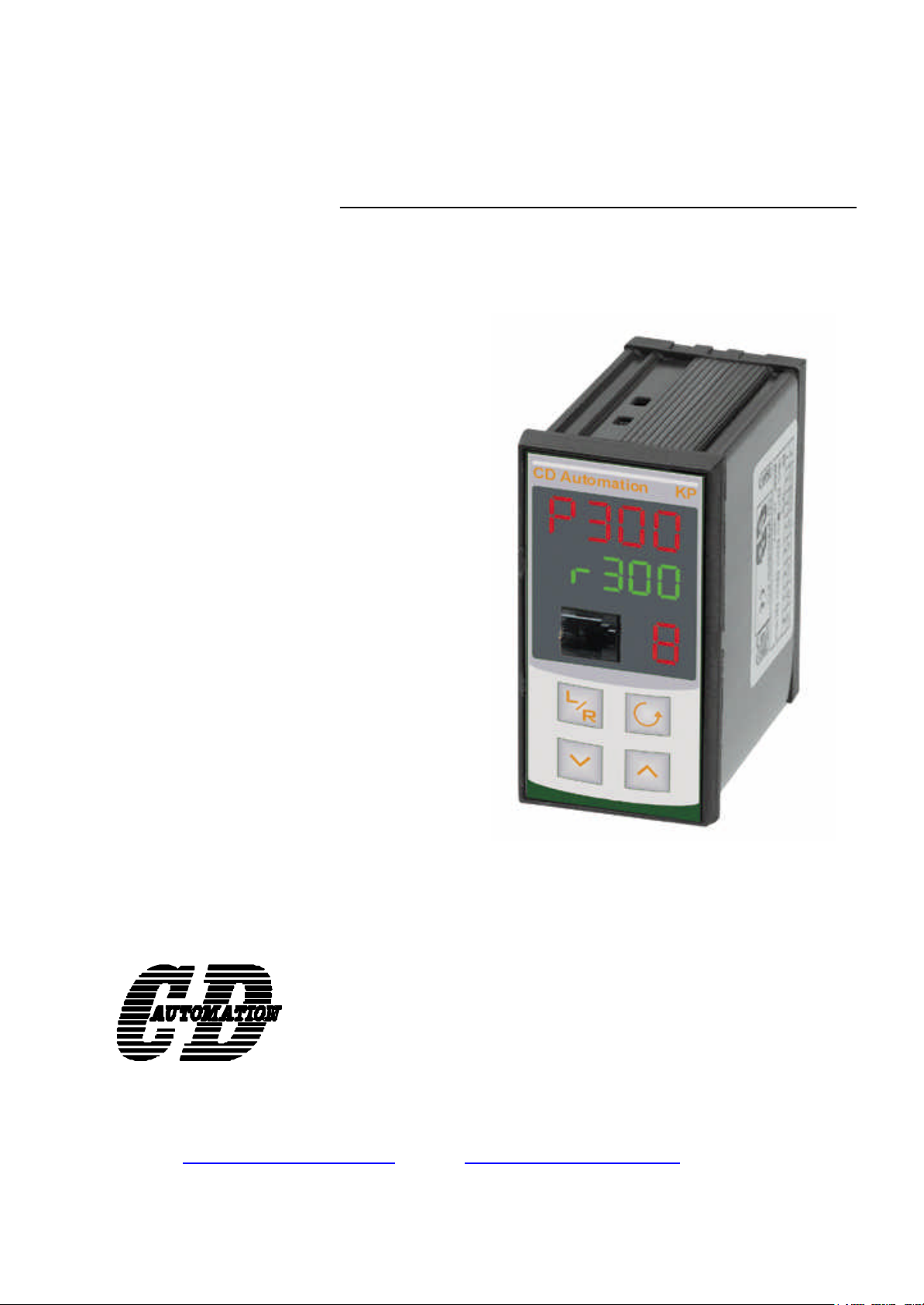

USER MANUAL

Rev. 02/2005

CD-KP

for MULTIDRIVE & CD3000E

CD Automation S.r.l.

Via Picasso 34/36 -20025 –Legnano (MI) –Italy

Tel +39 0331 577479 –Fax +39 0331 579479

e-mail: [email protected] -web: www.cdautomation.com

CD-KP for MULTIDRIVE and CD3000E

Index

1 CD-KP for MULTIDRIVE and CD3000E 4

1.1 General description 4

1.2 Ordering code 4

1.3 Dimensions 5

1.4 Wiring connection 6

1.5 Retransmission selection 6

1.6 Frontal Keypad 7

1.7 Frontal plug-in connector 7

1.8 Default settings 8

1.9 Start-up 8

2 Menu general description 9

2.1 General description of menus 9

2.2 Password usage 9

2.3 Operator menu (oper )12

2.4 Command menu (Cnd)14

2.5 Calibration menu (CAL)14

2.6 Diagnostic menu (dIA)15

2.7 Setup menu (SEtU)17

2.8 Configuration menu (Conf)19

2.9 Restoring of default configuration 21

C.D. Automation Srl CD-KP for CD3000E & Multidrive User’s Manual

www.cdautomation.com 4

1CD-KP for MULTIDRIVE and CD3000E

1.1 General description

CD-KP is a panel device allowing to display some operative parameters of thyristor units as

voltage, current, power, reference, alarms, etc.

CD-KP can be configured to select which parameter to display and is possible to execute

commands as start and stop of the connected unit, display and reset of alarms, to change

reference and ramp.

All the menus (exc ept the operator menu) can be protected by password to avoid accidental

change of configuration parameters by unauthorised personnel.

CD-KP has an isolated analog output 0÷10V/0÷20mA/4÷20mA to retransmit parameters’

value as voltage, power and reference.

Working

temperature

0÷45°C (HR<90%)

Supply votage 115-230 Vac ±10% 50-60 Hz

Power drain 3VA

Display 1 LED 7 segments 10mm.

Display 2 LED 7 segments 8mm.

Display 3 LED 7 segments 10mm.

Units featured CD-KP can communicate with CD3000E or Multidrive units via RS-485.

Wirings Extraible 8 poles terminal

Protection Ip30

Communications RS485 Modbus

Retransmission Isolated 0÷20mA/4÷20 mA, impedance 500Ωor 0÷10V, impedance 1KΩ.

1.2 Ordering code

CD-KP TYPE/ AUXILIARY VOLTAGE SUPPLY(V)/ MANUAL TYPE

TYPE

•5 –CD3000E-2PH

•6 –CD3000E-3PH

•7 –MULTIDRIVE-2PH

•8 –MULTIDRIVE-3PH

AUXILIARY VOLTAGE SUPPLY(V)

•1 –120V

•2 –240V

MANUAL TYPE

•1 –Italian version

•2 –English version

User’s Manual CD-KP for CD3000E & Multidrive C.D. Automation Srl

5www.cdautomation.com

1.3 Dimensions

C.D. Automation Srl CD-KP for CD3000E & Multidrive User’s Manual

www.cdautomation.com 6

1.4 Wiring connection

All the wirings are done via the rear terminals,

following the schema.

The supply of CD-KP can be 120Vac or 240Vac and

must be specified in ordering code.

Re-Transmission

of P.V Selected

1 2 3 4 5 6 7 8

RS485

0÷20mA

420mA

010V

120Vac

or 240Vac

selectable

1.5 Retransmission selection

In configuration menu it is possible to select which variable to retransmit and the output type:

0÷20mA, 4÷20mA, 0÷10V.

There is also an hardware configuration that must be

done: a jumper must be set near the rear terminals, as

showed in figures on the right.

If the output is configured as 0÷20mA or 4÷20mA, the

jumper must be set as in fig. A (current selection).

If the output is configured as 0÷10V, the jumper must

be set as in fig. B (voltageselection).

Fig. A Current selection

Fig. B Voltage selection

User’s Manual CD-KP for CD3000E & Multidrive C.D. Automation Srl

7www.cdautomation.com

1.6 Frontal Keypad

In the figure below are showed the displays, the keys and the frontal plug-in of CD-KP.

1.6.1

1.7 Frontal plug-in connector

The plug-in connector on front of CD-KP allows to put a PC in communication with a CD3000E

or MULTIDRIVE thyristor unit.

Usually, the thyristor unit is mounted in a cabinet and to have access to it the operator must

pay attention to high voltage or

stop the plant. Connecting the

configuration cable (supplied

separately) to the CDKP, it will

provide the physical link with the

thyristor unit releasing the control

on communication line. All the

displays of CD-KP will flash and the

control on serial link will be

released. In this condition, no

operation is possible on CDKP and

all keys are disabled.

Unplugging the configuration cable,

the CD-KP will return in its normal

working condition.

Error/Alarm display

E = communication error

A = Multidrive/CD3000E alarm

Roll key:

Used to scroll the items in menus or

to confirm a selection.

Upper display:

Used to display the menu items, the

parameters names or the process

variables.

Lower Display:

Used to display the parameters’ value

or the precess variables.

Plug

in connector:

It allows to connect a PC to the CD-

KP.

L/R key (Local/Remote):

If enabled, it allows to switch from

remote to local mode. It is also used

to save the settings of the

configuration menu.

Down key:

Used to decrease the selected parameter’s

value or to scroll down in the menus.

Up key:

Used to increase the selected parameter’s

value or to scroll up in the menus.

C.D. Automation Srl CD-KP for CD3000E & Multidrive User’s Manual

www.cdautomation.com 8

1.8 Default settings

CD-KP is supplied with a base configuration allowing the immediate usage without any further

configuration. Some default values are reported in the following table.

Function Value Notes

Addressed unit 1

Baud Rate 19200

L/R key Off Disabled

Cmd feature in operator menu Off Disabled

Retransmission Off Disabled

Upper operator display 1 P32 Power (average on 3 phases)

Lower operator display 1 P8 Reference

Upper operator display 2 Arst Current (average on 3 phases)

Lower operator display 2 P8 Reference

Upper operator display 3 P31 Voltage

Lower operator display 3 P8 Reference

Command menu password 255 Enabled

Calibration menu password 255 Enabled

Diagnostic menu password 255 Enabled

Setup menu password 255 Enabled

Configuration menu password 255 Enabled

By default, CDKP is configured to communicate with units at address 1 and baud rate 19200.

The variables displayed in operator menu are: average power (P32), average current (Arst

parameter), voltage and reference signal in percentage. All the menus are protected by

password with value 255.

1.9 Start-up

Before to supply the CD-KP check that the wiring is correct and verify the supply line voltage

value (120Vac or 240Vac). Automatically, the operator menu 1 will be displayed with power

value in upper display and reference value in lower display.

If an “E” is flashing in error/alarm display, there is a communication error, CD-

KP is not able to exchange data with thyristor unit. The user must verify:

-that CD-KP and thyristor unit have the same baud rate

-that the address called by CD-KP is the unit’s address

-that the polarities of RS485 link are correct

-that the thyristor unit is supplied and in ON condition.

If an “A” is flashing in error/alarm display, it means that CD-KP received an

alarm indication from the thyristor unit. The user must go in the operator

menu, scroll up to alarm sub-menu ( ALAr ), identify the alarm type and

remove its cause (see operator menu’s paragraph).

User’s Manual CD-KP for CD3000E & Multidrive C.D. Automation Srl

9www.cdautomation.com

2Menu general description

2.1 General description of menus

The main menu of CD-KP is composed by 6 sections:

Conf

SetuoPEr Cnd CaL Dia

OPERATOR COMMAND CALIBRATION DIAGNOSTIC SETUP CONFIGURATION

Each section is composed by one or more items or sub-menus.

At any time, it’s possible to return to the oper item in main menu by pressing together the

roll key and up key .

The up and down keys scroll through the sections, the roll key gives access to the

selected section.

All the sections (except the oper section) are usually protected by password to avoid access

by unauthorised personnel. The password policy can be changed in configuration menu.

(Conf).

2.2 Password usage

When the user tries to enter in a protected menu, the CD-KP will ask for a password.

Insert the password using the up and down , keys and confirm with roll key .

Wrongpassword

255

Main menu Password menu

Insert password

Correctpassword

Sub-menu

If the operator inserts the correct password, then it is possible to access to sub-menu,

otherwise the CD-KP will return to the main menu. There is no limit to tries.

By default, all passwords are set to 255 and can be changed in configuration menu.

C.D. Automation Srl CD-KP for CD3000E & Multidrive User’s Manual

www.cdautomation.com 10

Cnd

CaL

Dia

oPEr

0CndCnd

+ +

Wrongpassword

OP1OP2OP3

Cnd

Wrongpassword
