CECOFRY ADVANCE INOX
CECOFRY ADVANCE INOXDARK 43
ENGLISH
1. PARTS AND COMPONENTS

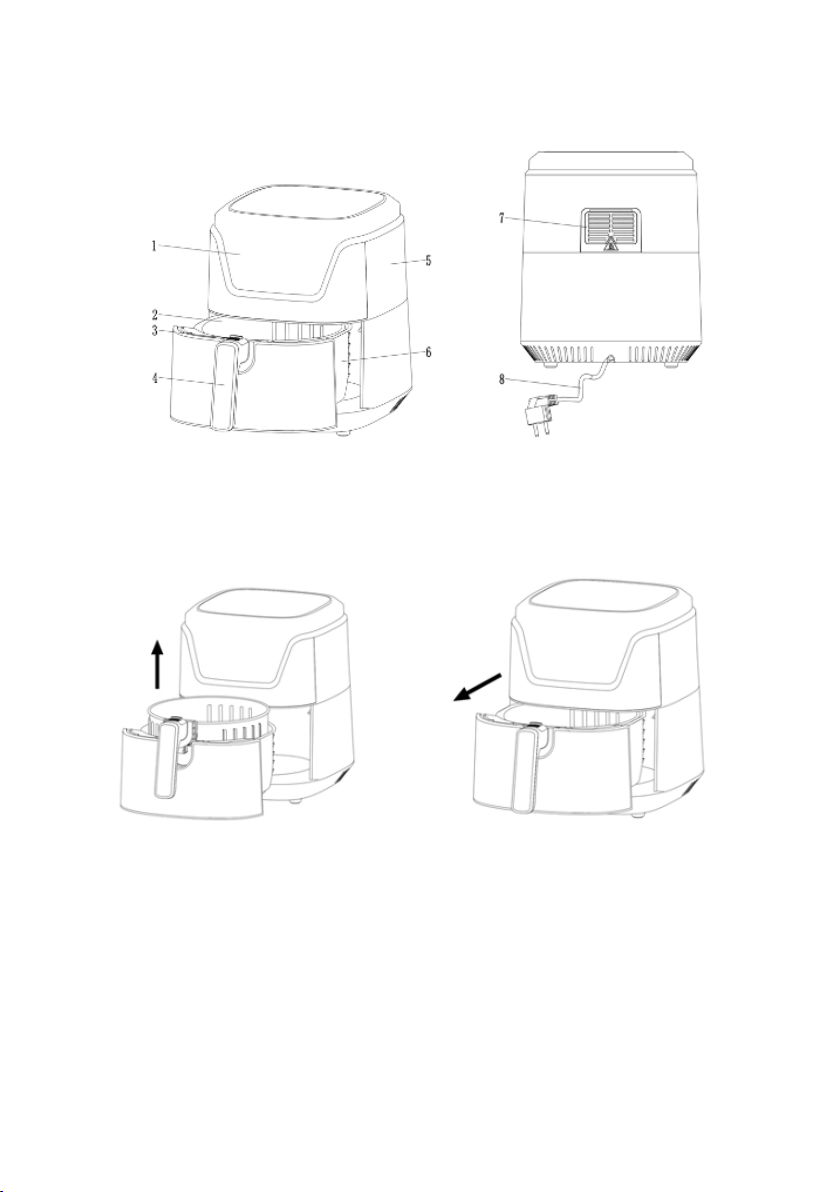

Fig. 1.
1. Control panel
2. Basket
3. Basket release button
4. Basket handle
5. Housing
6. Tray
7. Air outlet
8. Power cord
2. BEFORE USE
- Take the product out of the box.
- Check for any visible damage. If any is observed, contact as soon as possible the Technical
Support Service of Cecotec for advice or reparation.
- Clean the basket and container thoroughly with hot water, washing-up liquid and a
non-abrasive sponge.
- Clean the inside and the outside of the device with a damp cloth.
- Place the fryer on an even, heat-resistant surface.
- Place the basket in the container.
Fig. 2.
Warning
- Do not wet the heating element.
- Do not ll the device with oil or any other liquid.
- Do not place the device on any surface that it is not heat-resistant.
3. OPERATION
1. Plug the device into a power supply.
2. Take the container and the basket out from the device carefully.
Fig. 3.
3. Put the ingredients in the basket.
Fig. 4.
4. Slide the container back into the device by aligning it with the guides in the body of the
device.
Fig. 5.
5. Set the required preparation time for the ingredient.
CECOFRY ADVANCE INOX
CECOFRY ADVANCE INOXDARK
44
ENGLISH
Note
Some ingredients require shaking halfway through the preparation time. To shake the
ingredients, pull the container out of the appliance by the handle and shake it. Then slide the
container back into the air fryer. Do not press the basket release button during shaking.
Tips
To reduce the weight, remove the basket from the container and shake the basket only. To do
so, pull the container out of the appliance, place it on a heat-resistant surface and press the
button of the handle. Lift the basket out of the container.
6. When the timer buzzer is heard, pullthe container out ofthe appliance. If you want to turn
the device off before the set time has elapsed, turn the set time to 1 minute or hold down
the power button for 3 seconds. Off will appear on the control panel.
7. Check if ingredients are ready.
8. If the ingredients are not ready yet, simply slide the container back into the appliance and
set the timer to a few extra minutes.
9. To remove ingredients, pull the container out of the device, place it on a heatproof surface.
Press the basket release button and lift the basket out of the container.
10. Empty the basket into a bowl or onto a plate.
11. When a batch of ingredients is ready, the device is instantly ready for preparing another
batch.
Warning
- Never use the container without the basket in it.
- Do not touch the container during and immediately after use, as it gets very hot. Only hold
the container by the handle.
- Do not turn the basket upside down with the container still attached to it, as any excess oil
that has collected on the bottom of the container will leak onto the ingredients.
- The container and the ingredients are hot. Depending on the type of the ingredients in the
air fryer, steam may escape from the pot.
Control panel
Fig. 6.
Power (1)
Once the basket and the grill are properly placed in the main unit housing, the power button
will light up. Hold down the power button for 3 seconds to set the preset frying temperature
and time, 180 ºC and 15 minutes. Press the power button again to start the frying process.
Press the power button again for 3 seconds to turn the device off.
CECOFRY ADVANCE INOX
CECOFRY ADVANCE INOXDARK 45
ENGLISH
Note
While the device is operating, you can still touch the power button for pausing and resuming
the frying process.
Mode (2)
Press the Mode button to choose between the 8 most popular food choices. All the modes
have preset cooking temperature and time. Press the mode button to start one ofthe 8 modes.
Then, press the power button to activate it.
Time and temperature increase and decrease (3) (4)
1. Use these buttons to increase or decrease the cooking time and temperature (from 80 ºC
to 200 ºC).
2. To adjust temperature, rst press the temperature symbol and then + or -.
3. To adjust time, rst press the time symbol (6) and then + or -.
4. Hold down the symbol to increase or decrease rapidly.
5. Once settings are selected, the display will light up showing the settings.
Preset modes
Mode Steak Chicken
wings
Shrimp Fish Pizza Frozen
chips
Baking Vegetables
Temperature
(ºF)
400 400 360 360 380 400 320 320
Temperature
(ºC)
200 200 180 180 190 200 160 160
Default time
(min)
8 25 8 18 5 22 27 27
Min. And Max.
amount (g)
100-600 100-500 100-500 100-500 100-500 100-500 100-500 100-500
Note
Keep in mind that these are just indications. As ingredients differ in origin, size, shape and
brand, we cannot guarantee the best setting for the ingredients that you are using.
Tips
- Smaller ingredients require shorter preparation time than the larger ones.
- A larger amount of ingredients only requires a slightly longer preparation time, and a
CECOFRY ADVANCE INOX
CECOFRY ADVANCE INOXDARK
46
ENGLISH
smaller amount of ingredients only requires a slightly shorter preparation time.
- Shaking small ingredients during the frying process optimises the result and can help
preventing unevenly fried ingredients.
- Add some oil to the fresh potatoes for a crispier result.
- Do not use the device to fry greasy food (such as sausages).
- Food that can be cooked in an oven can also be cooked with the device.
- The optimal amount for preparing crispy fries is 500 grams.
- Pre-made dough requires a shorter preparation time than home-made dough.
- You can also use the device to re-heat ingredients. To do so, set the temperature to 150 ºC
for 10 minutes.
4. CLEANING AND MAINTENANCE
Cleaning
- Always clean the appliance after each use.
- Disconnect the appliance from the power supply and allow it to cooldown before cleaning.
- Do not use metallic tools or abrasive products to clean the basket and grill. Use a soft,
damp cloth to clean the device’s surface.
- Do not immerse the appliance in water or other liquid.
- Do not use abrasive cleaners or scouring pads to clean the product.
- Remove the basket to let the device to cool down more quickly.
- Clean the device thoroughly with hot water, washing-up liquid and a non-abrasive sponge.
- We recommend the use of a degreasing liquid to remove any remaining dirt.
- If dirt is stuck inside the basket or the bottom of the container, we recommend lling the
basket with hot water mixed with washing-up liquid, and then letting the basket and
container dry for approximately 10 minutes.
- Clean the inside of the device with hot water and a non-abrasive sponge.
- Clean the heating element with a soft cleaning brush to remove any food residue. Be
careful not to damage the heating element.
Storage
- Unplug the device and let it cool down.
- Make sure all its parts are clean and dry when you store it.
CECOFRY ADVANCE INOX
CECOFRY ADVANCE INOXDARK 47
ENGLISH
5. TROUBLESHOOTING
Problem Possible cause Solution
The device does not work. The product is not plugged in. Plug the device in.
You have not set the timer. Set the timer using the
timer knob to switch on the
appliance.
The ingredients inside the
device are not fried.
There are too many
ingredients inside the basket.
Put smaller pieces inside the
basket so they are fried more
evenly.
The temperature used is too
low.
Use the temperature knob
to set a higher temperature
setting.
The preparation time is not
enough.
Use the timer knob to set a
longer preparation time.
The ingredients are fried
unevenly in the air fryer.
Some types of food need to
be sautéed during the cooking
process.
Ingredients that lie on top
of or across each other (e.g.
fries) need to be shaken
during the preparation time.
Fried foodstuff is not crispy
when they come out the
device.
You used a type of foodstuff
that is meant to be prepared
in a traditional deep fryer.
Oil the foodstuff a little bit to
get a crispier result.
The container cannot be
placed inside the device
properly.
There are too many
ingredients inside the basket.
Do not ll the basket beyond
the Max mark.
The basket is not placed in
the container correctly.
Push the basket down into
the container until you hear a
“click” sound.
White smoke comes out of
the appliance.
You are preparing greasy
ingredients.
When greasy foodstuff are
fried, a large amount of oil
will leak into the container.
Frying oil produces white
smoke, and the container may
heat up more than usual. This
does not affect the appliance
or the result.
The container is still greasy
from previous uses.
White smoke is caused by
heating up oil in the container.
Make sure you clean the
container properly after each
use.
CECOFRY ADVANCE INOX
CECOFRY ADVANCE INOXDARK
48
ENGLISH
French fries are fried
unevenly in the device.
The right kind of potato is not
being used.
Use fresh potatoes and make
sure they stay consistent
while being fried.
You did not rinse the potato
sticks properly before you
fried them.
Rinse the potato sticks
properly to remove the
starch.
French fries are fried
unevenly in the device.
The right kind of potato is not
being used.
Make sure you dry the potato
sticks properly before adding
the oil.
Cut the potato sticks on
smaller pieces for crispier
results.
Add a little bit more of oil for
a crispier result.
6. TECHNICAL SPECIFICATIONS
04999 Cecofry Advance Inox
05000 Cecofry Advance InoxDark
220-240 V~, 50-60 Hz
1500 W
Capacity: 3.5L
Made in China | Designed in Spain
7. DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2012/19/EU on Waste Electrical and Electronic
Equipment (WEEE), species that old household electrical appliances
must not be disposed of with the normal unsorted municipal waste. Old
appliances must be collected separately, in orderto optimise the recovery
and recycling of the materials they contain and reduce the impact on
human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your
obligation to dispose of the appliance correctly.
Consumers must contact their local authorities or retailer for information concerning the
correct disposal of old appliances and/or their batteries.
CECOFRY ADVANCE INOX
CECOFRY ADVANCE INOXDARK 49
ENGLISH
8. TECHNICAL SUPPORT AND WARRANTY
This product is under warranty for 2 years from the date of purchase, as long as the proof
of purchase is submitted, the product is in perfect physical condition, and it has been given
proper use, as explained in this instruction manual.
The warranty will not cover the following situations:
- The product has been used for purposes other than those intended for it, misused, beaten,
exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault
attributable to the customer.
- The product has been disassembled, modied, or repaired by persons, not authorised by
the ofcial Technical Support Service of Cecotec.
- Faults deriving from the normal wear and tear of its parts, due to use.
The warranty service covers every manufacturing defects of your appliance for 2 years, based
on current legislation, except consumable parts. In the event of misuse, the warranty will not
apply.
If at any moment you detect any problem with your product or have any doubt, do not hesitate
to contact Cecotec Technical Support Service at +34 963 210 728.
Fig./Img./Abb./Rys./Obr. 1
Fig./Img./Abb./Rys./Obr. 2 Fig./Img./Abb./Rys./Obr. 3
Fig./Img./Abb./Rys./Obr. 4 Fig./Img./Abb./Rys./Obr. 5
Fig./Img./Abb./Rys./Obr. 6
Altri manuali per CECOFRY ADVANCE INOX
2
Indice
Altri manuali cecotec Friggitrice
cecotec
cecotec CECOFRY ADVANCE DOUBLE Manuale utente
cecotec
cecotec CECOFRY ANTIQUE 5000 Manuale utente
cecotec
cecotec BAKE&FRY 1400 TOUCH STEEL Manuale utente
cecotec
cecotec CECOFRY FULL INOX 5500 PRO Manuale utente
cecotec
cecotec CECOFRY BOMBASTIK 6000 FULL Manuale utente
cecotec
cecotec CECOFRY ABSOLUTE 7600 Manuale utente
cecotec
cecotec CECOFRY FANTASTIK 3000 Manuale utente
cecotec
cecotec CECOFRY DUOHEAT 6000 Manuale utente
cecotec
cecotec CECOFRY PIXEL 2500 Manuale utente
cecotec
cecotec CECOFRY ESSENTIAL RAPID SUN Manuale utente
cecotec
cecotec CECOFRY FULL INOXBLACK 5500 Manuale utente
cecotec
cecotec CECOFRY FULL INOXBLACK 5500 CONNECTED PACK Manuale utente
cecotec
cecotec CECOFRY DUAL 9000 Manuale utente
cecotec
cecotec CECOFRY ADVANCE PRECISION Manuale utente
cecotec
cecotec CECOFRY EXPERIENCE WINDOW 6000 Manuale utente
cecotec
cecotec CECOFRY COMPACT 2000 Manuale utente
cecotec
cecotec CECOFRY EXPERIENCE WINDOW WHITE 6000 Manuale utente
cecotec
cecotec CECOFRY FULL INOXBLACK 5500 PRO Manuale utente
cecotec
cecotec BAKE&FRY 3000 TOUCH Manuale utente
cecotec
cecotec CECOFRY COMPACT 2000 Manuale utente
