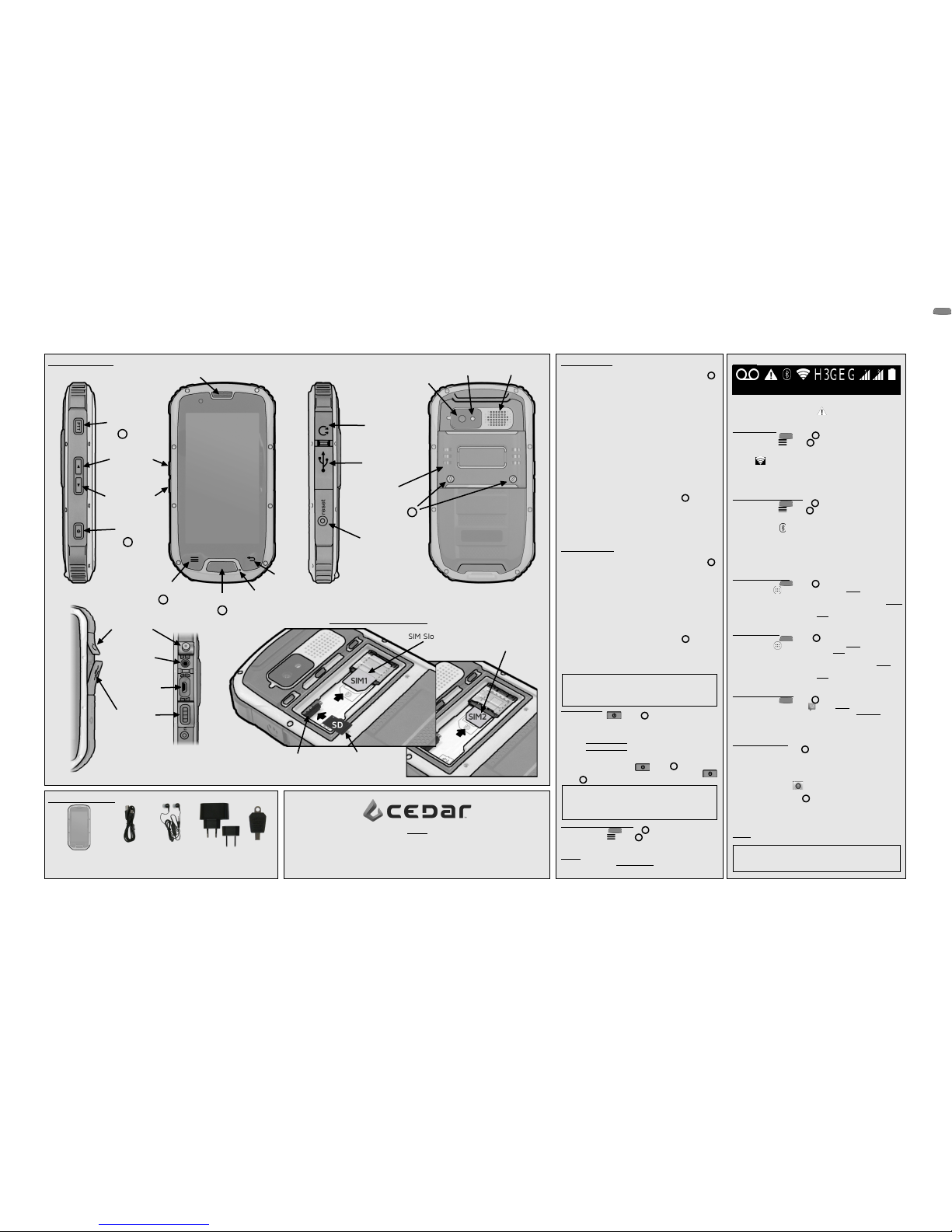

Quick Start Guide For

Cedar Tree Technologies

CT4 Handheld

Cedar Tree Technologies

1220 NW Kings Blvd • Corvallis, OR 97330 • 541-230-1206

support@cedartreetechnologies com • www cedartreetechnologies com/support

What's In The Box

Buttons and ports Installing a SIM card

1) Orient device as shown in the figure at lower left.

2) Using the provided screwdriver tool loosen the two screws

on the rear port cover by turning them counter-clockwise.

3) arefully lift and remove the rear port cover with the provided

screwdriver tool

4) Locate SIM Slot 1 in figure at lower left

5) Orient the SIM ard 1 as shown so that the contacts are down

and the notch is on the right

6) Gently push SIM ard 1 into the device with the provided tool

until it is fully seated. NOTE: Forcing the card into or out of the

slot could damage the unit. If the card does not seat properly or

does not function correctly, check the card orientation and try

again. SIM Slot 2 is available for customers who intend to be

connected to two cellular networks simultaneously. To use this

feature, rotate SIM ard 2 as shown below left so the contacts

are up and the notch is on the left before insertion into the slot.

7) To remove SIM cards, gently pull on the SIM card with

tweezers or your fingernail until it slides free of the slot.

8) Replace the rear port cover by aligning the three tabs on the

cover with the slots in the case.

9) Using the provided tool, tighten the two screws on the rear

port cover by turning them clockwise until the cover is fully

seated. Screws should be snug but over-tightening the screws

can damage the unit.

NOTE: The T4 only accepts full-sized SIM cards. If your cellular

carrier provides you with a micro SIM, you will need to insert the

micro SIM into a SIM card adapter before using it in your device.

Installing an SD card

1) Orient device as shown in the figure at lower left.

2) Using the provided screwdriver tool loosen the two screws

on the rear port cover by turning them counter-clockwise.

3) arefully lift and remove the rear port cover with the provided

screwdriver tool

4) Orient the SD card as shown so that the contacts are down

and the notch is on the left.

5) Gently push the SD card into the device with the provided tool

until it is fully seated. NOTE: Forcing the card into or out of the

slot could damage the unit. If the card does not seat properly or

function correctly, check the card orientation and try again.

6) To remove the SD card, gently pull on the SD card with

tweezers or your fingernail until it slides free of the slot.

7) Using the provided tool, tighten the two screws on the rear

port cover by turning them clockwise until the cover is fully

seated. Screws should be snug but over-tightening the screws

can damage the unit.

NOTE: The T4 only accepts microSD cards. Larger SD cards (i.e.

full-sized or miniSD) are not compatible with this unit.

Initial Power Up

1) Press the Power button

for 3 seconds

and wait for

the device to boot

2) Swipe the screen from left to right to unlock the device. The

SIM management app will automatically launch.

3) On the SIM card changed screen tap hang e

4) On the SIM management screen tap D ata c o n n ection and

then tap the button next to your SIM. This will activate the data

connection for the newly inserted SIM.

5) A quick press of the Power button will turn off the

display. To fully power down the device, press the P o wer

button

for 3 seconds

and tap Powe r o ff.

Adding your Google Account

1) Press the Home button

2) Press the Menu button

3) Tap Syst e m s etti n g s

4) Scroll down to Accoun t s and tap A d d an a c c ount on the

Settings screen

5) Tap Goog l e on the Add an account screen

6) Follow the instructions to setup your Google account

Indicators

NOTE: Data speed is indicated by a small superscript above each

cellular icon. H (HSPA) is the highest data speed followed by 3G, E

(edge) and G (GPRS). The warning ‘Slot 2:No SIM card detected’

can be ignored if using only one SIM.

onnect to Wi-Fi

1) Press the Home button

2) Press the Men u button

3) Tap Sys t e m setti n g s

3) Tap the OFF icon next to Wi-Fi to turn WLAN on. The Wi-Fi

indicator will appear at the top of the display and Wi-Fi will read

ON.

4) Tap Wi-Fi to view the list of nearby access points

5) Tap on the access point you wish to connect to. Enter any required

passwords to gain access to the WLAN network.

onnect a Bluetooth device

1) Press the Home button

2) Press the Men u button

3) Tap Sys t e m setti n g s

3) Tap the OFF icon next to Bl u etooth to turn Bluetooth on. The

Bluetooth indicator will appear at the top of the display and

Bluetooth will read ON.

4) Tap Blu e t o oth to view the list of nearby Bluetooth devices

5) Tap on the device you want to access

6) NOTE: If you are connecting another device to the T4, tap N ot

vis i b l e to o t h er Blue t o oth d e v i ces to make your device

temporarily discoverable.

Accessing Applications

1) Press the Home button

2) Tap the App s icon at the bottom of the Home screen

3) All applications installed on your device will be shown.

4) Tap and hold any application icon to create a shortcut on the Home

screen.

5) Tap Play S tore (on the second Apps screen) to locate and install

new applications.

Accessing Widgets

1) Press the Home button

2) Tap the App s icon at the bottom of the Home screen

3) Tap the Widg e t s tab at the top of the Apps screen

4) All widgets installed on your device will be shown.

4) Tap and hold any widget icon to create a shortcut on the Home

screen.

5) Tap Play S tore (on the second Apps screen) locate and install

new widgets.

Sending a Text Message

1) Press the Home button

2) Tap on the Mess a g i ng Icon on the Home screen

3) Tap on the plus symbol at the bottom left of the Messaging screen

4) Enter the phone number of the person you are texting in the ‘To’ box

5) Type the text message

6) Tap the send icon (paper airplane) at the bottom right

Operating the amera

1) Press the am e r a button

2) ompose the photo by tapping the amera screen with two fingers

and sliding them apart to zoom. Slide them together (pinching) to

zoom out.

3) Tap the Lig h t n ing icon at the bottom right to turn flash on, off, or

auto.

4) Tap the am e ra

icon at the bottom right to use the front

facing camera

5) Press the am e r a button or circular S hutter icon at the

bottom right of the display to take a still photo

6) You can capture video with sound by tapping the V ideo icon at the

bottom-left of the display. NOTE: The video files will be stored on the

SD card.

7) Additional settings are available using the icons at the top of the

amera screen. Tap the Gear icon to access advanced camera

settings.

Support

Web: www.cedartreetechnologies.com/support

Email: support@cedartreetechnologies.com

edar Tree Technologies

1220 NW Kings Blvd • orvallis, OR 97330 • 541-230-1206

sales@cedartreetechnologies.com • www.cedartreetechnologies.com

CT4

Handheld

USB Cable Earphones Power Plug

and Adapter

Tool

Earphone

Port Cover

USB / Charging

Connector

USB / Charging

Port Cover

Reset Button

Port Cover

Earphone

ack

Power

Volume up

Volume down

Home

Back

Microphone

Speaker

Rear

Port Cover

Camera

Port Cover

Screws

Flash

Rear-facing

Camera

Installing A SIM or SD ard

SIM Slot 1

SD Card

Port Cover

SIM Slot 2

SD Slot

WARNING: Ensure that the audio, USB, and rear port covers

are clean and securely seated before exposing the unit to

water. Failure to perform this step could lead to water

damage of the unit.

NOTE: After impact or extended underwater use, the device

may become unresponsive. To recover, power the device off

and back on. If the device is still unresponsive, charge for ten

minutes before powering on.

NOTE: Use only the supplied Micro USB cables for charging the device

and transferring data. Some existing USB cables will not charge the

device because the barrel is too large, or the connector is too short.

Vo ice ma i l Wi - Fi Da ta Sp e ed s el lu la r 1 & 2

Si gn al Stre ng th

Bl u e-

to o th

Wa r n-

in g

Bat -

ter y

Handset Speaker

Altri manuali Cedar Palmare

Cedar

Cedar CT4 Manuale utente

Manuali Palmare popolari di altre marche

Honeywell

Honeywell Dolphin 9900 Manuale utente

Honeywell

Honeywell CN75 Manuale utente

MiTAC

MiTAC Mio 168 Manuale utente

Wasp

Wasp WDT92 Manuale utente

Texas Instruments

Texas Instruments TI-Nspire Manuale utente

AXEM Technology

AXEM Technology MBS Manuale utente

Armstrong

Armstrong Brain Wave Istruzioni per il montaggio

Unitech

Unitech TB128 Manuale utente

Symbol

Symbol MC9000-G Manuale di installazione e funzionamento

Unitech

Unitech HT1 1D Batch Manuale utente

Ingenico

Ingenico IWL220 GPRS Manuale utente

Intermec

Intermec CK61 Manuale utente

Symbol

Symbol c2000 Manuale utente

Symbol

Symbol MC18 Manuale di installazione e funzionamento

Acer

Acer n20 Manuale utente

Intermec

Intermec CK61 Manuale utente

Docomo

Docomo F-04H Manuale utente

Toshiba

Toshiba e350 Series Manuale utente
