3200VSi‐ECX/3200VSx‐ECX
4200VSi‐ECX/4200VSx‐ECX
Owner’sManual
V3.15.22
[Thispageintentionallyleftblank.]
V3.15.22
CONGRATULATIONS!
ThankyouforpurchasinganewCellarProcoolingsystem.
PleasetakeaminutetoreadthroughthisOwner’sManualbeforeyouunpack,installandturn
onyourCoolingUnit.
Ifyouhaveanyquestionsaboutyournewcoolingunit,itislikelythatyouwillfindtheanswersin
thisOwner’sManual.Wealsohavemoreinformationonourwebsite,includingthelatestversion
oftheOwner’sManual,www.cellarpro.com.
Ifyoustillhavequestions,pleasedon’thesitatetocontactyourdealerorCellarProdirectly.We
canbereachedduringnormalbusinesshoursat1.877.726.8496.Youalsomaycontactusanytime
viaemailat[email protected].
ContactInformation:
CellarProCoolingSystems
1445N.McDowellBlvd
Petaluma,CA94954
877.726.8496
Email:[email protected]
Website:www.cellarpro.com
SerialNumber*_________________________________________________________
*Werecommendthatyoutakeaminutetofill‐inyourCellarProserialnumberabove.Theserial
numbercan befoundon the printedlabel on the sideofyourcooling unit, which may notbe
accessibleafteryouinstallyourcoolingunit.Youmayneedthisserialnumberintheeventyour
coolingunitneedsservice.
Don’tforgettoregisteryourcoolingunitwarrantyatwww.cellarpro.com/register,
orscanthefollowingQRcode:
4V3.15.22
TableofContents
I. Specifications 5
II. InstallationInstructions 11
III. OperatingInstructions 20
IV. Troubleshooting 34
V. LimitedWarranty 36
5
V3.15.22
I.Specifications
SpecsandCutSheets
Model
Dimensions(inches)
WxDxH
Weight
RunningCompressorAmps
3200/4200VSi‐ECX 14.1x25.1x19.6
(incl.drain) 115
3200/4200VSi‐ECX* 14.5x29.3x19.7
(incl.ducthood&drain) 123 8.9–3200
10.5–4200
3200/4200VSx‐ECX 14.5x27.6x19.7
(incl.exteriorcase&drain) 123
*Withoptionalducthood
3200VSi‐ECX/4200VSi‐ECXCutSheet
6
V3.15.22

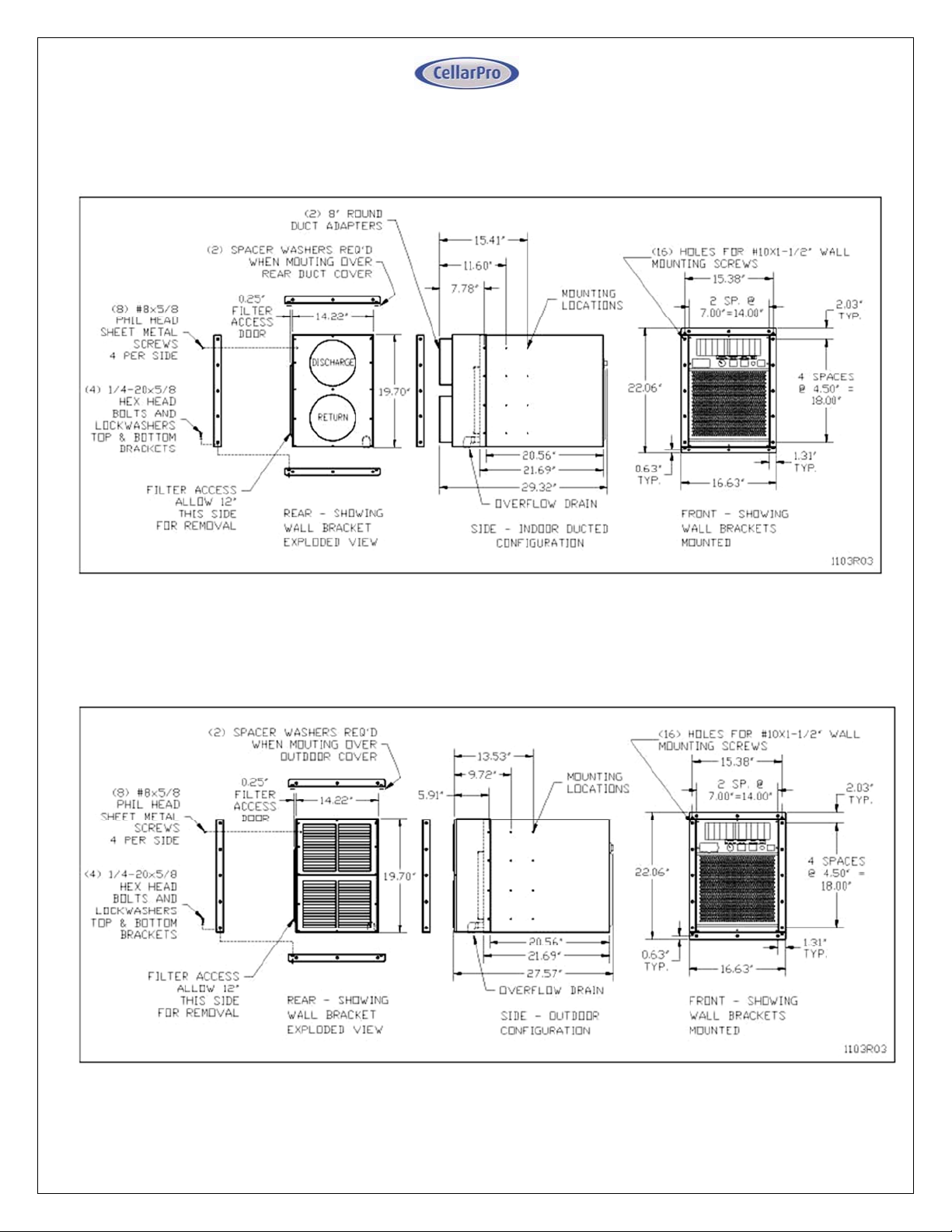

3200VSi‐ECX/4200VSi‐ECX(withRearDuctHood)‐CutSheet
3200VSx‐ECX/4200VSx‐ECXCutSheet
7V3.15.22
Placement
CellarPro3200and4200SeriescoolingunitsaredesignedtobeinstalledTHROUGHTHEWALL,so
thattherearandthefrontofthecoolingunitDONOTSHARETHESAMEAIRSPACE.
Therearofthecoolingunitmustbeinstalledinaspacethatisatleastaslargeasthewinecellar
unless the rear intake and exhaust are ducted. Both thefront and the rear of the cooling unit
requireaminimumclearanceof8inches.
TheseunitsalsocanbeplacedcompletelyINSIDEorOUTSIDEthecellarwhenusedincombination
withourductkits.
AmbientEnvironment
3200VSi‐ECX/4200VSi‐ECX‐designedforinternaluseonly(ieshelteredfromoutdoorweather),
therearoftheunitcanbeexposedtotemperatureconditionsrangingfrom40to110°F.
3200VSx‐ECX / 4200VSx‐ECX–designedforshadedexternaluse,therearoftheunitcanbe
exposedtotemperatureconditionsrangingfrom40to110°F.
PLEASENOTE:
Ourunitswerenotdesignedfor,andourwarrantydoesnotcoverdamagefrom,marineexposure
(within5milesoftheocean).Inthese environments, youwill need anappliedcoating,such as
Insitu®,toprotectagainstcorrosionthatiscommonincoastalregions.
Withour(optional)compressorheater,allofourcoolingunitscanbeusedinenvironmentsdown
to 20°F, and with our (optional) fan cycling switch, all of our cooling units can be used in
environmentsdownto‐20°F.
Heat
CellarProcoolingunitsarenotdesignedtoheatthecellarspace,soiftemperaturesinsidethecellar
dropbelowproperwinestoragetemperatures,thecoolingunitcannotcreateheatinsidethecellar.
8V3.15.22
Insulation
CellarProcoolingunitsaredesignedto
be installed inside wine cellars that
have proper insulation, moisture
barriers and an airtight seal from the
environment outside the cellar.
Interior walls and floor should have a
minimum of R‐11 insulation, and a
vaporbarrieronthewarmsideofthe
insulation. The ceiling should have a
minimumofR‐19insulationanda
vaporbarrieronthewarmsideofthe
insulation. Doors also should be
insulated and tightly sealed with
weather stripping around the
perimeter of the door. Surface‐
mounted fixtures are recommended
overrecessedlighting,whichcanallow
airtoleakintothecellar.
Itisimportantthatallwalls,joints,doorsandwindows,electricaloutletsand/orswitches,pipes,
ventsandlightfixturesbesealedtopreventairandmoisturefromenteringthecellar.Ifthereisa
leakinthecellar,thecoolingunitwillbuildupexcesscondensation.
CellarPro3200VSand4200VSSeriescoolingunitsareequippedwithacondensatemanagement
system,whichincludesastainlesssteelpan,athermostatically‐controlledelectricheatingelement,
andanoverflowdrainattherearofthecoolingunit.
We strongly recommend that the overflow drain line (shipped loose with the cooling unit) be
connectedtotheoverflowdrain(asshownintheinstallationsection),andthatthecoolingunitbe
mountedlevelorwithaslighttiltbackwards(1/8”max),sothat any overflow condensate is
channeledsafelytotheoverflowdrainline.Inaddition,werecommend turningontheelectric
heatingelementtoburnoffexcesscondensatethataccumulatesinthestainlesssteelpanduring
theinitialcoolingofthecellarandduringhighrun‐times,aswellasinhigh‐humidityenvironments.
FanSpeeds
Yourfanspeedsettingmustbesetto“High”underthefollowingconditions:
- Asthethermalloadofthewinecellarincreases
- Asambienttemperaturesincrease
- Anyapplicationwithducting(frontorrear)
9V3.15.22
FanSpeedGuidelines
Non‐Ducted
VSiUnits VSxUnits
Minimum
FanSpeed
Temperatureoffreshairintake <=95F <=90F
Low
Temperatureoffreshairintake <=100 <=95 Medium
Temperatureoffreshairintake <=105 <=100 High
Notes: 1.Thetableassumesthatproperspaceandairflowexistonthehotsideofthecoolingunit
2.Ductedunitsmustalwaysusethehighfanspeed.
3.Werecommendusingthehighfanspeedduringthefirstweekafterinstallation.
Ventilation
AdequateventilationiscriticallyimportantfortheproperoperationofyourCellarProcoolingunit.
OUTSIDETHECELLAR
(TheHotSide‐attherearofthecoolingunit)
CondenserAirExhaust.CellarPro3200VSand4200VSSeriescoolingunitscreatesignificanthotair
whichmustbeexhaustedintoanappropriately‐sizedspacesothatthehotairexhaustcandissipate.
Ifthespaceisconstrainedand/ortoosmall,theheatwillnotdissipate.Inthisevent,thecooling
unitwillbeforcedtore‐circulateitshotairexhaustand/orthestaticpressurewillbackupthe
cooling unit. If this happens, the cooling unit’s ability to create cold air inside the cellar will be
compromised.
CondenserAirIntake.Thecondensercoilsrequireaccesstocoolairsothatthecoolingunitcan
producecoldair.Inaddition,thecoolingunitmustbeinstalledsothat,afteritsinstallation,the
condensercoilsareaccessibleforperiodiccleaningorreplacingofthefilter.
Therearofthecoolingunitmustbeinstalledinaspacethatisatleastaslargeasthewinecellar
unlesstherearintakeandexhaustareducted.Boththefrontandtherearofthecoolingunit
requireaminimumclearanceof8inches.
Ducting.Weofferductkitsthatallowthecondenserairintakeand/orexhausttobeductedupto
50 equivalent feet each with a minimum of 8” diameter ducting from start to finish, or 100
equivalentfeeteachwithourauxiliaryfanand8”diameterductingfromstarttofinish.Ourhot‐
sideductkits(soldseparately)attachtotherearofthecoolingunitandMUSTbeusedwhenducting
ourcoolingunits.TheHIGHfanspeedmustalwaysbeusedwhenductingthecoolingunit.Using
customductadaptersinsteadoftheCellarProductkits,reducingductingbelow8”diameter,using
fansatlowormediumfanspeed,and/orexceedingthe equivalent length limits will impair the
performanceandlongevityoftheunitandvoidthemanufacturer’swarranty.
10V3.15.22
INSIDETHECELLAR
(TheColdSide‐atthefrontofthecoolingunit)
EvaporatorAirIntake
.
CellarProcoolingunitsshouldbemountedatthehighestpointinsidewine
cellars,sothatwarmair–whichrises–willbethefirsttopassovertheevaporatorcoils,whichare
located behind the grill on the face of the cooling unit. When the warm air passes across the
evaporatorcoils,heatisremovedtheair,andtheresultingcoldairisexhaustedintothecellar.To
ensureproperairflow,minimumclearanceof12”isrequiredinfrontofthecoolingunit.
EvaporatorAirExhaust.
Coldairisexhaustedatthetopfrontofthecoolingunit.BecauseCellarPro
coolingunitsarelocatedatthehighestpointinsidewinecellars,thecoldairexhausteventuallywill
droptothebottomofthecellar.Toensureproperairflowandreducetemperaturestratification
insidethecellar,thespaceinfrontofthecoldairdischargeshouldbeclearofanyobstructions,
includingwinebottles,wineracks,etc.
Ducting.Weofferductkitsthatallowtheevaporatorairintakeandexhausttobeductedupto50
equivalentfeeteachwithaminimumof8”diameterinsulatedductingfromstarttofinish.Our
cold‐sideductkits(soldseparately)attachtothefrontofthecoolingunitandMUSTbeusedwhen
ductingourcoolingunits.TheHIGHfanspeedmustalwaysbeusedwhenductingthecoolingunit.
UsingcustomductadaptersinsteadoftheCellarProductkits,reducingductingbelow8”diameter,
usingfansatlowormediumfanspeed,and/orexceedingtheequivalentlengthlimitswillimpair
theperformanceandlongevityoftheunitandvoidthemanufacturer’swarranty.
PowerRequirements
CellarProcoolingsystemsshouldbepluggedintoadedicatednon‐GFIoutletconnectedtoa15‐
ampcircuit.Thecoolingunitusesapproximately8.9(3200VS)and10.5(4200VS)ampsduringits
“on”cycle.
A number of variables, including the minimum set point, the temperature in the ambient
environment,theinsulationofthecellar,andthethermalmassinsidethecellar,willaffectthe
cooling unit’s runtime. It is normal for the cooling unit to run up to 75 percent of the time to
maintainproperconditionsinsidethecellar.
Selectapowerreceptacle(FrontorRear)andplugtheprovidedpowercordintothatreceptacle.
Plugtheotherendofthepowercordintoadedicated15ampcircuit.Asurge‐protectedcircuitis
recommended.Setthepowerselectorswitchtoenergizetheappropriatereceptacleused(Front
orRear).
ThepowercordprovidedfortheindoorVSiunitsisapprovedforindooruseonly,whilethepower
cordfortheoutdoorVSxunitsmaybeusedbothforindoororoutdoorapplications.
