Cellvision Systems GLM-100 Manuale utente

GLM-100

802.11b/gWirelessminimodule

User sManual

-1-

FCC Statement

Warning:Changesormodificationstothisunitnotexpressly approved bythe

party responsiblefor compliancecouldvoidtheuserauthoritytooperatethe

equipment.

GLM-100 WirelessminiModule complieswith Part15 oftheFCCRules.Operation is

subjecttothefollowingtwo conditions:(1) thisdevicemaynotcauseharmful

interference,and(2) thisdevice mustaccept anyinterference received,including

interference that maycauseundesiredoperation.

Theuser smanualor instructionmanual for anintentionalorunintentionalradiator shall

caution theuser that changesor modificationsnotexpresslyapproved bytheparty

responsibleforcompliance couldvoidtheuser sauthoritytooperatetheequipment.

NOTE: Thisequipmenthasbeentestedandfoundtocomplywiththelimits for aClass B

digitaldevice,pursuantto Part15of theFCCRules.Theselimits aredesigned toprovide

reasonableprotectionagainstharmfulinterferencein aresidentialinstallation.This

equipmentgenerates,uses andcanradiateradio frequencyenergyand,ifnotinstalledand

used in accordancewiththeinstructions,maycauseharmfulinterferenceto radio

communications.

However,thereisnoguaranteethat interference willnotoccur inaparticularinstallation.If

thisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbe

determined byturningtheequipmentoff andon,theuserisencouraged totrytocorrectthe

interferencebyoneor moreofthefollowingmeasures:

Reorientor relocatethereceivingantenna.

Increase theseparation betweentheequipmentandreceiver.

Connecttheequipmentintoan outleton acircuitdifferentfromthattowhich thereceiver

isneeded.

Consultthedealer or an experienced radio/TVtechnicianfor help.

CAUTION:

TocomplywithFCC RFexposurecompliance requirements,aseparation distanceof atleast

20cmmust bemaintained betweentheantennaofthisdeviceandall persons.

ThisTransmittermust notbe co-located oroperatinginconjunction withanyotherantenna

-2-

ortransmitter

Thisdeviceisintended onlyfor OEMintegratorsunder thefollowingconditions:

Theantennamust beinstalledsuch that20 cmismaintainedbetweentheantennaand

users.For laptopinstallations,theantennamustbeinstalled toensurethattheproper

spacingismaintainedin theeventtheusersplacesthedevicein their lapduringuse (i.e.

positioningofantennasmustbeplacedintheupperportionoftheLCDpanelonlytoensure

20cmwill bemaintained if theuser places thedevicein their lapforuse) and

Thetransmitter modulemaynotbeco-located with anyother transmitter or antenna.

Aslongasthe2conditionsabovearemet,furthertransmitter testingwillnotbe required.

However,theOEMintegratorisstillresponsiblefor testingtheir end-product forany

additionalcompliancerequirementsrequiredwiththismoduleinstalled(for example,

digitaldevice emissions,PCperipheralrequirements,etc.).

IMPORTANTNOTE: In theeventthattheseconditionscannotbe met (for

examplecertainlaptopconfigurationsor co-locationwithanother transmitter),thenthe

FCC authorization isno longerconsideredvalidandtheFCC IDcannot be used onthefinal

product.Inthese circumstances,theOEMintegrator willberesponsiblefor re-evaluating

theendproduct (includingthetransmitter) andobtainingaseparateFCCauthorization.

EndProductLabeling

Thistransmitter moduleisauthorizedonlyfor usein devices wheretheantennamaybe

installedsuchthat20 cmmaybe maintained betweentheantennaandusers(forexample

access points,routers,wireless ASDL modems,certain laptopconfigurations,andsimilar

equipment).Thefinal endproductmust belabeled in avisibleareawiththefollowing:

"Contains TXFCC ID: QTRGLM10001".

RFExposureManualInformationThat MustbeIncluded

Theusersmanualforendusersmust includethefollowinginformation inaprominent

location "IMPORTANTNOTE:To complywith FCC RFexposurecompliancerequirements,

theantennaused for thistransmittermust be installedtoprovideaseparation distance of

at least 20cmfromall personsandmust notbeco-locatedor operatinginconjunctionwith

anyother antennaortransmitter."

Additional InformationThat MustbeProvidedtoOEMIntegrators

Theenduser shouldNOTbeprovidedanyinstructionsonhowtoremoveorinstallthe

device.

-3-

ServiceCenterinU.S.A

CompanyName: D-LinkCorporation.

CompanyAddress: 53 DiscoveryDriveIrvine,CA 92618,USA

Tel:(949)788-0805

-4-

1.Introduction

TheGLM-100Wireless module Thismoduleisthewirelessnetworkingdevice basedon

802.11gtechnologyandcompatibleforinteroperabilitywithexisting802.11bdevices.This

deviceprovides 54Mbps transfer ratein wireless network.

GLM-100 isdesigned forPrinterServerseries,IPCameraseriesandInternetVideoServer

gives you wirelessaccess theweb andnetworkresourcewithoutthewire.

GLM-100 provideshigh-speedaccesstonetworkresources andhasbuilt-in 64-bitand128

bitofWEP(WiredEquivalentPrivacy) dataencryption.With DirectSpreadSpectrum

Signaling(DSSS),domainaccesscontrol,WEPencryption andgroupsecurity,themodules

will safeguardall your wirelessdatatransmissionsfromyour nosyneighbors.

GLM-100 allowsyou to takefulladvantageof your devicesmobilitywithaccess to

real-timeinformation andonlineservicesanytimeandanywhere.

2.Feature

♦ Design forIPCameraseries.

♦ CompatiblewithIEEE802.11gand802.11bStandardfor 2.4GHzWireless .

♦ Workswith AllExistingNetworkInfrastructure.

♦ Compatiblewith WiFi WirelessProductsandServices.

♦ Capableof upto128-BitWEPEncryption.

♦ FreedomtoRoamWhilestayingConnected

♦ Upto54 MbpsHigh-Speed Transfer Rate.

♦ OneI-PEX ConnectorsforExternalAntenna

♦ SupportAntennadiversityforBetter Sensitivity.

♦ Lower Power Consumption.

-5-

3.Specification

Wireless Specifications

Standard IEEE 802.11g,IEEE802.11b,Wi-Ficompliant

Chipset RalinkRT2560

Interface PCI interface

Connector OneI-PEX connector

LED N/A

Frequency Range 2.412GHz-2.4835GHz

n 2.412-2.462GHz(NorthAmerica)

n 2.412-2.484GHz(Japan)

n 2.412-2.472GHz(EuropeETSI)

n 2.457-2.462GHz(Spain)

n 2.457-2.472GHz(France)

Numberof Selectable

Channels

n USA, Canada:11 channels

n Europe: 13 channels

n Japan: 14channels

Datarate n 802.11g:54, 48, 36,24, 18,12, 9, 6Mbps

n 802.11b:1,2,5.5, 11Mbps

ModulationTechnique n 802.11g:OrthogonalFrequency DivisionMultiplexing

(64QAM, 16QAM, QPSK, BPSK)

n 802.11b:Direct SequenceSpread Spectrum (CCK,

DQPSK,DBPSK)

Security 0/64/128bit WEP

MediaAccessProtocol CSMA/CA(CollisionAvoidance)withoptionalACK

Output Power 17.5dBm(Typical)

Range 802.11b > 300 m

802.11g > 150 m

Sensitivity 802.11b >-82dBm

802.11g > 69dBm

4.HardwareInstallation

Thefollowingsectionsin thischapter describehowtoinstallGLM-100Module

-6-

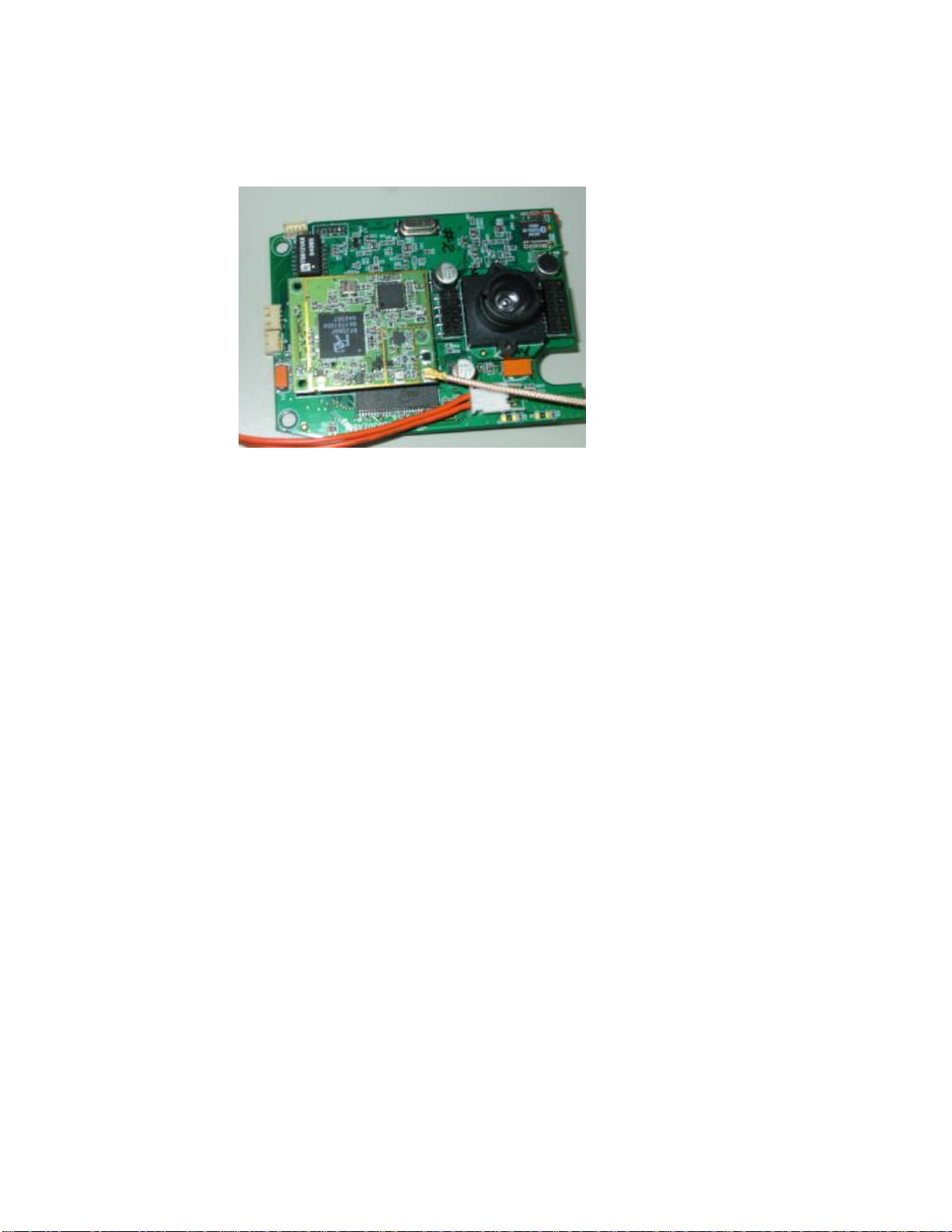

4.1.InstallationOverview

GLM-100 wirelessmoduleisdesignfor IPCameraseriesandInternetVideoServer

only.

-7-

4.2.SafetyRecommendations

Thesafetyguidelinesareasfollows:

λ Keep theboardareaclear anddust-freebefore, during,andafterinstallation.

λ Keep toolsawayfromwalkareaswhereyouandotherscouldfall over them.

λ Donotwear looseclothingor jewelry,suchasearrings,bracelets,orchains,

thatcouldget caughtin theboard.

λ Wear safetyglassesif youareworkingunder anyconditionsthatmightbe

hazardoustoyour eyes.

λ Donotperformanyactionthatcreates apotentialhazardto peopleormakes

theequipmentunsafe.

λ Neverattempttoliftan object that istoo heavyforonepersontohandle.

4.3.MaintainingSafetywithElectricity

Warning:Beforeworking on aboard orworking near powersupplies,

unplugthepowercordonACunits;on DCunits,disconnectthepower at

thecircuitbreaker.

Followthese guidelineswhen workingonequipmentpoweredbyelectricity:

λ Donotworkaloneif potentiallyhazardousconditionsexistanywherein your

workspace.

λ Neverassumethat power isdisconnectedfromacircuit; alwayscheckthe

circuit.

extensioncables, frayedpower cords,andmissingsafetygrounds.

λ If an electricalaccidentoccurs,proceed asfollows:

Usecaution; donotbecomeavictimyourself.

Disconnect power fromthesystem.

Ifpossible, sendanotherpersontoget medicalaid.Otherwise,assessthe

condition ofthevictimandthencall for help.

Determineifthepersonneedsrescuebreathingor externalcardiac

compressions; then takeappropriateaction.

-8-

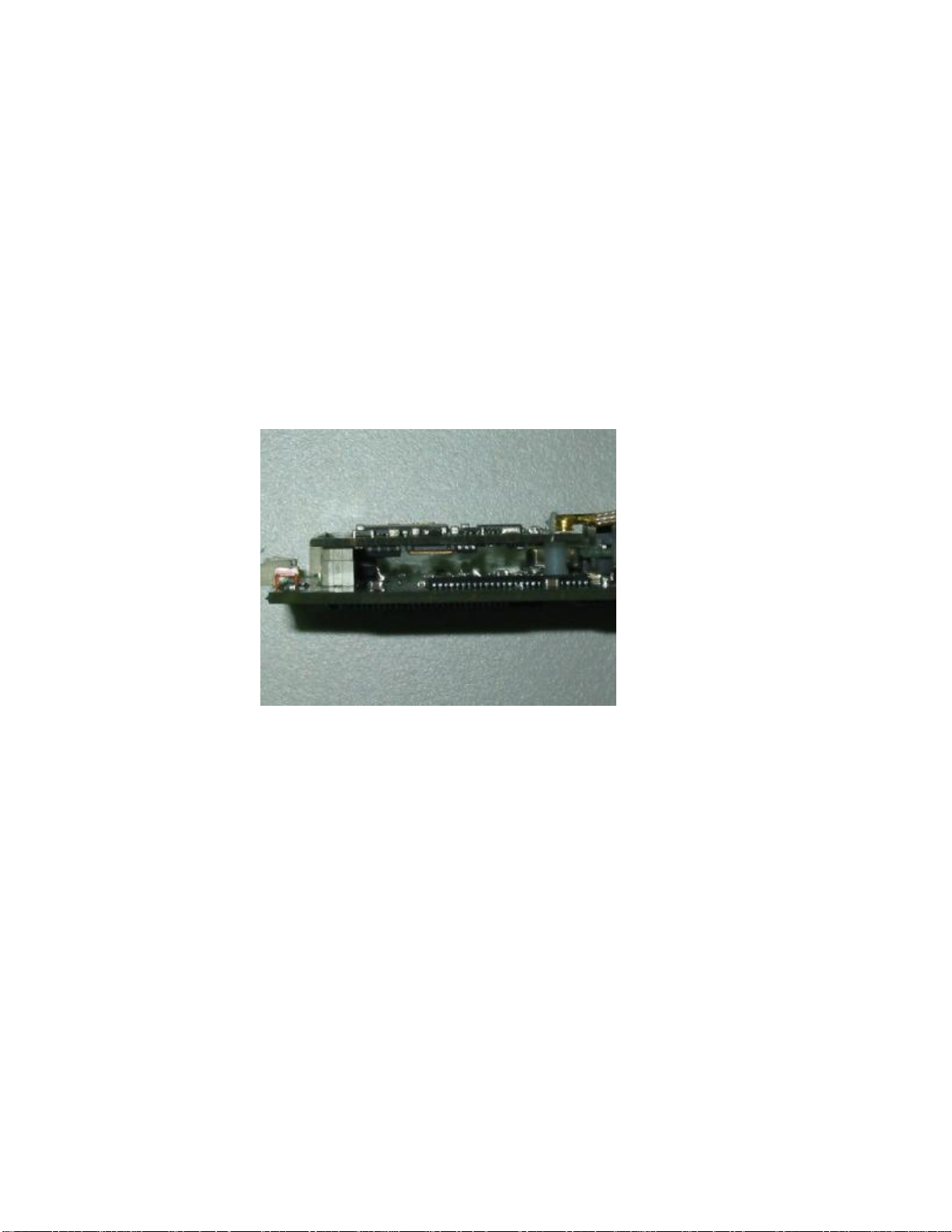

4.4. InstallingaGLM-100

λ RemovetheGLM-100modulefromits protectivepackaging.

λ AvoidingElectrostatic Discharge

Before youinstalltheGLM-100module,groundyourself bytouching

apieceofmetaltoavoidelectrostaticdischarge(ESD).Youshould

also takethefollowingprecautionstoprevent damagetothe

GLM-100 module:

λ KeeptheGLM-100 moduleinitsantistatic-shieldedbaguntil you

are readytoinstallit.

λ HandletheGLM-100modulebyits edges.

λ Ensuretheconnectorisconnectedto aboveModel sboardtightly.
