FIRE ALARM EQUIPMENT
FIRE ALARM SYSTEM
Characteristics
Specification
Model 5-QA12 QA12
Power 220V AC, 50/60HZ *Others also available
Battery Capacity 24V/4Ah
Charging voltage & current 28VDC 100mA ~ 400mA
Loop voltage & current 24VDC; short circuit under 5V
External resistance Max.50
# of heat detectors connected 30 / zone Except electronic - type (Horing Lih Product)
30 / zone Except Mechanical - type (Horing Lih Product)
# of smoke detectors connected 30 / zone (Horing Lih Product)
# of fire indicating lamp connected # of zone x 1.5
# of bell connected # of zone x 1.5
Relay output Contact rating (24 VDC 3A)
End of Line Resistor 10k *One per zone
Material 1.2 mm steel plate
Color Pearl gray *Others also available
Dimensions (mm) H x W x D 5 zone : 320 x 250 x 100
10 zone : 450 x 330 x 130
20 zone : 550 x 330 x 130
30 zone : 680 x 380 x 150
40 / 50 zone : 950 x 420 x 150
60 ~ 80 zone : 1300 x 420 x 170
5-QA125-QA125-QA125-QA12
Fire Alarm Control PanelFire Alarm Control PanelFire Alarm Control PanelFire Alarm Control Panel
QA12QA12
CEMEN QA12 & 5-QA12 2021
Alarm verification up to 7 seconds for real fire confirmation and avoid false alarm form environment interference.
Zone test mode to perform alarm and fault functional test.
Each zone has a separate disable function.
Fault indications for wire disconnection, unstable AC power, battery short circuit or disconnection and internal
PCB unplug.
5-QA12 only 1 up to 5 zone detector
QA12 could 10 up to 80 zone detector
Model 5-QA12 & QA12
Manufactured :
HORING LIH INDUSTRIAL CO.,LTD
MADE IN TAIWAN
FIRE ALARM EQUIPMENT
FIRE ALARM SYSTEM
AIP QA12 2018
Model QA12
Manufactured :
MADE IN TAIWAN
HORING LIH INDUSTRIAL CO.,LTD.
AIPFIRE ALARM SYSTEM
AIP QA12 2018
Model QA12
Manufactured :
MADE IN TAIWAN
HORING LIH INDUSTRIAL CO.,LTD.
AIPFIRE ALARM SYSTEM

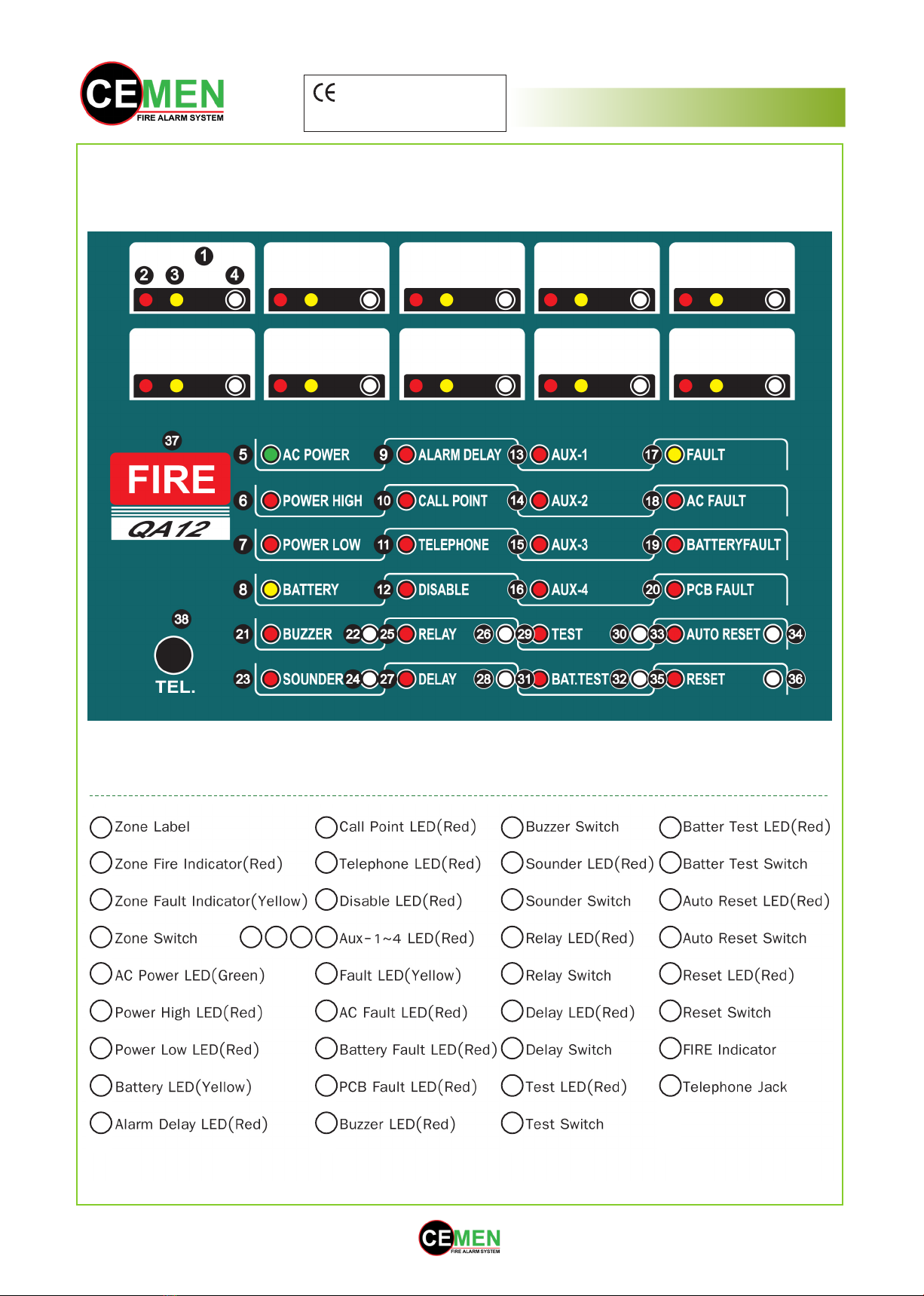

System Control and Indicator On Board QA12
CEMEN QA12 2021
322 11 23
333 12 24
344 16 25151413
35
36
5 17 26
6 18 27
7 19 28 37
8 20 29 38
9 21 30
311 10 22
Model 5-QA12 & QA12
Manufactured :
HORING LIH INDUSTRIAL CO.,LTD
MADE IN TAIWAN
QA12 Indicators and Switches Description : 10 ~ 80 Zone Detector
FIRE ALARM EQUIPMENT
FIRE ALARM SYSTEM
QA12 Indicators and Switches Description :
16151413
Zone Label : To show the name of covered area.
Zone Fire Indicator : Steady light ON means Fire status, flash light ON means
Disable status.
Zone fault Indicator : Light ON means that circuit has trouble.
Zone switch : 1. To disable zone output function when Fire is detected.
2. To perform Zone Fire Test and Zone Fault Test.
AC Power LED : Light ON means panel working voltage is normal.
Power High LED : Light ON means panel working voltage is 10% higher than the nominal voltage. Meantime the
Fault LED will light ON and panel buzzer will sound.
Power Low LED : Light ON means panel working voltage is 10% lower than the nominal voltage. Meantime the
Fault LED will light ON and panel buzze will sound.
Battery LED : Light On means panel working voltage is supplied by battery only. Meantime the Fault LED will
light ON and panel buzzer will sound.
Alarm Delay LED : Light ON means panel is reconfirming the alarm signal from detector, LED light will OFF after
7 seconds confirmation.
Call Point LED : When panel receives signal from manual call point, this LED and Delay LED will both light ON.
Panel will active without delay.
Telephone LED : When panel receives incoming call signal, LED will ON and buzzer will active.
Disable LED : Indicates any zone output is disabled.
Aux1~4 LED : When panel receives external monitoring signal, LED will ON and buzzer will active.
Fault LED : When loop has short, open or terminal trouble, LED will light ON and flash.
AC Fault LED : A yellow light indicates the a break in the AC power supply.
Battery Fault LED : A yellw light indicates short circuit or wire-break in the Panel’s battery wires.
PCB Fault LED : A yellow ligth indicates a circuit board has become disconnected.
Buzzer LED : 1. (temporary silence - LED steady ON)
Buzzer switch : When press switch once, LED ON and disable the sounder output, any new
incoming fire or fault signal will enable the buzzer and LED will OFF.
2. (long silence - LED flash)
When press switch twice, LED flash and disable the buzzer output, any new incoming fire or
fault signal will not enable the buzzer.
3. (normal)
When press switch three times, panel will back to normal status.
1
2
3
4
5
6
7
8
9
10
11
12
17
18
19
20
21
22
Model 5-QA12 & QA12 MADE IN TAIWAN
Manufactured : HORING LIH INDUSTRIAL CO.,LTD
CEMEN QA12 2021
FIRE ALARM EQUIPMENT
FIRE ALARM SYSTEM
QA12 Indicators and Switches Description :
Sounder LED : 1. (silence)
Sounder switch : When press switch once, LED ON and disable the sounder output.
2. (normal)
When press switch twice, panel will back to normal status.
Relay LED : LED ON indicates relay output from panel is disabled.
Relay switch : Pressing this switch will disable the fire and fault relay output.
Delay LED : LED ON indicates the alarm delay feature is disabled.
Delay switch : Pressing this switch will disable any alarm delay.
Test LED : 1. (fault test - LED flash)
Test switch : When panel is under manual test mode, press the switch twice to lit the LED and into Zone Fault
test, press each zone switch to show the fault indication and related output.
2. (fire test - LED steady ON)
When panel is under manual test mode, press the switch once to light the LED into Zone fire
test. Press each Zone switch, both Zone Fire Indicator and Alarm Delay LED will be lit on 7
seconds and then the Reset LED flashed 5 seconds. Following press each Zone switch again
to show the fire indication and related output.
3. (normal)
When press the switch three times, panel will back to normal status.
**Note : Any Fire happen during test period, system will automatically into [Fire mode].
Battery Test LED : LED ON indicates panel is under battery test status.
Battery test switch : Pressing this switch to test the back-up battery.
Auto Reset LED : LED ON indicates it is under auto reset mode, this feature is for one man walk test.
Auto Reset switch : Pressing this switch will display auto reset mode.
Reset LED : LED ON indicates it is under reset mode.
Reset switch : Pressing this switch resets the panel, LED lights ON for 5 seconds and then returns to normal status.
FIRE indicator : When the panel has received a fire signal , the LED will light ON and flash.
Telephone Jack : To communicate with the manual call point’s plugged phone.
30
29
28
27
26
25
24
23
31
32
33
34
35
36
37
38
Model 5-QA12 & QA12 MADE IN TAIWAN
Manufactured : HORING LIH INDUSTRIAL CO.,LTD
CEMEN QA12 2021
