Central Machinery 46813 Manuale utente

10”TABLE SAW

Model

46813

ASSEMBLY AND OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of Harbor

Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improve-

ments, actual product may differ slightly from the product described herein. Tools required for assembly

and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Revised Manual 10f

SPECIFICATIONS TABLE

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, op-

erating, inspection, maintenance, and cleaning procedures, parts list and

assembly diagrams. Keep your invoice with this manual. Write the invoice

number on the inside of the front cover. Keep this manual and invoice in a safe

and dry place for future reference.

GENERAL SAFETY WARNINGS AND PRECAUTIONS

1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp or wet work areas

invite injuries.

2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle

this product.

3. STORE IDLE EQUIPMENT. When not in use, tools and equipment should be

stored in a dry location to inhibit rust. Always lock up tools and equipment and

keep out of reach of children.

SKU 46813 PAGE 2

ITEM DESCRIPTION

Electrical Requirements 110V, 60Hz, 2,300 Watts, 22.2 Amps, 3 HP, 3,400 RPM

Overall Dimensions (Assembled) 57-1/2”W x 47”D x 41-1/4”H

Table Dimensions (With Exten-

sions)

44-1/16”W x 27”D

Table Height (From Floor on Stant) 36-1/4”

Arbor Diameter 5/8”

Saw Blade 10” Diameter x 5/8”-24 Teeth, Carbide Tip, 5,000 Rated RPM

Maximum Rip Capacity 21” Left Side, 22-5/8” Right Side

Maximum Cut (Front of Blade) 13”

Maximum Depth of Cut (At 0°) 3.35”

Angle of Cut 0°-45° (Left Only)

Miter Scale 0°m 15°, 30°, 45°, 60° Right or Left

Miter Increments 5° Marks -- Pinter 1° Mark

Miter Adjustments Fully Adjustable

Front Rail Scale 0” to 23” Left, 0” to 25” Right

Fence Dimensions 2-1/4”W x 36”L x 2-3/4”H

Dust Collection Features Rear Discharge Port, 2-1/4” O.D.

Tool Accessories 22MM/24MM Open End Wrench,

2.5MM, 3MM, 4MM Hex Keys

Construction Cast Iron, Aluminum, ABS Plastic,

Grade 5 Steel Hardware & Fasteners

Weight 239 Pounds

4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR

DRUGS. Read warning labels on prescriptions to determine if your judgment or

reﬂexes are impaired while taking drugs. If there is any doubt, do not attempt to

use this product.

5. USE EYE, HEARING, AND BREATHING PROTECTION. Wear ANSI approved

safety impact eyeglasses, hearing protectors, and dust masks or respirator when

using this product. ANSI approved safety impact eyeglasses, hearing protectors,

dust masks and respirators are available from Harbor Freight Tools.

6. DRESS SAFELY. Non-skid footwear or safety shoes should be used when work-

ing with this product. Do not wear loose clothing or jewelry as they can become

caught in moving parts. Wear a protective hair covering to prevent long hair from

becoming caught in moving parts. If wearing a long-sleeve shirt, roll sleeves up

above elbows.

7. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENTS.

8. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent

tripping, falling, back injury, etcetera.

9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do

not use this product when you are tired or distracted from the job at hand.

10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that

it will operate properly and perform its intended function. Check for damaged

parts and any other conditions that may affect the operation of this product. Re-

place or repair damaged or worn parts immediately.

11. REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only iden-

tical replacement parts. Only use accessories intended for use with this product.

Approved accessories are available from Harbor Freight Tools.

12. MAINTAIN THIS PRODUCT WITH CARE. Keep this tool clean and dry, and keep

Saw Blades clean and sharp for better and safer performance.

13. MAINTENANCE: For your safety, service and maintenance should be performed

regularly by a qualiﬁed technician.

14. USE THE RIGHT PRODUCT FOR THE RIGHT JOB. There are certain

applications for which this product was designed. Do not use small equipment,

tools or attachments to do the work of larger industrial equipment, tools or

attachments. Do not use this product for a purpose for which it was not intended.

SKU 46813 PAGE 3

SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS

1. GROUND THIS PRODUCT. The electrical power cord for this product is

equipped with a grounded 3-Prong Plug. Never remove the grounding prong or

modify the Plug in any way. Do not use adapter plugs with this product. To com-

ply with the National Electric Code, and to provide additional protection from the

risk of electrical shock, the Table Saw should only be connected to a 110 Volt,

3 prong electrical outlet that is protected by a Ground Fault Circuit Interrupter

(GFCI).

2. MAKE SURE THE POWER SWITCH (part #8E) IS IN THE “OFF” POSITION

BEFORE PLUGGING IN THE POWER CORD (part #8F).

3. DO NOT ABUSE THE POWER CORD. Do not use the Power Cord (part #8F) to

pull the 3-prong plug from a power outlet. Keep cord away from heat, oil, sharp

edges, and moving parts. Replace damaged cord immediately. Route the power

cord safely. Protect it from being damaged by other equipment in the shop. Do

not route the cord where it can be walked on or tripped over.

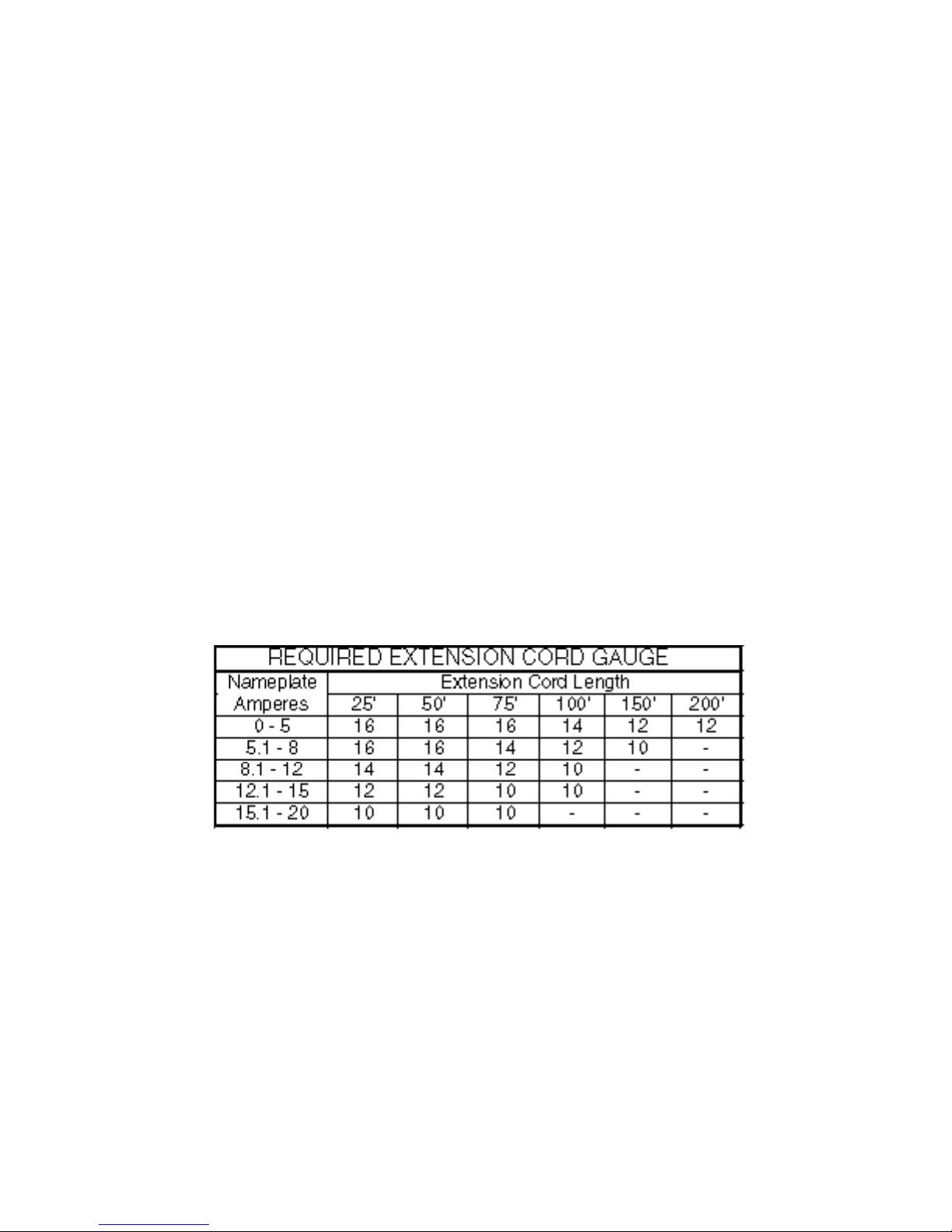

4. IF YOU USE AN EXTENSION CORD, MAKE SURE TO USE ONLY UL

APPROVED CORDS HAVING THE CORRECT GAUGE AND LENGTH. (SEE

FIGURE A.)

FIGURE A

5. MAINTAIN A SAFE WORK ENVIRONMENT. Do not use this product in or near

damp or wet areas. Do not expose this product to rain. Keep the work area well

lit. Make sure there is adequate surrounding workspace. Use this product in a

well ventilated area. Do not operate this product in the presence of ﬂammable

liquids, gases, or dust. To avoid accidental electric shock, do not let your body

come in contact with grounded surfaces such as pipes, radiators, ranges and

refrigerators.

6. DO NOT FORCE THE EQUIPMENT. This Table Saw will do the work better and

safer at the speed and capacity for which it was designed.

SKU 46813 PAGE 4

7. KEEP ALL GUARDS IN PLACE AND IN WORKING ORDER.

8. REMOVE ALL ADJUSTING WRENCHES FROM THE TABLE SAW BEFORE

TURNING IT ON.

9. AVOID UNINTENTIONAL STARTING. Make sure you are prepared to begin

work before turning the Power Switch (part #8E) “ON”.

10. DO NOT USE THIS TOOL FOR CUTTING METALS OR BRITTLE MATERIALS.

Do not cut dangerous materials, such as asbestos that can cause harmful dust or

vapors.

11. ALLOW THE SAW BLADE (part #14-I) TO SPIN UP TO FULL SPEED BEFORE

FEEDING WOOD INTO IT. When turning it off, allow the Saw Blade to spin down

and stop on its own. Do not press against the Saw Blade to stop it.

12. Caution: Never pass hands directly over the Saw Blade (part #14-I) when

cutting the workpiece. Always push the workpiece into the Saw Blade, using an

auxiliary handle or push stick (not provided).

13. DO NOT FORCE THE MATERIAL INTO THE SAW BLADE (part #14-I) WHEN

CUTTING. Apply moderate pressure, allowing the Saw Blade to cut without be-

ing forced.

14. NEVER ATTEMPT TO REMOVE MATERIAL STUCK IN THE MOVING PARTS

OF THE TABLE SAW WHILE IT IS PLUGGED IN AND RUNNING.

15. TURN OFF THE TABLE SAW IF THE WOODSTOCK IS TO BE BACKED OUT

OF AN UNCOMPLETED CUT.

16. ALWAYS KEEP HANDS AND FINGERS AWAY FROM THE SAW BLADE (part

#14-I). Use an auxiliary handle or push stick (not provided) at all times.

17. MAKE SURE THE WORKPIECE IS FREE FROM NAILS AND ANY OTHER

FOREIGN OBJECTS WHICH COULD DAMAGE THE SAW BLADE (part #14-I).

18. ALWAYS FEED THE WORKPIECE INTO THE SAW BLADE (part #14-I) AND

AGAINST ITS ROTATION.

19. WARNING: When replacing the Saw Blade (part #14-I), ALWAYS replace it with

a Saw Blade rated at least 3,400 RPM to prevent possible injury.

20. REDUCE THE RISK OF KICKBACK. Kickback is caused when the Saw Blade

(part #14-I) becomes pinched, miss-aligned, or twisted during the cutting

process, resulting in personal injury and/or damage to the tool.

SKU 46813 PAGE 5

20. (Continued) To avoid kickback, keep a ﬁrm grip on the workpiece at all times.

Support overhanging work pieces; as the work piece is cut and weakens it will

sag, causing a pinched Saw Blade. Push the workpiece slower than normal

when cutting through knots, pressure treated and green lumber. Do not attempt

to force the workpiece back on the cut line if the cut begins to go off line. Make

sure to set the depth adjustment of the Table Saw so that one saw tooth of the

Saw Blade projects below the work piece.

21. MAKE SURE THE WORKPIECE IS SUPPORTED AT ALL TIMES DURING OP-

ERATION. Use a Roller Stand (not provided) with a larger workpiece if

necessary.

22. MAINTAIN CONTROL OF THE WORKPIECE AT ALL TIMES. Never allow the

workpiece to rest on the moving Saw Blade (part #14-I) without safely holding on

to the workpiece.

23. BEFORE TRYING NEW OR COMPLICATED TECHNIQUES, STUDY THE PRO-

CEDURE, AND PRACTICE WITH SCRAP WOOD.

24. ALWAYS DISCONNECT THE TABLE SAW FROM ITS ELECTRICAL SUPPLY

SOURCE BEFORE PERFORMING ANY SERVICES OR MAINTENANCE. Turn

off and unplug the Table Saw when leaving the work area, moving the tool from

one location to another, changing Saw Blades (part #14-I), cleaning sawdust

from the unit, etcetera.

25. NEVER USE UNAUTHORIZED ACCESSORIES. Never install unauthorized ac-

cessories such as shaper cutters, wire wheels, grinding wheels or sanding prod-

ucts.

26. WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities, contain chemicals known (to the State of California)

to cause cancer, birth defects or other reproductive harm. Some examples of

these chemicals are: lead from lead-based paints, crystalline silica from bricks

and cement or other masonry products, arsenic and chromium from chemically

treated lumber. Your risk from these exposures varies, depending on how often

you do this type of work. To reduce your exposure to these chemicals; work in

a well ventilated area, and work with approved safety equipment, such as those

dust masks that are specially designed to ﬁlter out microscopic particles.

(California Health & Safety Code 25249.5, et seq.)

27. WARNING: People with pacemakers should consult with their physician(s)

before using this product. Operation of equipment in close proximity to a heart

pacemaker could cause interference or failure of the pacemaker.

SKU 46813 PAGE 6

UNPACKING

When unpacking, check to make sure all parts shown on the Parts Lists (pages 27

through 29) are included. If any parts are missing or broken, please call Harbor Freight

Tools at the number shown on the cover of this manual as soon as possible.

PRODUCT OVERVIEW

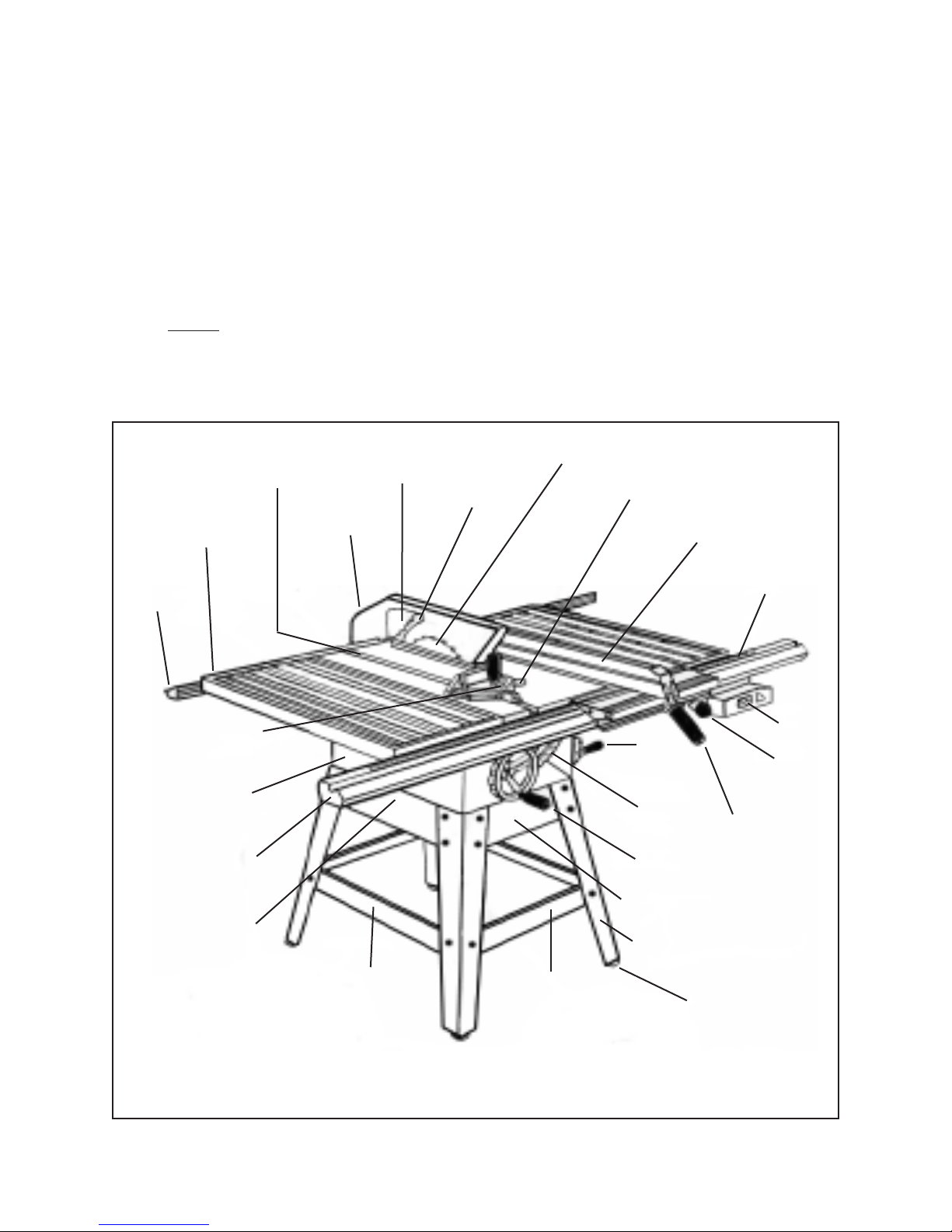

1. NOTE: Prior to operating the 10” Table Saw, make sure you familiarize yourself

with the main parts components and their functions. (See Figures B, C, and

Assy. Diagrams A through I.)

REAR

RAIL (#3H)

EXTENSION

TABLE

(#5H)

MITER

GAUGE

GROOVE

BLADE

GUARD

(#10D)

RIVING

KNIFE

(#6D) ANTI-KICKBACK

PAWL (#2D)

10” SAW BLADE

(#14-I)

ALIGN-A-CUT

INSERT (#4H)

RIP FENCE

(#10C)

SCALE (#6H)

SWITCH

(#8E)

FINE

ADJUSTMENT

KNOB (#30C)

RIP FENCE

HANDLE

(#37C)

BEVEL

HANDLE

(#5G)

BEVEL

SCALE

(#10G)

HEIGHT

HANDLE

(#5G)

END BRACE

(#6B)

LEG (#4B)

LEVELING FOOT (#1B)

SHORT LEG

BRACE (#9B)

LONG LEG

BRACE (#10B)

SIDE BRACE

(#7B)

FRONT RAIL

(#7H)

BASE (#1G)

MITER GAUGE (#4A)

FIGURE B

SKU 46813 PAGE 7

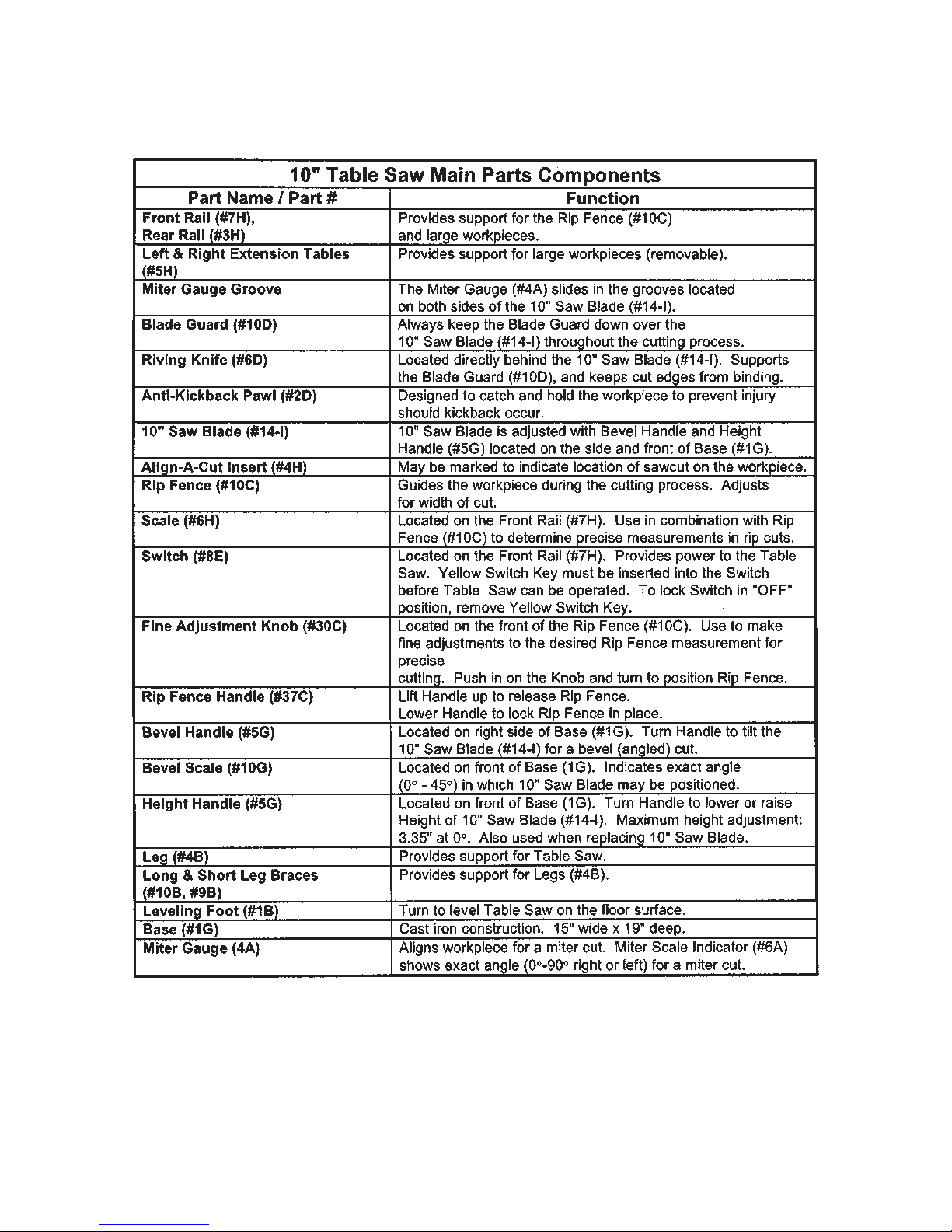

FIGURE C

SKU 46813 PAGE 8

ASSEMBLY INSTRUCTIONS

NOTE: For additional references to the parts listed below, refer to the Assembly

Diagrams on pages 29 through 37 of this manual.

WARNING! PRIOR TO PERFORMING ANY ASSEMBLY PROCEDURES, MAKE

SURE THE 10”TABLE SAW IS DISCONNECTED FROM ITS ELECTRICAL POWER

SOURCE.

To Mount The 10”Table Saw On A Workbench:

1. NOTE: If the 10” Table Saw is mounted onto a workbench instead of the Leg As-

sembly, the workbench surface must have an opening for sawdust to fall through.

This opening must be as large as the opening in the bottom of the 10” Table Saw

Base (part #1G). A minimum height of 36” from the top of the Base to the ﬂoor is

recommended. (See Figure B, and Assy. Diagram G.)

2. With assistance, set the 10” Table Saw in a desired location on the workbench.

NOTE: Make sure the workbench provides a ﬂat, level, sturdy surface capable of

supporting the weight of the 10” Table Saw, tool accessories, and workpieces.

3. Use the four 5/16” mounting holes located at the bottom of the Base (part #1G))

as a template, and mark the two points at which four holes will be drilled through

the workbench. Then, temporarily set the 10” Table Saw aside.

(See Figure B, and Assy. Diagram G.)

4. With a drill and a 5/16” drill bit (not provided), drill four mounting holes downward

through the top of the workbench.

5. Align the four mounting holes at the Base (part #1G) of the 10” Table Saw with

the four previously drilled holes in the workbench. Then secure the 10” Table Saw

to the workbench, using four 5/16” bolts of appropriate length, two lock washers,

and two nuts (not provided).

To Assemble The Leg Stand:

1. NOTE: Temporarily ﬁnger tighten all hardware mentioned in this section until the

Leg Stand is fully assembled.

2. Attach one Long Leg Brace (part #10B) to the lower mounting holes in two Legs

(part #4B), using one Carriage Bolt (part #5B), one Washer (part #3B), and one

Hex Nut (part #2B) for each Long Leg Brace. Repeat the assembly procedure for

the remaining one Long Leg Brace and two Legs.

(See Figure B, and Assy. Diagram B.)

SKU 46813 PAGE 9

3. Attach one Short Leg Brace (part #9B) to the lower mounting holes in two Legs

(part #4B), using one Carriage Bolt (part #5B), one Washer (part #3B), and one

Hex Nut (part #2B) for each Short Leg Brace. Repeat the assembly procedure

for the remaining one Short Leg Brace and two Legs.

(See Figure B, and Assy. Diagram B.)

4. Attach one Side Brace (part #7B) to the upper mounting holes in two Legs (part

#4B), using two Carriage Bolts (part #5B), two Washers (part #3B), and two Hex

Nuts (part #2B) for each Side Brace. Repeat the assembly procedure for the

remaining one Side Brace and two Legs. (See Figure B, and Assy. Diagram B.)

5. Attach one End Brace (part #6B) to the upper mounting holes in two Legs (part

#4B), using two Carriage Bolts (part #5B), two Washers (part #3B), and two Hex

Nuts (part #2B) for each End Brace. Repeat the assembly procedure for the re-

maining one End Brace and two Legs. (See Figure B, and Assy. Diagram B.)

6. Screw one Hex Nut (part #2B) onto the threads of each of the four Leveling Feet

(part #1B). Then, insert one Washer (part #3B) onto the threads of each of the

Leveling Feet. Insert a Leveling Foot, with its threaded portion pointing upward,

through the hole located at the bottom of each of the four Legs (part #4B). In-

sert one Washer (part #3B) onto the threads of each of the Leveling Feet. Then,

screw one Hex Nut (part #2B) onto the threads of each of the four Leveling Feet.

(See Figure B, and Assy. Diagram B.)

7. Move the Leg Assembly to the desired ﬂoor surface working location. Adjust the

Leveling Feet (part #1B) so that the entire Leg Assembly stands level. Then,

ﬁrmly tighten all hardware, using an appropriate size wrench (not provided). (See

Figure B, and Assy. Diagram B.)

To Mount The Leg Stand On The 10”Table Saw Base:

1. With assistance,place the 10” Table Saw upside down on a ﬂat, level, smooth

surface (i.e., cardboard) on the ﬂoor. Then, place the Leg Assembly upside down

on the Base (part #1G) of the 10” Table Saw. (See Figure D.)

2. Align the two mounting holes on the each of the two End Braces (part #6B) with

the two mounting holes on each end of the Base (part #1G). Secure the End

Braces to the Base, using four Hex Head Bolts (part #8B), eight Washers (part

#3B), and four Hex Nuts (part #2B). (See Figure D, and Assy. Diagram B.)

3. NOTE: Leave the 10” Saw Table upside down for the next assembly procedure.

SKU 46813 PAGE 10

Altri manuali per 46813

Indice

Altri manuali Central Machinery Sega

Central Machinery

Central Machinery 93762 Istruzioni per il montaggio

Central Machinery

Central Machinery 94652 Manuale utente

Central Machinery

Central Machinery 32206 Manuale del proprietario

Central Machinery

Central Machinery 67595 Manuale di installazione

Central Machinery

Central Machinery 97099 Manuale di installazione

Central Machinery

Central Machinery 41889 Guida di riferimento rapido

Central Machinery

Central Machinery 92658 Manuale utente

Central Machinery

Central Machinery 93012 Istruzioni per il montaggio

Central Machinery

Central Machinery 93762 Manuale utente

Central Machinery

Central Machinery 60500 Istruzioni per il montaggio

Central Machinery

Central Machinery 60564 Istruzioni per il montaggio

Central Machinery

Central Machinery 66435 Manuale di installazione

Central Machinery

Central Machinery 93507 Manuale utente

Central Machinery

Central Machinery 90597 Manuale utente

Central Machinery

Central Machinery 32208 Manuale di installazione

Central Machinery

Central Machinery 93491 Manuale utente

Central Machinery

Central Machinery 46813 Guida di riferimento rapido

Central Machinery

Central Machinery 93380 Manuale utente

Central Machinery

Central Machinery 99553 Manuale di installazione

Central Machinery

Central Machinery 61712 Manuale utente

Central Machinery

Central Machinery 97896 Manuale utente

Central Machinery

Central Machinery 62519 Istruzioni per il montaggio

Central Machinery

Central Machinery 63469 Istruzioni per il montaggio

Central Machinery

Central Machinery 94443 Manuale utente

Manuali Sega popolari di altre marche

RIDGID

RIDGID BS1400 Manuale utente

ATIKA

ATIKA BWS 400-2 Manuale utente

RGC

RGC FS20 Manuale utente

Makita

Makita M2300 Manuale utente

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuale utente

IMET Spa

IMET Spa SIRIO 370 AF-E Manuale utente

Optimum

Optimum OPTisaw CS 275 Manuale utente

Makita

Makita BPB180 Manuale utente

Stihl

Stihl MS 462 C-M Manuale utente

AEG

AEG TS 250 K Manuale utente

Meec tools

Meec tools 004665 Manuale utente

Makita

Makita LS1018L Manuale utente

Ryobi

Ryobi RCS1400 Manuale utente

DeWalt

DeWalt DCS391 Manuale utente

Sealey

Sealey SA72 Manuale utente

skilsaw

skilsaw SPT88 Istruzioni per il montaggio

Urrea

Urrea SI810 Dimensioni e guida di installazione

EINHELL

EINHELL BKG 210/1 Manuale utente
