Central Pneumatic 93786 Manuale utente

5 HP

Air Compressor Pump

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

93786

Due to continuing improvements, actual product may differ slightly from the product described herein.

SKU 93786

For technical questions please call 1-800-444-3353

Page 2

Specifications

Caution: Before operating, fill the oil reservoir with a premium quality,

30-weight, nondetergent oil before operating. Running the Air

Compressor Pump with little or no oil will cause damage to the pump

and void the warranty.

Save This Manual

You will need the manual for the safety warnings and precautions, assembly

instructions, operating and maintenance procedures, parts list and diagram. Keep

your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep the manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING:When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in

damp or wet locations. Don’t expose to rain. Keep work area well lighted. Do

not use electrically powered tools in the presence of flammable gases or

liquids.

3. Keep children away. Children must never be allowed in the work area. Do

not let them handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry

location to inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or

attachment to do the work of a larger industrial tool. There are certain

applications for which this tool was designed. It will do the job better and more

safely at the rate for which it was intended. Do not modify this tool and do not

use this tool for a purpose for which it was not intended.

:noitcurtsnoC ,pmuPmunimulAtsaC

leehwylFnorItsaC :epyTrosserpmoC ,egatSelgniS

rednilyCniwT

:erusserPmumixaMi

sp541:deepSmumixaMmpr0021

:noitacirbuL

leveLliOhtiwepytliOhsalpS

gniraeBllaBdnawodniW

evlaVesaeleRkcehC

:mpr

0501taetaRyrevileDriA

isp04tamfc1.51

isp09tamfc5.31

isp511tamfc3.21

:snoisnemiDyelluP W"61/51-1x.aiD"½-41

tlebrofsevoorg-Vlaudhtiw :snoisnemiDnotsiPekortsmm06x.aiDmm08

:snoisnemiDllarevOH"¼-71xW"½-11xL"51:thgieWt

eN.sbl54.85

SKU 93786

For technical questions please call 1-800-444-3353

Page 3

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught

in moving parts. Protective, electrically non-conductive clothes and non-skid

footwear are recommended when working. Wear restrictive hair covering to

contain long hair.

7. Use eye and ear protection. Always wear ANSI approved impact safety

goggles. Wear a full face shield if you are producing metal filings or wood

chips. Wear an ANSI approved dust mask or respirator when working around

metal, wood, and chemical dusts and mists.

8. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines.

9. Maintain tools with care. Keep tools maintained and clean for better and

safer performance. Follow instructions for lubricating and changing

accessories. Inspect tool cords periodically and, if damaged, have them

repaired by an authorized technician.

10. Disconnect power. Unplug drive motor when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting

wrenches are removed from the tool or machine work surface before starting work.

12. Avoid unintentional starting. Be sure the drive motor power switch is in the

Off position when not in use and before plugging in.

13. Stay alert. Watch what you are doing, use common sense. Do not operate

any tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

damaged should be carefully checked to determine that it will operate properly

and perform its intended function. Check for alignment and binding of moving

parts; any broken parts or mounting fixtures; and any other condition that may

affect proper operation. Any part that is damaged should be properly repaired

or replaced by a qualified technician. Do not use the tool if any switch does

not turn On and Off properly.

15. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only use

accessories intended for use with this tool. Approved accessories are

available from Harbor Freight Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read

warning labels if taking prescription medicine to determine if your judgment or

reflexes are impaired while taking drugs. If there is any doubt, do not operate

the tool.

SKU 93786

For technical questions please call 1-800-444-3353

Page 4

18. Maintenance. For your safety, service and maintenance should be performed

regularly by a qualified technician.

Note: Performance of this Air Compressor Pump may vary depending on variations

in local line voltage or motor capacity. Extension cord usage may also affect

tool performance.

19. Do not operate tool if under the influence of alcohol or drugs. Read

warning labels on prescriptions to determine if your judgment or reflexes are

impaired while taking drugs. If there is any doubt, do not operate the tool.

20. Use proper size and type extension cord. If an extension cord is required,

it must be of the proper size and type to supply the correct current to the tool

without heating up. Otherwise, the extension cord could melt and catch fire, or

cause electrical damage to the tool. Longer extension cords require larger

size wire. If you are using the tool outdoors, use an extension cord rated for

outdoor use. (signified by “WA” on the jacket). Check with the manufacturer of

the electric motor (not included) for the proper power supply requirements.

21. Maintenance. For your safety, service and maintenance should be performed

regularly by a qualified technician.

22. Pacemaker safety warning. People with pacemakers should consult with

their physician(s) before using this electric powered equipment; operation of

equipment in close proximity to a heart pacemaker could cause interference

or failure of the pacemaker.

NOTE:This item must be properly mounted on a strong, level surface which is capable

of holding the compressor weight, and the forces put on it during operation. A properly

sized motor (not included) must also be mounted on a level and sufficiently strong

surface. The motor and pump must be connected with V shaped drive belts (not

included). The drive belts must be completely enclosed in a sturdy belt cover (not

included).

WARNING: By supplying this air compressor, Harbor Freight Tools makes no

representations and accepts no responsibility for the motor, V-belt, enclosure or

mounting surface not supplied by HFT which may be used in the installation.You are

strongly advised to have this air compressor properly installed by a qualified service

technician using appropriate components in good condition.

WARNING: The brass components of this product contain lead, a chemical known to

the State of California to cause birth defects (or other reproductive harm). (California

Health & Safety code § 25249.5,

et seq.

)

The warnings, cautions, and instructions discussed in this instruction manual

cannot cover all possible conditions and situations that may occur. It must be

understood by the operator that common sense and caution are factors which

cannot be built into this product, but must be supplied by the operator.

SKU 93786

For technical questions please call 1-800-444-3353

Page 5

Air Compressor Pump Safety Precautions

1. Use proper size motor and motor pulley. This air compressor Pump must

be installed with a 5 HP electric motor and pulley (both not supplied) which

can turn the Air Compressor Belt Wheel (36) at approximately 1050 rpm, but

not more than 1200 rpm.

2. Install motor, pully belt and pully belt cover securely. Be sure to use the

proper size bolts to install your motor (not included). The belt and belt cover

(not included) must be strong enough to prevent breaking and possible injury.

3. Be sure all equipment is rated to the appropriate capacity of this pump.

Make sure that the lowest rated piece of equipment you are using can handle

the maximum pressure of the Air Compressor Pump (see Specifications).

4. Avoid explosions and fire. Never place flammable objects near the compressor.

Never spray water or any flammable liquids towards the compressor.

5. Avoid bodily injury. Never direct the air outlet at any person or animal.

6. Use Safety Guard for Pulleys. The Air Compressor Belt Wheel (36), V-belt

(not supplied), and motor pulley (not supplied) must be covered by a safety

guard (not supplied) covering all moving elements before operation.

7. Avoid burns. The Cylinder (15), Cylinder Head (26) Air Hose (24) and Air

Outlet (25) become very hot during operation. Do not touch.

8. Industrial Applications. If used in an industrial applications, you must follow

OSHA requirements.

9. Properly fill Air Compressor Pump oil reservoir before operating. Fill

the oil reservoir with a premium quality, 30-weight, non-detergent oil before

operating.

Check oil level through the Oil Level Window before each use.

Running the Air Compressor Pump with little or no oil will cause damage to

the pump and void the warranty.

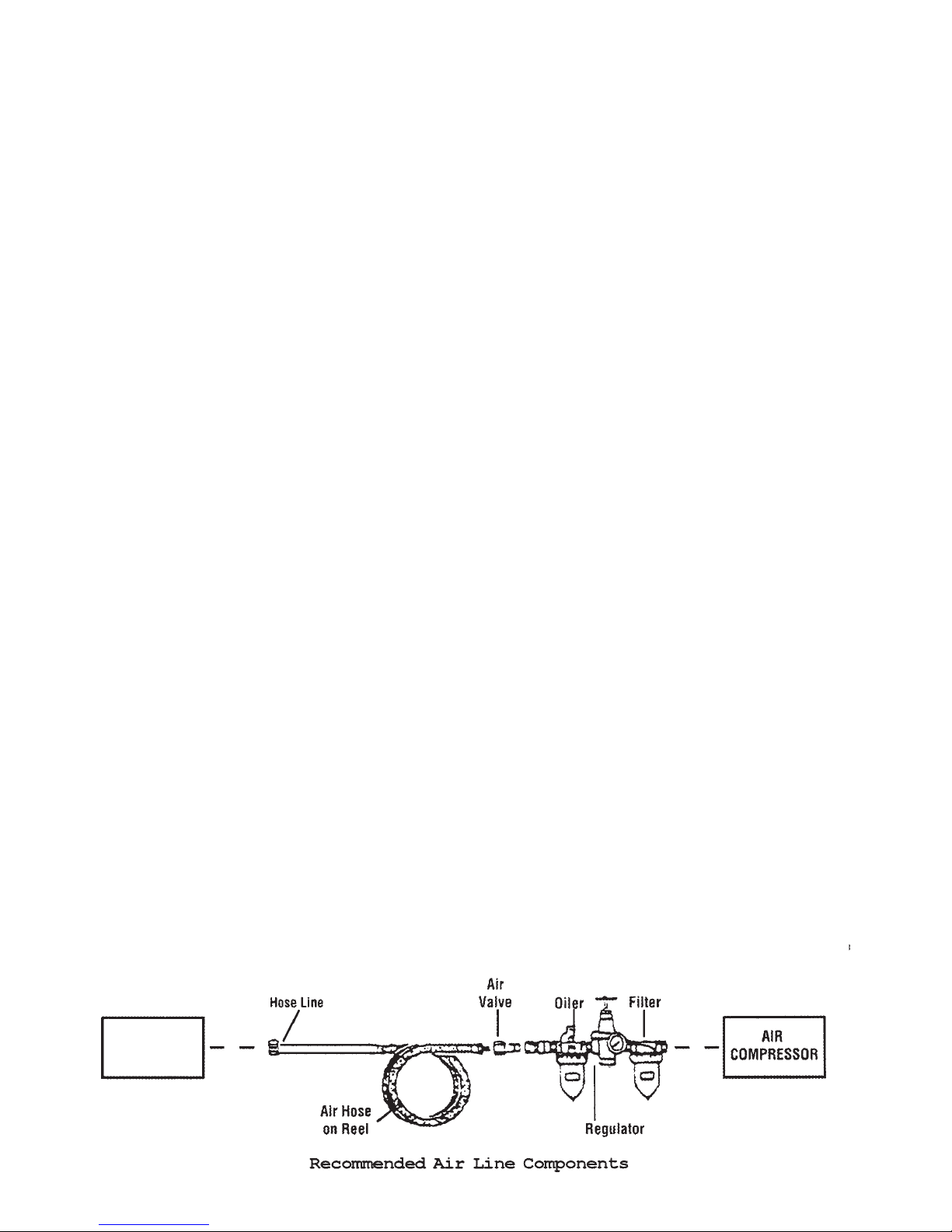

Recommended Compressed Air System Components

We recommend that you use both a filter and an in-line oiler in your air supply system

as illustrated in the diagram below.These components are not included with this tool,

but are available from Harbor Freight Tools.

Air Tool

SKU 93786

For technical questions please call 1-800-444-3353

Page 6

Unpacking

When unpacking, check to make sure that the product is intact and

undamaged. If any parts are missing or broken, please call Harbor Freight

Tools at the number on the cover of this manual as soon as possible.

Installation

Note: Depending on your level of expertise, you may wish to have a qualified

technician perform this installation.

Caution: Avoid damage to the Air Compressor Pump and other equipment. Make

sure the mounting surface for the Air Compressor Pump is installed on a flat

and level surface, strong enough to support the pump and motor.

1. Place the Air Compressor Pump on the mounting surface at the same level as the 5

HP motor used to drive it. The 14-½ inch double V-groove Belt Wheel (29) of the Air

Compressor Pump must be in perfect alignment with the motor pulley (not included).

2. Verify that the Belt Wheel (36) turns freely where it overhangs the mounting surface.

3. Place the V-groove belts (not included) over the Belt Wheel (36) and motor pulley.

4. Pull Compressor Pump until properly aligned, and the belt is tight. Recheck

motor pulley, V-groove belt, and Belt Wheel alignment.

5. Use a pencil to mark through the Air Compressor Pump mounting holes onto

the mounting surface.

6. Move the Air Compressor Pump and drill four 7/16 inch holes in the mounting surface.

7. Move the Air Compressor Pump back to its mounting position.

8. Secure each corner of the base with a 7/16 inch diameter bolt, washer, lock

washer, and nut (all not supplied).

9. Mount the motor (not supplied) as recommended by the motor manufacturer.

Be sure that the motor is securely mounted.

10. Make final alignment and belt tightness adjustments from the motor. It may be

necessary to loosen the motor mounting bolts to adjust the motor location. To

test the proper tension on the V-belts, press down on the belts, they should

not depress more than 1/2 inch at mid span. Tighten all mounting hardware.

11. Connect plumbing hardware (not supplied) from the male ¾”- 14 tpi Air Outlet

(25) to the air destination (i.e., air pressure tank, not supplied).

12. Install a safety guard (not supplied) that surrounds the motor pulley, V-belts,

and Belt Wheel (36). This safety guard must cover all sides of the moving

belts and pulleys. It should have a clearance of about one inch from the

moving parts. The safety guard must be sturdy enough to prevent injury.

SKU 93786

For technical questions please call 1-800-444-3353

Page 7

Note: A qualified electrician must wire in a pressure switch control that turns off

the motor when the pump reaches the desired pressure (less than 145 PSI).

Note: Always install this Air Compressor Pump to an air tank that has a pressure

release valve set at less than 145 PSI.

Note: A high/low cut-in/cut-out switch (not included) can be incorporated to operate

a motor starter or motor contractor for semi-automatic control of air pressure

in the vessel.

Warning: Avoid serious injuries. Do not operate this Air Compressor Pump without

the Safety Guard in place.

12. Unscrew the Oil Filler Cap (10) and fill the oil

reservoir to mid point as seen in the Oil Window (4).

The oil should be premium qualify, 30-weight,

non-detergent oil. Do not overfill.

Operation

1. Turn on the power switch to the drive motor.

2. Check the following items:

- V-belt should not vibrate.

- Listen for air leaks.

- Listen for abnormal noise or vibration.

- If there is a problem, turn power off and release air pressure from the line

before attempting repairs.

3. Allow Air Compressor Pump to cool down after each hour of use.

4. Turn off the power switch to the drive motor when finished using the Air

Compressor Pump. Do not leave on if the compressed air is not being used.

Maintenance

Caution: Remove power from the drive motor before attempting any maintenance

on the Air Compressor Pump.

1. Before each use, verify that the oil level is at the proper level as viewed through

the Oil Window (4).

2. Periodically check V-belts for proper tension.

3. Periodically remove Air Filters (19) and blow clean with compressed air. If they

are dark in color and will not blow clean, replace the filters.

4. If the oil appears dirty, open the Oil Filler Cap (10), and remove the Oil Drain

Bolt (2), capturing the oil in a suitable container. Dispose of the used oil in

accordance with local regulations. Replace the Oil Drain Bolt, and refill as

discussed in item 12 above.

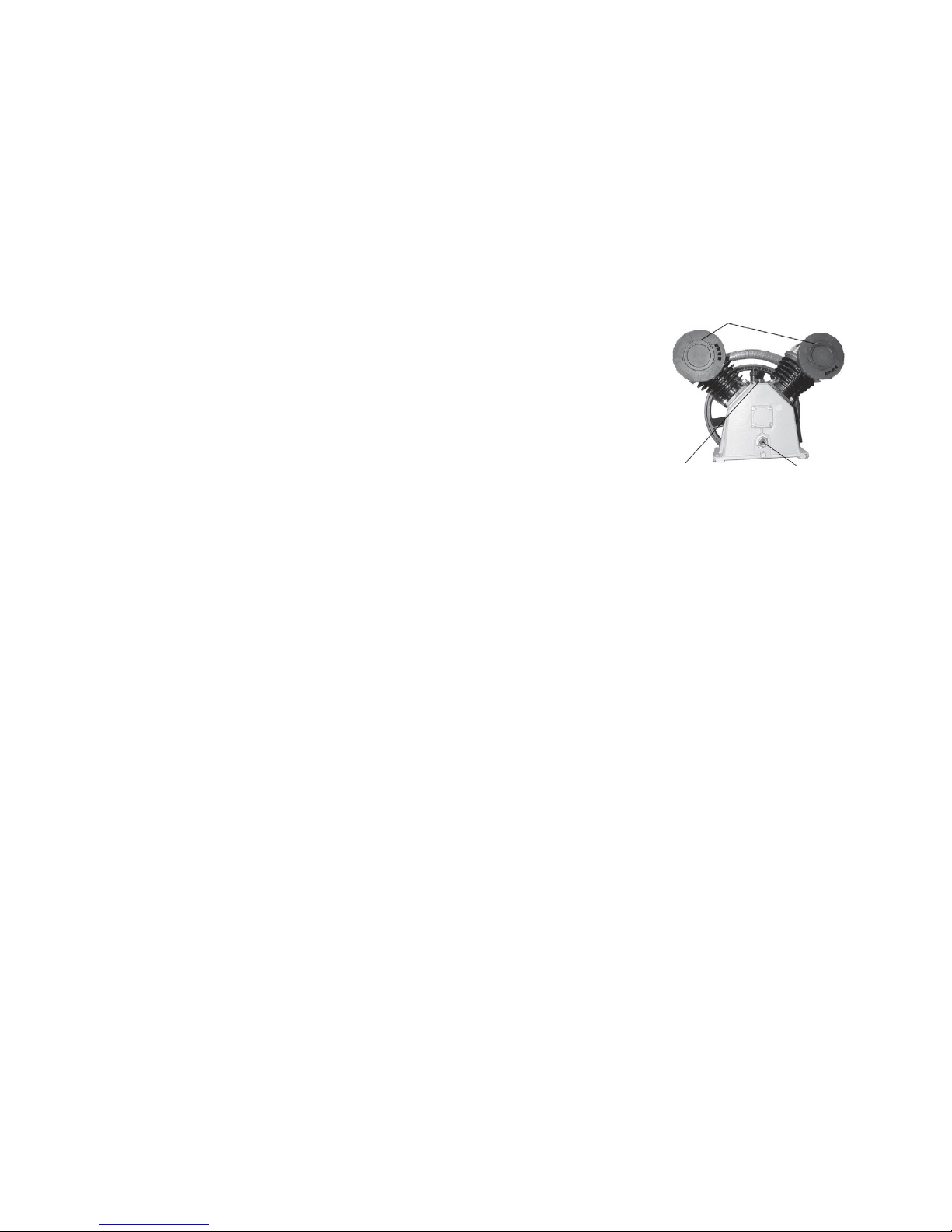

Air Filters (19)

Oil Window (4)

Oil Filler Cap (10)

SKU 93786

For technical questions please call 1-800-444-3353

Page 8

Parts List

NOTE: Some parts are listed and shown for illustration purposes only and are not

available individually as replacement parts.

NOTE: Parts # 16, 17*, 27* are sold only as an assembly called the “Cylinder

Gasket & Reed Valve Kit”.

#traPnoitpircseD.YTQ#traPnoitpircseD.YTQ

1esacknarC132eeT1

2tloBniarDliO142esoHriAreloocretnI1

3teksaGwodniWliO152teltuOriA1

4wodniWliO162daeHrednilyC2

5wercS4*72daeHrednilyC-teksaG2

6rehsaW-kcoL482teSgniRnotsiP2

7revoCraeR192notsiP2

8revoCraeR-teksaG10

3lanretnIgnir-panS4

9gniraeB113niPnotsiP2

01paCrelliFliO123leehwtleB-yeK1

11rednilyC-teksaG233kcitspiD1

21rehsaW-kcoL943tloB1

31t

loB853leehwtleB-rehsaW1

41tuN863leehwtleB1

51rednilyC273tloB6

*61taeSevlaV-teksaG283revoCtnorF8

*71ylbmessAetalPevlaV293revoCtno

rF-teksaG1

81tnemelEretliFriA204laeSliO1

91ylbmessAretliFriA214gniraeB1

02rehsaW4124tfahsknarC1

12tloB834doRgnitcennoC2

22tuN144gni

r-panS1

SKU 93786

For technical questions please call 1-800-444-3353

Page 9

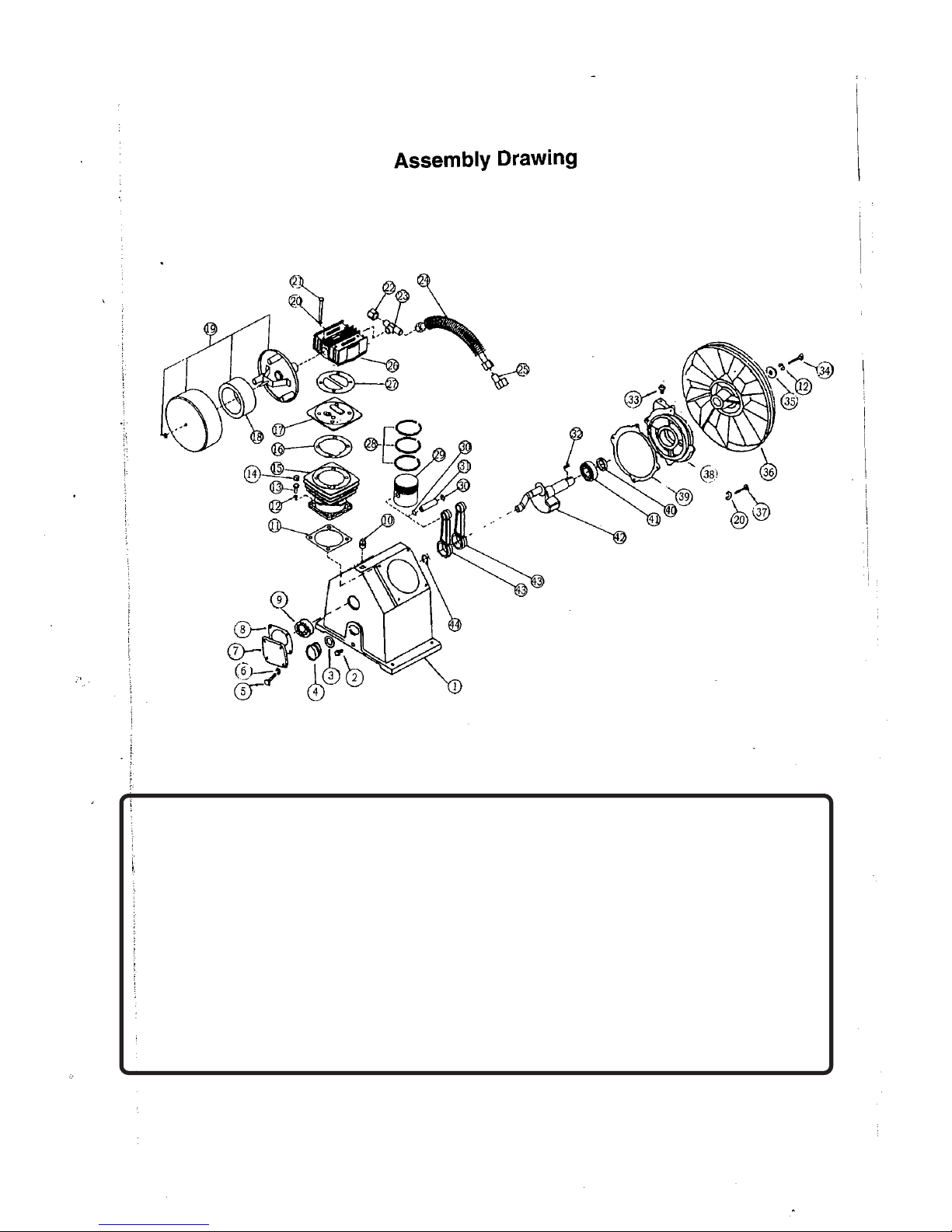

Assembly Drawing

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR

DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE

BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR

THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT,

THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS

AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK

AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT

OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION

OF REPLACEMENT PARTS THERETO.

SKU 93786

For technical questions please call 1-800-444-3353

Page 9

Indice

Altri manuali Central Pneumatic compressore d'aria

Central Pneumatic

Central Pneumatic 21 Manuale utente

Central Pneumatic

Central Pneumatic 61615 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 67698 Manuale utente

Central Pneumatic

Central Pneumatic 67696 Manuale di installazione

Central Pneumatic

Central Pneumatic 93785 Manuale utente

Central Pneumatic

Central Pneumatic 42321 Manuale utente

Central Pneumatic

Central Pneumatic 45214 Manuale utente

Central Pneumatic

Central Pneumatic 94724 Manuale utente

Central Pneumatic

Central Pneumatic 60638 Manuale utente

Central Pneumatic

Central Pneumatic Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air... Manuale utente

Central Pneumatic

Central Pneumatic 95386 Manuale di installazione

Central Pneumatic

Central Pneumatic 96068 Manuale di installazione

Central Pneumatic

Central Pneumatic CentralPneumatic 68064 Manuale di installazione

Central Pneumatic

Central Pneumatic 67847 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 62779 Manuale utente

Central Pneumatic

Central Pneumatic 94667 Manuale utente

Central Pneumatic

Central Pneumatic 61454 Manuale utente

Central Pneumatic

Central Pneumatic 95498 Manuale di installazione

Central Pneumatic

Central Pneumatic 93657 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 69667 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 68140 Manuale di installazione

Central Pneumatic

Central Pneumatic 43520 Manuale utente

Central Pneumatic

Central Pneumatic 94355 Manuale utente

Central Pneumatic

Central Pneumatic 93351 Manuale utente

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
