1” DRIVE INDUSTRIAL1” DRIVE INDUSTRIAL

1” DRIVE INDUSTRIAL

IMPIMP

IMPACT WRENCHACT WRENCH

ACT WRENCHACT WRENCH

ACT WRENCH

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at http://www.harborfreight.com

this manual or any artwork contained herein may be reproduced in any shape

or form without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts,please call 1-800-444-3353

92622

Page 2

SKU 92622 For technical questions, please call 1-800-444-3353

Specifications

Item Description

Torque 1,400 FT./LBS.

Working Pressure 100 PSI, and 115 PSI (maximum)

Air Inlet ½ inch – 14 NPT with screen

Drive One inch, Inline air impact

Regulator on Unit 3 torque settings: 1, 2, & 3; Left and Right direction

Overall Dimensions 22-3/4 (L) x 7-3/4 (W) x 7-1/4 (H) with side handle

Weight 31.7 LBS.

SaveThis Manual

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice with this

manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to

reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or wet

locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically

powered tools in the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not let

them handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attachment to

do the work of a larger industrial tool.There are certain applications for which this tool

was designed. It will do the job better and more safely at the rate for which it was

intended. Do not modify this tool and do not use this tool for a purpose for which it

was not intended.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically non-conductive clothes and non-skid footwear

are recommended when working. Wear restrictive hair covering to contain long hair.

7. Do not overreach. Keep proper footing and balance at all times. Do not reach over

or across running machines.

Page 3

SKU 92622 For technical questions, please call 1-800-444-3353

8. Use eye and ear protection. Always wear ANSI approved impact safety goggles.

Wear a full face shield if you are producing metal filings or wood chips.Wear an ANSI

approved dust mask or respirator when working around metal, wood, and chemical

dusts and mists.

9. Maintain tools with care. Keep tools sharp and clean for better and safer

performance. Follow instructions for lubricating and changing accessories. Inspect

tool cords periodically and, if damaged, have them repaired by an authorized

technician.The handles must be kept clean, dry, and free from oil and grease at all

times.

10. Disconnect power.Unplug tool when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches

are removed from the tool or machine work surface before plugging it in.

12. Avoid unintentional starting. Be sure the switch is in the Off position when not in

use and before plugging in. Do not carry any tool with your finger on the trigger,

whether it is plugged in or not.

13. Stay alert. Watch what you are doing, use common sense. Do not operate any tool

when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform its

intended function. Check for alignment and binding of moving parts; any broken parts

or mounting fixtures; and any other condition that may affect proper operation. Any

part that is damaged should be properly repaired or replaced by a qualified

technician. Do not use the tool if any switch does not turn On and Off properly.

15. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only use accessories

intended for use with this tool. Approved accessories are available from Harbor

Freight Tools.

16. Do not operate tool if under the influence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgment or reflexes are

impaired while taking drugs. If there is any doubt, do not operate the tool.

17. Maintenance. For your safety, service and maintenance should be performed

regularly by a qualified technician.

18. Use tools with both hands when required. This tool, and many tools such as chain

saws, drills, routers, etc., require the use of both hands when operating.This helps

maintain tool stability and keeps hands away from the working area of the tool.

Note: Performance of this tool may vary depending on variations in air compressor perfor-

mance.

Page 4

SKU 92622 For technical questions, please call 1-800-444-3353

Impact Wrench Safety Precautions

1. Disconnect air before servicing. Do not attempt to change sockets, disassemble,

or service tool with air hose attached.

2. Use only specified operating air pressure. Never operate tool above the specified

operating air pressure range.

3. Do not use combustible gases. Do not use combustible gases as a power source,

or use tool in areas where combustible gases are stored.

4. Avoid possible kickback injury. Hold the tool with both hands during operation so

that your head and body are not injured by possible kickback of the tool.

5. Use care when transporting tool. Disconnect tool from air supply when moving tool

in the workplace. Carry tool only by the handle without drawing the trigger.

6. OSHA Guidelines. Industrial applications must follow OSHA guidelines.

7. Air Compressor. Read and adhere to all warnings and instructions of the Air

Compressor Instruction Manual.

Warning:The warnings,cautions,and instructions discussed in this instruction manual

cannot cover all possible conditions and situations that may occur. It must be under-

stood by the operator that common sense and caution are factors which cannot be

built into this product, but must be supplied by the operator.

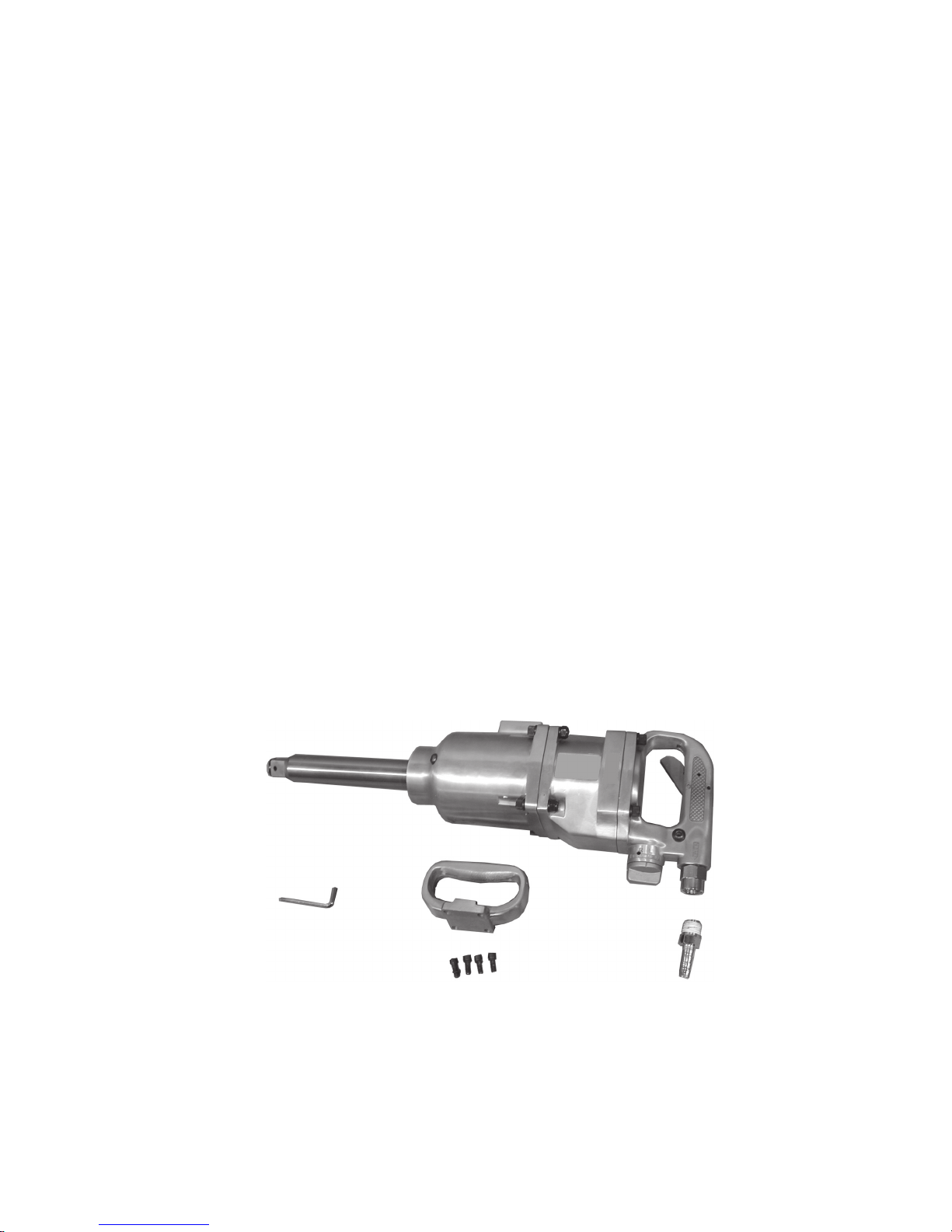

Unpacking

When unpacking, check to make sure the following parts are included.

If any parts are missing or broken, please call Harbor Freight Tools at the number on the

cover of this manual as soon as possible.

Air Hose

Fitting (56)

D-type Handle (49)

AllenWrench

Cap Screws (50)

ImpactWrench

Page 5

SKU 92622 For technical questions, please call 1-800-444-3353

Assembly

The Air Hammer comes completely assembled, except for the air inlet fitting and handle.

Note: Use pipe thread seal or Teflon tape on all threaded connections.

Caution:The compressor must be off and all the air bled out before making any con-

nections.

Mount Handle

1. Using Cap Screws (50), and the supplied Allen Wrench, mount the D-type Handle

(49) to the Hammer Case (43).

2. Securely tighten all Cap Screws.

Air Connection

1. Attach the Air Hose Fitting (56) into the Air Inlet (10) fitting. Securely tighten.

2. Optionally, for easy connection or removal, attach an Air Quick Coupler (not supplied)

to a Union fitting (not supplied), if quick-coupling is desired.

3. Attach the 1/2 inch air hose (not supplied) to the Air Hose Fitting (56), or Union fitting,

if used.

4. Attach the other end of the air hose to the compressor (not supplied) regulator-filter

with oiler.

5. Retighten all couplings and fittings.

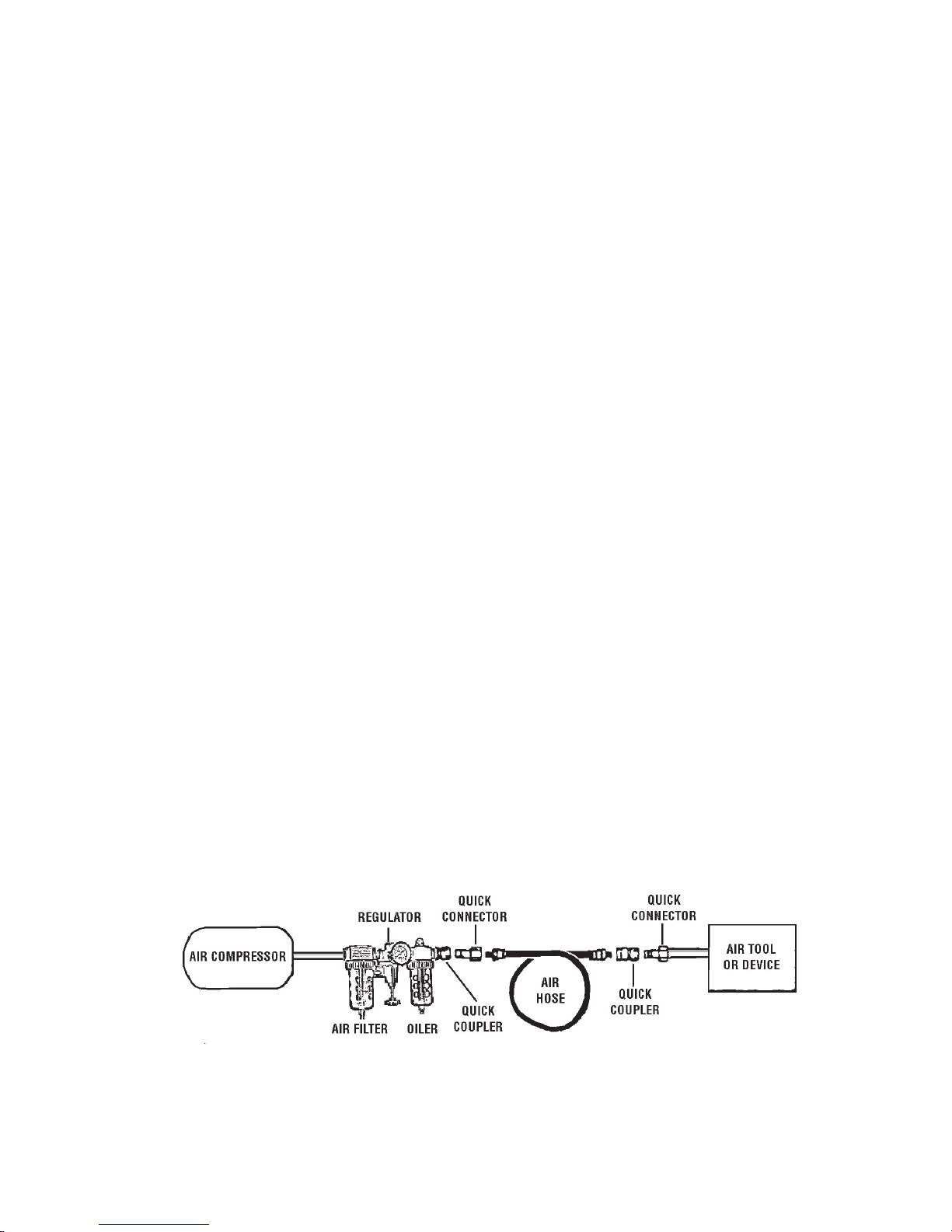

Oiler and Filter Connection

Dirt, water, and the lack of pneumatic tool oil are major causes for tool wear. It is recom-

mended to install an optional oiler-filter, as illustrated below for better performance.

Connect the air tool, air hoses, filter, and oiler to the Compressor Air Outlet as illustrated

below.The filter and oiler (not supplied) are recommended but not mandatory for operation.

A few drops of pneumatic tool oil must be added through the air line before each use if an

oiler is not used.

Page 6

SKU 92622 For technical questions, please call 1-800-444-3353

Operation

WARNING:Only use one inch sockets with the torque capability of at least 1400 FT./

LBS.. Otherwise, the socket could fly off the Anvil or break apart, causing injury.

1. Put on the impact safety glasses and ear plugs.

2. Select the desired one inch socket and verify it fits properly on the nut or bolt being

secured or removed.Then, secure the socket on the Anvil (41) of the Impact Wrench.

3. Hand screw on the nut or bolt as far as possible.

4. Turn the air compressor on and set the air compressor pressure regulator to 100 PSI.

When the air compressor motor stops, and the air tank is full, operation may begin.

5. Check for air leaks at the air hose connections. If a leak is detected, disconnect the air

hose and repair the leak.

6. Set the Impact Wrench Regulator (19) to the desired direction (L = left or

counterclockwise, R = right or clockwise), and the torque setting (1 = Low,

2 = Medium, 3 = High).

7. While holding the Impact Wrench with both hands, place the Anvil (41) with socket

squarely over the nut or bolt.

8. Squeeze the Trigger (2) to begin loosening or tightening.

Be prepared for great torque on the Handles. Let the Impact Wrench do the work. Do

not lay into it with great force.If necessary, turn the Regulator (19) to adjust the air

flow within the Impact Wrench to increase or decrease torque.

Note:Do not overtighten the nut or bolt.If it will not tighten enough at the maximum setting, do

not continue. Use a manual torque wrench (not included) to tighten. If available, check the

specific torque settings for the nut or bolt.

Caution:Neverincrease pressure at the air compressor regulatorto achievemore torque.

8. When finished, release the Trigger (2), and lift the Impact Wrench off the nut.

9. Remove the air supply hose, then squeeze the Trigger (2) again to release any

remaining air pressure in the Impact Wrench air chamber.

10. Turn off the air compressor.

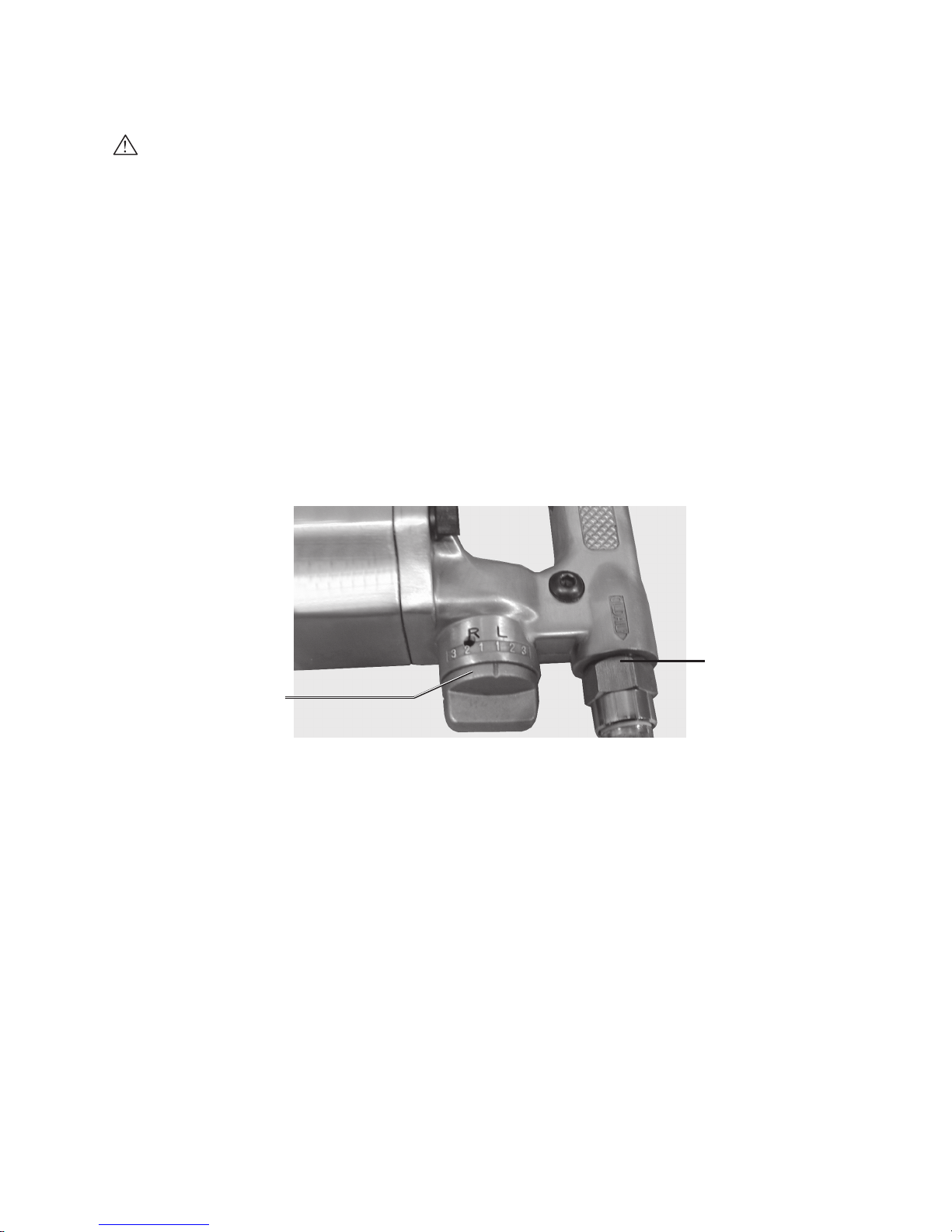

Regulator (19)

Air Inlet (10)

Page 7

SKU 92622 For technical questions, please call 1-800-444-3353

Maintenance

1. After each use, wipe the Impact Wrench with a clean cloth to remove any dirt and

grease buildup.

2. To maintain tool life, always lubricate the air line by adding a few drops of pneumatic

tool oil to the air line (or Air Inlet) before each use.Or, install the automatic oiler-filter

system as illustrated on page 5.

3. Before each use, drain water out of the air compressor tank and condensation from

the air lines.Refer to the Air Compressor Operation Manual.

4. Store the Impact Wrench in a clean and dry location.

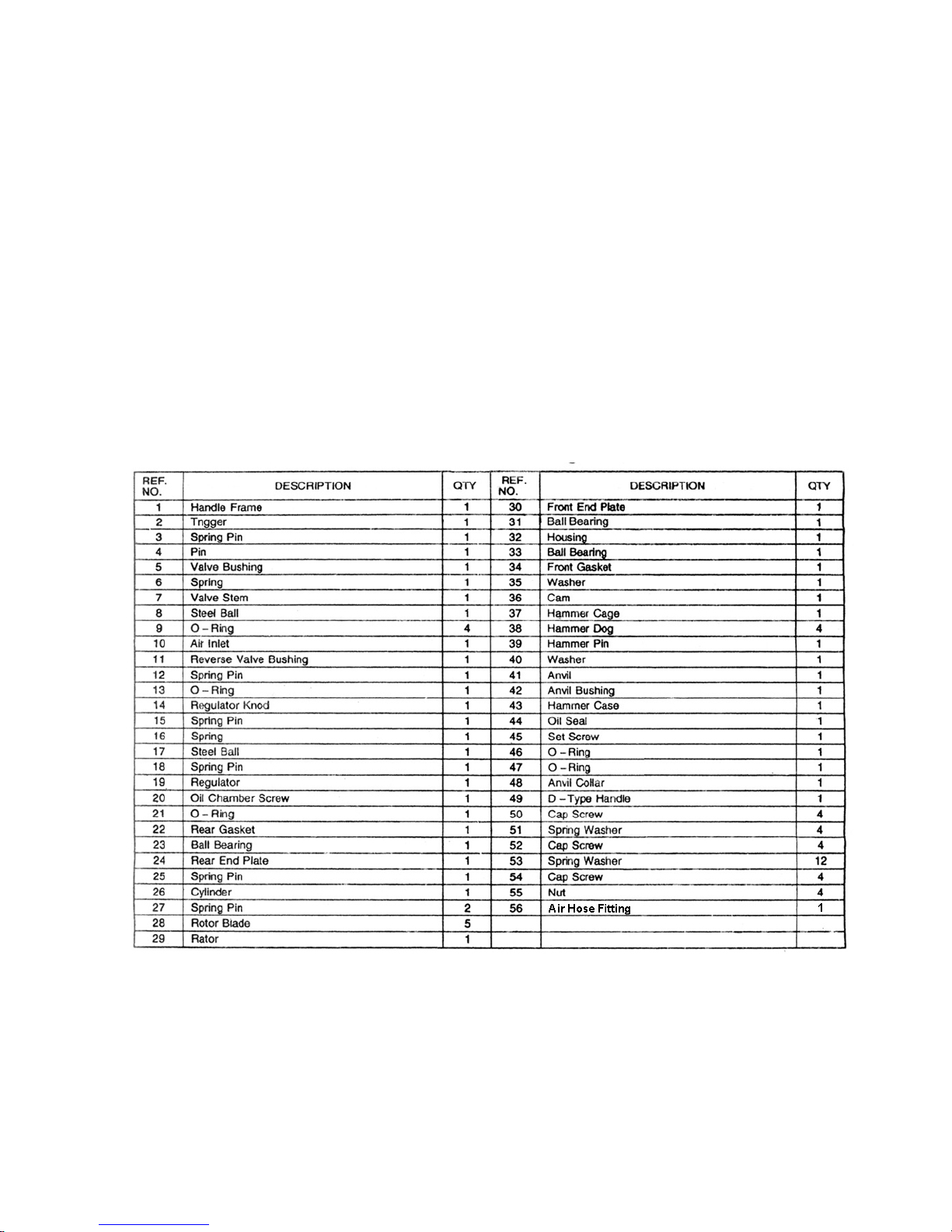

Parts List

NOTE: Some parts are listed and shown for illustration purposes only and are not available

individually as replacement parts.

Page 8

SKU 92622 For technical questions, please call 1-800-444-3353

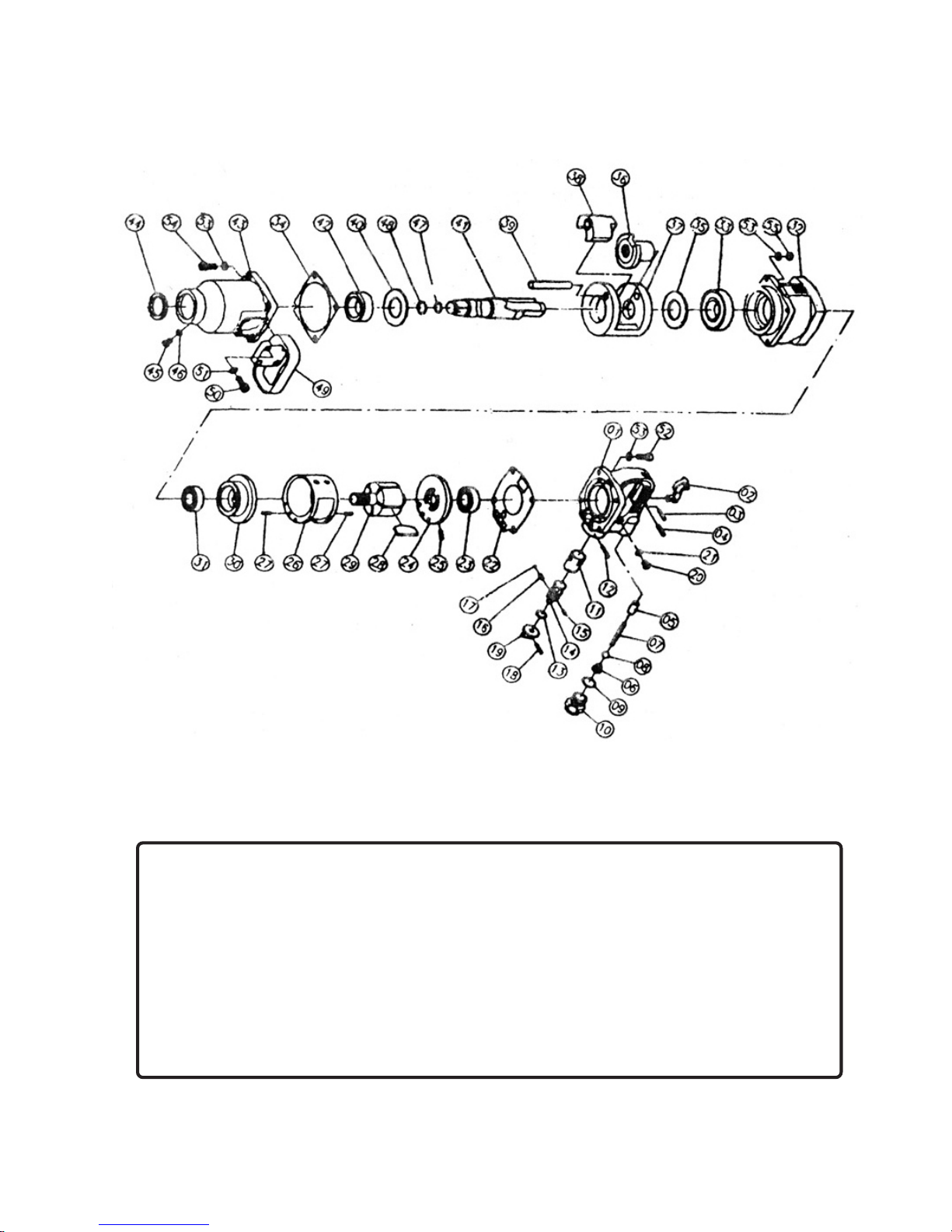

Assembly Drawing

PLEASE READTHE FOLLOWING CAREFULLY

THEMANUFACTURERAND/ORDISTRIBUTORHASPROVIDEDTHEPARTSDIAGRAMINTHIS

MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU-

TORMAKES ANY REPRESENTATIONORWARRANTY OF ANYKINDTOTHE BUYERTHAT HE

OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS

QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER

AND/ORDISTRIBUTOREXPRESSLYSTATESTHATALLREPAIRS ANDPARTSREPLACEMENTS

SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS AND NOT BYTHE

BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER

REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING

OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTSTHERETO.

Indice

Altri manuali Central Pneumatic Avvitatore a impulsi

Central Pneumatic

Central Pneumatic Earthquake 92353 Manuale utente

Central Pneumatic

Central Pneumatic 95310 Manuale utente

Central Pneumatic

Central Pneumatic 69576 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic ITEM 93296 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 94108 Manuale utente

Central Pneumatic

Central Pneumatic 92427 Manuale utente

Central Pneumatic

Central Pneumatic 92208 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic Earthquake 92421 Manuale utente

Central Pneumatic

Central Pneumatic 92921 Manuale utente

Central Pneumatic

Central Pneumatic 33567 Assembly and Manuale utente

Central Pneumatic

Central Pneumatic 94803 Manuale utente

Central Pneumatic

Central Pneumatic 69228 Manuale utente

Central Pneumatic

Central Pneumatic 93296 Manuale utente

Central Pneumatic

Central Pneumatic 95310 Manuale utente

Central Pneumatic

Central Pneumatic 93566 Guida di riferimento rapido

Central Pneumatic

Central Pneumatic 94109 Manuale utente

Central Pneumatic

Central Pneumatic 95141 Manuale di installazione

Central Pneumatic

Central Pneumatic 94802 Manuale utente

Central Pneumatic

Central Pneumatic 92037 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic Earthquake 92353 Manuale di installazione

Central Pneumatic

Central Pneumatic Earthquake 92421 Manuale di installazione

Central Pneumatic

Central Pneumatic 61718 Manuale utente

Central Pneumatic

Central Pneumatic 37730 Manuale utente

Central Pneumatic

Central Pneumatic 32871 Manuale utente

Manuali Avvitatore a impulsi popolari di altre marche

stayer

stayer IW500D Manuale utente

Makita

Makita DTD152 Manuale utente

Milwaukee

Milwaukee M12 FID Manuale utente

Grizzly

Grizzly H6140 Manuale utente

Makita

Makita BTW450 Manuale utente

Ozito

Ozito LID-3000 Manuale utente

Astro Pneumatic Tool

Astro Pneumatic Tool 1812 Manuale utente

Greenlee

Greenlee HW3 Manuale utente

Sthor

Sthor 57091 Manuale utente

Makita

Makita DTD145 Manuale utente

Hilti

Hilti SIW 2-A12 Manuale utente

Ryobi

Ryobi R18IW3 Manuale utente

Parkside

Parkside PDSSA 20-Li A1 Manuale utente

Flex

Flex FX1471 Manuale utente

SATA

SATA 51075C Manuale tecnico

Cembre

Cembre NR-11P Manuale utente

Makita

Makita BTP131RFE Manuale utente

DeWalt

DeWalt XR Li-ion DCF902 Manuale utente
