Central Pneumatic 91064 Manuale utente

AIR TANK - 15 GALLON

MODEL 91064

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http//www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and as-

sembly diagram. Keep your invoice with this manual. Write the invoice number

on the inside of the front cover. Keep this manual and invoice in a safe and dry

place for future reference.

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List (page 7) are

included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

GENERAL SAFETY WARNINGS AND PRECAUTIONS

1. Keep work area clean and dry. Cluttered, damp, or wet work areas invite

injuries.

2. Keep children away from work area. Do not allow children to handle this

product.

3. Store idle equipment. When not in use, tools and equipment should be stored

in a dry location to inhibit rust. Always lock up tools and equipment, and keep out

of reach of children.

4. Do not use this product if under the influence of alcohol or drugs. Read

SKU 91064 PAGE 2

Item Description

Tank Capacity 15 Gallons.

Operating Pressure 85-125 PSI.

Air Hose 6’6” Long x 1/4” I.D.

300 Maximum PSI.

Pressure Gauge 0-200 PSI / 1-1/2” Diameter Face.

Wheels 5” Diameter x 1-1/2” W.

Air Inlet/Outlet Fittings 1/2” NPT x 3-Way Coupler.

Drain Valve Assembly Brass, Twist-Type.

Pressure Release Valve Built In To Coupler.

Air Hose Chuck Automotive Type.

Overall Dimensions 12” Diameter x 37” High.

Weight 42.50 Pounds.

6. Dress safely. Do not wear loose clothing or jewelry, as they can become caught

in moving parts. Wear a protective hair covering to prevent long hair from be-

coming caught in moving parts.

7. Do not overreach. Keep proper footing and balance at all times to prevent

tripping, falling, back injury, etc.

8. Industrial applications must follow OSHA requirements.

9. Stay alert. Watch what you are doing at all times. Use common sense. Do not

use this product when you are tired or distracted from the job at hand.

10. Check for damaged parts. Before using this product, carefully check that it will

operate properly and perform its intended function. Check for damaged parts

and any other conditions that may affect the operation of this product. Replace

or repair damaged or worn parts immediately.

11. Replacement parts and accessories: When servicing, use only identical re-

placement parts. Only use accessories intended for use with this product. Ap-

proved accessories are available from Harbor Freight Tools.

12. Maintain this product with care. Keep this product clean and dry for better and

safer performance. For your safety, service and maintenance should be per-

formed regularly by a qualified technician.

13. Use the right tool for the job. Do not attempt to force a small tool to do the

work of a larger industrial tool. There are certain applications for which this tool

was designed. It will do the job better and more safely at the capacity for which it

was intended. Do not modify this tool, and do not use this tool for a purpose for

which it was not intended.

14. WARNING! The warnings, precautions, and instructions discussed in this

manual cannot cover all possible conditions and situations that may occur. The

operator must understand that common sense and caution are factors, which

cannot be built into this product, but must be supplied by the operator.

SKU 91064 PAGE 3

impaired while taking drugs. If there is any doubt, do not attempt to use this

product.

5. Use eye protection. Wear ANSI approved safety impact eye goggles when

using this product. ANSI approved safety impact eye goggles are available from

Harbor Freight Tools.

warning labels on prescriptions to determine if your judgement or reflexes are

SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS

1. WARNING! Do not exceed the maximum 125 PSI storage pressure. Over

pressurizing the Air Tank could result in an explosion. Do not fill the Air Tank from

any compressed gas cylinder or a system charged with greater than 125 PSI.

Only fill the Air Tank with air from a service station or low pressure air compressor

system.

2. Do not leave the AirTank unattended while it is being filled by the air com-

pressor. Unattended use could result in an explosion, resulting in serious per-

sonal injury and/or property damage.

3. Do not fill the AirTank with any gas or other flammable substance under

any circumstances.

4. Burst hazard! Store the AirTank indoors. Do not expose the Air Tank to

moisture or excessive heat. Heat and humidity will contribute to corrosion of

the Tank (15). The Air Tank should be examined periodically. If the Tank shows

any evidence of dents, rust, gouges, bulges, or any damage to the welds is noted

the Air Tank should no longer be used.

5. It is recommended that you do not use the AirTank after the DESTROY

DATE shown on the bottom of theTank (15). Never puncture or set fire to an

Air Tank. Contact local solid waste authorities for instructions on correct disposal

or recycling of an Air Tank.

6. Pull the Safety Release Valve Ring (6) prior to operation to ensure the Valve

is operating properly and to clear the Valve of any obstructions.

7. When filling an object with air, beware of possible explosion. The Air Tank is

capable of producing compressed air at high pressure which could cause tires,

toys, or other inflatables to explode.

8. Before each use, always check all connections and joints on the AirTank to

make sure no air leaks are present. Check for air leaks by using soapy water.

9. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding work space. Always keep the area free of obstruc-

tions, grease, oil, trash, and other debris. Do not use the Air Tank in areas near

flammable chemicals, dusts, and vapors.

10. Maintain labels and nameplates on the AirTank. These carry important infor-

mation. If unreadable or missing, contact Harbor Freight Tools for a replacement.

SKU 91064 PAGE 4

12. WARNING! The brass components of this product contain lead, a chemical

known to the State of California to cause birth defects (or other reproductive

harm).

(California Health & Safety Code 25249.5, et seq.)

ASSEMBLY INSTRUCTIONS

SKU 91064 PAGE 5

11. Do not clean the AirTank with cleaners that are combustible or corrosive.

NOTE: For additional references to the parts listed in the following pages, refer to the

Assembly Diagram (page 8).

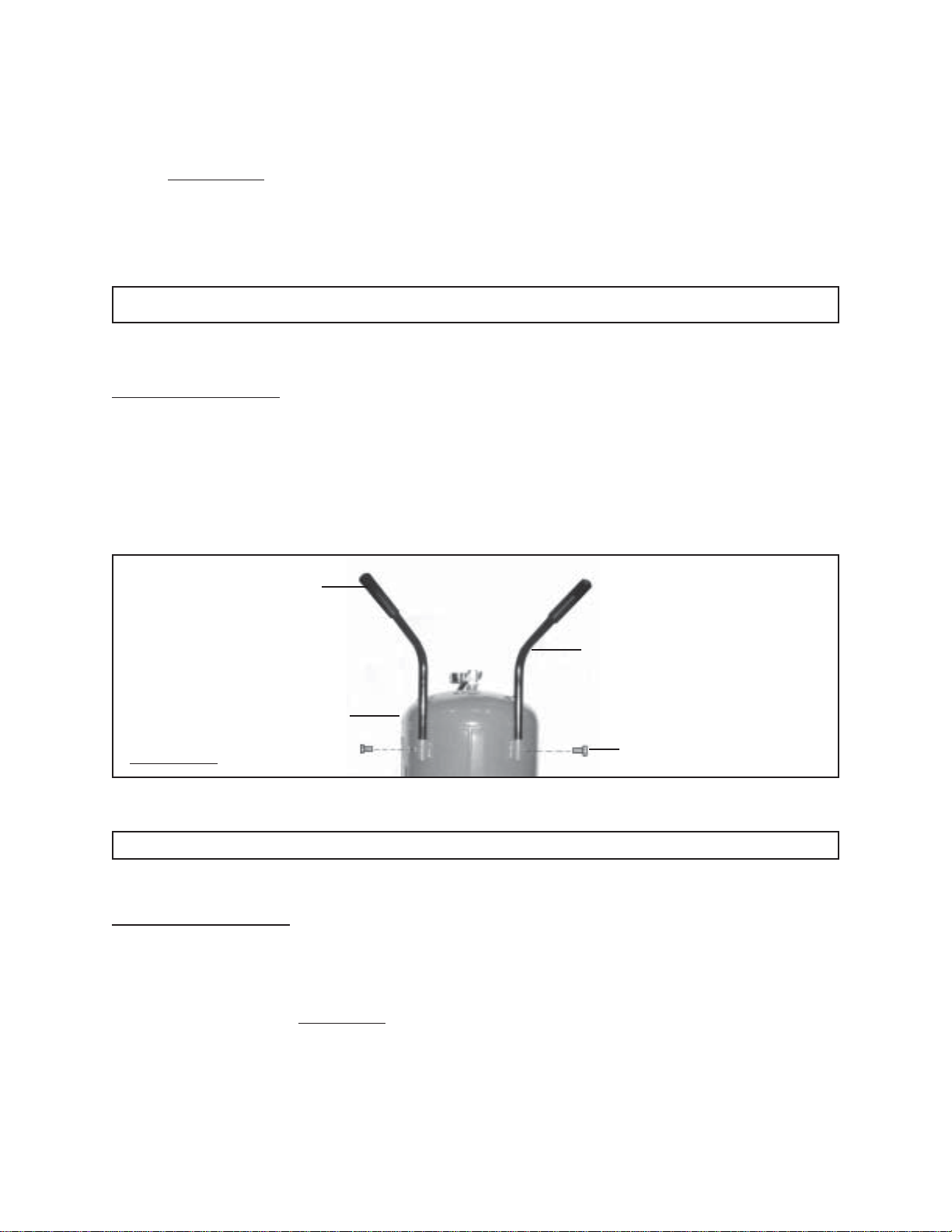

1. Prior to use, the two Handles (17) and Handle Grips (16) must be attached to the

Air Tank. To do so, insert the Handles into the mounting slots located on the

upper portion of the Tank (15). Secure the Handles to the Tank, using the two

Bolts (22). Then, insert the two Handle Grips onto the ends of the Handles.

(See Figure A.)

HANDLE GRIP

(16)

HANDLE

(17)

BOLT

(22)

FIGURE A

TANK

(15)

OPERATING INSTRUCTIONS

1. Close the Air Outlet Knob (1.2) by turning it

clockwise

. Also, make sure to close

the Drain Valve Assembly (1) by turning its Knob

clockwise

(See Figure B, next page.)

2. Attach an air supply hose from a service station or low pressure air compressor

to the Air Inlet Connector (12) of the Air Tank. Then, begin pumping air into the

Air Tank. (See Figure B.)

Filling The Air Tank:

SKU 91064 PAGE 6

3. Closely monitor the Pressure Gauge (14) as you fill the Tank (15). Continue

filling the Tank to 125 PSI maximum. Then, disconnect the air supply hose

from the service station or low pressure air compressor. (See Figure B.)

Inflating From The Air Tank:

1. WARNING! Prior to inflating a toy, tire, or other object, make sure you are aware

of the proper air pressure rating (PSI) of the object to be inflated. Follow the

manufacturer’s recommended PSI for the object being inflated. Never over

inflate or under inflate the object.

2. Attach the

Air Chuck

of the Air Hose (5) to the air inlet connector of the inflatable

object. (See Figure B.)

3. Open the Air Outlet Knob (1.2) by turning it

counterclockwise

. Air will now begin

to flow out of the Air Tank into the inflatable object. (See Figure B.)

4. Frequently check the air pressure of the inflatable object. To do so, close the

Air Outlet Knob (1.2) by turning it

clockwise

. Disconnect the

Air Chuck

of the Air

Hose (5) from the air inlet connector of the inflatable object. Use an air pressure

gauge (not included) to check the air pressure of the inflatable object.

(See Figure B.)

5. If necessary, repeat Steps #2, #3, #4 above until the inflatable object is filled with

air to its proper PSI rating.

6. When finished filling the inflatable object, close the Air Outlet Knob (1.2) by

turning it

clockwise

. Disconnect the

Air Chuck

of the Air Hose (5) from the air

inlet connector of the inflatable object. (See Figure B.)

7. NOTE: When the operating pressure drops below 85 PSI, it is recommended to

refill the Air Tank to its maximum 125 PSI operating pressure rating.

AIR HOSE

(5)

AIR CHUCK

TOP VIEW

BOTTOM VIEW

PRESSURE GAUGE (14)

AIR INLET CONNECTOR (12) FIGURE B

DRAIN VALVE ASSEMBLY (1)

AIR OUTLET

KNOB (1.2)

INSPECTION, MAINTENANCE, AND CLEANING

1. Before each use, inspect the general condition of the Air Tank. Check the Air

Tank for loose connections and joints, cracked, bent, or broken parts, damaged

Air Hose, damaged Tank, and any other condition that may affect the safe opera-

tion of the Air Tank. If a problem occurs, have the problem corrected before

further use. Do not use damaged equipment.

2. Daily: Slowly open the Drain Valve Assembly (1) by turning its Knob

counter-

clockwise

, and allow all moisture to drain from the Tank (15). Next, close the

Drain Valve Assembly by turning its Knob

clockwise

. Then, refill the Air Tank to

its maximum 125 PSI operating pressure rating.

3. When cleaning, use only water and a mild detergent. Then dry. Do not use

cleaners that are combustible or corrosive.

SKU 91064 PAGE 7

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN

THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES

ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO

MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF

THE PRODUCT. IN FACT, THE MANUFACTUER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL

REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNI-

CIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR

HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS

OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

PARTS LIST

Part

#Description Qt

. Part

#Description Qt

1 Drain Valve Assembly 2 9 Rod 1

1.1 Retaining Ring 2 10 Seal Washer 1

1.2 Air Outlet Knob 2 11 Core 1

1.3 Nut 2 12 Air Inlet Connecto

1.4 O-Ring 2 13 Valve Body 1

1.5 Rod 2 14 Pressure Gauge 1

1.6 Base 2 15 Tank 1

2 Cover 1 16 Handle Grip 2

3 Core 1 17 Handle 2

4 Seal Washer 1 18 Wheel 2

5 Air Hose 1 19 Bearing 2

6 Safety Release Valve 1 20 Washer 4

7 Nut 1 21 Retaining Ring 2

8 Spring 1 22 Bolt 2

NOTE: Some parts are listed and shown for illustration purposes only, and are not

available individually as replacement parts.

SKU 91064 PAGE 8

ASSEMBLY DIAGRAM

Indice

Altri manuali Central Pneumatic Altro

Central Pneumatic

Central Pneumatic 65594 Manuale utente

Manuali Altro popolari di altre marche

GO Industries

GO Industries 38017 Manuale utente

Cissell

Cissell 30LBCMAN2 Manuale utente

RIDGID

RIDGID K-60SP Manuale utente

Gage Bilt

Gage Bilt GB751SH-5 Manuale utente

OVE

OVE SIERRA 60 Manuale utente

ReelCraft

ReelCraft 7800 OLB21 Manuale utente

Body Armor 4x4

Body Armor 4x4 ECO-SERIES Manuale utente

ROBLIN

ROBLIN DROP Guida utente

EMG

EMG EMG-ACB BARREL Manuale di servizio

MiniSolar

MiniSolar MT-150 Manuale utente

Parkside

Parkside PSZ 250 B2 Manuale utente

ABB

ABB REM 610 Manuale del prodotto

Parkside

Parkside 55992 Manuale del proprietario

Skyjacker

Skyjacker F250 Manuale utente

IBM

IBM IBM SYSTEM Z Guida all'installazione

Grech Motors

Grech Motors G28 Manuale utente

NOVAK

NOVAK BATTERY CARE SHEET Guida

Telemotive

Telemotive blue PiraT Mini Guida utente
