Central Pneumatic 92849 Manuale utente

1/4” Air Ratchet Wrench1/4” Air Ratchet Wrench

1/4” Air Ratchet Wrench

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor FreightTools.

For technical questions and replacement parts, please call 1-800-444-3353

92849

SKU92849 Page 2

Specifications

Save This Manual

You will need the manual for the safety warnings and precautions, assembly

instructions, operating and maintenance procedures, parts list and diagram. Keep

your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep the manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be fol-

lowed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in

damp or wet locations. Don’t expose to rain. Keep work area well lit. Do not

use electrically powered tools in the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do

not let them handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry

location to inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job.Do not attempt to force a small tool or

attachment to do the work of a larger industrial tool.There are certain

applications for which this tool was designed.It will do the job better

and more safely at the rate for which it was intended.Do not modify this

tool and do not use this tool for a purpose for which it was not intended.

:noitcurtsnoC htiwydoBmunimulatsaC tehctaRleetSdenihcaM deepSgnitarepO :euqroTdna isp09tampr052 euqrotdellortnoCrotalugeR

:noitpmusnoCriAMFCS5.31:euqroT).W.C.C(sbl/tf13).W.C(sbl/tf33

:eziStelnIriATPN81-"4/1:evirDerauqS"4/1

:snoisnemiDllarevO.aiD"2/1-1xH"4/1-2xL"2/1-8:thgieWteN.sbL6.1

:erusserPgnikroW.xaMisp09:noitceriDgnitarepOelbisreveR

SKU92849 Page 3

6. Dress properly while working. Do not wear loose clothing or jewelry as

theycanbe caughtinmoving parts. Protective,electricallynon-conductive

clothesandnon-skidfootweararerecommendedwhenworking. Wear

restrictivehair covering to contain long hair.

7. Use eye and ear protection. Always wear ANSI approved impact safety

goggles.Wear a full face shield if you are producing metal filings or wood

chips.WearanANSIapproveddustmaskor respirator when working around

metal, wood, and chemical dusts and mists.

8. Do not overreach. Keep proper footing and balance at all times. Do not

reachoveroracrossrunningmachines.

9. Maintain tools with care. Keep tools clean and in good condition for better

andsaferperformance.Followinstructionsforlubricating and changing

accessories.Inspect tool fittings and hosesperiodically and, if damaged,have

them repaired by an authorized technician. The handles must be kept clean,

dry, and free from oil and grease at all times.

10. Disconnect power.Disconnect from air pressure source when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting

wrenchesareremovedfromthe tool or machine worksurfacebefore

connecting it.

12. Avoid unintentional starting. Be sure the switch is in the Off position when

not in use and before attaching to pressure source. Do not carry any tool with

your finger on the trigger, whether it is attached or not.

13. Stay alert. Watch what you are doing, use common sense. Do not operate

any tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

damaged should be carefully checked to determine that it will operate

properly and perform its intended function.Check for alignment and binding

of moving parts;any broken parts or mounting fixtures;and any other

condition that may affect proper operation.Any part that is damaged should

be properly repaired or replaced by a qualified technician.Do not use the tool

if any switch does not turn On and Off properly.

15. Guard against electric shock when working on electrical equipment.

Preventbodycontact with grounded surfacessuchas pipes, radiators,

ranges,andrefrigerator enclosures.

SKU92849 Page 4

16. Replacement parts and accessories. When servicing, use only identical

replacement parts.Use of any other parts will void the warranty.Only use

accessoriesintended for use with this tool. Approvedaccessories are

availablefromHarborFreightTools.

17. Do not operate tool if under the influence of alcohol or drugs. Read

warning labels on prescriptions to determine if your judgment or reflexes are

impaired while taking drugs. If there is any doubt, do not operate the tool.

18. Use proper size and type air pressure line and fittings. The recommended

air line for this tool is 3/8” delivering no more than 90 psi. Recommended air

inlet size is 1/4” - 18 npt.

19. Maintenance. For your safety, service and maintenance should be performed

regularlybyaqualified technician.

20. You should maintain a proper regulator and moisture trap in your air

line at all times.

21. Use compressed air only. Never use combustible gas as a power source.

Note:Performance of this toolmayvarydependingonvariations in localairpressure.

Warning:The warnings,cautions,andinstructions discussed inthisinstruction

manual cannot cover all possible conditions and situations that may occur.It

mustbe understood bythe operatorthat common senseand cautionare factors

which cannot be built into this product,but must be supplied by the operator.

Air Pressure Supply

We recommend that you use both a filter and an in-line oiler in your air supply

system as illustrated in the diagram below.These components are not included

with this tool, abut are available from Harbor FreightTools.

We recommend that you install a quick-release nipple (not included) into the Inlet

Connector (15). Quick release connectors at all points that a hose attaches to your

compressor set up and your tools make working with air powered tools easier and

moreconvenient.

Air Impact

Wrench

SKU92849 Page 5

Operation

1. Install a standard 1/4” Air Connector (not included) to the Air Inlet (15). First

wrapthethreaded portion of the 1/4”air connector with pipe threadseal tape

before threading it into the Air Inlet (15).Tighten securely.

2. Attach a standard quick connector (not included) to your 3/8” i.d. air pressure

source hose. Then attach the air hose to the Air Ratchet Wrench.

NOTE:If you are not using an automatic in-line oiler, add a few drops of pneumatic

oil to the Air Inlet (15) before attaching the air hose. Add a few more drops of oil

aftereveryhourofcontinualuse.

2. Set the air pressure regulator of your air compressor at 90 psi.

WARNING: Donot exceedthe recommended pressure of 90 psi.Damage to your

tool, and possible personal injury may result.

3. Check the air line and its connections for air leaks. Make note of these, and

repairthembefore using this tool.

NOTE: Turnoffyouraircompressoranddisconnecttheairpressurehosebefore

changing sockets or making any adjustments to this tool. Severe injury or property

damagemayotherwiseresult.

WARNING:This tool generates considerable torque when in use.Always hold the

tool with both hands when using, and brace yourself to resist the torque which will

bedeliveredtothework piece.

4. Selecttheappropriatesize 1/4” square driveimpact socket (not included) for

your needs. Push and snap the socket onto the Ratchet Anvil (42). Caution:

Use only impact sockets. Standard sockets are not strong enough.

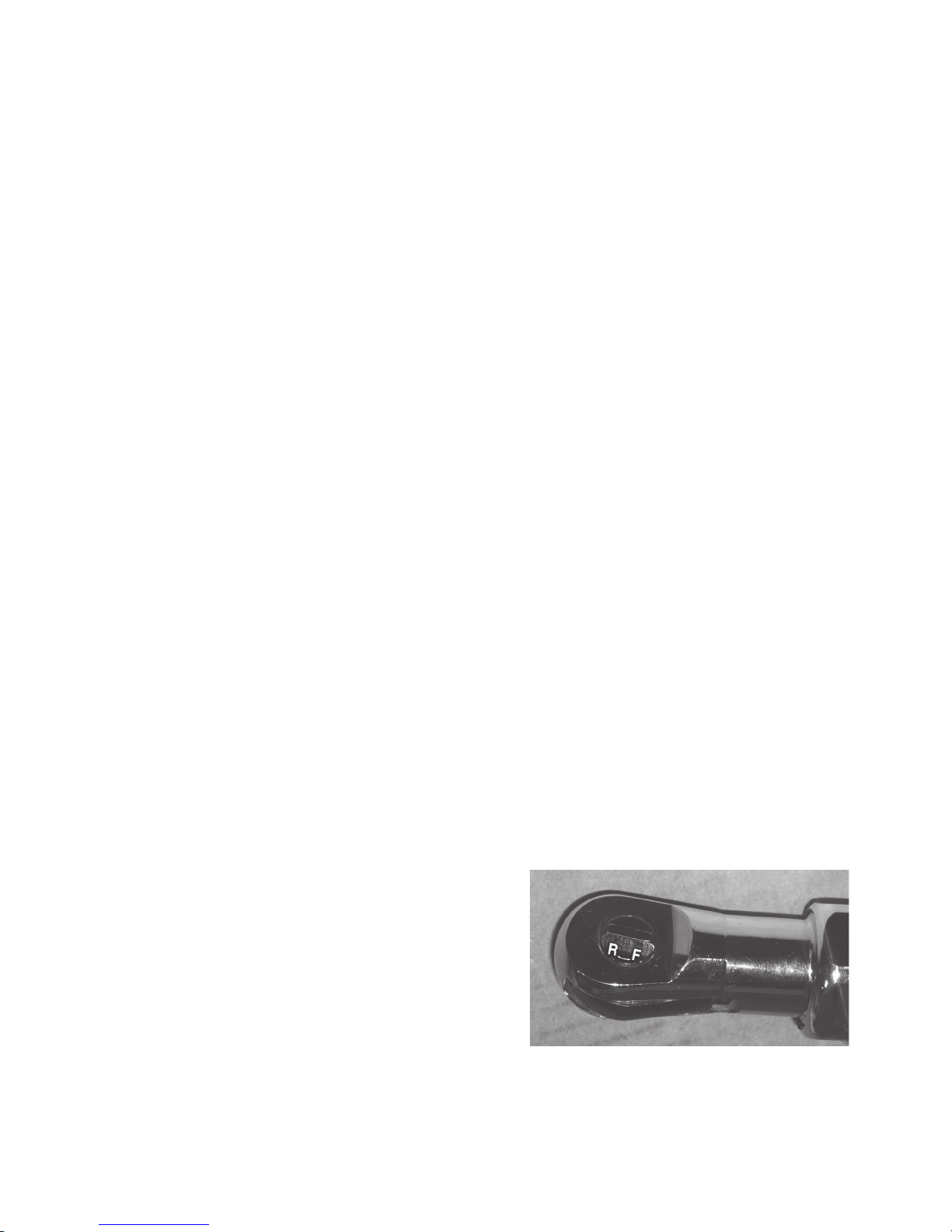

5. Setthedirectionof the Air Impact Wrenchto“F” (forward) or “R” (reverse).

Please see photo. By rotating the Reverse Button (38) to the right, you are

setting the tool to operate FORWARD.

NOTE:Inthis booklet, “FORWARD” refers to

clockwiserotation, and “REVERSE” refers to

counterclockwiserotation.Alwaysbe aware

ofthedirection of the threading ofthe

fastener you are working on. While most

fasteners install with clockwise rotation,

somethreadsare intentionally the opposite

ofthis standard.

SKU92849 Page 6

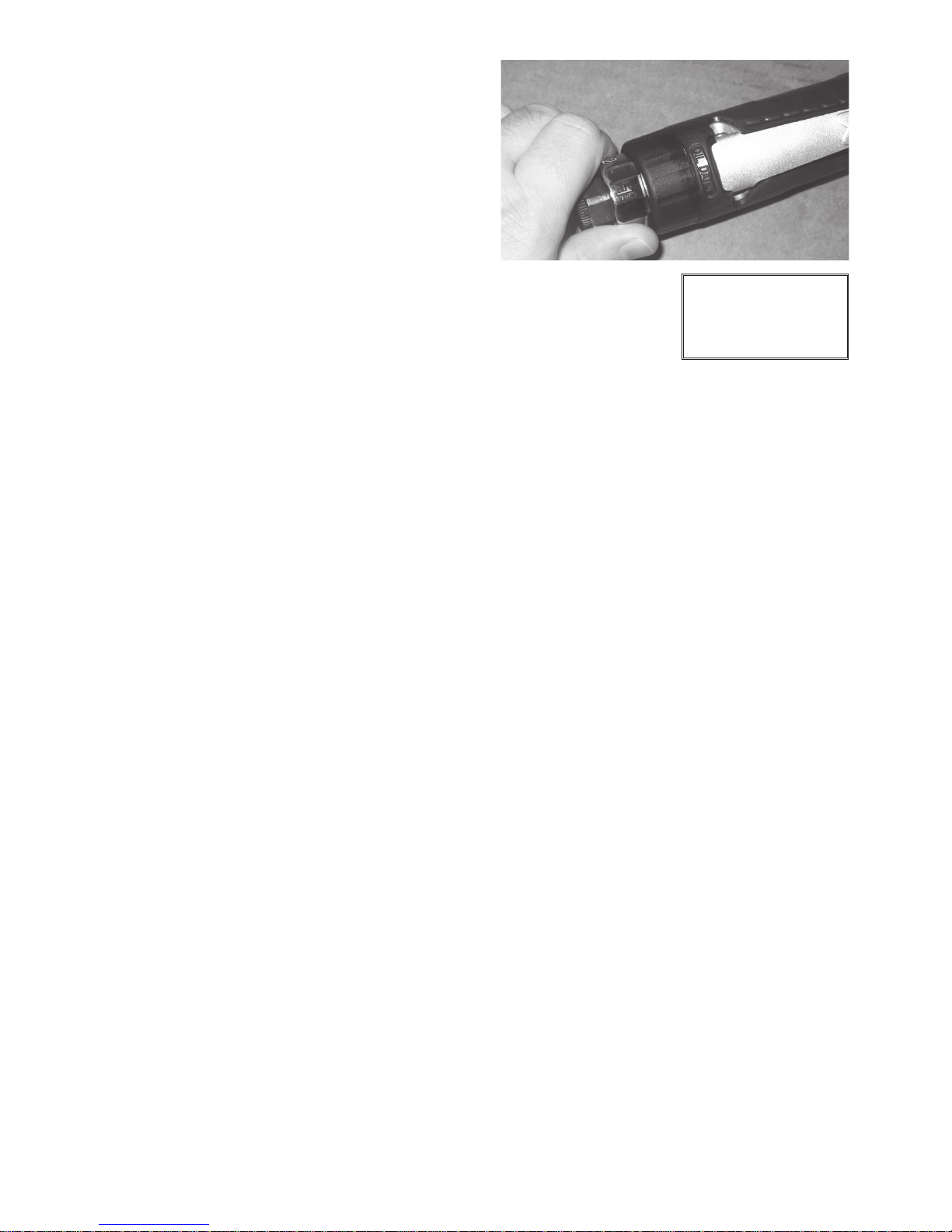

6. Adjust the Air Regulator (13) to the

desiredtorquesetting.NOTE: The

actualtorquedeliveredateachofthe

severaltorquesettingswilldepend

on the air pressure supplied to the

tool. We suggest that you test the

actual torque by tightening a nut or

bolt on a test piece using each

setting,thenobservingtheresultant

torquebyusinga mechanical torque wrench (notsupplied).

7. If installing a nut or bolt, set it as tight as possible by hand.

8. Place the impact socket (not included) over the fastener.Grip the Air Ratchet

Wrench tightly with both hands, and squeeze the trigger (8). The tool will

operateand tightenthefastener.

9. Whenthefasteneris tightened, release the Trigger (8), andremovethe tool

fromthefastener.

10. If possible, check the actual torque applied to the fastener with a mechanical

torquewrench(notsupplied).Ifadditionaltorqueis required beyond what is

deliveredbyusingairpressure,the fastener may be further tightened using

this tool in the manner of a standard ratchet wrench.

11. Ifremovinga fastener,rotatetheReverseButton(38)counterclockwise,

assuming that the fastener is a standard right-hand thread. Always check to

besure of the thread direction of any fastener before attempting to install or

removeit.If the fastener is a left-handthread,turn the Reverse Button (38)to

therightfor removal.

12. Placean appropriateimpact socket(notincluded)overthefastener.Holding

theAirRatchet Wrench with both hands,squeeze the Trigger (8). Thefastener

shouldcomeoff.

WARNING: If the fastener will not come off, first check to be sure of the

direction of the thread. If you have the thread direction correct and the

fastener will not come off, DO NOT INCREASE THE AIR PRESSURE to the

tool beyond 90 psi.This may damage the tool.You may have to use pen-

etrating oil, heat, or a mechanical wrench to remove the fastener.

13. When you are done using this tool, turn off the air compressor, and disconnect

the air hose. Put the Air Ratchet Wrench away in its proper storage place.

Note: Never over-

tighten the nut or bolt;

damage may result

from over-tightening.

SKU92849 Page 7

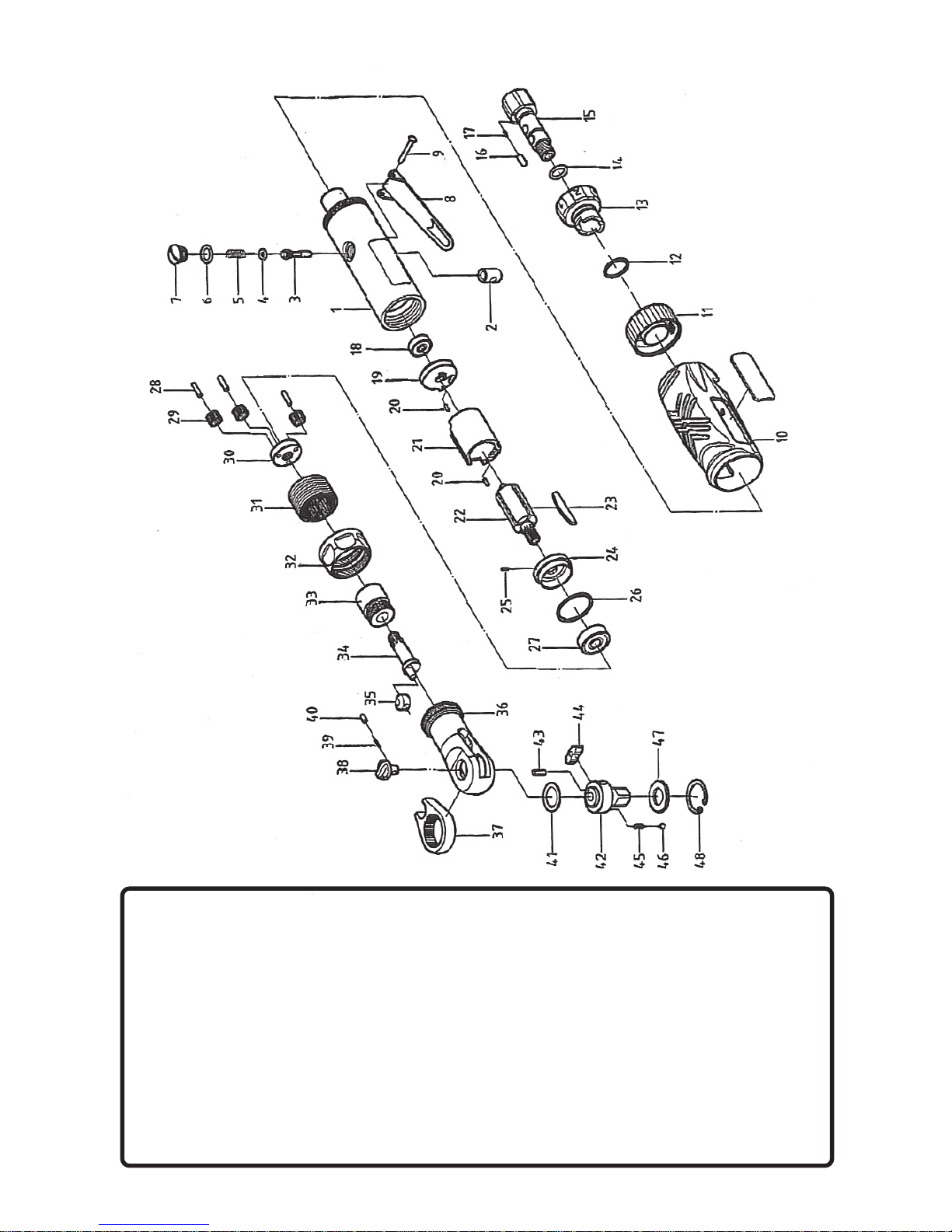

Parts List

NOTE: Some parts are listed and shown for illustration purposes only and are not

available individually as replacement parts.

#traPnoitpircseD.ytQ#traPnoitpircseD.ytQ

1gnisuoH152niP1

2gnihsuBevlaV162gniR1

3metSevlaV172gniraeB1

4gnir-O182niP3

5gnirpS192raeG3

6gnir-O103etalPraeG1

7gulPevlaV113raeGgniRdaerhT1

8reggirT123paC1

9niPreggirT133gniraeBeldeeN1

01revoCeldnaH143tfahsknarC1

11revoCrelffuM153gnihsuBevirD1

21gnir-O163gnisuoHtehctaR1

31rotalugeRriA173ekoYtehctaR1

41gnir-O183nottuBesreveR1

51telnIriA193gnirpS1

61niPteS104niPteS1

71gnirpS114rehsaW1

81gniraeB124livnAtehctaR1

91etalPdnE134niP1

02niP244lwaPtehctaR1

12rednilyC154gnirpS2

22rotoR164llaBleetS2

32edalBrotoR474rehsaW1

42etalPtnorF184gniRreniateR1

Maintenance

1. Your Air Ratchet Wrench should be kept clean, dry and lightly oiled.

2. When not in use, store your tool in a suitable place where it will not be

exposedto water, corrosivematerials,or undue banging around.

3. If you are not using an in-line oiler, you should inject a few drops of pneumatic

oil into the air inlet of the tool after every hour of continuous use.

4. If your tool loses power, or you notice air leaks, take it to a certified technician

forservice.

SKU92849 Page 8

PLEASE READTHE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER

NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO

THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE

PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE

PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATESTHATALLREPAIRSANDPARTSREPLACEMENTSSHOULDBEUNDERTAKENBY

CERTIFIEDANDLICENSEDTECHNICIANSANDNOTBYTHEBUYER.THEBUYERAS-

SUMESALLRISK ANDLIABILITYARISINGOUTOFHISORHERREPAIRSTOTHEORIGI-

NALPRODUCTORREPLACEMENTPARTSTHERETO,ORARISINGOUTOFHISORHER

INSTALLATIONOFREPLACEMENTPARTSTHERETO.

Assembly Drawing

Indice

Altri manuali Central Pneumatic Utensili elettrici

Central Pneumatic

Central Pneumatic Contractor 90399 Manuale utente

Central Pneumatic

Central Pneumatic 67473 Manuale di installazione

Central Pneumatic

Central Pneumatic 54753 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 96661 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 167 Manuale utente

Central Pneumatic

Central Pneumatic 68018 Manuale di installazione

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 68128 Manuale di installazione

Central Pneumatic

Central Pneumatic 47214 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 68426 Manuale utente

Central Pneumatic

Central Pneumatic 91107 Manuale utente

Central Pneumatic

Central Pneumatic Contractor 93197 Manuale utente

Central Pneumatic

Central Pneumatic Earthquake 65159 Manuale di installazione

Central Pneumatic

Central Pneumatic Contractor 46365 Manuale utente

Central Pneumatic

Central Pneumatic 66886 Manuale di installazione

Central Pneumatic

Central Pneumatic 66984 Manuale utente

Central Pneumatic

Central Pneumatic 95098 Manuale utente

Central Pneumatic

Central Pneumatic 95801 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 66874 Manuale di installazione

Central Pneumatic

Central Pneumatic 93048 Manuale utente

Central Pneumatic

Central Pneumatic 65902 Manuale di installazione

Central Pneumatic

Central Pneumatic Central Pneumatic 1/4" Stubby Air Ratchet... Manuale utente

Central Pneumatic

Central Pneumatic 95119 Manuale di installazione

Central Pneumatic

Central Pneumatic 54700 Manuale utente

Central Pneumatic

Central Pneumatic 93216 Manuale utente

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
