Centre Point CP-ISP10 Manuale utente
CP-ISP10
INSPECTION CAMERA
INSTRUCTION MANUAL
2
Read the following safety instructions
before attempting to operate this
product.
Keep these instructions in a safe place
for future reference.
SAVE ALL WARNINGS AND
INSTRUCTIONS FOR FUTURE
REFERENCE.
WARNING!
Read and understand all
instructions.
• Use only accessories that are
recommended for your model.
• Tool service must be performed
only by qualified repair personnel.
Repairs, service or maintenance
performed by unqualified personnel
will void the warranty. Only approved
and authorised service technicians
can carry out warranty repairs.
• Position the tool securely on a
level surface. Damage to the tool
or serious injury could result if the
tool falls.
!
Safety
3
WARNING!
Do not disassemble the tool
There are no user serviceable parts
inside. Disassembling the tool will void
all warranties on the product. Do not
modify the product in any way.
!
4
Please ensure the following items are
included with your inspection camera.
If anything is missing please contact
your retailer.
Centre Point CP-ISP10
Rubber cap
Item Checklist
5
Camera cable
Magnet
Hook
Mirror
6
Inspection Camera
Overview
7
LCD screen
Battery compartment
Power
Power indicator
Camera connection point
Low battery indicator
Screen rotation
Contrast control
Brightness control
8
POWER SUPPLY
• The CP-ISP10 is powered by four
AA batteries
Battery replacement
• Remove the battery door cover.
• Remove the batteries from the
battery case.
• Insert the new batteries according
to polarity and insert the battery
case.
• Replace the battery door cover.
Using Your
Inspection Camera
9
Open the battery door
Remove the battery compartment
Insert the batteries according to polarity
10
Align the keyed tube with the
slot in the handle
Push and rotate clockwise to
secure in place
SETTING UP

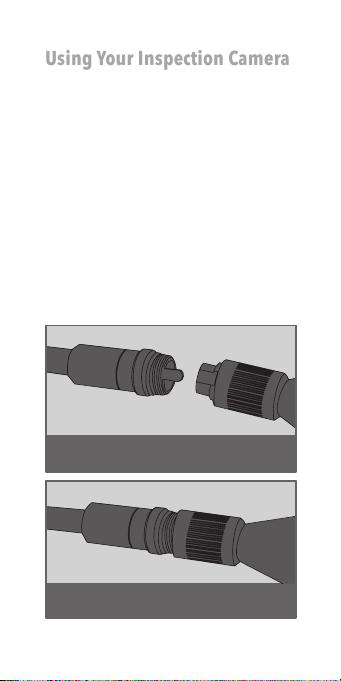

Attaching the camera cable
• To attach the camera cable to the
monitor, make sure the keyed end
of the tube is aligned with the slot in
the handle.
• Push together with slight force and
twist clockwise to connect securely
in place.
Using Your Inspection Camera
